T4-0010 Switch

Part#: T4-0010 NSN: 5930-01-115-9238

About this product T4-0010 Switch. * Manufacturer certifications are shipped with your order FREE of charge

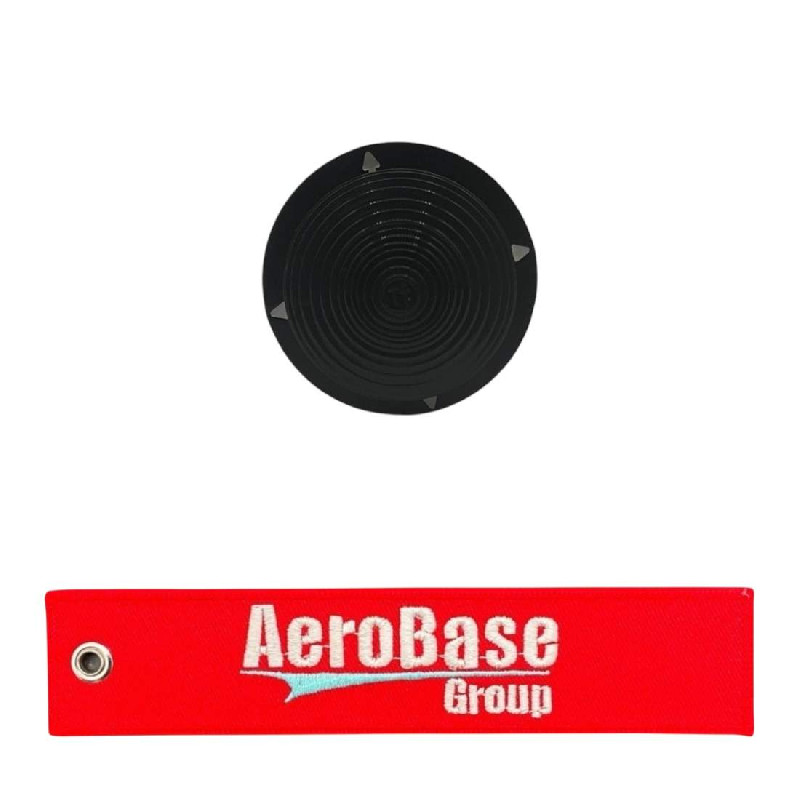

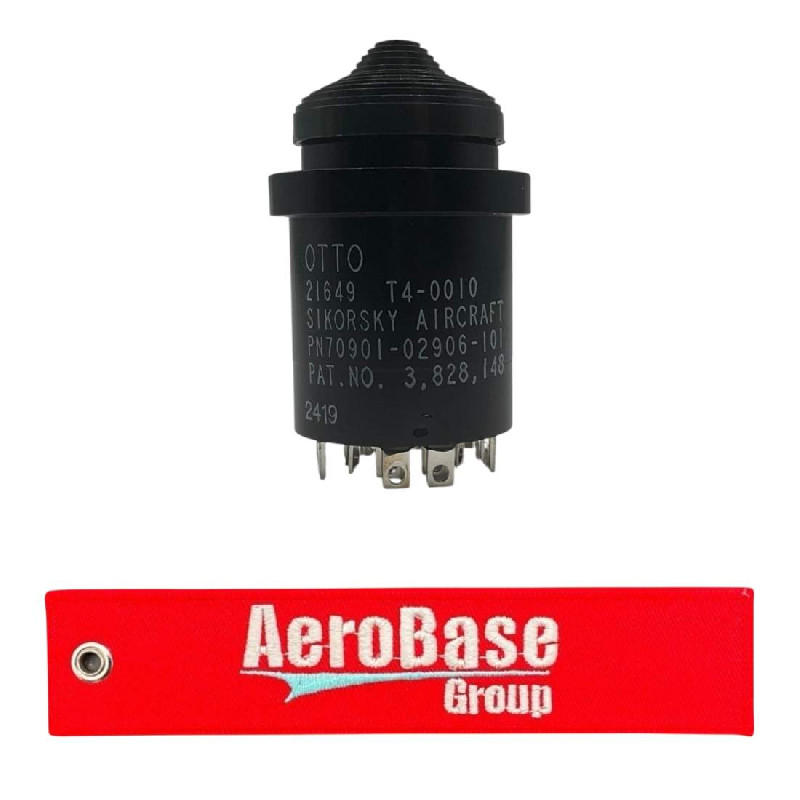

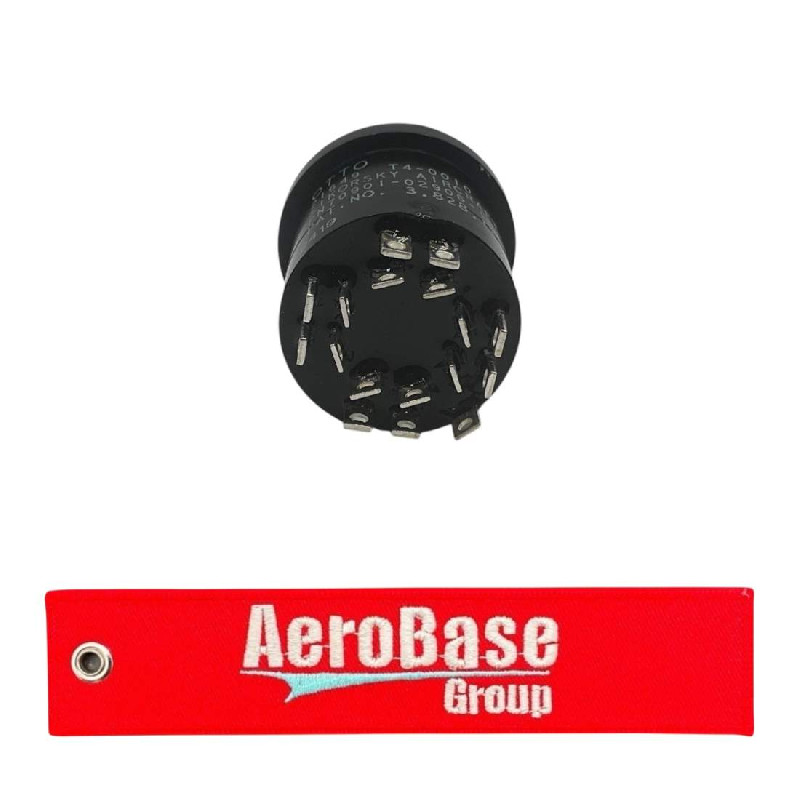

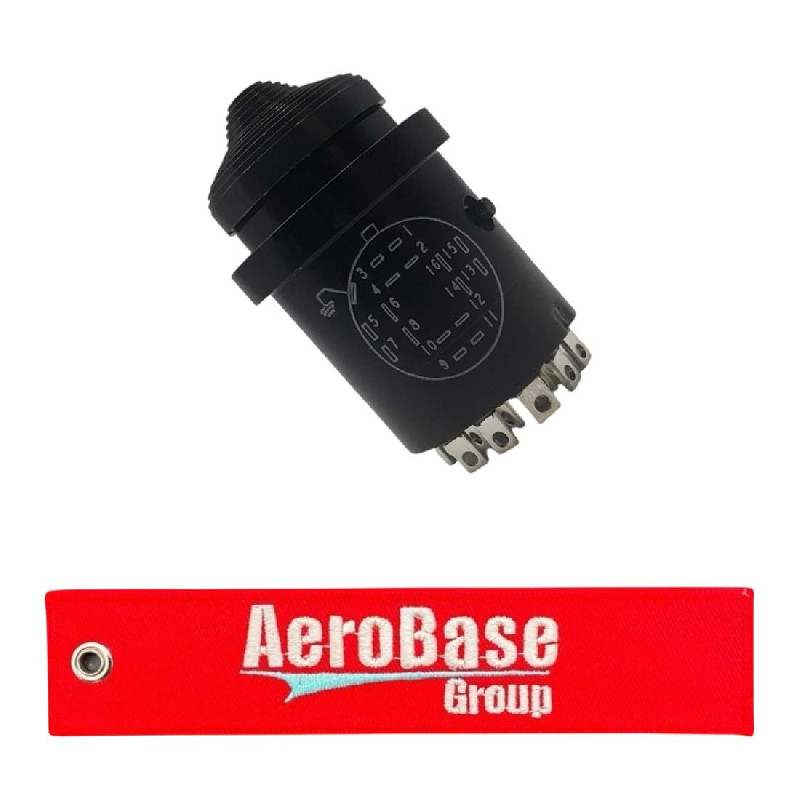

Product Images
T4-0010 T4-0010 T4-0010 T4-0010

Product Details

Part Number or Model T4-0010
Description Switch
Schedule B Class
ECCN (Export Control Class) EAR99
Actuator Color Black single actuator
Actuator Diameter 0.938 inches nominal
Actuator Position-action Relationship Up position maintained and down position maintained and center position maintained
Actuator Style Round, stepped
Body Diameter 1.156 inches nominal
Body Length 0.953 inches nominal
Body Style Hole mount
Contact Load Current Rating At Maximum Rated Voltage 5.000 amperes resistive dc and 3.000 amperes inductive dc
Hazardous Locations/environmental Protection Dustproof
Inclosure Type Fully inclosed
Maximum Voltage Rating In Volts 30 dc
Nonpile-up Contact Arrangement 4 four way single switch unit
Overall Height 1.156 inches nominal
Overall Length 1.926 inches nominal
Overall Width 1.156 inches nominal
Terminal Type And Quantity 17 tab, solder lug

Add to Cart

Up to quantity 2 ships same day.
buy now $694.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5930-01-115-9238
  • Manufactured By
    Otto
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
