MS27257-1 Sensitive Switch

Part#: MS27257-1 NSN: 5930-00-420-8517

About this product MS27257-1 Sensitive Switch. * Manufacturer certifications are shipped with your order FREE of charge

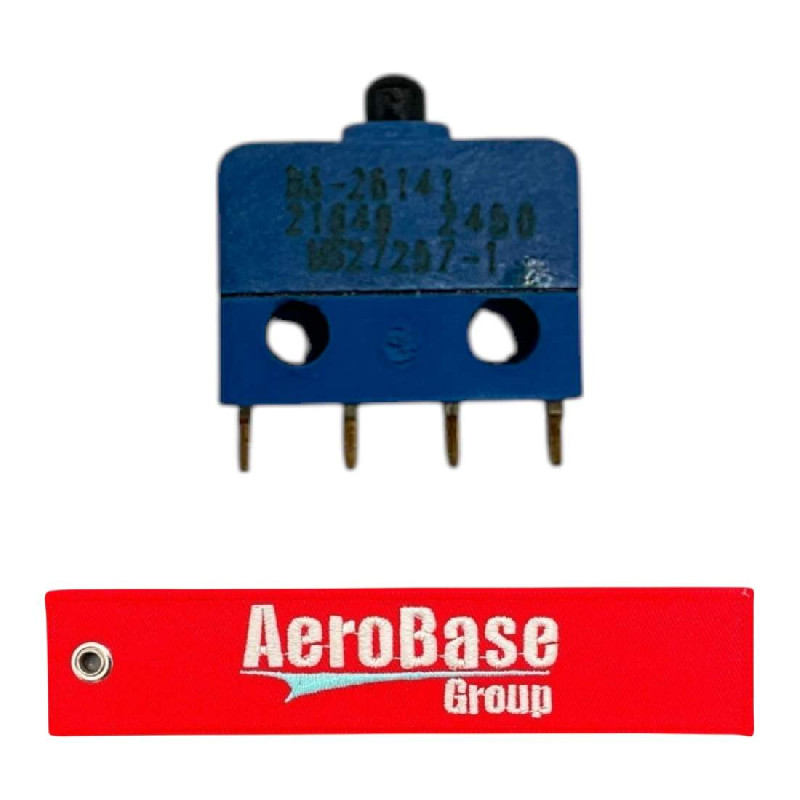

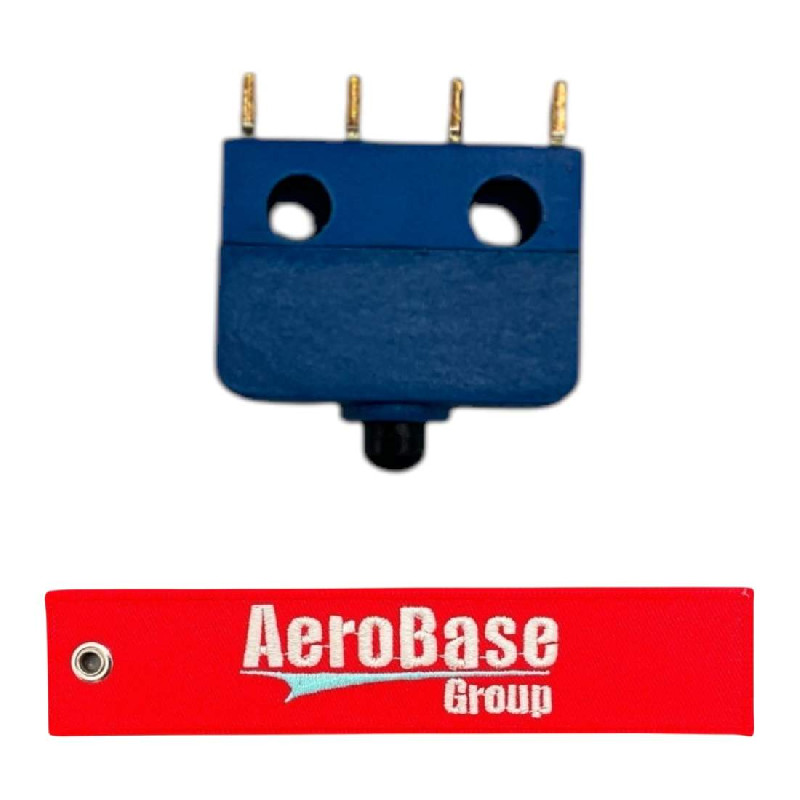

Product Images
MS27257-1 MS27257-1

Product Details

Part Number or Model MS27257-1
Description Sensitive Switch
Schedule B Class
ECCN (Export Control Class) EAR99
Actuator Movement 0.035 pretravel inches maximum and 0.004 overtravel inches minimum and 0.010 differential inches minimum
Actuator Height 0.065 inches nominal
Actuator Diameter 0.088 inches minimum and 0.098 inches maximum
Actuator Free Position Height 0.085 inches minimum and 0.095 inches maximum
Actuator Style Round
Body Height 0.335 inches minimum and 0.365 inches maximum
Body Length 0.510 inches maximum
Body Style Hole mounted
Body Width 0.190 inches minimum and 0.210 inches maximum
Center To Center Distance Between Mounting Facilities Parallel T 0.279 inches minimum and 0.283 inches maximum
Contact Load Current Rating At Maximum Rated Voltage 8 amperes resistive dc and 5 amperes inductive dc and 5.000 amperes motor dc
Inclosure Type Fully inclosed
Maximum Voltage Rating In Volts 28 dc
Mounting Method Unthreaded hole
Nonpile-up Contact Arrangement 1 pole, double throw, both positions maintained single switch unit
Overall Height 0.4 inches maximum
Overall Length 0.51 inches maximum
Switch Actuating Force 8 ounces maximum
Switch Release Force 8 ounces minimum
Terminal Type And Quantity 3 tab, solder lug
Test Data Document 81349-mils8805-76a specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as
Unthreaded Mounting Hole Diameter 0.132 inches minimum and 0.162 inches maximum
