MS27217-1 Sensitive Switch

Part#: MS27217-1 NSN: 5930-00-824-9433

About this product MS27217-1 Sensitive Switch. * Manufacturer certifications are shipped with your order FREE of charge

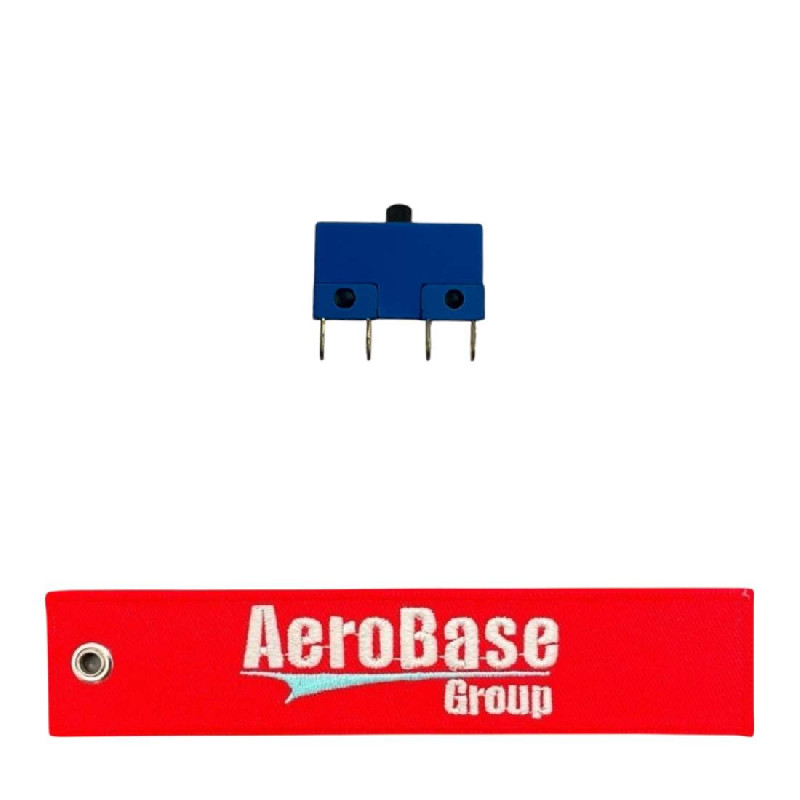

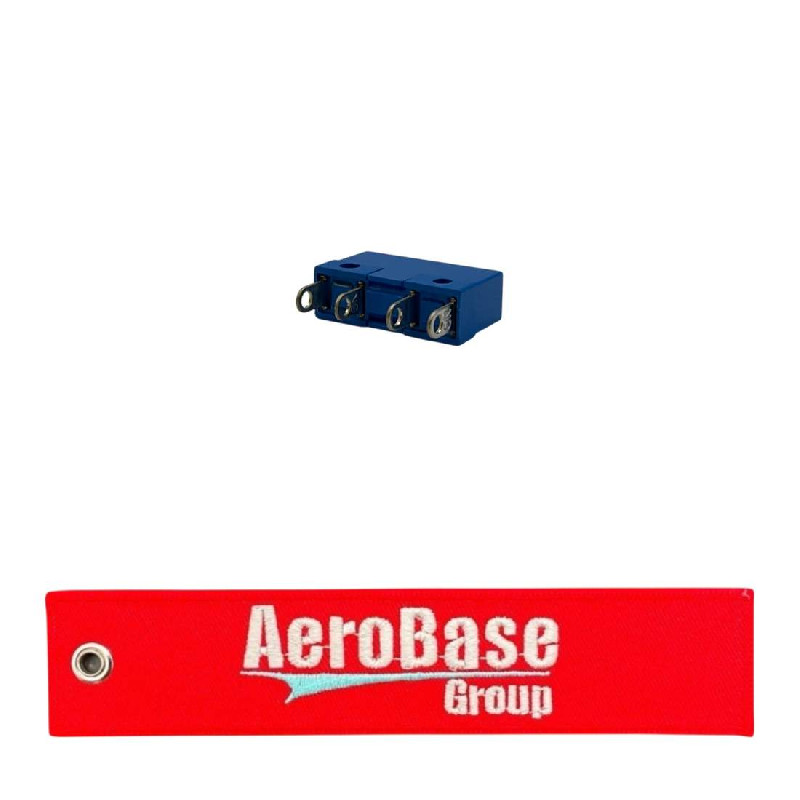

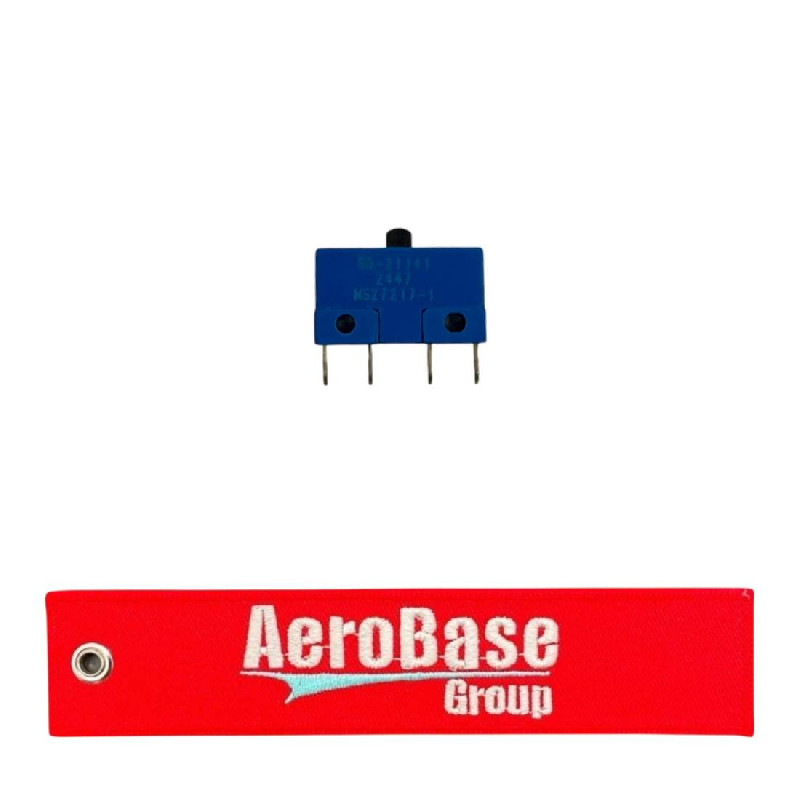

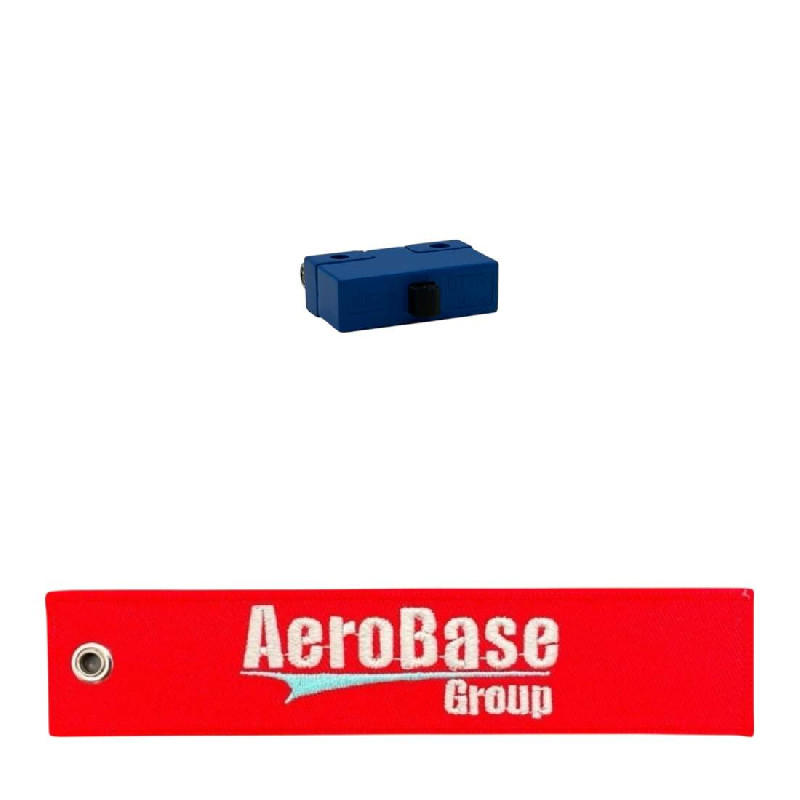

Product Images
MS27217-1 MS27217-1 MS27217-1 MS27217-1

Product Details

Part Number or Model MS27217-1
Description Sensitive Switch
Schedule B Class 8536.50.9050
ECCN (Export Control Class) EAR99
Actuator Free Position Height 0.078 inches minimum and 0.108 inches maximum
Actuator Height 0.078 inches minimum and 0.108 inches maximum
Actuator Length 0.110 inches minimum and 0.140 inches maximum
Actuator Movement 0.426 pretravel inches maximum and 0.466 overtravel inches maximum
Actuator Style Rectangular
Actuator Width 0.110 inches minimum and 0.140 inches maximum
Body Height 0.422 inches minimum and 0.452 inches maximum
Body Length 0.766 inches minimum and 0.796 inches maximum
Body Style Hole mounted
Body Width 0.235 inches minimum and 0.265 inches maximum
Case Material Plastic
Center To Center Distance Between Mounting Facilities Parallel T 0.495 inches minimum and 0.505 inches maximum
Contact Load Current Rating At Maximum Rated Voltage 10 amperes resistive dc and 5 amperes inductive dc and 3.000 amperes lamp dc and 5.000 amperes resistive ac and 5.000 amperes inductive ac and 1.500 amperes lamp ac
Inclosure Type Uninclosed
Maximum Voltage Rating In Volts 115.0 ac and 28.0 dc
Mounting Method Unthreaded hole
Nonpile-up Contact Arrangement 1 two circuit, double break/double make, one position momentary single switch unit
Switch Actuating Force 8.0 ounces maximum
Switch Release Force 8.0 ounces maximum
Terminal Type And Quantity 4 tab, solder lug
Unthreaded Mounting Hole Diameter 0.087 inches minimum and 0.090 inches maximum

Add to Cart

Up to quantity 15 ships same day.
buy now $82.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5930-00-824-9433
  • Package Weight (oz)
    0.288
  • Manufactured By
    Otto
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5930-00-824-9433
  • 5930008249433
  • B5-21141
  • MS272171
