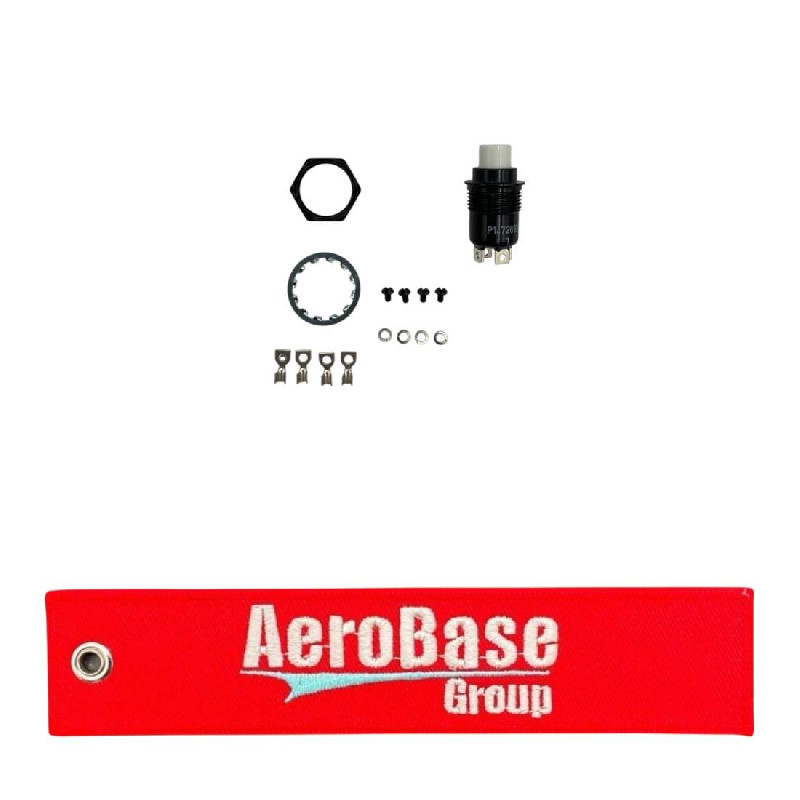

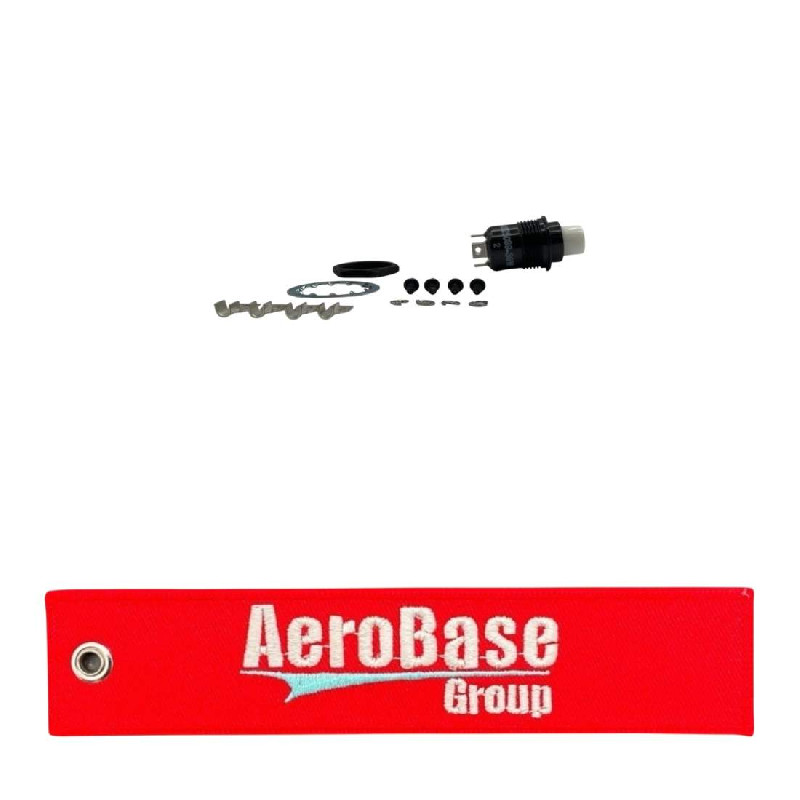

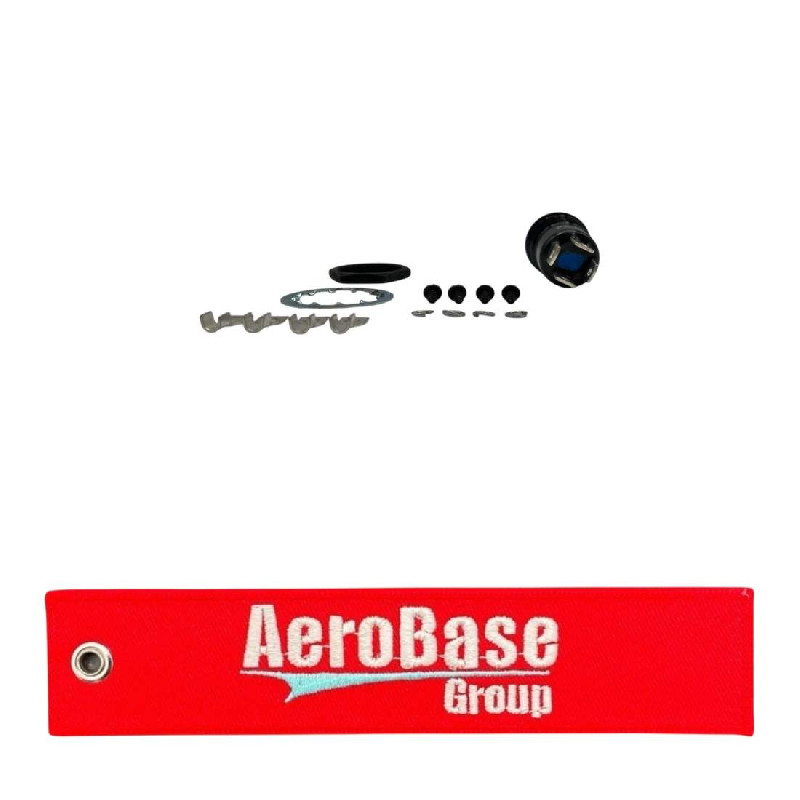

MS25089-3GW Push Switch

Part#: MS25089-3GW NSN: 5930-01-054-7424

About this product MS25089-3GW Push Switch. * Manufacturer certifications are shipped with your order FREE of charge

Product Details

Part Number or Model MS25089-3GW
Description Push Switch
Schedule B Class
ECCN (Export Control Class)
Terminal Type And Quantity 4 tab, solder lug
Specification Data 96906-ms25089 government standard
Overall Width 0.688 inches nominal
Overall Length 1.531 inches maximum
Nonpile-up Contact Arrangement 1 two circuit, one position momentary single switch unit
Overall Height 0.688 inches nominal
Mounting Method Threaded bushing
Maximum Voltage Rating In Volts 115.0 ac and 28.0 dc
Inclosure Type Fully inclosed
Contact Load Current Rating At Maximum Rated Voltage 10.000 amperes resistive dc and 5.000 amperes inductive dc and 3.000 amperes lamp dc and 10.000 amperes resistive ac and 5.000 amperes inductive ac and 3.000 amperes lamp ac
Case Material Metal
Actuator Color White single actuator
Actuator Diameter 0.375 inches nominal
Actuator Height 0.250 inches nominal
Body Diameter 0.625 inches nominal
Body Length 0.954 inches nominal
Body Style Panel mount
Test Data Document 81349-mil-s-8805 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as

Add to Cart

Up to quantity 8 ships same day.
buy now $39.50
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5930-01-054-7424
  • Manufactured By
    Otto
  • ECCN (Export Control Class)
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
