M8805/1-004 Switch

Part#: M8805/1-004 NSN: 5930-00-998-6910

About this product M8805/1-004 Switch. * Manufacturer certifications are shipped with your order FREE of charge

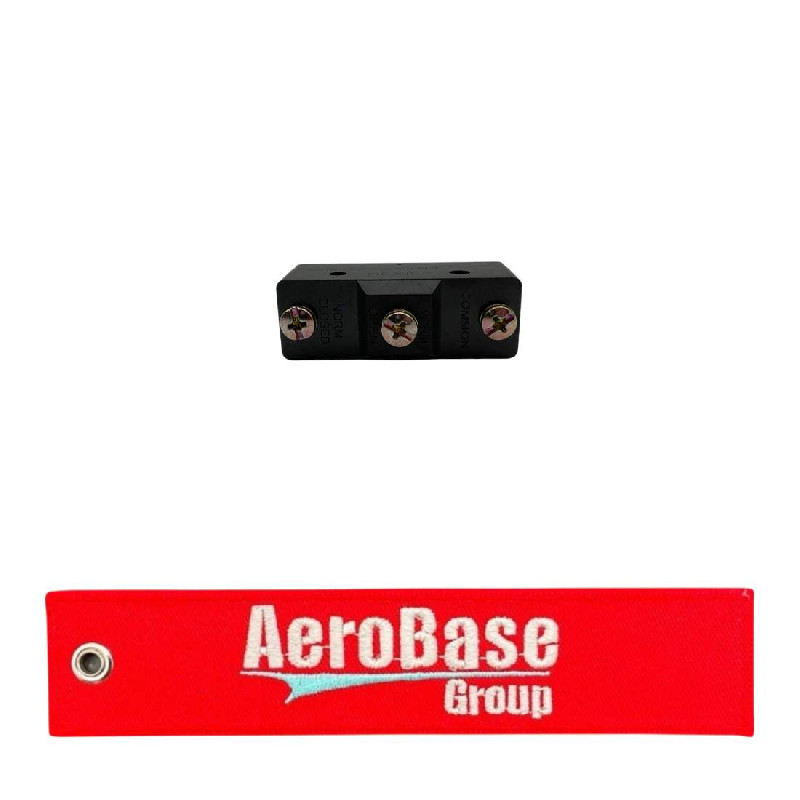

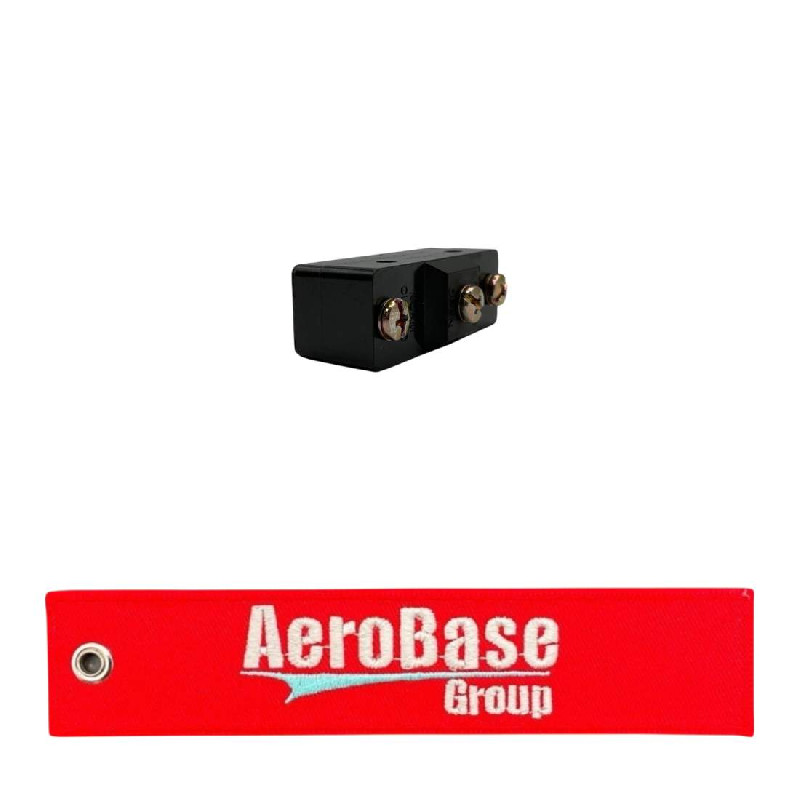

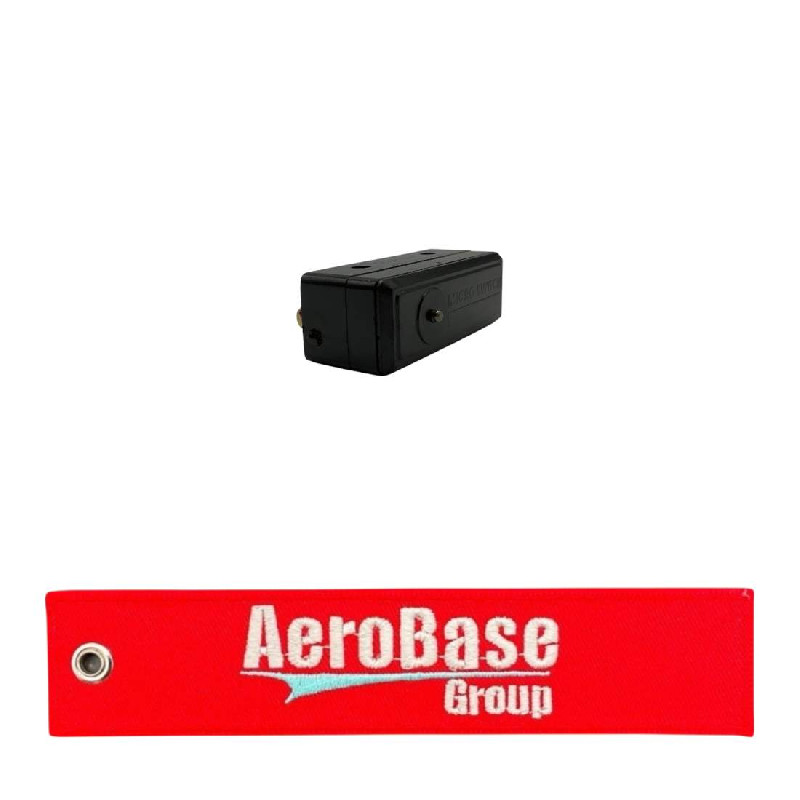

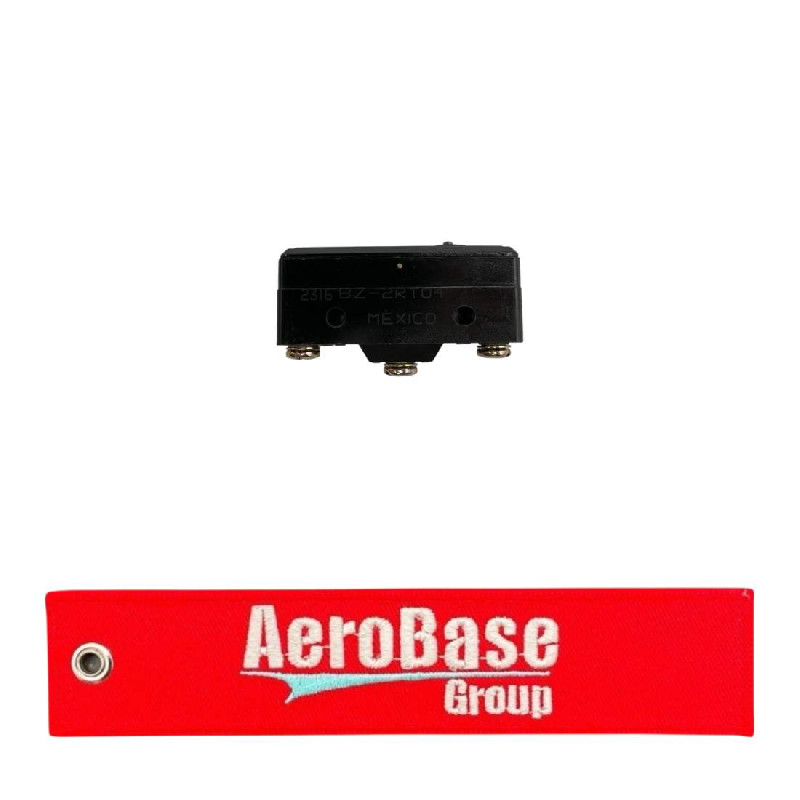

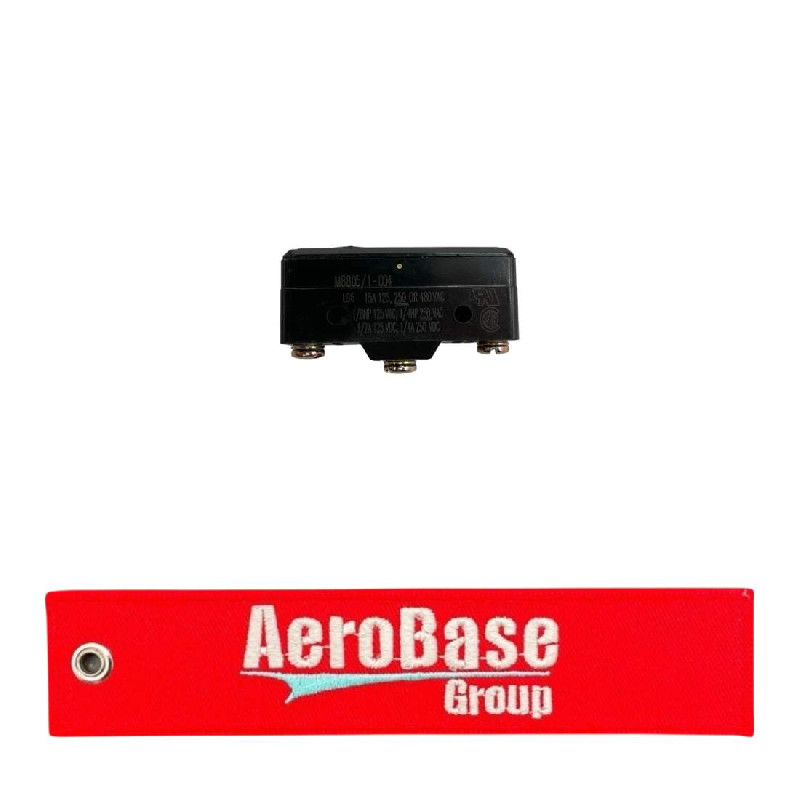

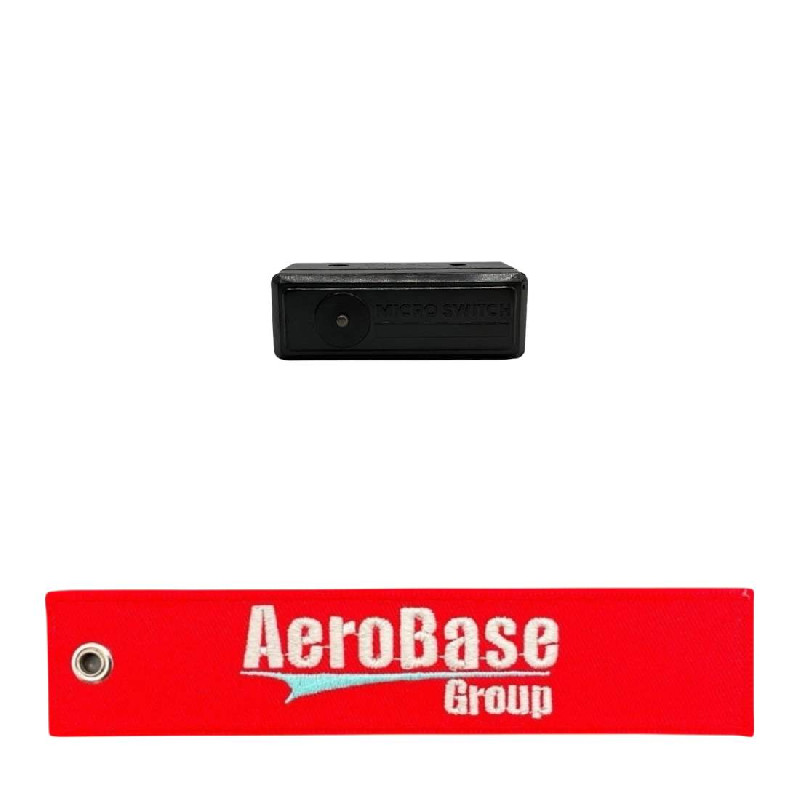

Product Images
M8805/1-004 M8805/1-004 M8805/1-004 M8805/1-004 M8805/1-004 M8805/1-004

Product Details

Part Number or Model M8805/1-004
Description Switch
Schedule B Class
ECCN (Export Control Class) EAR99
Actuator Free Position Height 1.125 inches nominal
Actuator Length 2.469 inches nominal
Actuator Movement 0.040 pretravel inches maximum and 0.005 overtravel inches minimum and 0.005 differential inches maximum
Actuator Roller Diameter 0.375 inches nominal
Actuator Roller Width 0.150 inches nominal
Actuator Style Roller arm
Body Height 0.984 inches maximum
Body Length 1.922 inches minimum and 1.952 inches maximum
Body Style Hole mounted
Body Width 0.672 inches minimum and 0.702 inches maximum
Center To Center Distance Between Mounting Facilities Parallel T 1.000 inches nominal
Contact Load Current Rating At Maximum Rated Voltage 2 amperes resistive dc and 1 amperes inductive dc and 1.5 amperes lamp dc and 15 amperes resistive ac and 15 amperes inductive ac and 1.5 amperes lamp ac
Inclosure Type Fully inclosed
Maximum Voltage Rating In Volts 115.0 ac and 28.0 dc
Mounting Method Unthreaded hole
Nonpile-up Contact Arrangement 1 pole, double throw, one position momentary single switch unit
Overall Length 1.937 inches nominal
Switch Actuating Force 13.0 ounces maximum
Switch Release Force 4.0 ounces minimum
Terminal Type And Quantity 3 screw
Unthreaded Mounting Hole Diameter 0.139 inches nominal

Add to Cart

Up to quantity 29 ships same day.
buy now $39.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5930-00-998-6910
  • Manufactured By
    Honeywell
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5930-00-998-6910
  • 5930009986910
  • M88051004
