M8805/1-001 Switch

Part#: M8805/1-001 NSN: 5930-00-921-6236

About this product M8805/1-001 Switch. * Manufacturer certifications are shipped with your order FREE of charge

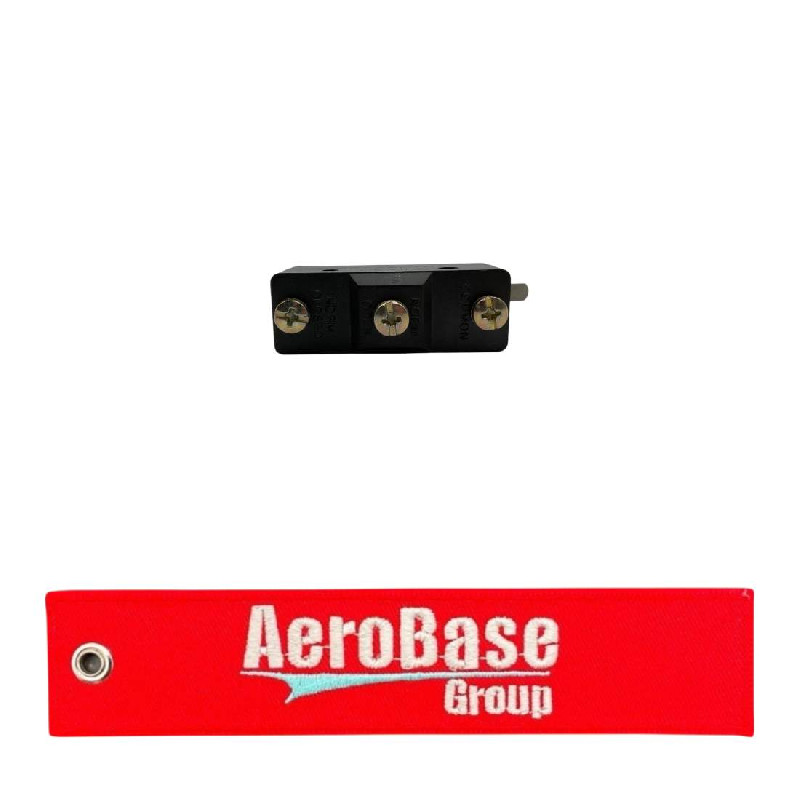

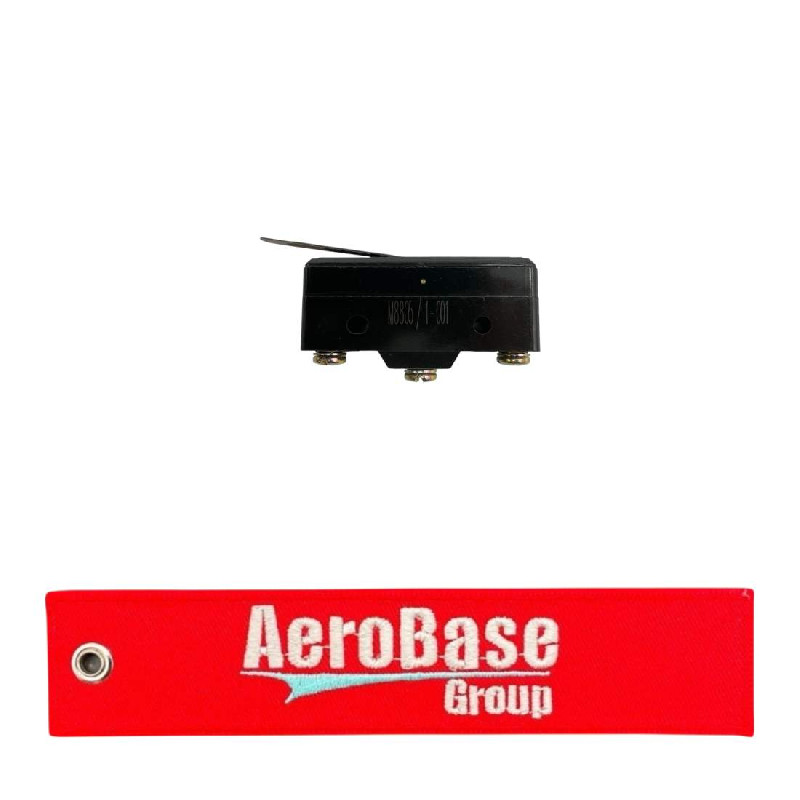

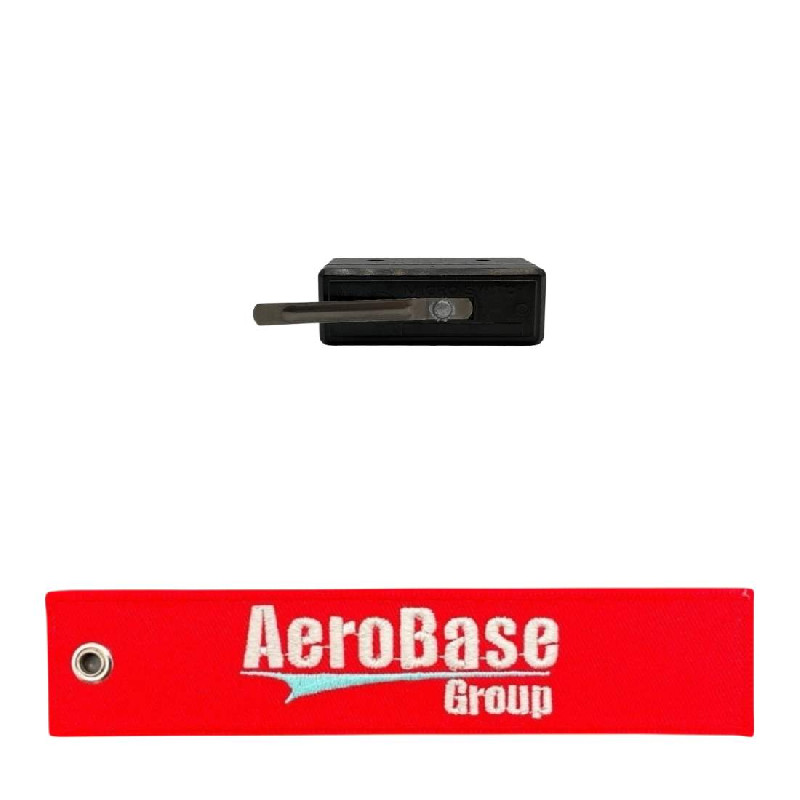

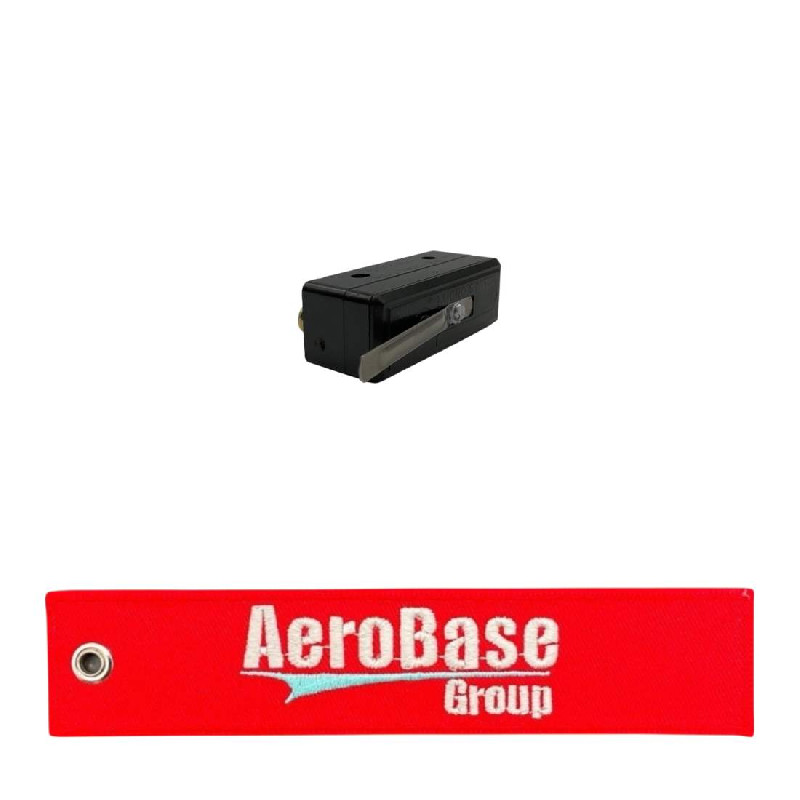

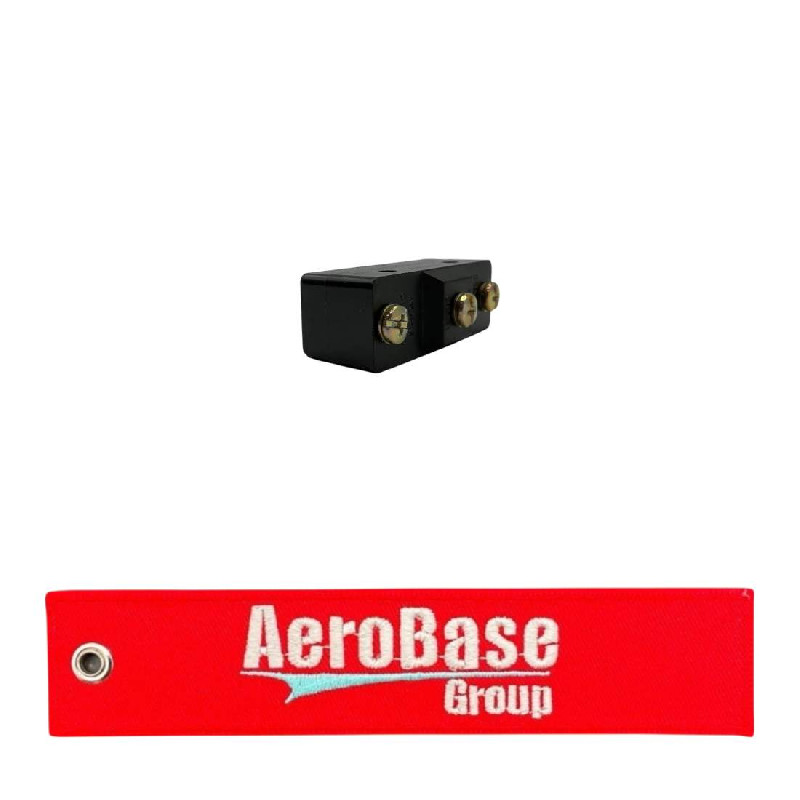

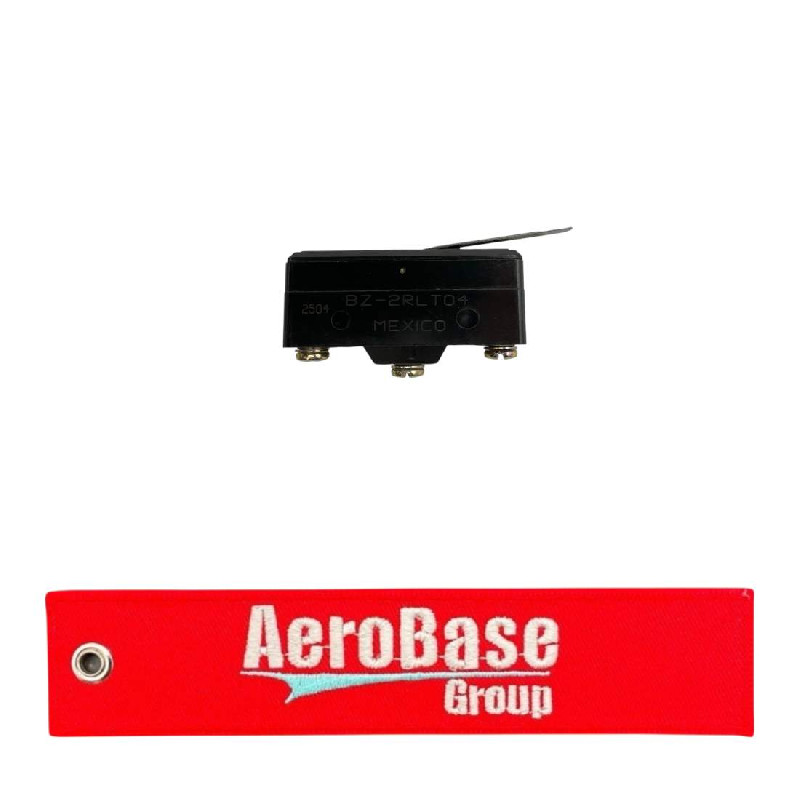

Product Images
M8805/1-001 M8805/1-001 M8805/1-001 M8805/1-001 M8805/1-001 M8805/1-001

Product Details

Part Number or Model M8805/1-001
Description Switch
Schedule B Class
ECCN (Export Control Class) EAR99
Actuator Free Position Height 0.656 inches minimum and 0.782 inches maximum
Actuator Length 1.953 inches nominal
Actuator Movement 0.156 pretravel inches maximum and 0.031 overtravel inches maximum and 0.050 differential inches maximum
Actuator Style Leaf
Actuator Width 0.219 inches maximum
Body Height 0.984 inches maximum
Body Length 1.922 inches minimum and 1.952 inches maximum
Body Style Hole mounted
Body Width 0.672 inches minimum and 0.702 inches maximum
Case Material Plastic
Center To Center Distance Between Mounting Facilities Parallel T 0.998 inches minimum and 1.002 inches maximum
Contact Load Current Rating At Maximum Rated Voltage 2.000 amperes resistive dc and 1.000 amperes inductive dc and 1.500 amperes lamp dc and 15.000 amperes resistive ac and 15.000 amperes inductive ac and 1.500 amperes lamp ac
Inclosure Type Fully inclosed
Maximum Voltage Rating In Volts 115.0 ac and 28.0 dc
Mounting Method Unthreaded hole
Nonpile-up Contact Arrangement 1 pole, double throw, one position momentary single switch unit
Overall Length 2.422 inches nominal
Overall Width 0.687 inches nominal
Specification Data 81349-mil-s-8805/1 government specification
Switch Actuating Force 6.0 ounces maximum
Switch Release Force 0.5 ounces minimum
Terminal Type And Quantity 3 screw
Unthreaded Mounting Hole Diameter 0.139 inches minimum and 0.143 inches maximum
