1XE1 Switch

Part#: 1XE1 NSN: 5930-00-880-2312

About this product XE Series Environmentally Sealed Basic Switch, Single Pole Double Throw Circuitry, 7 A at 115 Vac, Pin Plunger Actuator, Leadwire Termination, Military Part Number MS27994-1. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

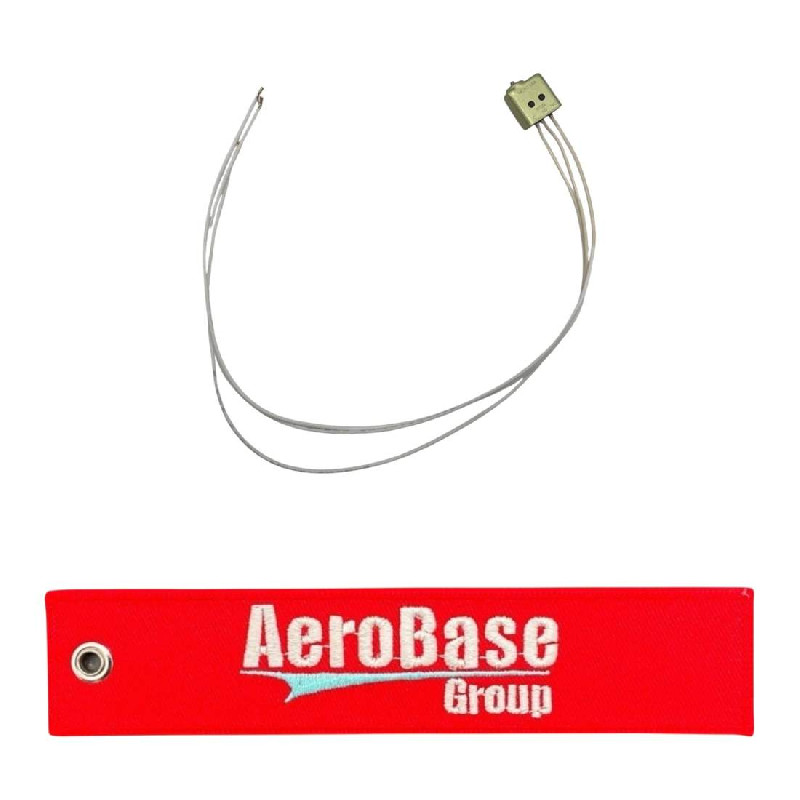

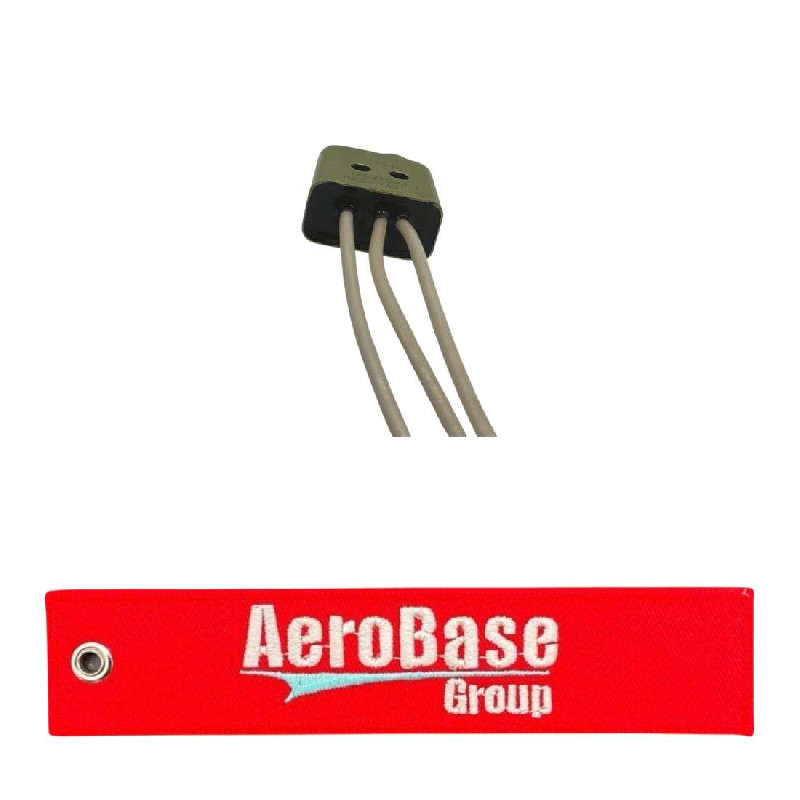

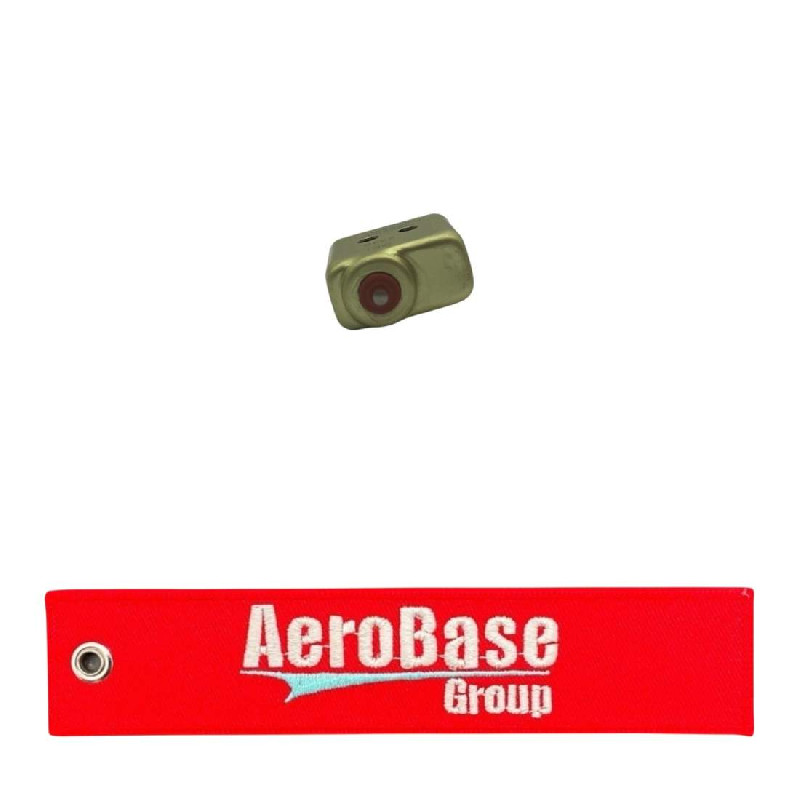

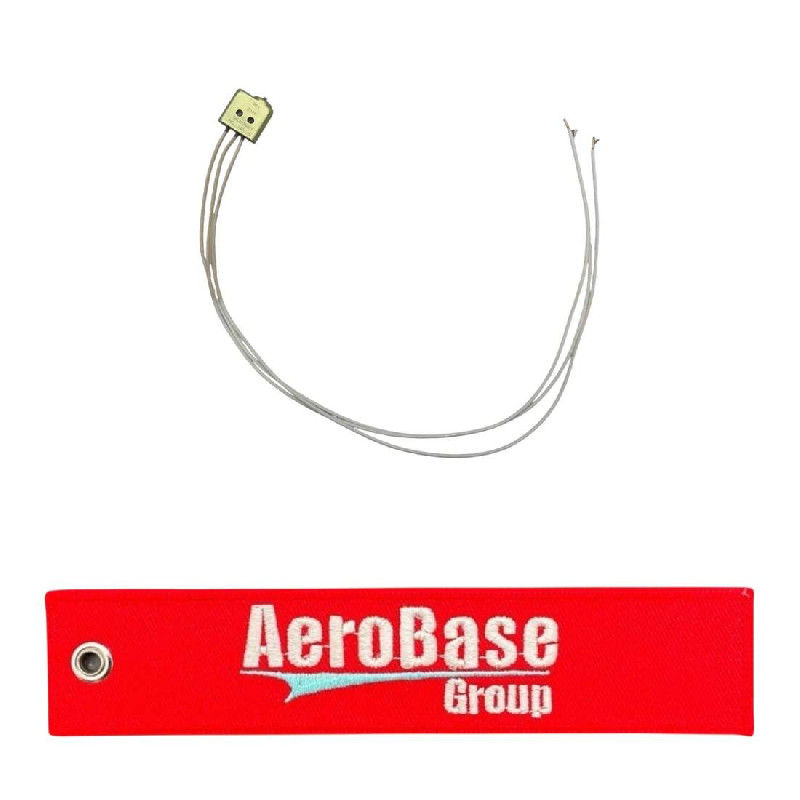

1XE1

Product Details

Part Number or Model 1XE1
Description Switch
Schedule B Class
ECCN (Export Control Class) EAR99
Terminal Type And Quantity 3 wire lead
Switch Release Force 4.0 ounces minimum
Switch Actuating Force 17.0 ounces maximum
Overall Length 0.626 inches maximum
Overall Width 0.326 inches maximum
Overall Height 0.695 inches nominal
Nonpile-up Contact Arrangement 1 pole, double throw, both positions maintained single switch unit
Mounting Method Panel
Features Provided Actuator seal
Hazardous Locations/environmental Protection Watertight
Inclosure Type Fully inclosed
Maximum Voltage Rating In Volts 115.0 ac and 28.0 dc
Contact Load Current Rating At Maximum Rated Voltage 7 amperes resistive dc and 4 amperes inductive dc and 4.000 amperes motor dc and 7.000 amperes resistive ac and 4.000 amperes inductive ac and 4.000 amperes motor ac
Center To Center Distance Between Mounting Facilities Parallel T 0.183 inches minimum and 0.193 inches maximum
Body Width 0.326 inches maximum
Body Style Hole mounted
Body Length 0.626 inches maximum
Body Height 0.600 inches nominal
Actuator Free Position Height 0.405 inches minimum and 0.445 inches maximum
Actuator Height 0.095 inches nominal
Actuator Movement 0.050 pretravel inches maximum and 0.004 overtravel inches minimum and 0.005 differential inches nominal
Actuator Style Round
Actuator Diameter 0.055 inches minimum and 0.065 inches maximum
Test Data Document 81349-mil-s-8805 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as
Unthreaded Mounting Hole Diameter 0.087 inches minimum and 0.091 inches maximum
