101TL1-2 Toggle Switches

Part#: 101TL1-2 NSN: 5930-01-009-0954

About this product 1 pole, 2 position (OFF-ON), IWTS (14-16 Gage) terminal. * Manufacturer certifications are shipped with your order FREE of charge

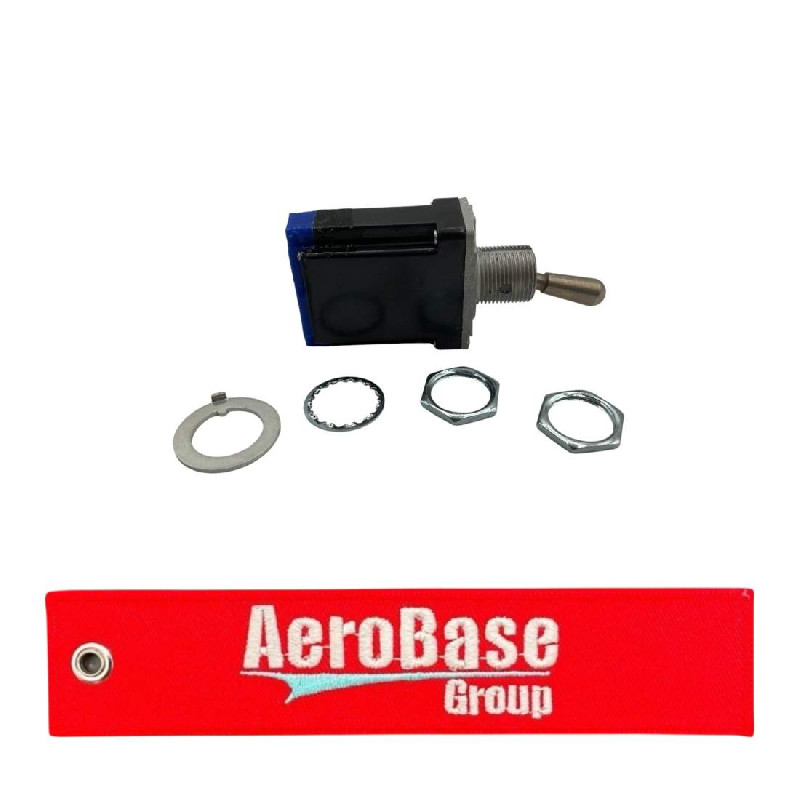

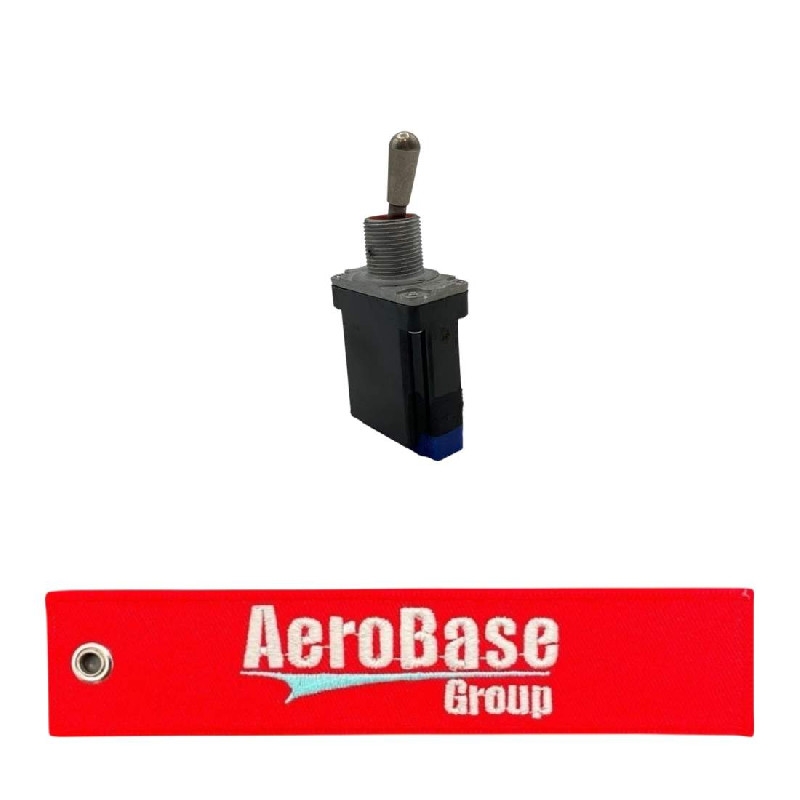

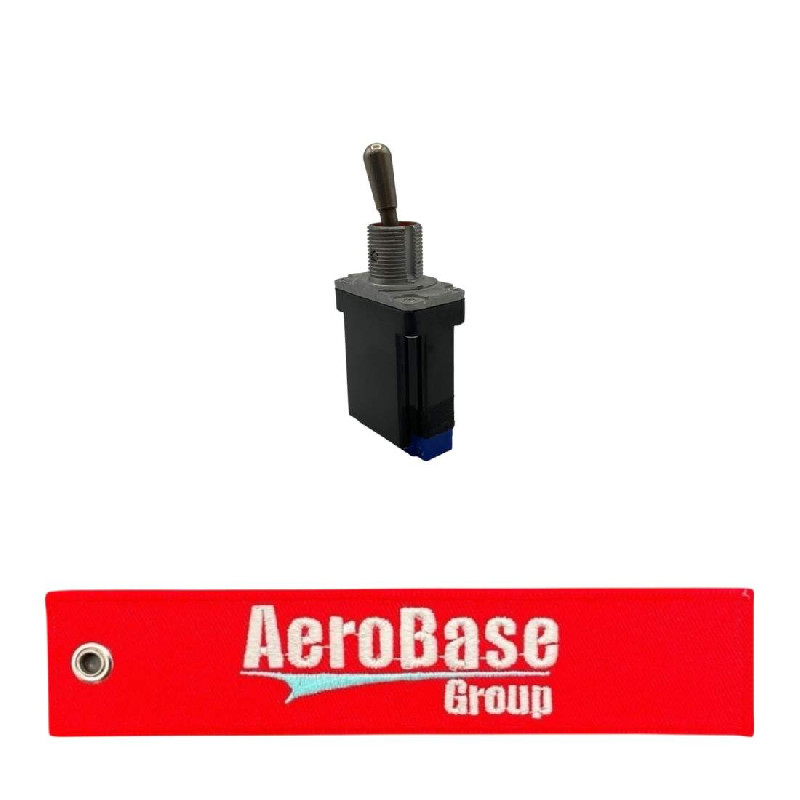

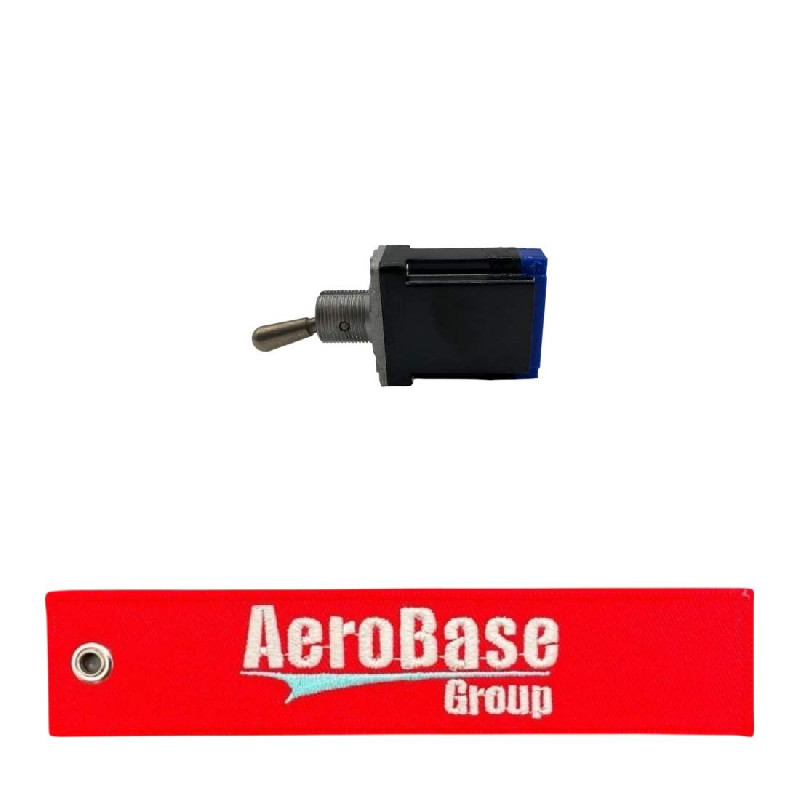

Product Images
101TL1-2 101TL1-2 101TL1-2 101TL1-2 101TL1-2 101TL1-2

Product Details

Part Number or Model 101TL1-2
Description Toggle Switches
Schedule B Class
ECCN (Export Control Class) EAR99
Thread Series Designator Uns
Thread Size 0.469 inches
Special Features Terminal end color coded blue to indicate contact size
Terminal Type And Quantity 2 cable with connector
Thread Qty Per Inch (tpi) 32
Mounting Method Threaded bushing
Nonpile-up Contact Arrangement 1 pole, double throw, both positions maintained single switch unit
Inclosure Type Fully inclosed
Maximum Voltage Rating In Volts 115 ac and 28 dc
Hazardous Locations/environmental Protection Weatherproof
Features Provided Actuator seal
Contact Load Current Rating At Maximum Rated Voltage 20 amperes resistive dc and 15 amperes inductive dc and 5 amperes lamp dc and 15 amperes resistive ac and 10 amperes inductive ac and 3 amperes lamp ac
Bushing Length 0.470 inches nominal
Body Width 0.635 inches maximum
Body Length 1.270 inches maximum
Body Style Bushing mount
Actuator Position-action Relationship Up position maintained and down position maintained
Actuator Style Round
Body Height 1.662 inches maximum
Actuator Height 0.690 inches
Actuator Diameter 0.235 inches minimum and 0.245 inches maximum

Add to Cart

Up to quantity 18 ships same day.
buy now $66.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5930-01-009-0954
  • Package Weight (oz)
    1.232
  • Manufactured By
    Honeywell
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
