Safran 8496K2 Switch Guard

Name: Switch Guard
Brand: Safran
SKU: 5930006157952
Price: 39.95 USD
Availability: InStock

Part#: 8496K2 NSN: 5930-00-615-7952

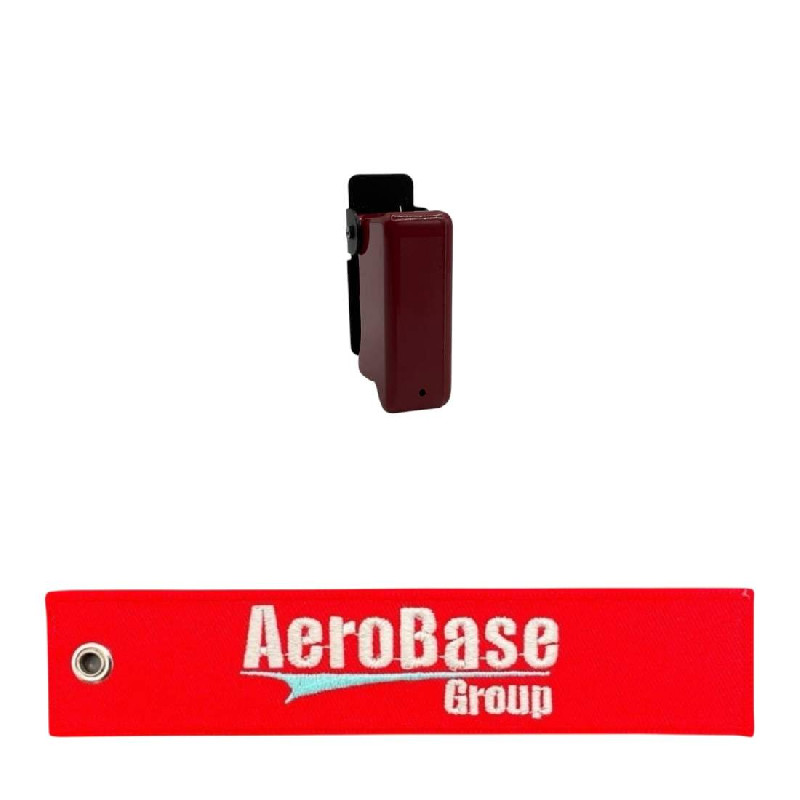

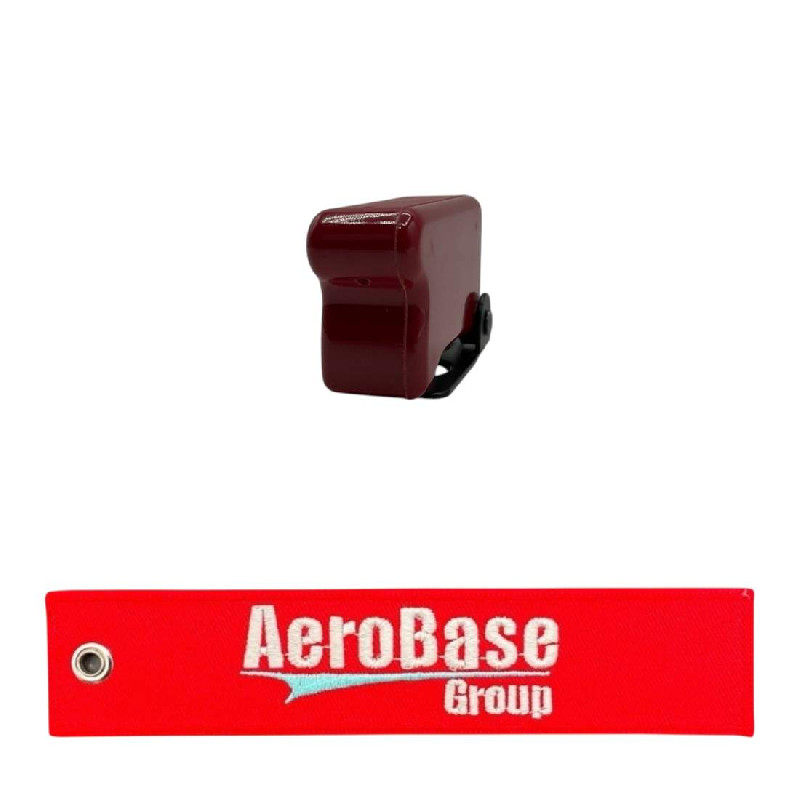

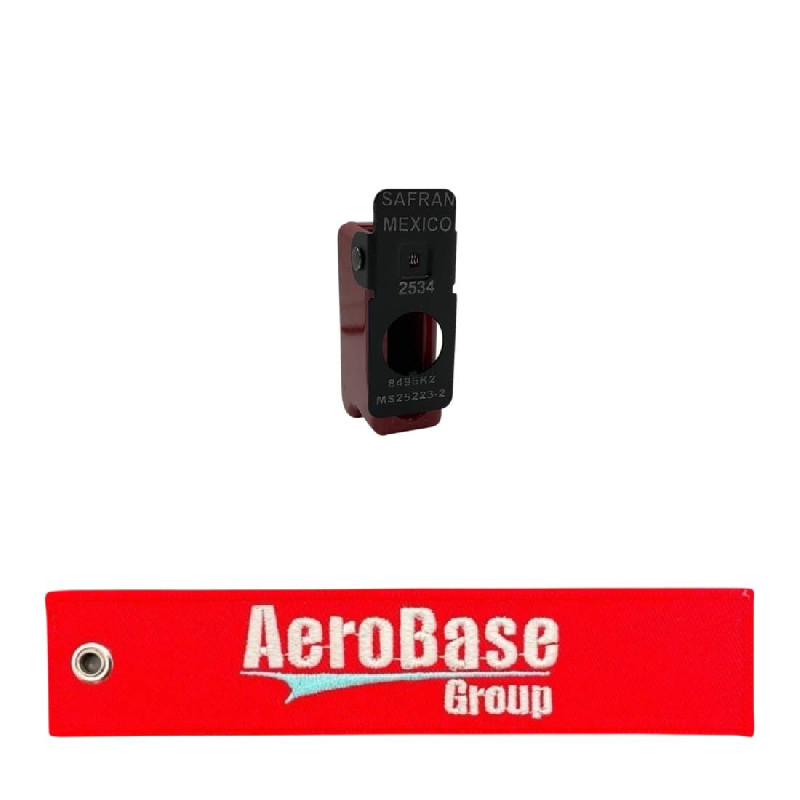

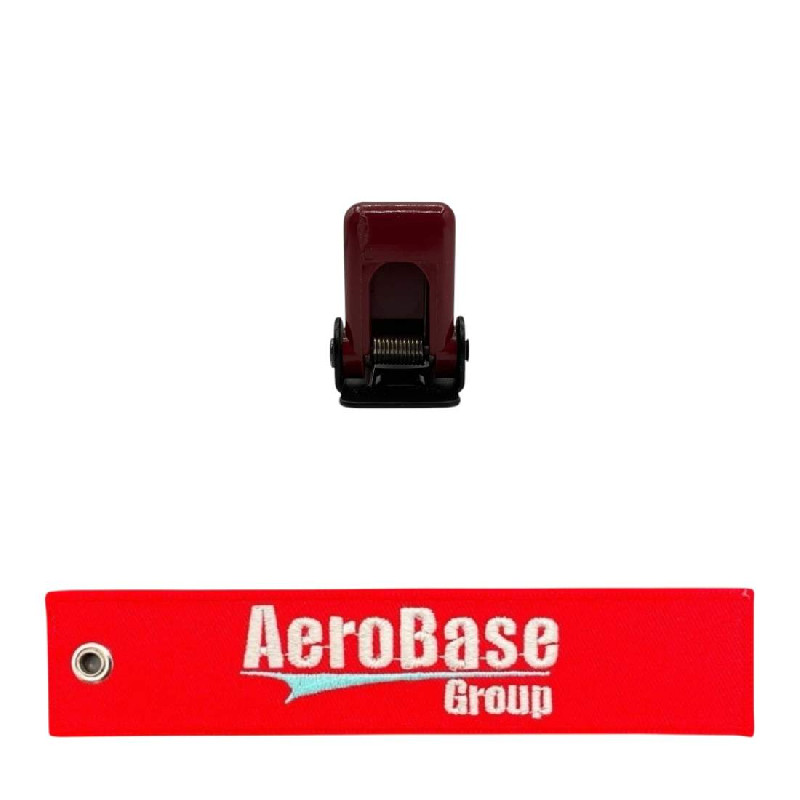

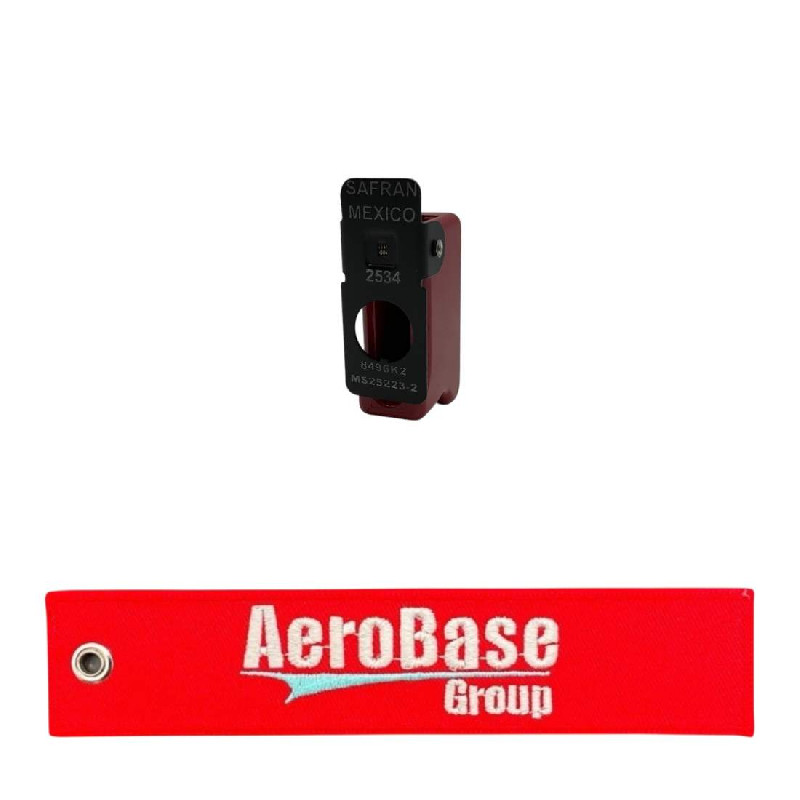

About this product 8496K2 military-grade, spring-loaded toggle switch guard. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

Product Details

Part Number or Model	8496K2
Description	Switch Guard
Schedule B Class	8538.90.7080
ECCN (Export Control Class)	EAR99
Material	Plastic and steel
Mounting Method	Unthreaded hole
Overall Height	0.978 inches nominal
Overall Length	1.635 inches maximum
Overall Width	0.750 inches maximum
Design Standards	Qualified to MIL-G-7703
Surface Treatment	Zinc or cadmium or enamel
Unthreaded Mounting Hole Diameter	0.470 inches minimum and 0.480 inches maximum
Switch Compatibility	Designed specifically for 3-position toggle switches
Keyway Alignment	Located on the opposite hinged end

Add to Cart

Up to quantity 46 ships same day.

buy now $39.95

each

Request a quote Call for questions and assistance
+1 (321) 802-5889

NSN (National stock number)
5930-00-615-7952
Manufactured By
Safran
ECCN (Export Control Class)
EAR99

Alternate(s)

5930-00-615-7952
5930006157952
MS25223-2

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
