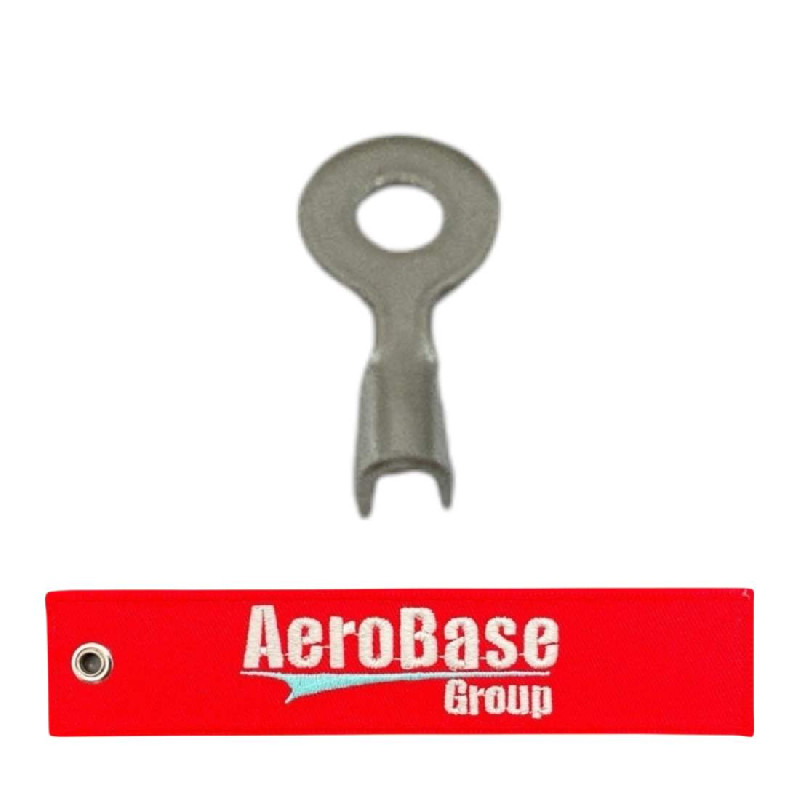

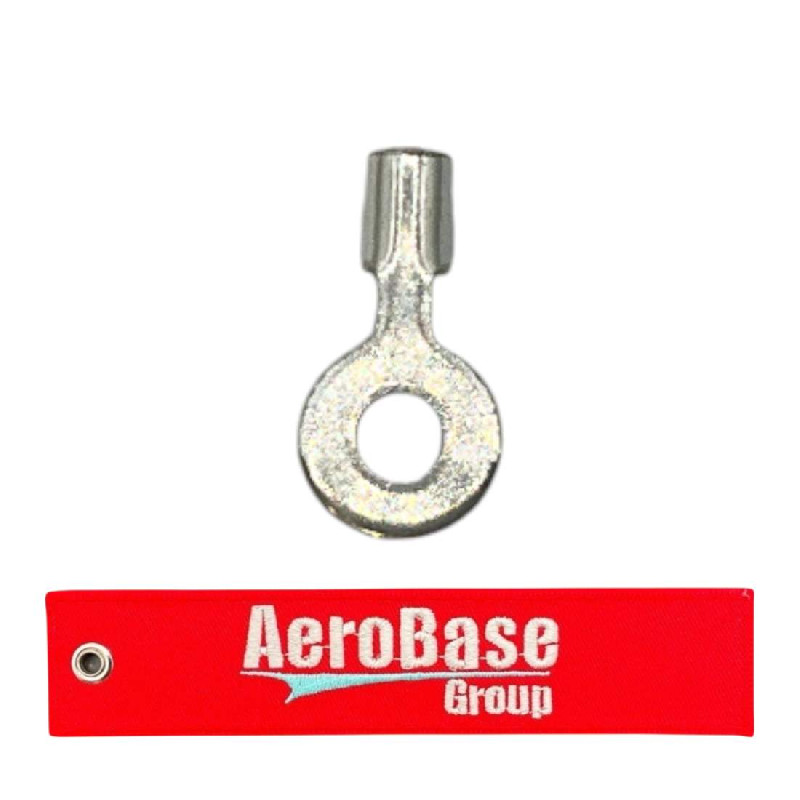

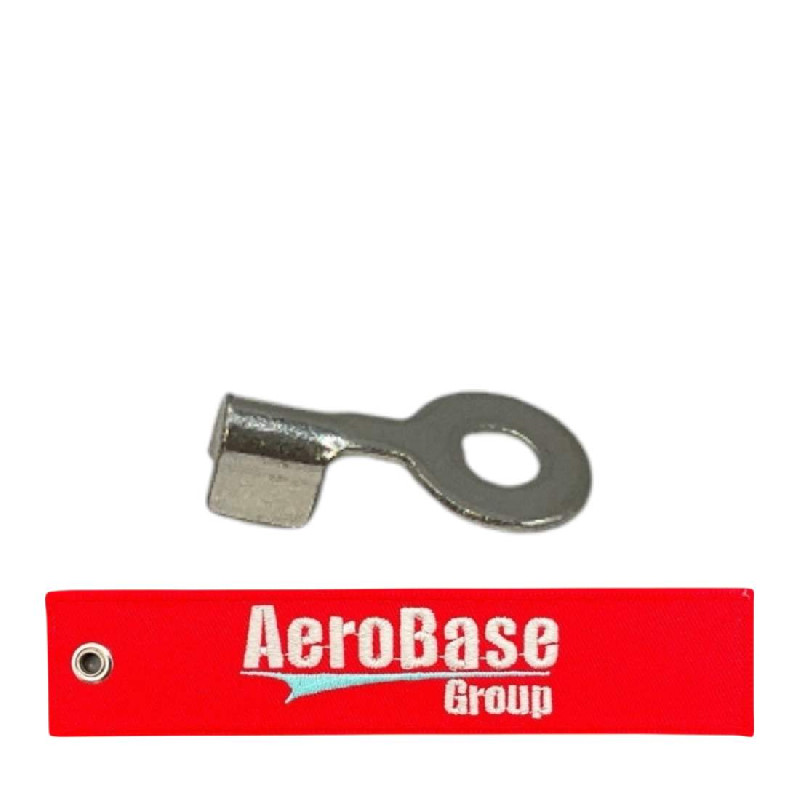

MS35430-3 Lug Terminal

Name: Lug Terminal
Brand: SEASTROM
SKU: 5940006868168
Price: 39.95 USD
Availability: InStock

Part#: MS35430-3 NSN: 5940-00-686-8168

About this product Lug Terminal part number MS354303 * Manufacturer certifications are shipped with your order FREE of charge

Product Images

Product Details

Part Number or Model	MS35430-3
Description	Lug Terminal
Schedule B Class	8536.90.4000
ECCN (Export Control Class)	EAR99
Basic Shape Style	Solder/solderless
Conductor Accommodation Type	Clamping tang ears single end
Electrical Insulation Feature	Uninsulated
Largest Width	0.142 inches single end
Material	Copper overall
Material Specification	Qq-c-576 fed spec single material response overall
Material Thickness	0.032 inches
Maximum Conductor Size Accommodated	14 awg wire
Mounting Facility Thickness	0.032 inches
Mounting Hole Diameter	0.127 inches
Mounting Method Style	Ring
Mounting Tongue Width	0.281 inches
Overall Length	0.562 inches
Overall Width	0.281 inches
Surface Treatment	Tin overall single layer

Up to quantity 16 ships same day.

buy now $39.95

each, minimum order quantity of 2 Sold in increments of 2

Request a quote Call for questions and assistance
+1 (321) 802-5889

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
