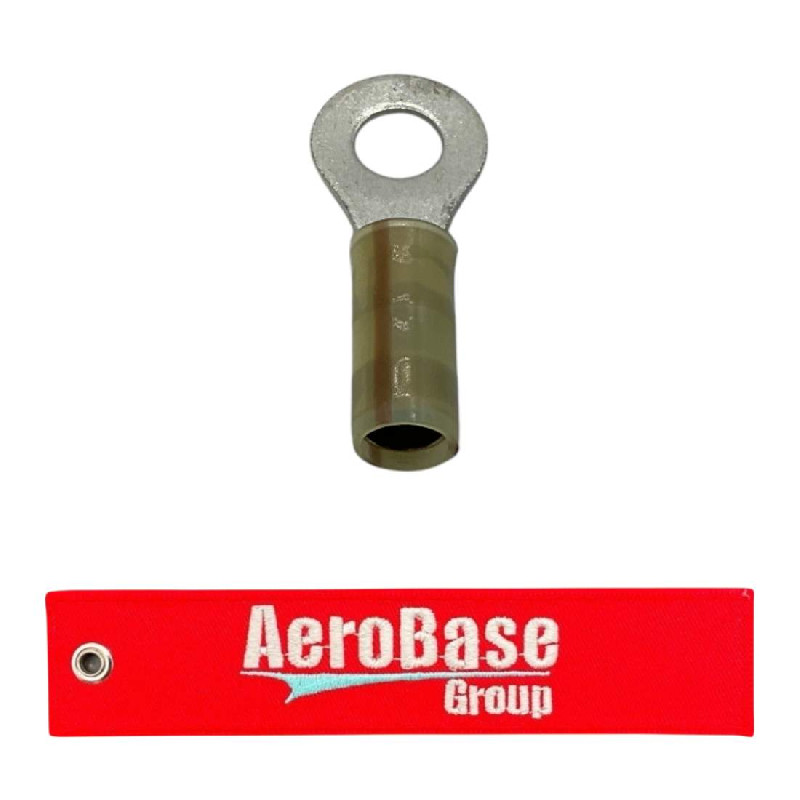

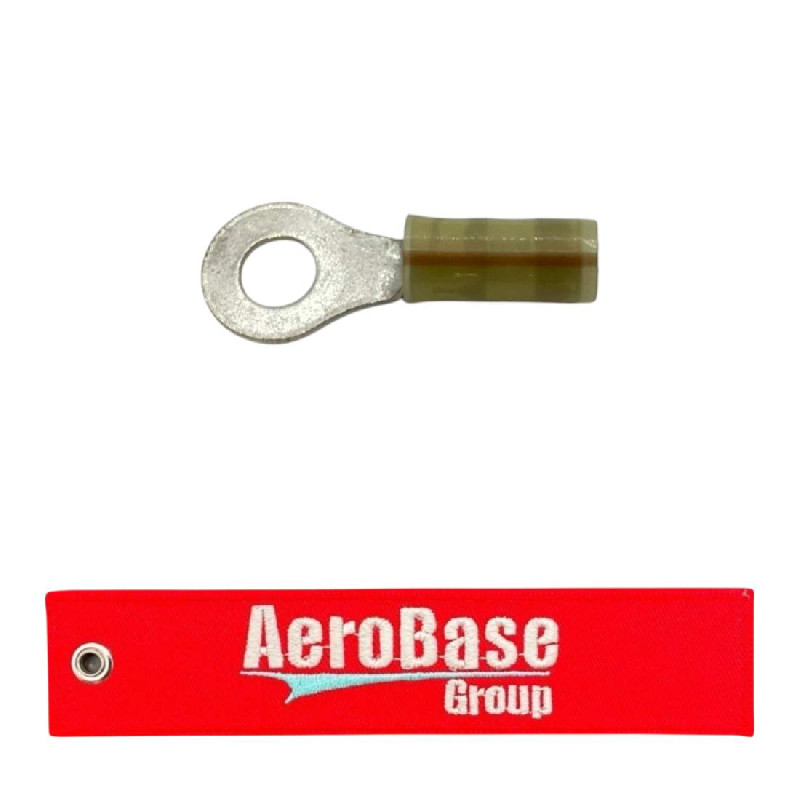

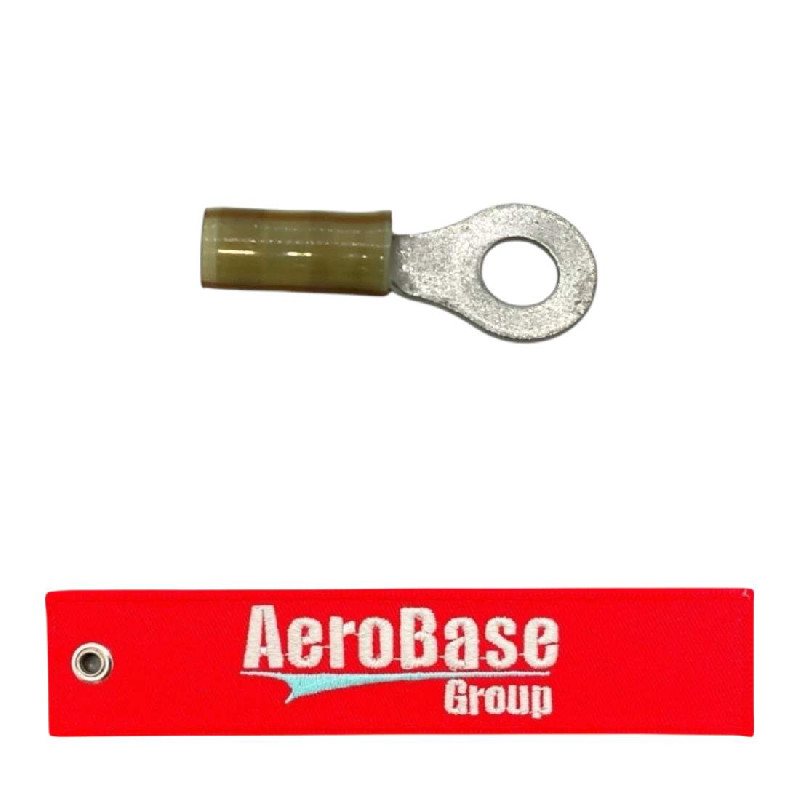

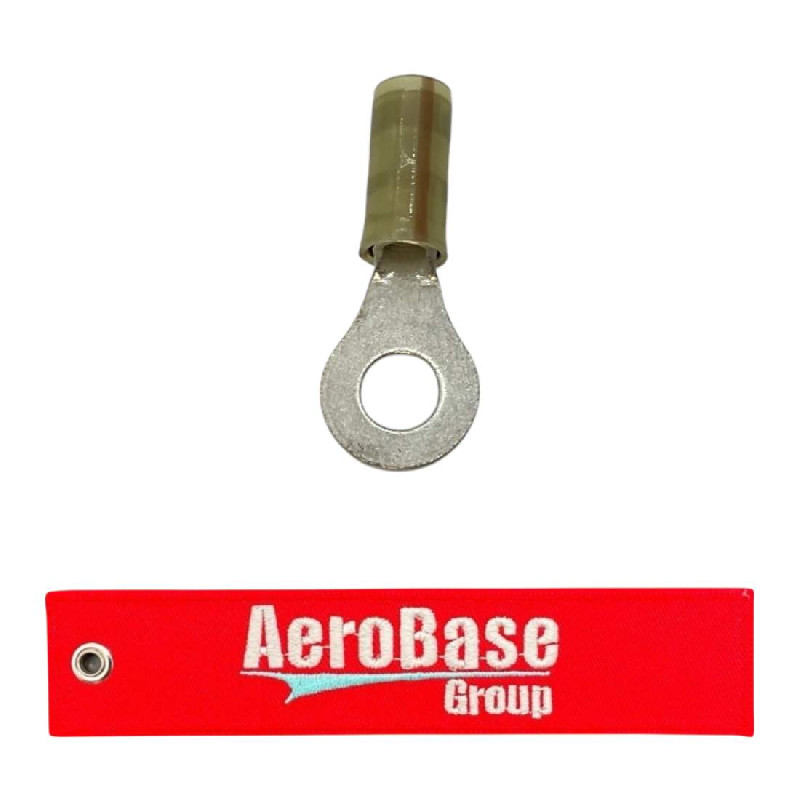

M7928/1-66 Lug Terminal

Name: Lug Terminal
Brand: TE Connectivity
SKU: 5940010241257
Price: 1.60 USD
Availability: InStock

Part#: M7928/1-66 NSN: 5940-01-024-1257

About this product Lug Terminal part number M7928166 * Manufacturer certifications are shipped with your order FREE of charge

Product Images

Product Details

Part Number or Model	M7928/1-66
Description	Lug Terminal
Schedule B Class	8536904000
ECCN (Export Control Class)	EAR99
Basic Shape Style	Crimp
Conductor Accommodation Type	Recessed barrel single end
Electrical Insulation Feature	Insulating sleeve
Identification Code Color	Yellow
Material	Copper overall except insulation
Material	Plastic insulation
Material Thickness	0.033 inches
Maximum Conductor Size Accommodated	10 awg
Mounting Facility Thickness	0.033 inches
Mounting Hole Diameter	0.268 inches
Mounting Method Style	Ring
Mounting Tongue Width	0.531 inches
Overall Length	1.392 inches
Overall Width	0.531 inches
Special Features	Include brown ring on the insulation portion of terminal
Surface Treatment	Tin overall except insulation single layer
Surface Treatment Specification	Mil-t-10727 mil spec single treatment response overall except insulation single layer

Up to quantity 950 ships same day.

buy now $1.60

each, minimum order quantity of 25 Sold in increments of 25

Request a quote Call for questions and assistance
+1 (321) 802-5889

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
