M7928/1-52 Lug Terminal

Part#: M7928/1-52 NSN: 5940-00-349-9282

About this product TE Connectivity lug terminal. * Manufacturer certifications are shipped with your order FREE of charge

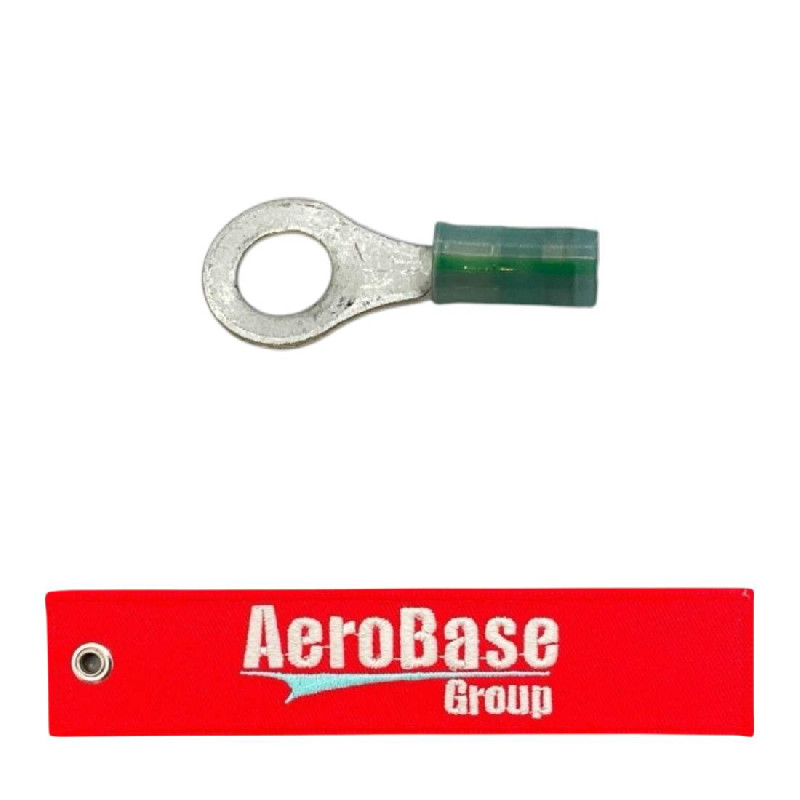

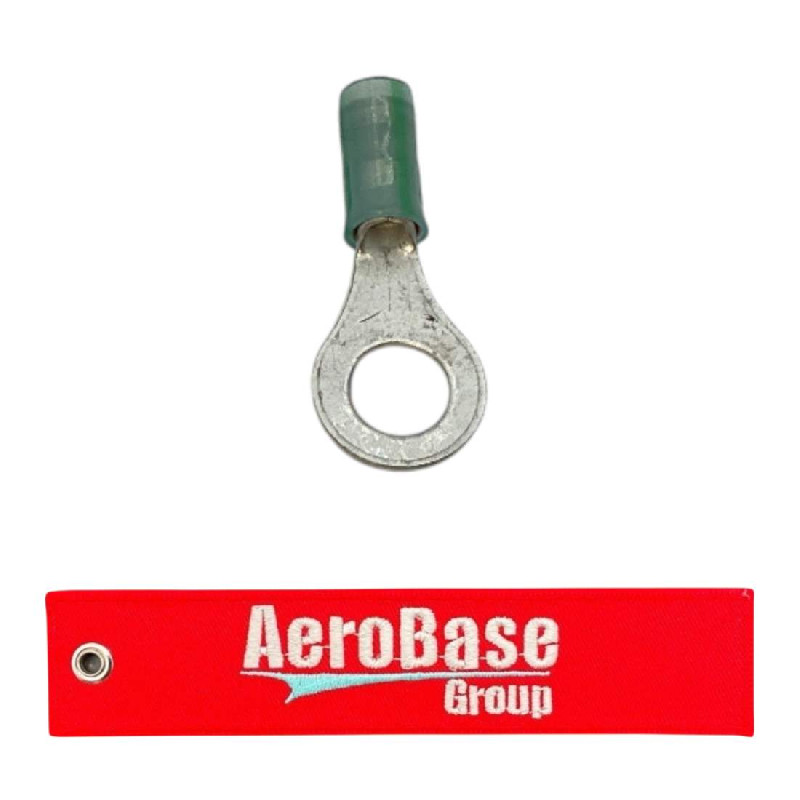

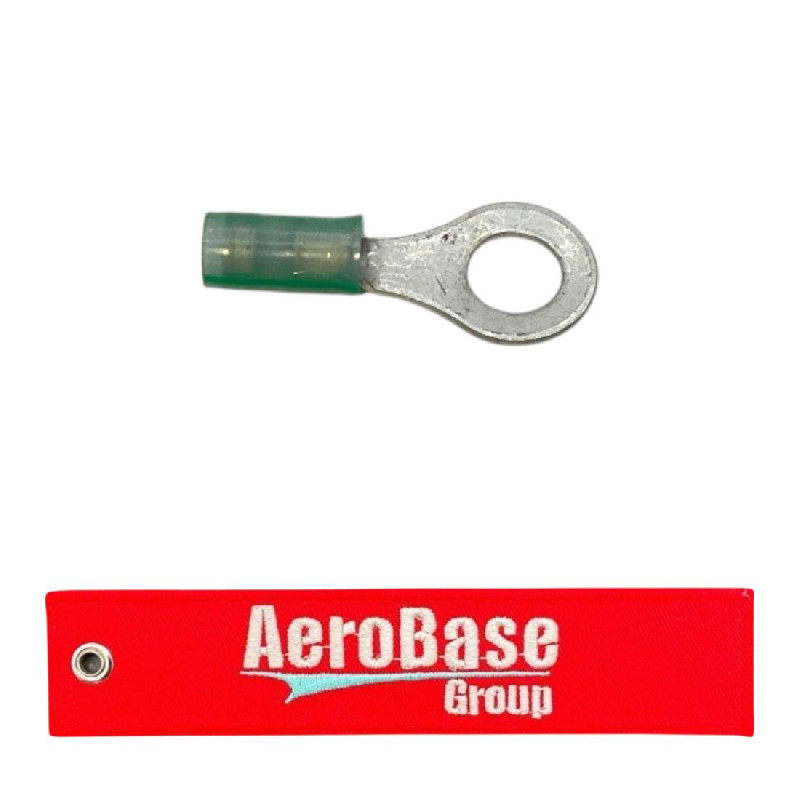

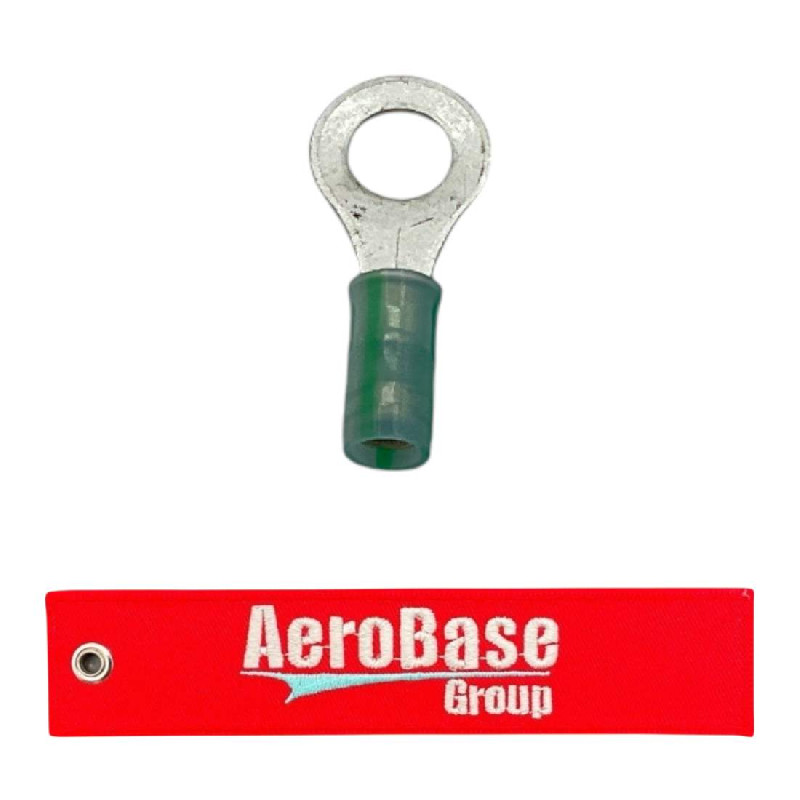

Product Images
M7928/1-52 M7928/1-52 M7928/1-52 M7928/1-52 M7928/1-52 M7928/1-52 M7928/1-52 M7928/1-52 M7928/1-52

Product Details

Part Number or Model M7928/1-52
Description Lug Terminal
Schedule B Class 8536904000
ECCN (Export Control Class) EAR99
Overall Width 0.469 inches
Overall Length 1.131 inches
Mounting Tongue Width 0.469 inches
Mounting Method Style Ring
Mounting Hole Diameter 0.260 inches
Mounting Facility Thickness 0.033 inches
Maximum Conductor Size Accommodated 14 awg wire size
Material Thickness 0.033 inches
Material Plastic insulation
Material Copper overall except insulation
Identification Code Color Blue
Electrical Insulation Feature Insulating sleeve
Basic Shape Style Crimp
Conductor Accommodation Type Recessed barrel single end
Special Features Includes green ring on the insulation portion of terminal
Surface Treatment Tin overall except insulation single layer
Surface Treatment Specification Mil-t-10727 mil spec single treatment response overall except insulation single layer

Add to Cart

Up to quantity 850 ships same day.
buy now $1.60
each, minimum order quantity of 25 Sold in increments of 25
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5940-00-349-9282
  • Manufactured By
    TE Connectivity
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 2-320563-4
  • M7928-1-52
  • M7928152
  • 5940003499282
  • 5940-00-349-9282
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
