MS25331-3 Indicator Light

Part#: MS25331-3 NSN: 6210-00-660-8462

About this product Indicator Light part number MS253313 * Manufacturer certifications are shipped with your order FREE of charge

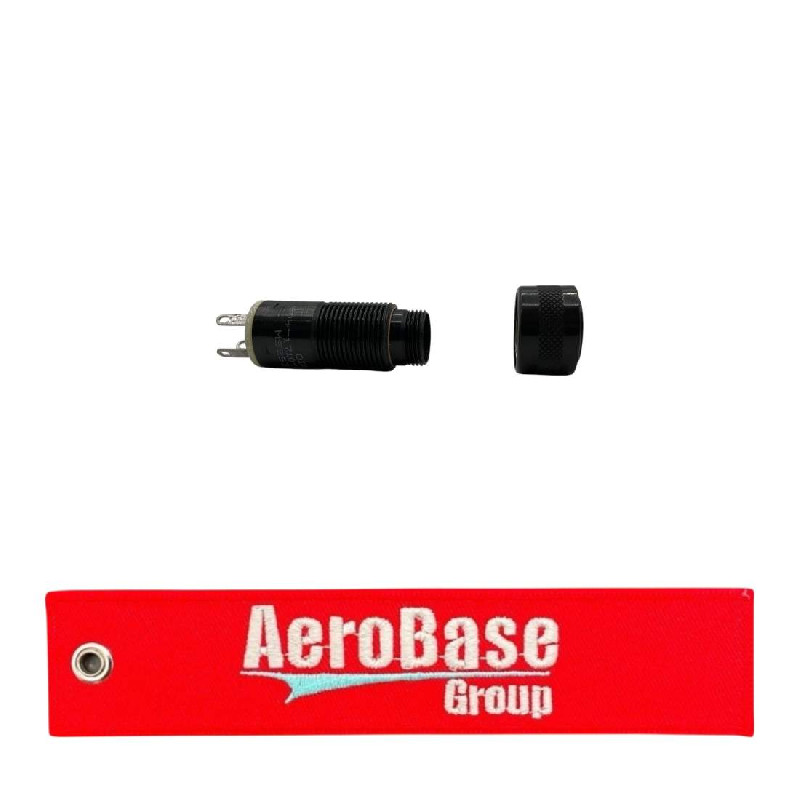

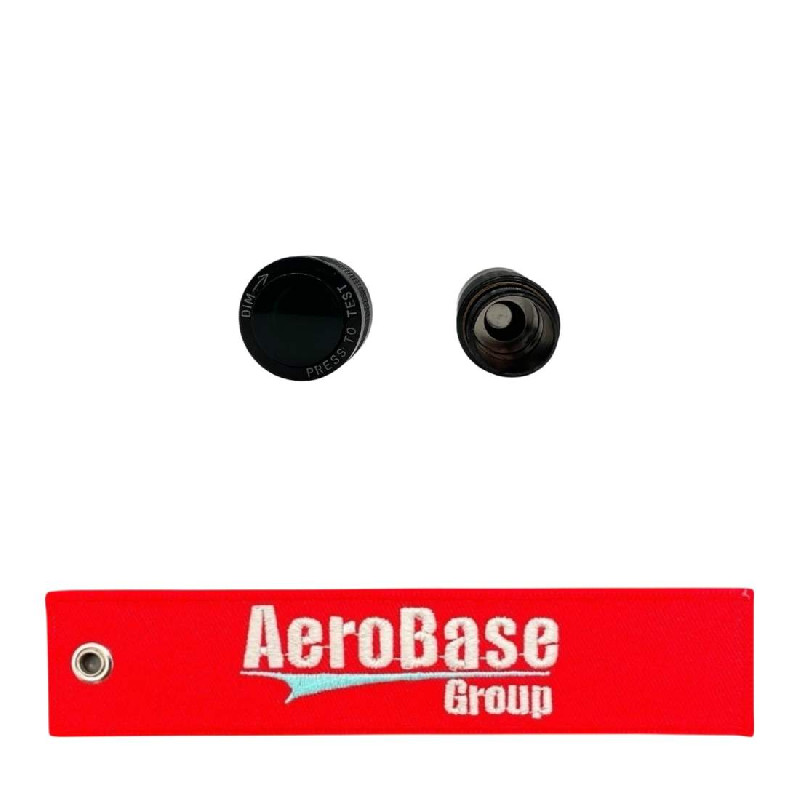

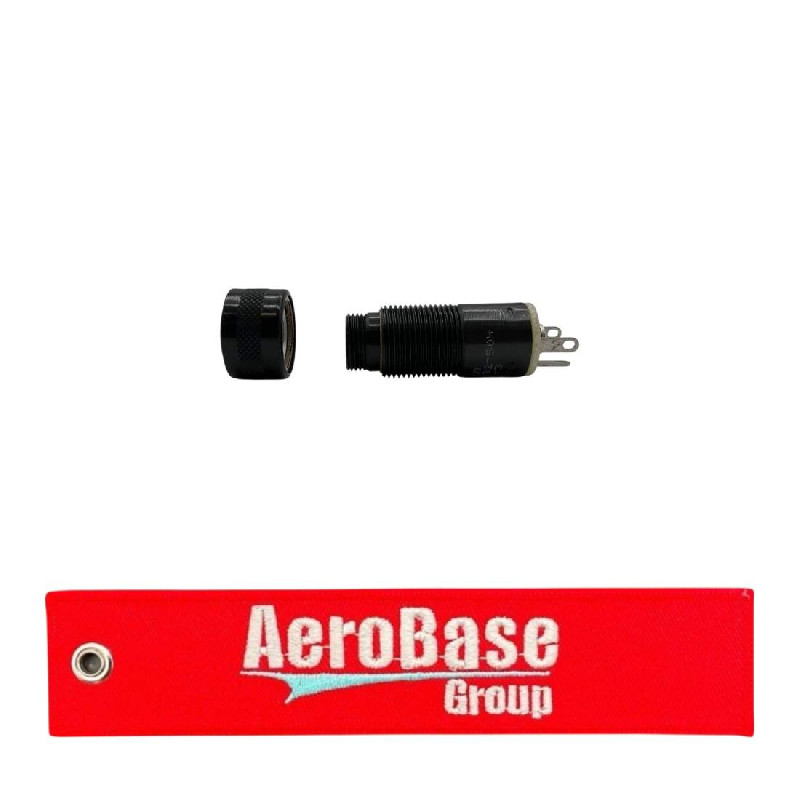

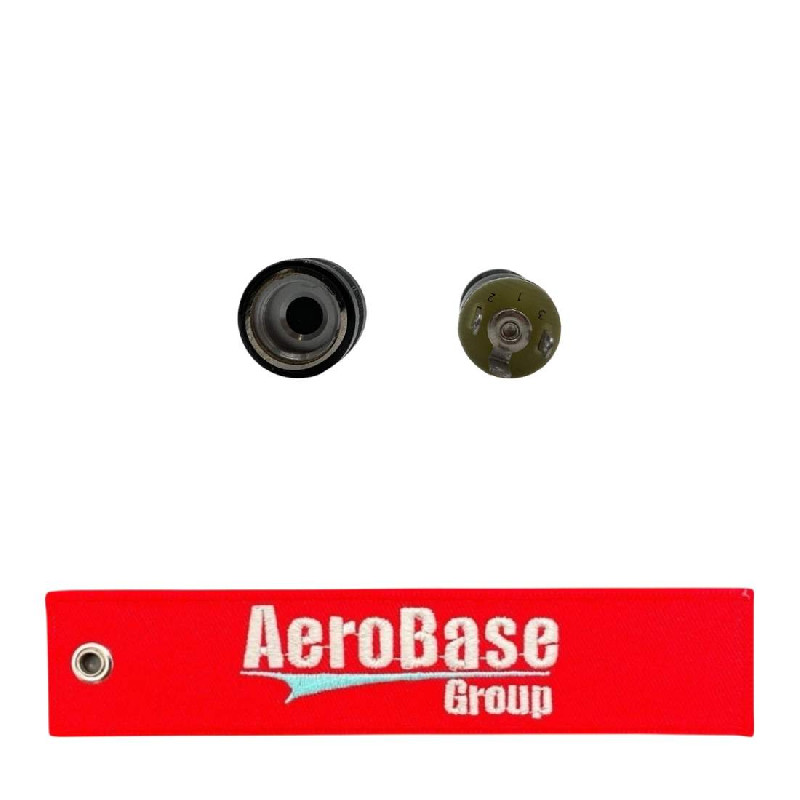

Product Images
MS25331-3 MS25331-3 MS25331-3 MS25331-3 MS25331-3

Product Details

Part Number or Model MS25331-3
Description Indicator Light
Schedule B Class 8541410000
ECCN (Export Control Class) EAR99
Material Aluminum body
Lens Type Flat, knurled single light 1st position horizontal
Lens Quantity 1
Lens Mounting Method Screw on
Lens Light Transmission Characteristic Transparent single light 1st position horizontal
Lens Face Surface Condition Smooth single light 1st position horizontal
Lens Color Green single light 1st position horizontal
Lens Back Surface Condition Smooth single light 1st position horizontal
Lamp Type Accommodated And Quantity 1 incandescent
Lamp Bulb Size Designator T-3 1/4
Lamp Base Type Accommodated Miniature bayonet

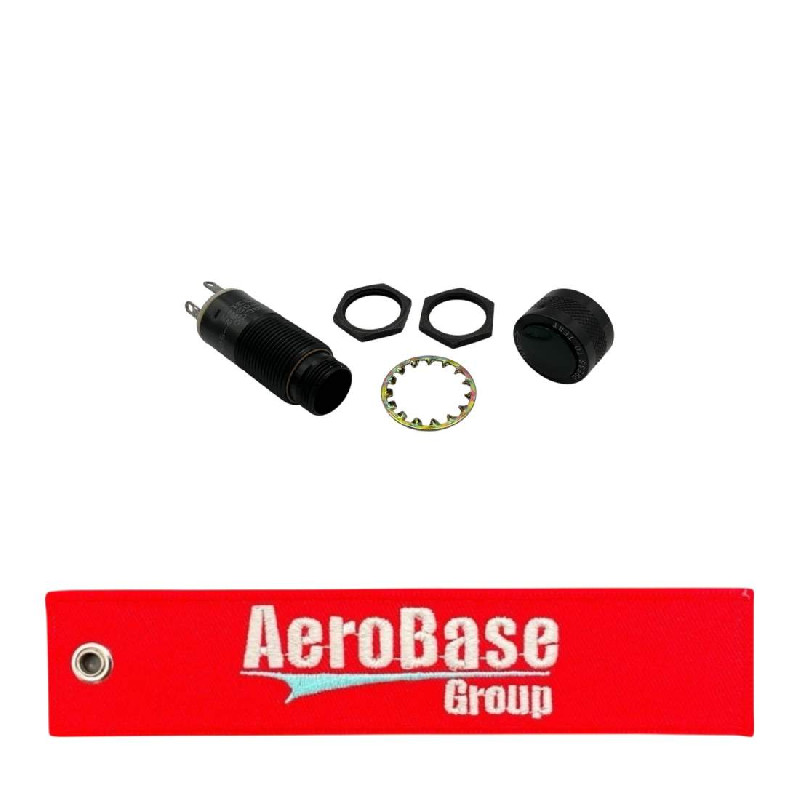

Furnished Items And Quantity 2 hexagon nut and 1 lock washer
Features Provided Blackout degree, partial and dimming device and press to test
Mounting Method Panel
Overall Diameter 0.75 inches nominal
Overall Length 2.25 inches nominal
Panel Accommodation Hole Diameter 0.625 inches nominal
Panel Thickness For Which Designed 0.375 inches maximum
Special Features Dim arrow symbol cw and press to test engraved on holder
Style Designator Round frame, round lens type
Surface Treatment Anodize body
Terminal Type And Quantity 3 solder lug
Transmitted Light Color Green single light 1st position horizontal full display division a

Add to Cart

Up to quantity 26 ships same day.
buy now $129.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    6210-00-660-8462
  • Package Weight (oz)
    1.12
  • Manufactured By
    DIALIGHT
  • ECCN (Export Control Class)
    EAR99
