DIALIGHT 803-1710-0337-504 LED Panel Indicator

Part#: 803-1710-0337-504 NSN: 6210-00-299-6509

About this product 803-1710-0337-504 is a Dialight Series 803 military-specification clear press-to-test indicator light, cross-referenced to MS25331-5 and associated with NSN 6210-00-299-6509. Designed for aerospace, defense and military control panel applications, this panel-mounted indicator features a transparent, colorless lens, non-dimming configuration and press-to-test functionality. The assembly accommodates a replaceable T-3 1/4 miniature-bayonet incandescent lamp and features three solder-lug terminals. Measuring 2.250 inches in overall length and 0.750 inches in diameter, it mounts in a nominal 5/8-inch panel opening and includes two hex nuts and one lock washer. * Manufacturer certifications are shipped with your order FREE of charge

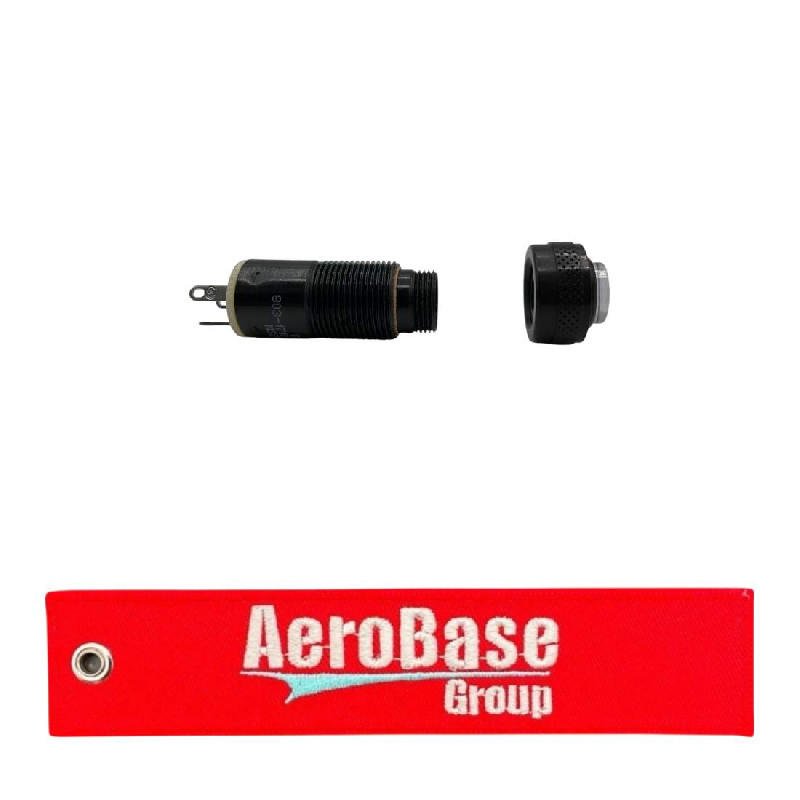

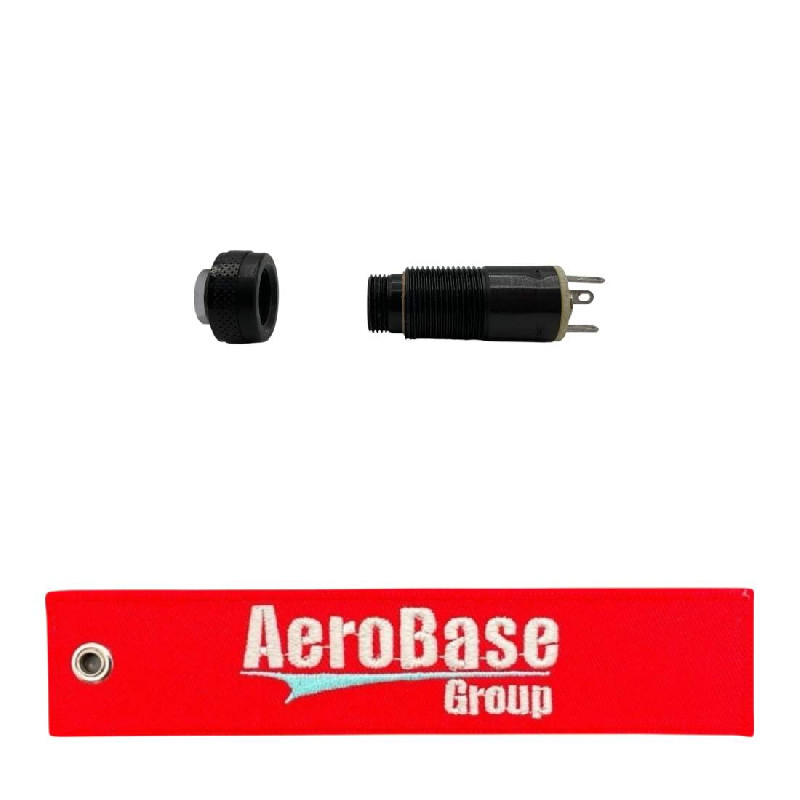

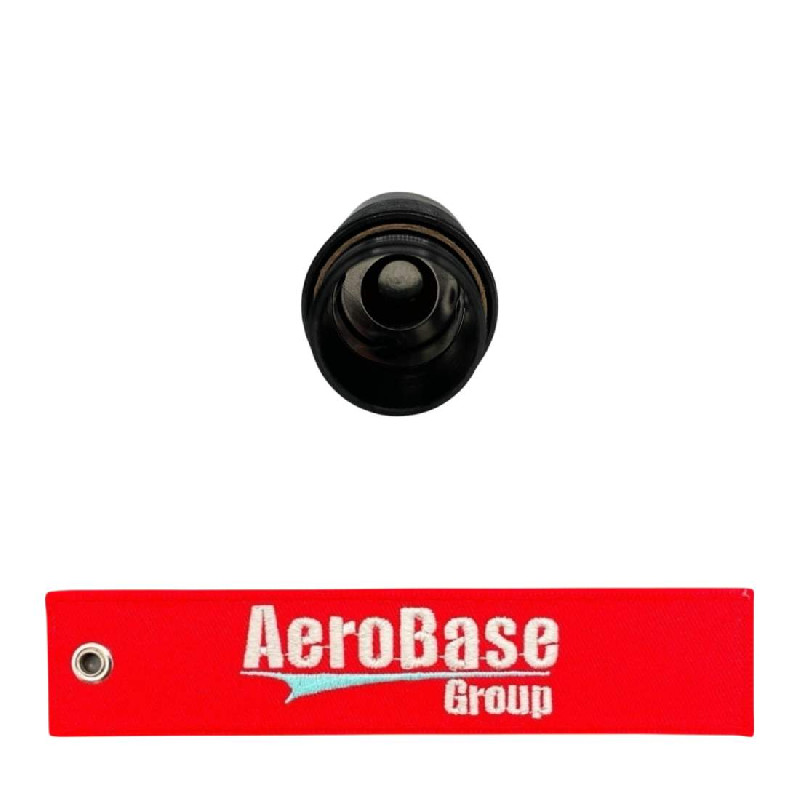

Product Images
803-1710-0337-504 803-1710-0337-504 803-1710-0337-504 803-1710-0337-504 803-1710-0337-504 803-1710-0337-504 803-1710-0337-504

Product Details

Part Number or Model 803-1710-0337-504
Description LED Panel Indicator
Schedule B Class 8541410000
ECCN (Export Control Class) EAR99
Overall Length 2.250 inches maximum
Overall Diameter 0.750 inches maximum
Lens Type Flat, knurled single light 1st position horizontal
Mounting Method Panel
Lens Quantity 1
Lens Mounting Method Screw on
Lens Light Transmission Characteristic Transparent single light 1st position horizontal
Lens Face Surface Condition Smooth single light 1st position horizontal
Lens Color Colorless single light 1st position horizontal
Lens Back Surface Condition Smooth single light 1st position horizontal
Lamp Type Accommodated And Quantity 1 incandescent
Lamp Bulb Size Designator T-3 1/4
Lamp Base Type Accommodated Miniature bayonet
Hazardous Locations/environmental Protection Fungus resistant and dusttight and humidity resistant and salt spray resistant and vibration resistant
Features Provided Press to test

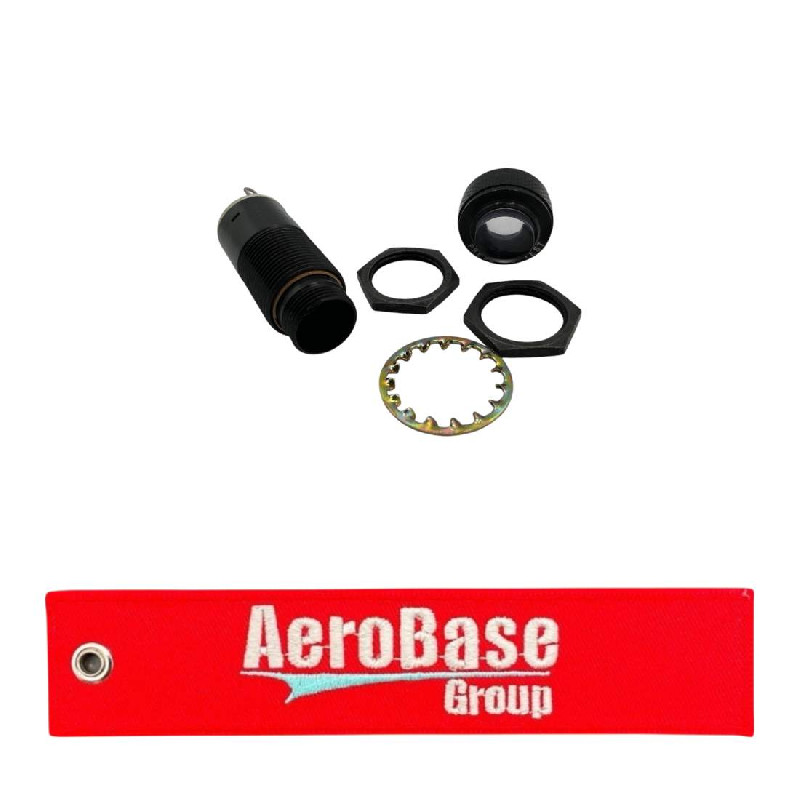

Furnished Items And Quantity 2 hexagon nut and 1 lock washer
Panel Thickness For Which Designed 0.375 inches maximum

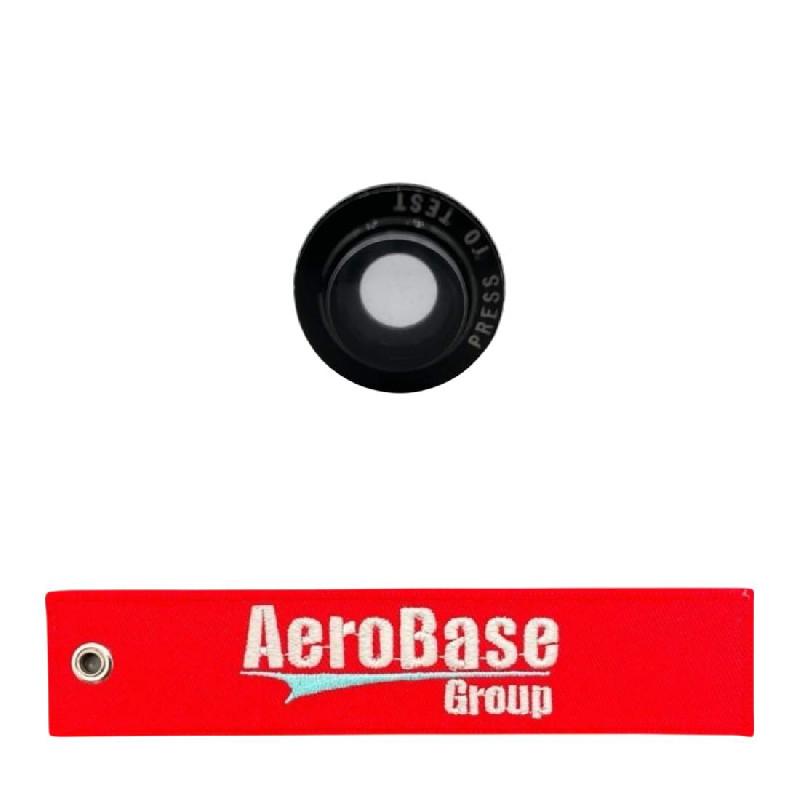

Special Features Press to test engraved on holder
Style Designator Round frame, round lens type

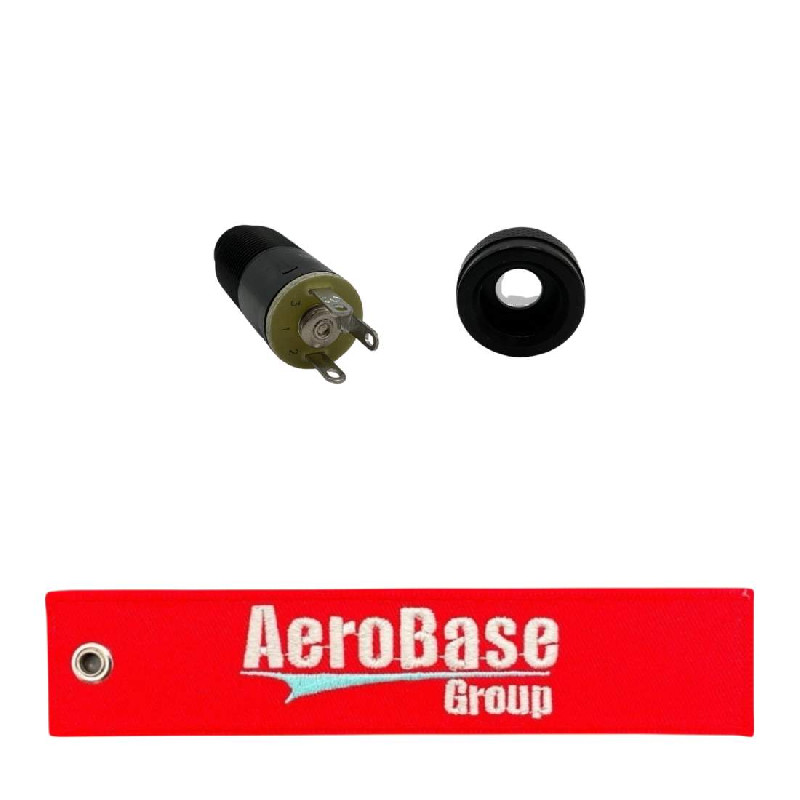

Terminal Type And Quantity 3 solder lug
Transmitted Light Color Colorless single light 1st position horizontal full display division a
Base Type BA9

Add to Cart

Up to quantity 36 ships same day.
buy now $138.50
each
Request a quote Call for questions and assistance
