249-8068-3733-504F LED Panel Indicator

Part#: 249-8068-3733-504F NSN: 6220-01-661-9750

About this product 249-8068-3733-504F LED Panel Indicator. * Manufacturer certifications are shipped with your order FREE of charge

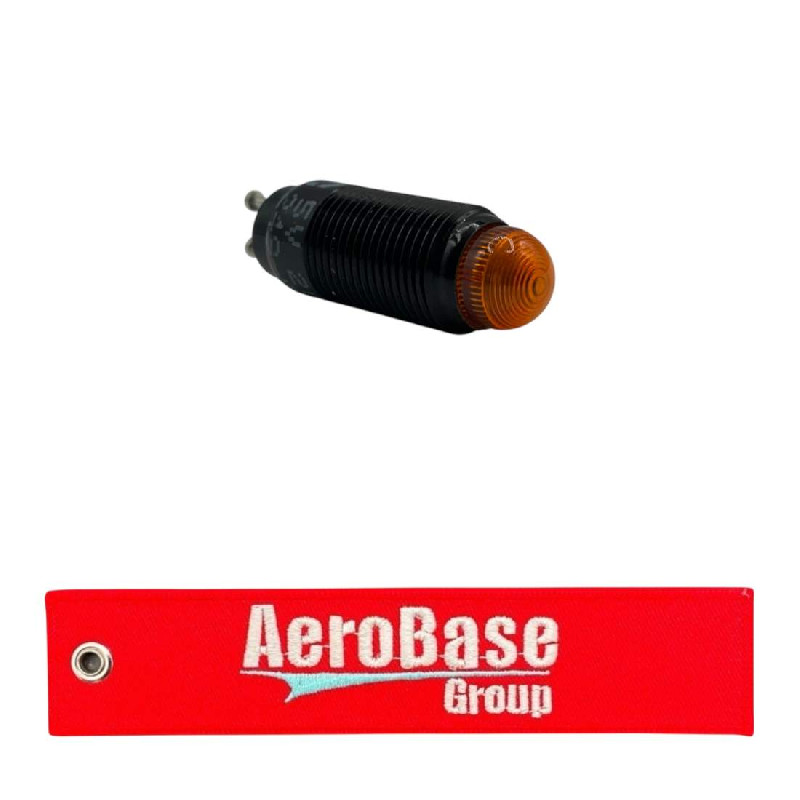

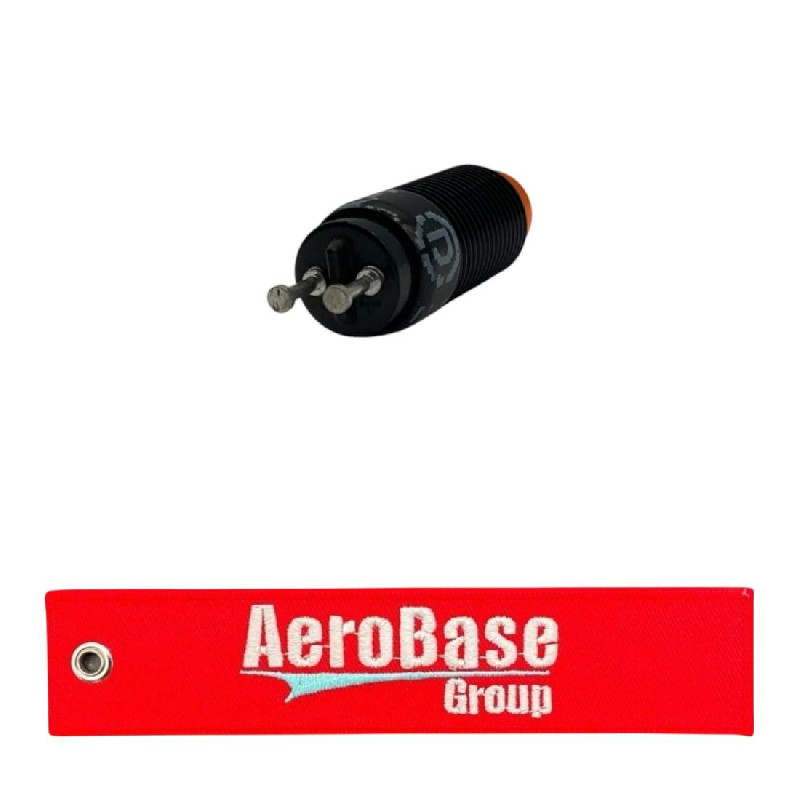

Product Images
249-8068-3733-504F 249-8068-3733-504F 249-8068-3733-504F

Product Details

Part Number or Model 249-8068-3733-504F
Description LED Panel Indicator
Schedule B Class
ECCN (Export Control Class) EAR99
Furnished Items And Quantity 1 hexagon nut and 1 knurled flange ring and 1 lock washer
Lamp Base Type Accommodated Subminiature two pin
Lamp Type Accommodated And Quantity 1 light emitting diode
Lens Color Yellow, light single light first position horizontal
Lens Quantity 1
Lens Type Stovepipe, plain single light first position horizontal
Material Aluminum body
Mounting Method Panel
Overall Diameter 0.33 inches nominal
Overall Length 1.223 inches nominal
Panel Accommodation Hole Diameter 0.375 inches nominal
Panel Thickness For Which Designed 0.312 inches nominal
Part Name Assigned By Controlling Agency 249 series front or rear panel mount indicator
Special Features Rohs compliant;resistant to shock and vibration;no heat generated;mounting torque 8-10lbs torque;operating voltage 3.6 or 5 or 10 or 14 and 28v dc;operating temp and storage temp-55 degrees celsius to 71 degrees celsius;housing construction black anodized aluminum;terminals phosphor bronze-fused tin;knurled flange nut aluminum-black anodized;lock washer phosphor bronze-white nickel plated;nut brass-white nickel plated
Style Designator Round frame, round lens type
Terminal Type And Quantity 2 turret

Add to Cart

Up to quantity 74 ships same day.
buy now $18.95
each, minimum order quantity of 2 Sold in increments of 2
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    6220-01-661-9750
  • Package Weight (oz)
    0.464
  • Manufactured By
    DIALIGHT
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 6220-01-661-9750
  • 6220016619750
  • 24980683733504F
