373-0410-01-203 Lens Holder

Part#: 373-0410-01-203 NSN: 6210-00-836-2564

About this product 373-0410-01-203 Lens Holder. * Manufacturer certifications are shipped with your order FREE of charge

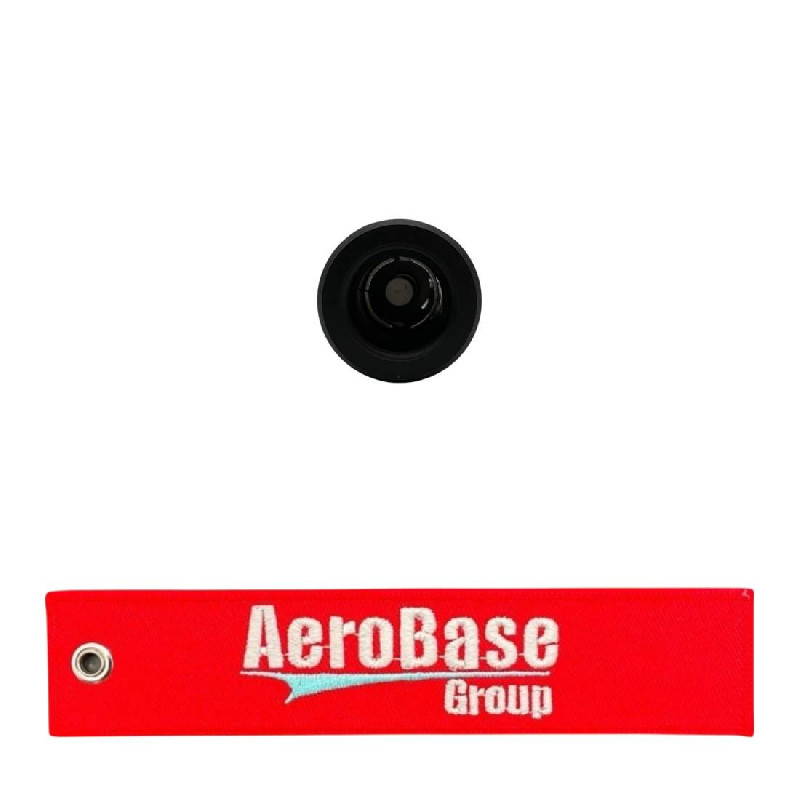

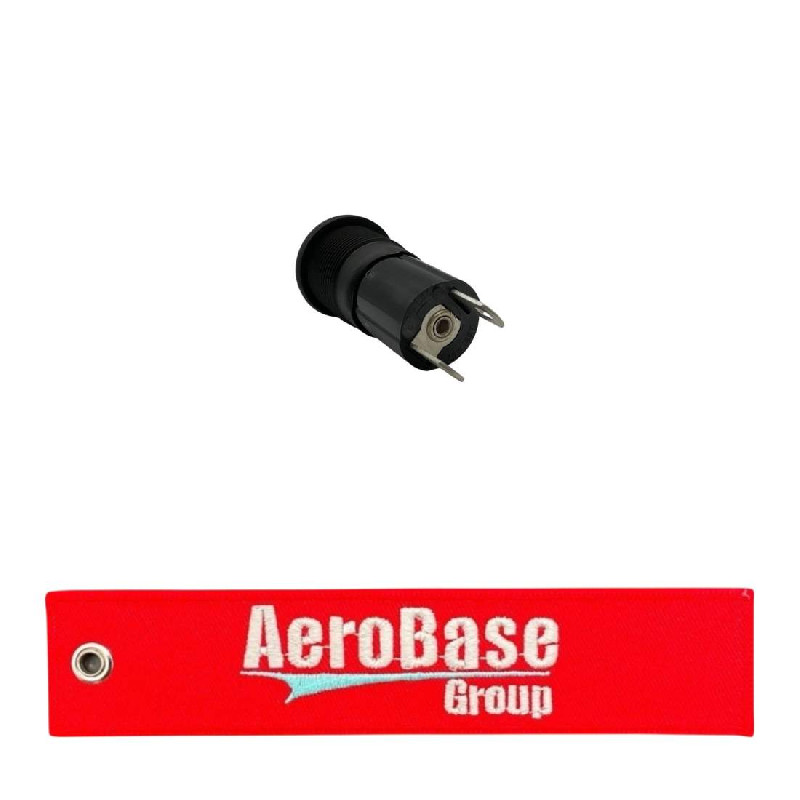

Product Images
373-0410-01-203 373-0410-01-203 373-0410-01-203

Product Details

Part Number or Model 373-0410-01-203
Description Lens Holder
Schedule B Class 8536610000
ECCN (Export Control Class) EAR99
Furnished Items And Quantity 1 gasket and 1 hexagon nut and 1 lock washer
Hazardous Locations/environmental Protection Watertight
Lamp Base Type Accommodated Miniature bayonet
Lamp Bulb Size Designator T-3 1/4
Lamp Type Accommodated And Quantity 1 incandescent
Material Copper alloy body
Mounting Method Panel
Overall Diameter 0.812 inches nominal
Overall Length 1.827 inches nominal
Panel Accommodation Hole Diameter 0.688 inches minimum and 0.694 inches maximum
Panel Thickness For Which Designed 0.406 inches maximum
Style Designator Round frame, round lens type
Surface Treatment Nickel body
Terminal Type And Quantity 2 solder lug

Add to Cart

Up to quantity 26 ships same day.
buy now $44.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    6210-00-836-2564
  • Package Weight (oz)
    1.008
  • Manufactured By
    DIALIGHT
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
