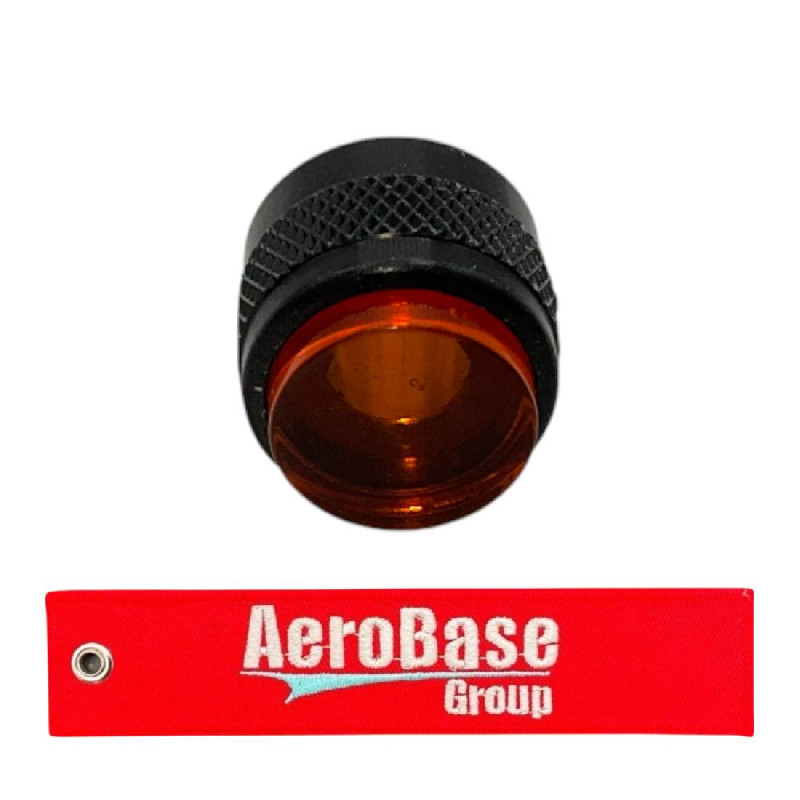

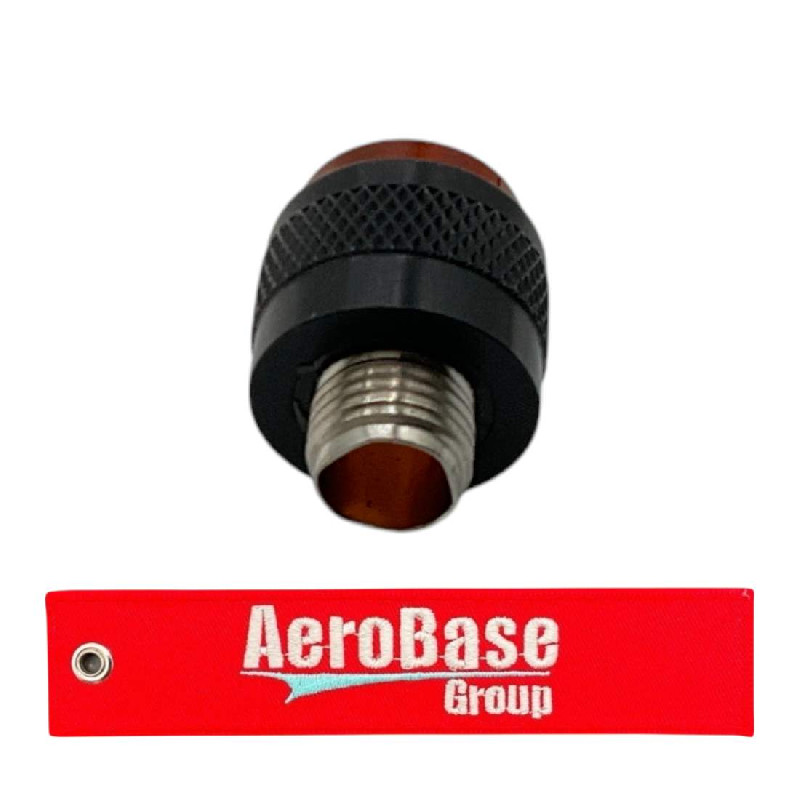

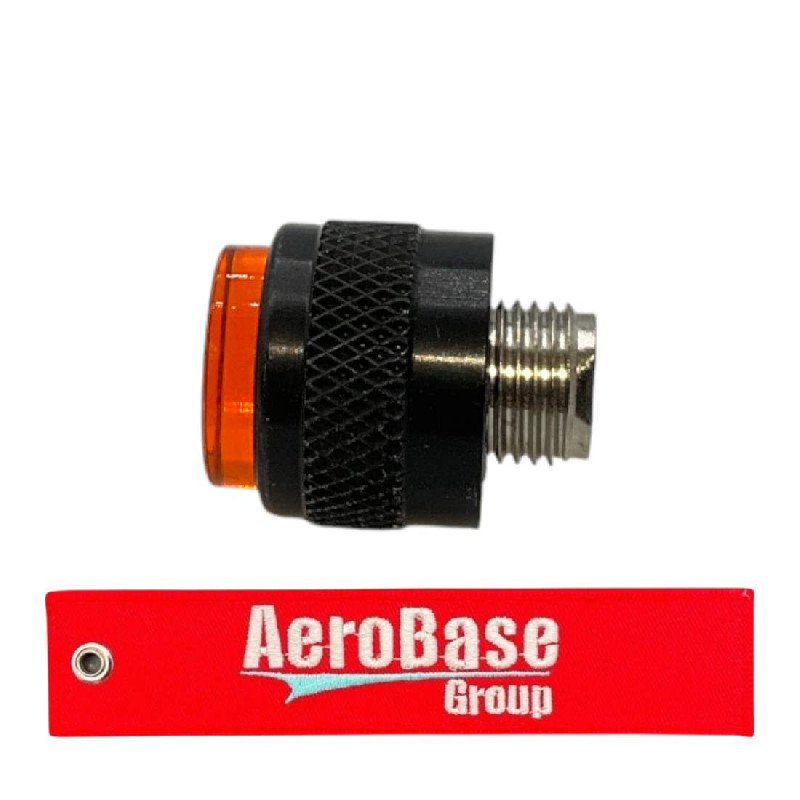

178-0333-500 Lamp Lens

Part#: 178-0333-500 NSN: 6210-00-045-5502

About this product 178-0333-500 Lamp Lens. * Manufacturer certifications are shipped with your order FREE of charge

Product Images
178-0333-500 178-0333-500 178-0333-500 178-0333-500

Product Details

Part Number or Model 178-0333-500
Description Lamp Lens
Schedule B Class
ECCN (Export Control Class) EAR99
Color Nickel holder
Color Yellow, aviation lens
Effective Diameter 0.469 inches nominal
Features Provided Rotatable alignment capability
Hazardous Locations/environmental Protection Dusttight
Holder Surface Treatment Nickel
Light Transmission Design Transparent lens
Material Copper alloy holder
Material Plastic lens
Mounting Device Quantity 1
Mounting Method External thread
Overall Diameter 0.562 inches nominal
Overall Length 0.719 inches nominal
Style Designator Flat
Surface Condition Smooth face
Surface Condition Smooth back
Thread Class 2a
Thread Diameter 0.312 inches
Thread Direction Right-hand
Thread Quantity 32 per inch
Thread Series Unef

Add to Cart

Up to quantity 5 ships same day.
buy now $84.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    6210-00-045-5502
  • Manufactured By
    DIALIGHT
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 6210-00-045-5502
  • 6210000455502
  • 1780333500
