DIALIGHT 160-0111-203 Lamp Lens

Part#: 160-0111-203 NSN: 6210-00-151-5240

About this product 160-0111-203 Lamp Lens. * Manufacturer certifications are shipped with your order FREE of charge

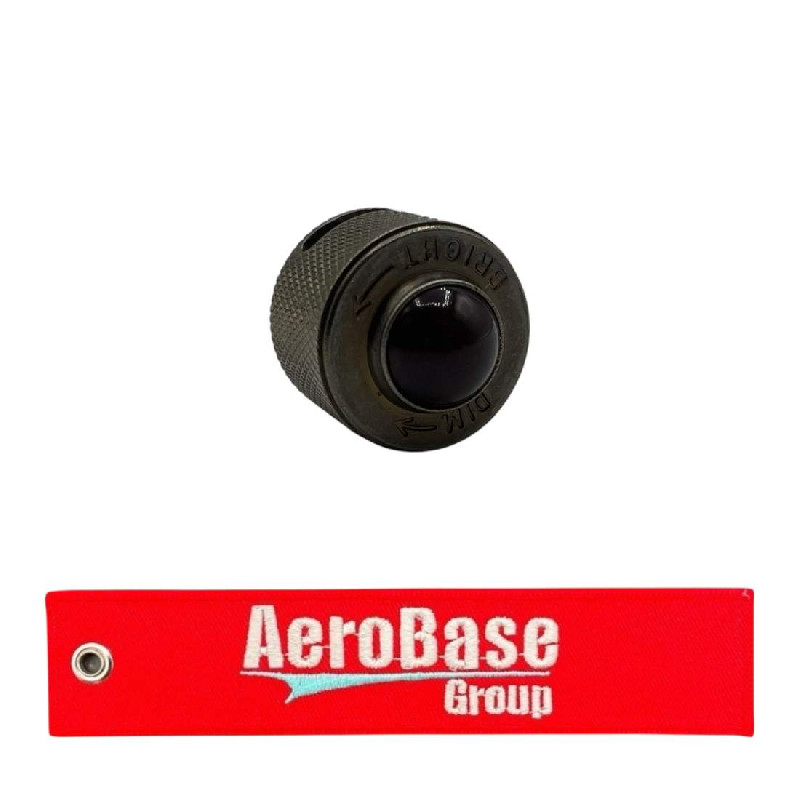

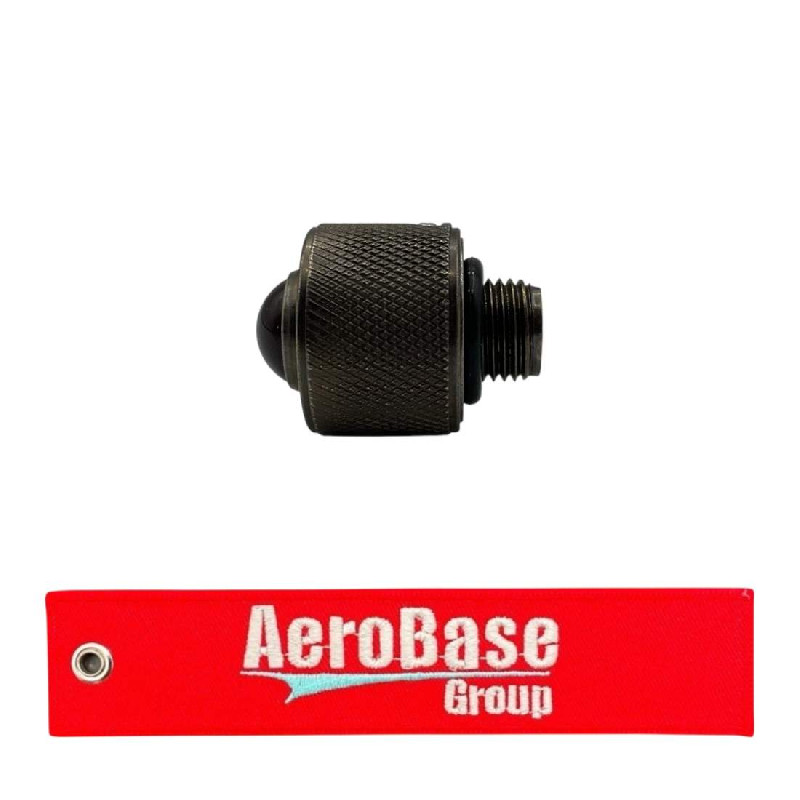

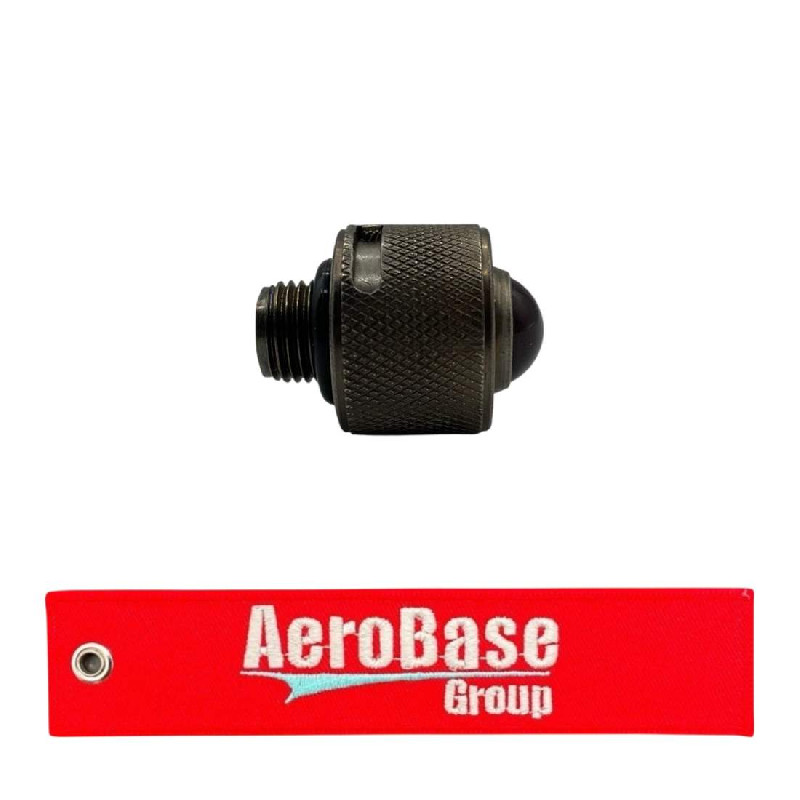

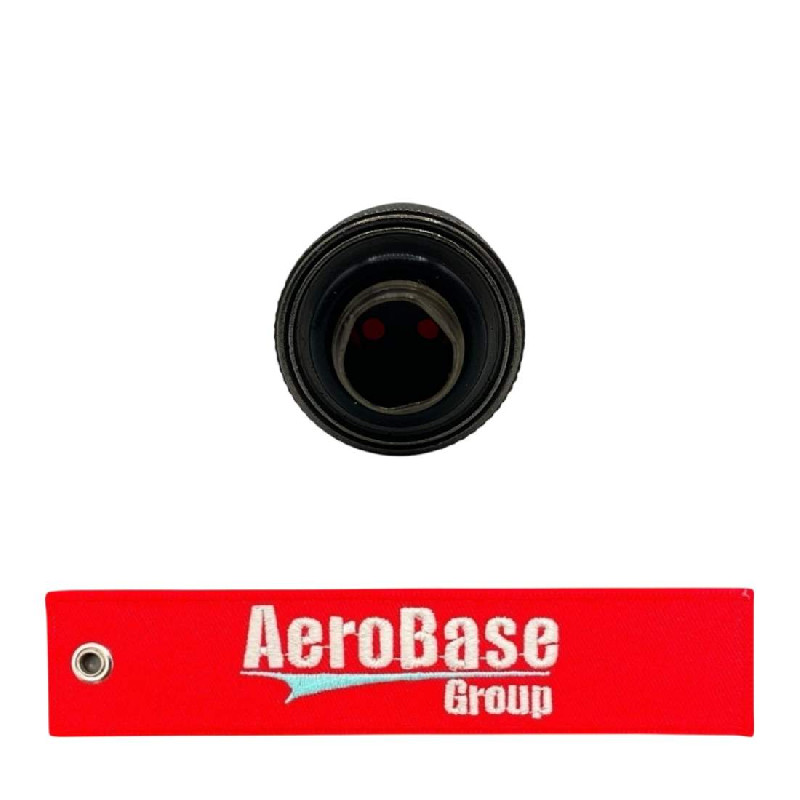

Product Images
160-0111-203 160-0111-203 160-0111-203 160-0111-203 160-0111-203

Product Details

Part Number or Model 160-0111-203
Description Lamp Lens
Schedule B Class 9405.92.0000
ECCN (Export Control Class) EAR99
Blackout Degree Complete
Color Black inscription
Color Black holder
Color Black inscription background
Color Red, identification lens
Dimming Device Type Mechanical shutter
Effective Diameter 0.3 inches minimum and 0.360 inches maximum
Furnished Items Without ring
Inscription Dim arrow symbol cw bright arrow symbol ccw holder
Light Transmission Design Translucent lens
Material Plastic lens
Mounting Device Quantity 1
Mounting Method External thread
Overall Diameter 0.610 inches minimum and 0.670 inches maximum
Overall Length 0.818 inches minimum and 0.870 inches maximum
Style Designator Convex
Surface Condition Frosted back
Surface Condition Smooth face
Thread Class 2a
Thread Diameter 0.312 inches
Thread Direction Right-hand
Thread Quantity 32 per inch
Thread Series Unef
