FHL18G1-2 Fuse Holder

Part#: FHL18G1-2 NSN: 5920-00-627-3717

About this product FHL18G1-2 Fuse Holder. * Manufacturer certifications are shipped with your order FREE of charge

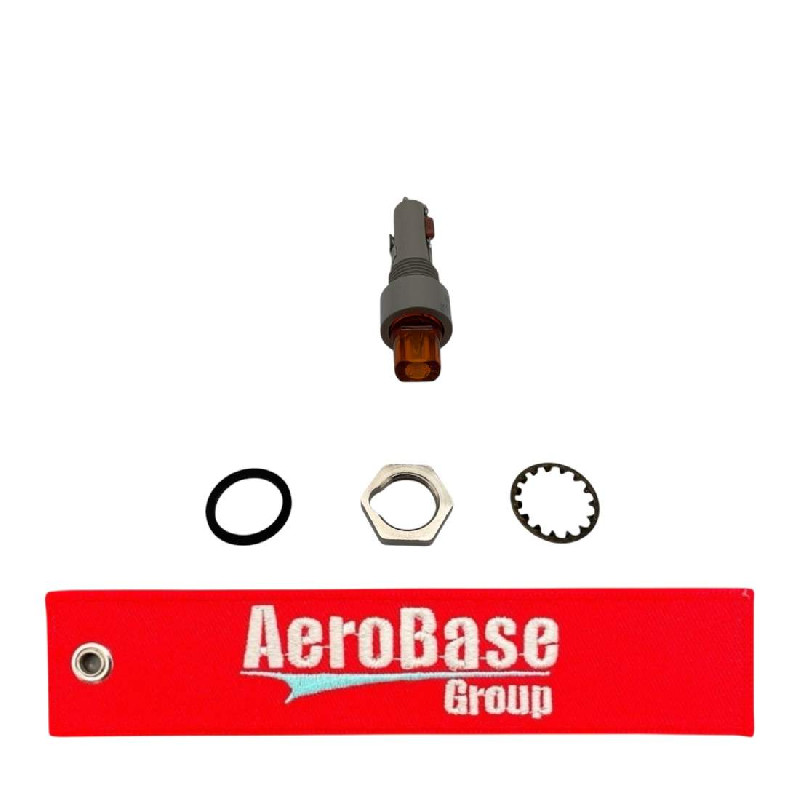

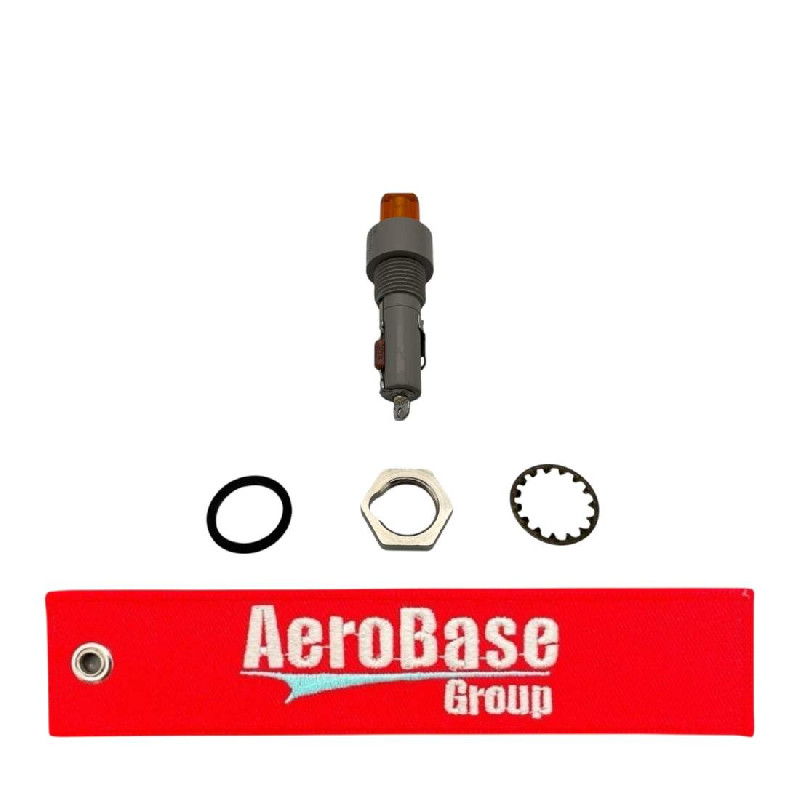

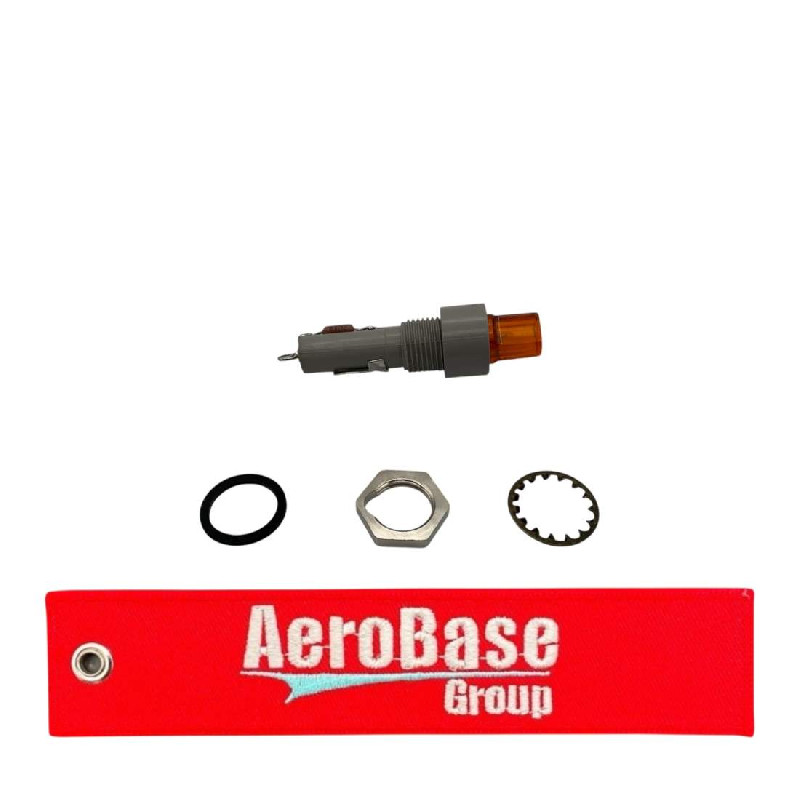

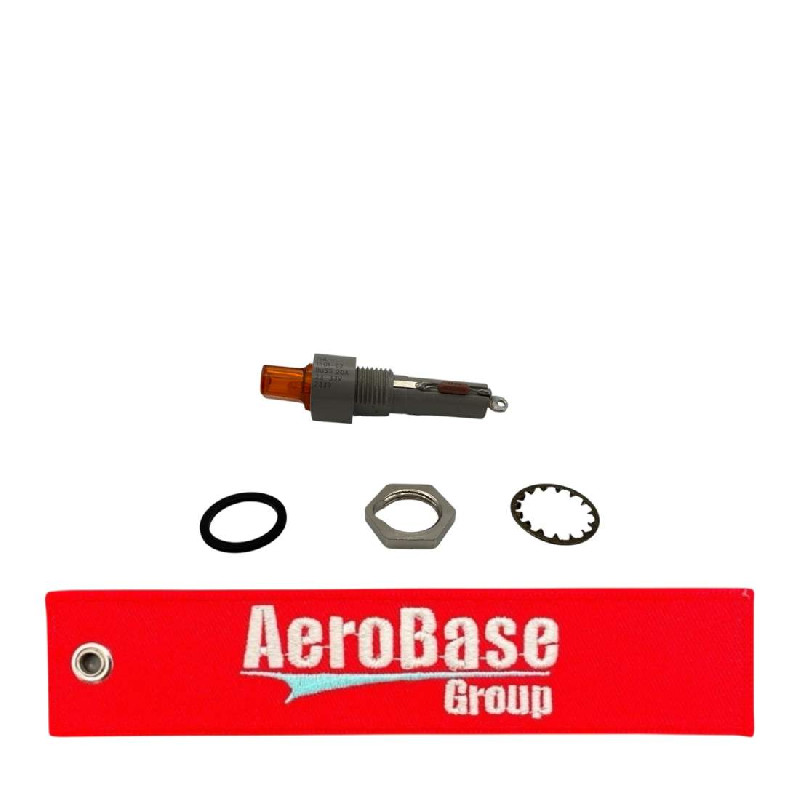

Product Images
FHL18G1-2 FHL18G1-2 FHL18G1-2 FHL18G1-2 FHL18G1-2 FHL18G1-2

Product Details

Part Number or Model FHL18G1-2
Description Fuse Holder
Schedule B Class
ECCN (Export Control Class) EAR99
Accommodated Ferrule Diameter 0.250 inches nominal
Accommodated Fuse Length 1.250 inches nominal
Body Material Plastic, mil-p-19833, type gdi-30f
Body Style Bushing mounted type
Bushing Diameter 0.625 inches nominal
Bushing Hole Diameter 0.625 inches minimum and 0.635 inches maximum
Bushing Thread Length 0.440 inches nominal
Cap Diameter 0.530 inches nominal
Contact Material Beryllium copper
Contact Surface Treatment Any acceptable
Current Carrying Rating In Amps 20
Environmental Protection Dripproof
Flatted Side Bushing Hole Length 0.570 inches minimum and 0.575 inches maximum
Fuse Accommodation Quantity 1
Fuse Terminal Type Accommodated Ferrule
Interruption Indicator Method Incandescent lamp
Length From Front Protrusion To Mounting Surface 1.19 inches nominal
Lens Color Amber
Mounting Hole Quantity 1
Mounting Hole Style Bushing mounting
Overall Diameter 0.810 inches nominal
Overall Length 3.310 inches maximum
Resistor Rating 330.0 ohms
Specification Data 81349-mil-f-19207/9 government specification
Terminal Type And Quantity 2 tab, solder lug
Voltage In Volts 33.0

Add to Cart

Up to quantity 5 ships same day.
buy now $319.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5920-00-627-3717
  • Manufactured By
    Bussmann
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5920-00-627-3717
  • 5920006273717
  • FHL18G12
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
