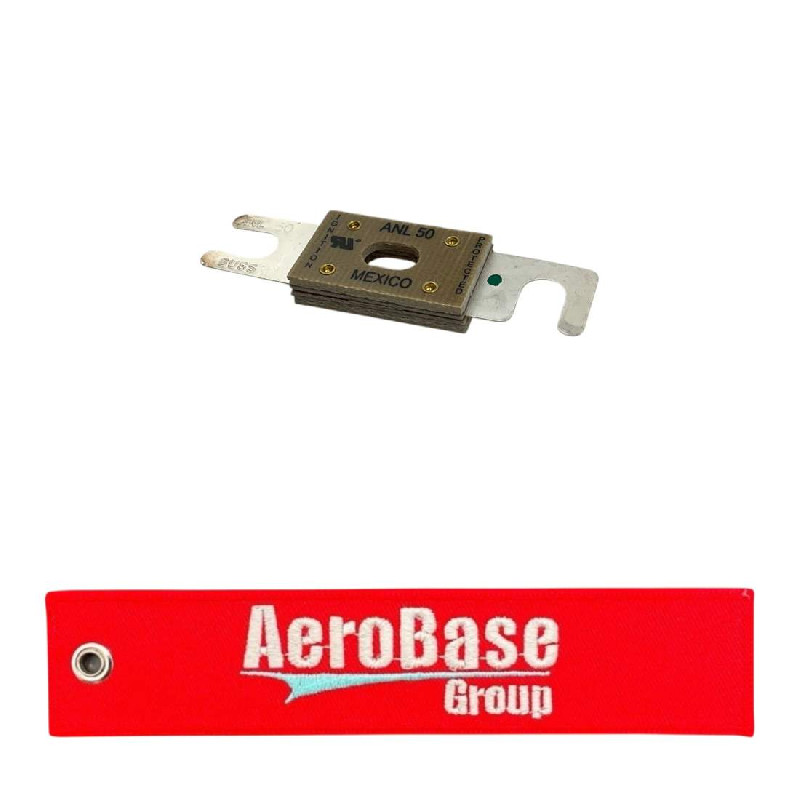

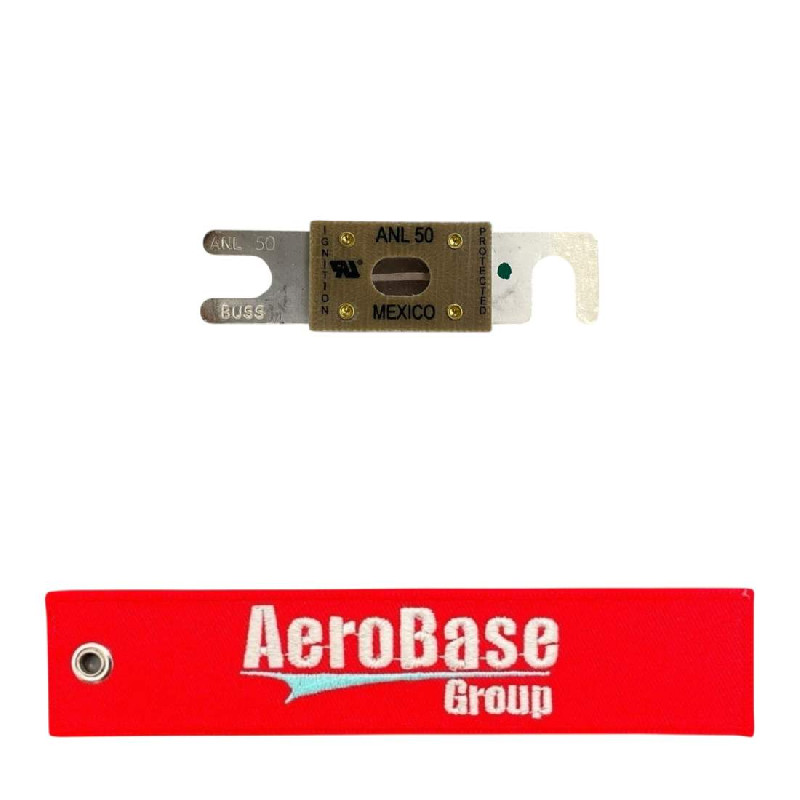

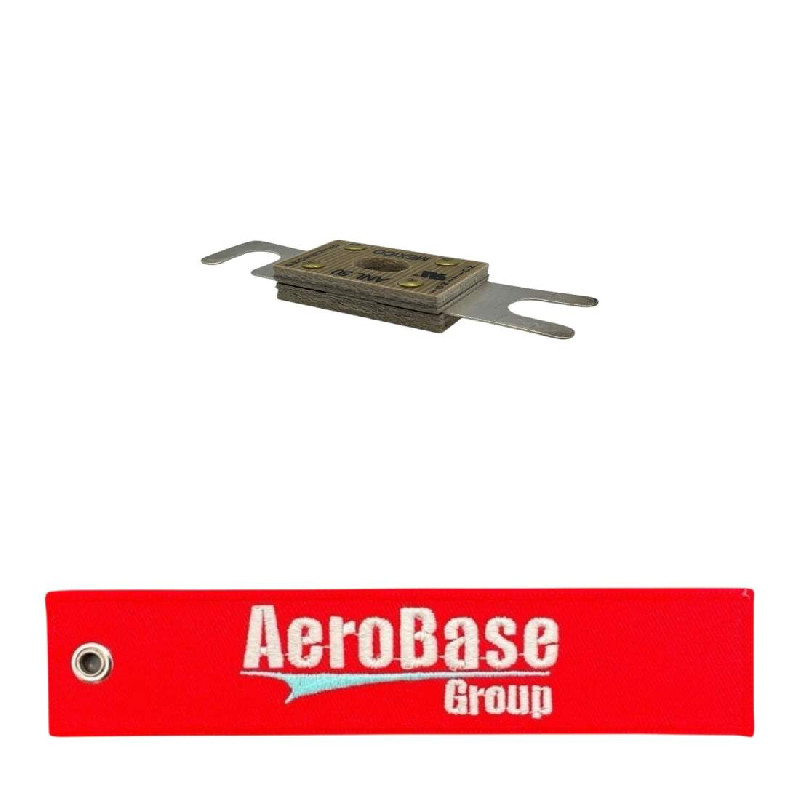

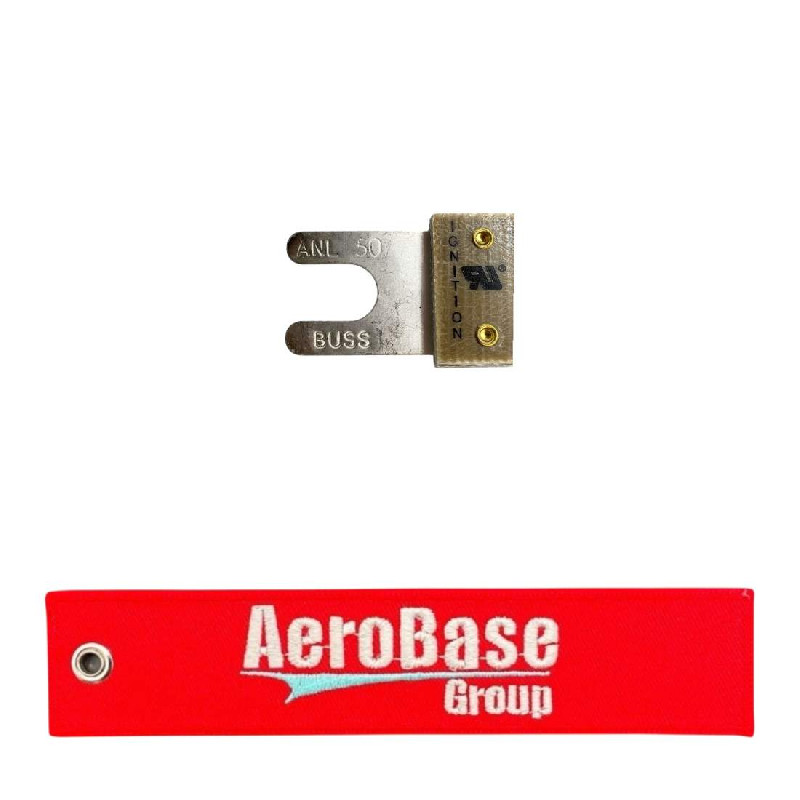

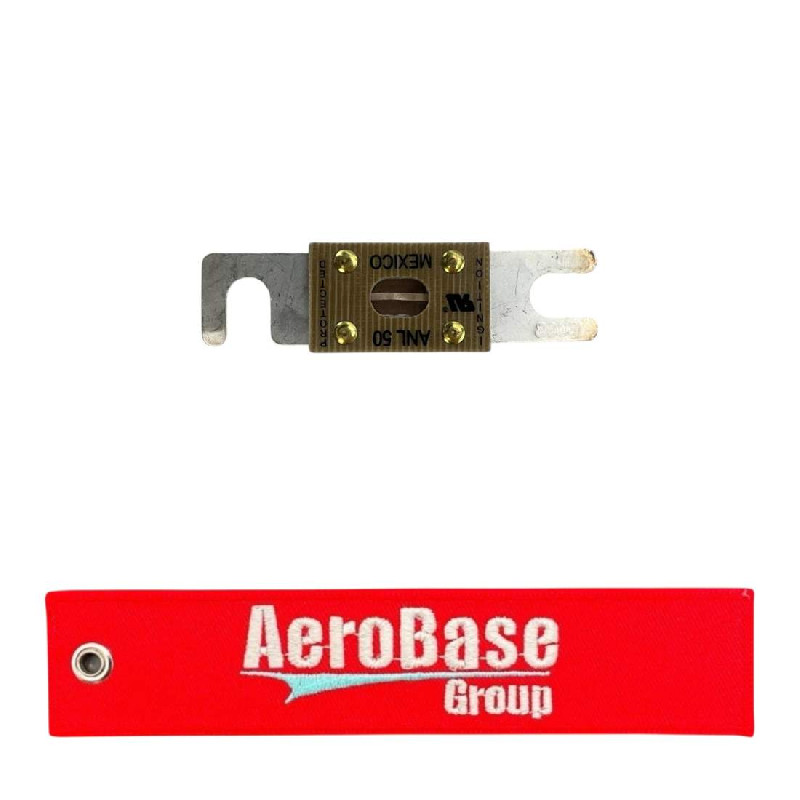

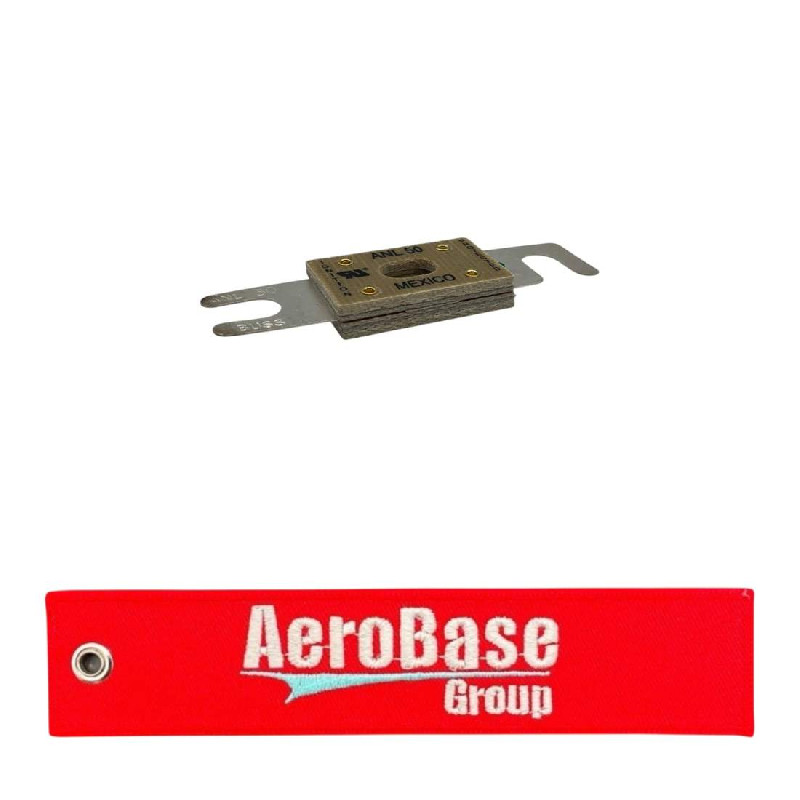

ANL-50 Fuse

Part#: ANL-50 NSN: 5920-00-235-8334

About this product ANL-50 Fuse. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

Product Details

Part Number or Model	ANL-50
Description	Fuse
Schedule B Class
ECCN (Export Control Class)	EAR99
Short-circuit/interrupt Current Rating In Amps	10000
Precious Material	Silver
Precious Material And Location	Link element silver
Overall Width	0.875 inches nominal
Overall Length	3.188 inches nominal
Overall Height	0.750 inches nominal
Mounting Slot Width	0.344 inches nominal
Maximum Voltage Rating In Volts	32 ac and 32 dc
Interruption Indicator Method	Visible element
Continuous Current Rating In Amps	50
Circuit Over-current Interruption Type	Normal instantaneous
Center To Center Distance Between Mounting Facilities Parallel T	2.438 inches nominal
Case Material	Plastic
Body Style	Slotted limiter
Terminal Length	0.875 inches nominal
Terminal Material	Copper
Terminal Surface Treatment	Silver plated
Terminal Thickness	0.036 inches nominal
Terminal Width	0.752 inches nominal

Up to quantity 210 ships same day.

buy now $21.95

each, minimum order quantity of 2 Sold in increments of 2

Request a quote Call for questions and assistance
+1 (321) 802-5889

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
