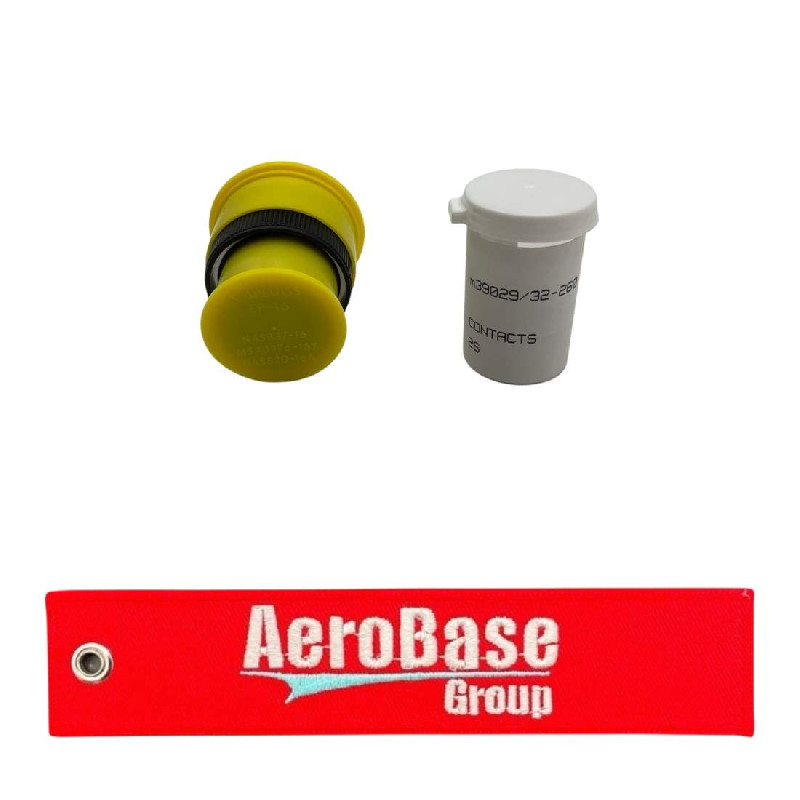

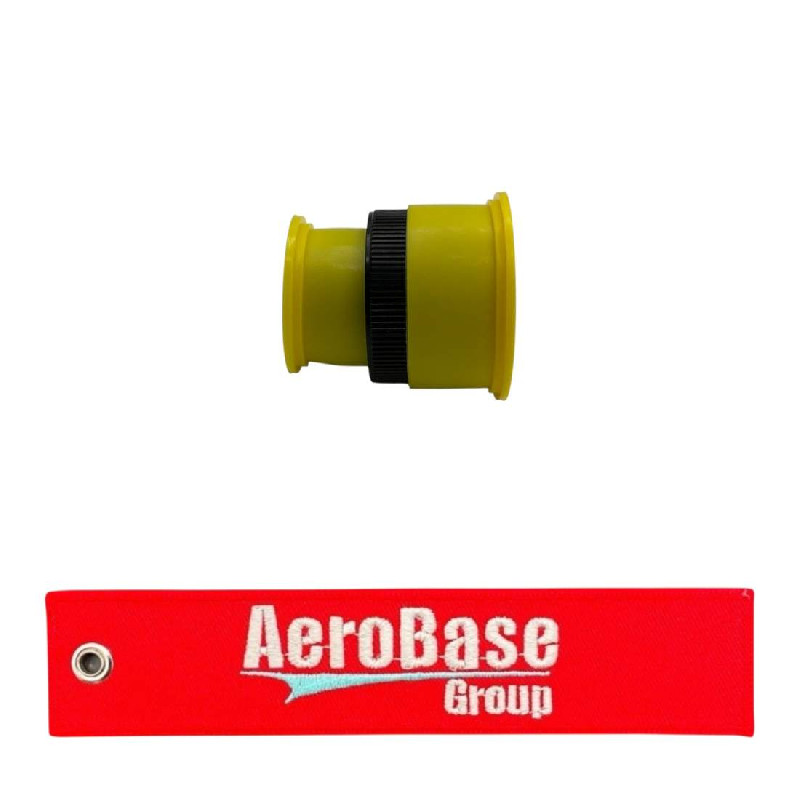

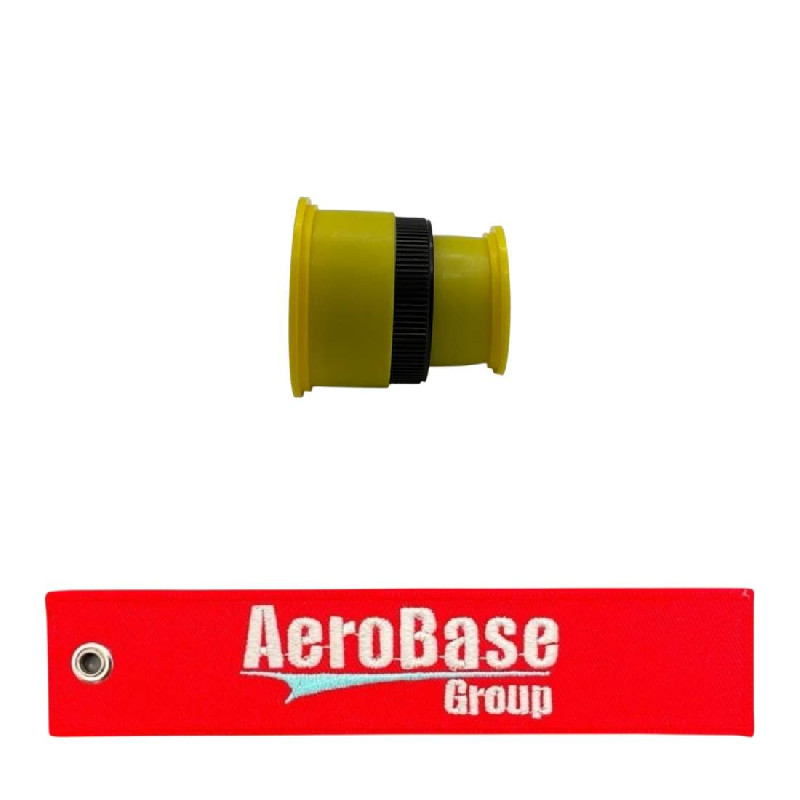

Conesys MS24266R16B24SN Electrical Plug Connector

Name: Electrical Plug Connector
Brand: Conesys
SKU: 5935009507726
Price: 96.00 USD
Availability: InStock

Part#: MS24266R16B24SN NSN: 5935-00-950-7726

About this product MS24266R16B24SN Electrical Plug Connector. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

Product Details

Part Number or Model	MS24266R16B24SN
Description	Electrical Plug Connector
Schedule B Class	8536.69.5050
ECCN (Export Control Class)	EAR99
Body Length	1.625 inches minimum and 2.140 inches maximum
Body Style	Straight shape, internal coupling w/strain relief
Cable Entrance Diameter	0.437 inches minimum
Connector Cable Strain Relief Method	Cable clamp
Connector Locking Method	Bayonet latch
Contact Material	Copper alloy single mating end single contact grouping
Contact Maximum Current Rating In Amps	7.5 single mating end single contact grouping
Contact Position Arrangement Style	24 number 20 single mating end
Contact Removability	Removable single mating end single contact grouping
Contact Surface Treatment	Gold single mating end single contact grouping
Contact Surface Treatment Specification	Mil-g-45204,ty 2 class 2 mil spec single treatment response single mating end single contact grouping
Environmental Protection	Pressure proof and moisture resistant and vibration resistant
Included Contact Quantity	24 single mating end single contact grouping
Included Contact Type	Round socket single mating end single contact grouping
Insert Position In Degrees	0.0
Mating End Quantity	1
Thread Size	1.062 inches
Overall Diameter	1.266 inches maximum
Polarization Method	Keyway or multiple keyway
Precious Material	Gold
Precious Material And Location	Contact surfaces gold
Precious Material And Weight	0.024 gold grains, troy
Shell Material	Aluminum alloy 6061
Shell Material Specification	Qq-a-325, grade t6 federal spec single material response
Shell Surface Treatment	Anodize
Shell Type	Solid
Terminal Location	Back single mating end single contact grouping
Terminal Type	Crimp single mating end single contact grouping
Thread Class	2b
Thread Direction	Right-hand
Thread Series Designator	Unef
Threaded Device Type	Coupling facility
