M39029/58-361 Electrical Contact Pin

Part#: M39029/58-361 NSN: 5999-00-483-4610

About this product M39029/58-361 Electrical Contact Pin. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

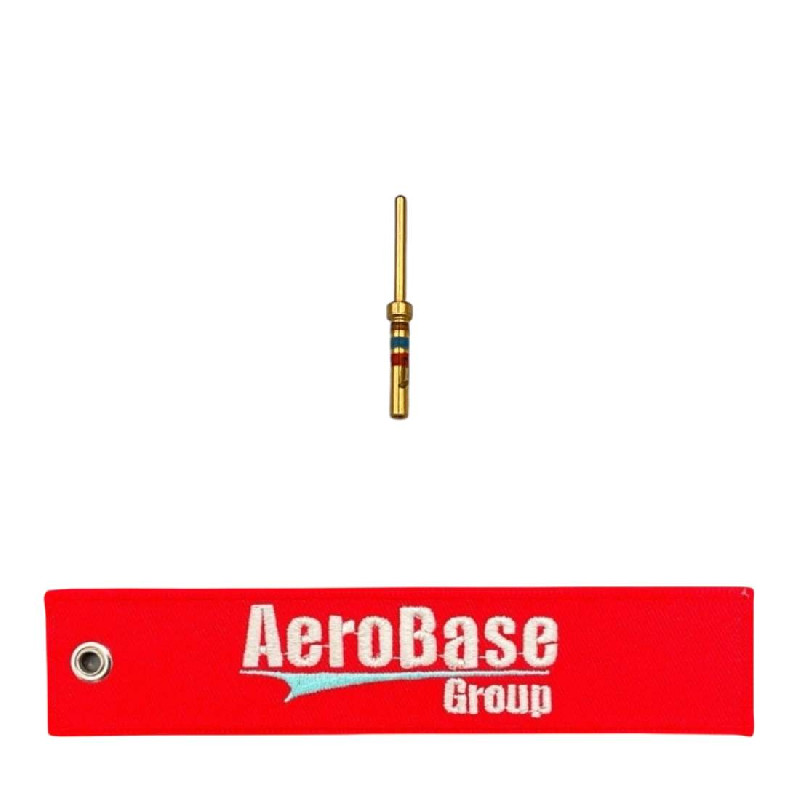

M39029/58-361 M39029/58-361

Product Details

Part Number or Model M39029/58-361
Description Electrical Contact Pin
Schedule B Class
ECCN (Export Control Class) EAR99
Cable Entrance Diameter 0.027 inches minimum and 0.029 inches maximum
Crimping Tool Identifying Number M22520/2-01
Identification Code Color Orange and blue and brown
Material Copper alloy contact
Material Copper alloy body
Mounting Method Any acceptable
Overall Diameter 0.060 inches minimum and 0.062 inches maximum
Overall Length 0.531 inches nominal
Pin Diameter 0.03 inches minimum and 0.031 inches maximum
Pin Length 0.267 inches minimum and 0.276 inches maximum
Precious Material Gold
Precious Material And Location Body and contact surfaces gold
Precious Material And Weight 0.005 gold grains, troy
Special Features Basic item identification number bin-361
Specification Data 81349-mil-c-39029/58 government specification
Style Designator Pin contact
Surface Treatment Gold body and contact
Surface Treatment Specification Mil-g-45204 mil spec single treatment response body and contact
Terminal Type And Quantity 1 crimp axially at one end

Add to Cart

Up to quantity 600 ships same day.
buy now $0.45
each, minimum order quantity of 100 Sold in increments of 100
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5999-00-483-4610
  • Manufactured By
    Amphenol
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • M3902958361
  • 5999004834610
  • 5999-00-483-4610
