Carlisle Interconnect M39029/76-425 Electrical Contact Pin

Part#: M39029/76-425 NSN: 5999-01-196-5269

About this product M39029/76-425 is a military-specification, size 16 removable coaxial pin contact designed for compatible military circular connectors. Manufactured to SAE AS39029/76 requirements, this shielded crimp-termination contact features gold-plated copper alloy construction, a fluorocarbon dielectric insulator and compatibility with 50-ohm M17/093-RG178 coaxial cable. Identified by yellow, red and green color bands, the contact provides shielded signal connectivity for aerospace, defense, avionics and military RF communication systems. Documented manufacturer cross-references include Glenair 852-008-16-425 and Amphenol Aerospace 21-33122-564. The corresponding RG-178 coaxial socket contact is M39029/78-433, subject to connector application verification. * Manufacturer certifications are shipped with your order FREE of charge

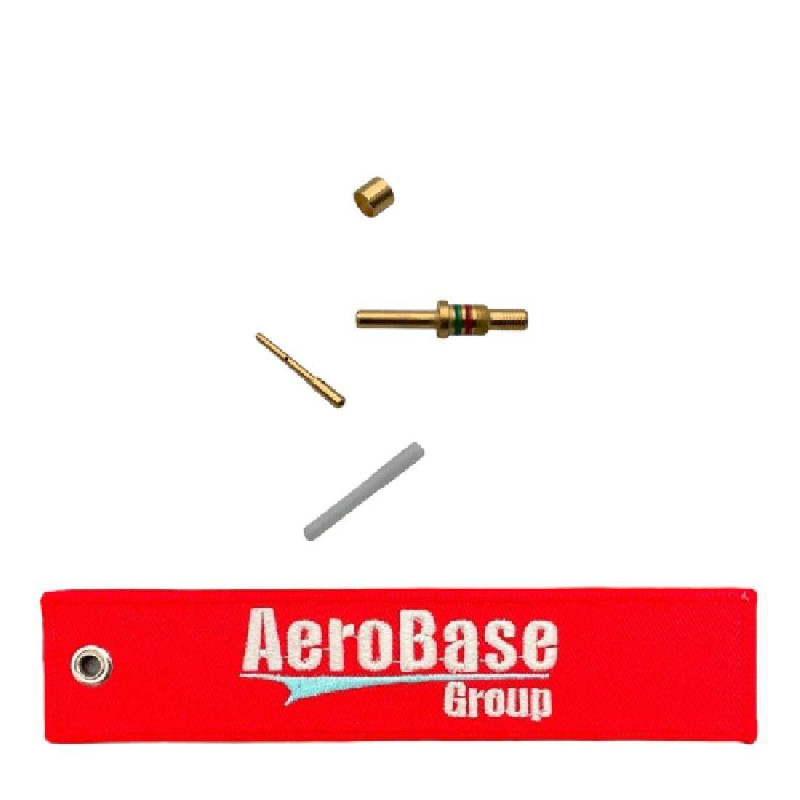

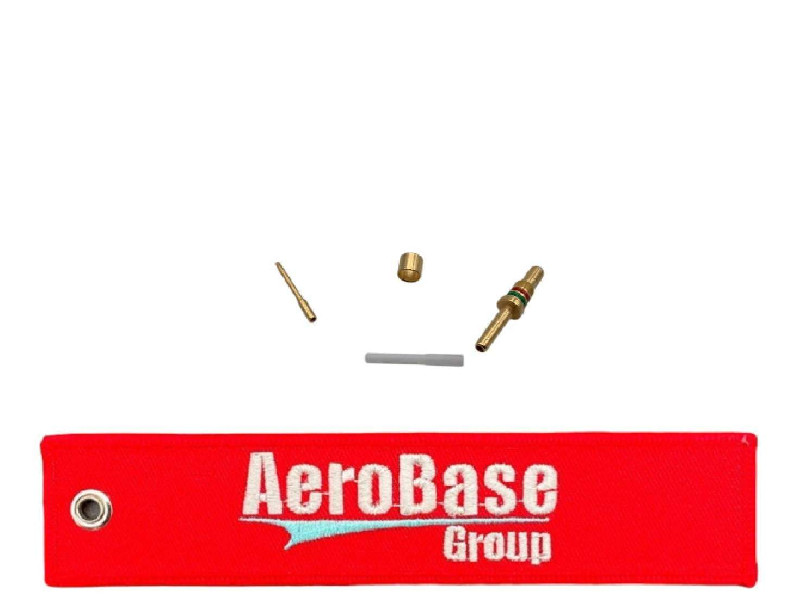

Product Images
M39029/76-425 M39029/76-425 M39029/76-425 M39029/76-425

Product Details

Part Number or Model M39029/76-425
Description Electrical Contact Pin
Schedule B Class 8538.90.7040
ECCN (Export Control Class) EAR99
Specification Data 81349-mil-c-39029/76 government specification
Special Features Bin-425
Pin Diameter 0.061 inches nominal
Overall Length 0.57 inches maximum
Overall Diameter 0.127 inches nominal
Mounting Method Terminal
Material Copper alloy body and contact
Crimping Tool Identifying Number M22520/2-01
Style Designator Pin contact
Terminal Type And Quantity 1 crimp end opposite contact

Add to Cart

Up to quantity 11 ships same day.
buy now $47.50
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5999-01-196-5269
  • Package Weight (oz)
    0.272
  • Manufactured By
    Carlisle Interconnect
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • M39029-76-425
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
Free Shipping on eligible orders over 150
