M39029/57-359 Electrical Contact Pin

Name: Electrical Contact Pin
Brand: Carlisle Interconnect
SKU: 5999004022539
Price: 3.70 USD
Availability: InStock

Part#: M39029/57-359 NSN: 5999-00-402-2539

About this product M39029/57-359 Electrical Contact Pin. * Manufacturer certifications are shipped with your order FREE of charge

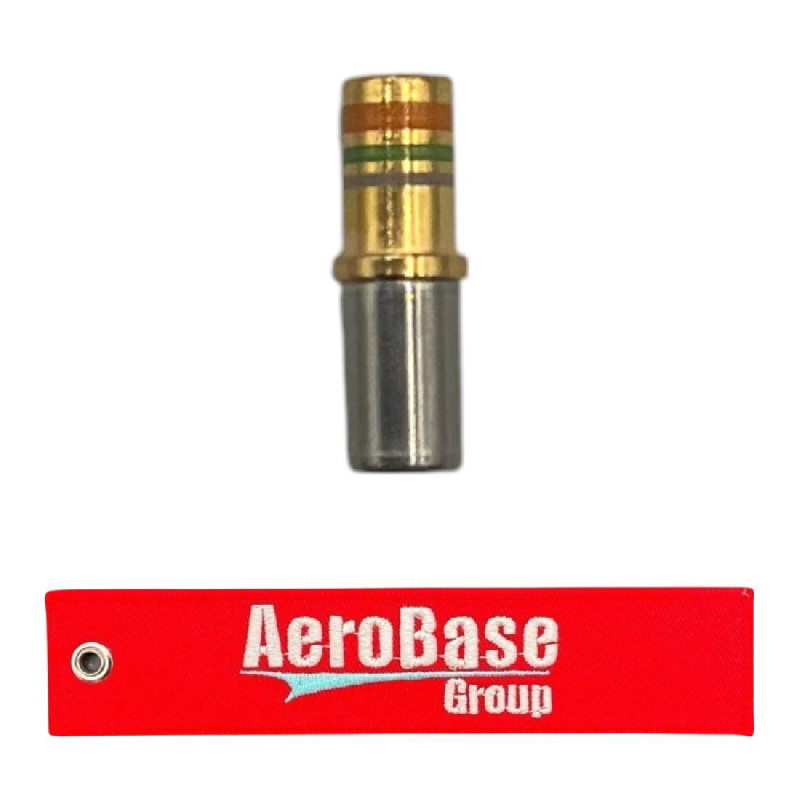

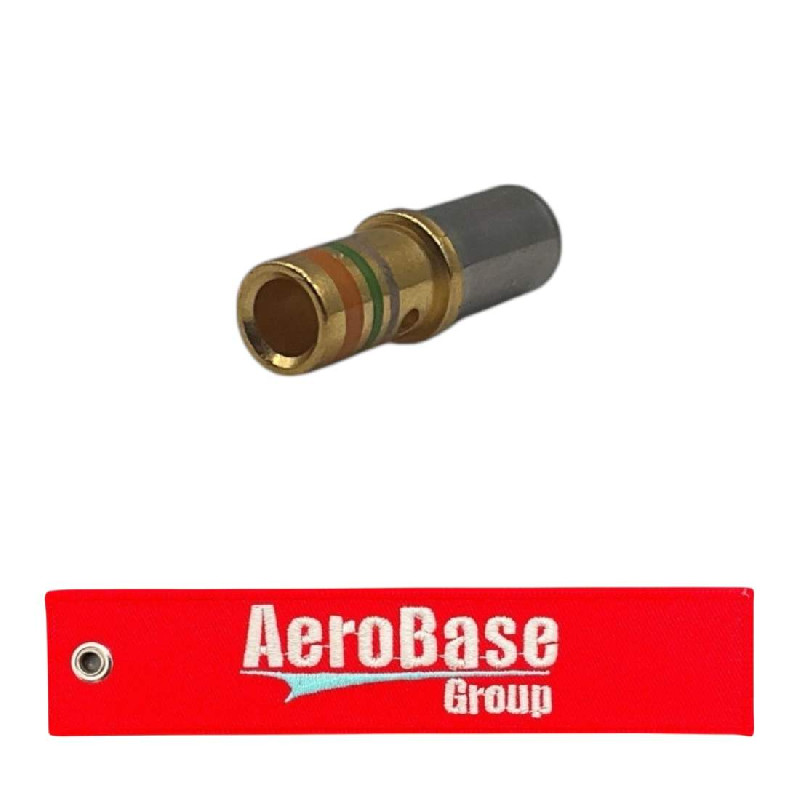

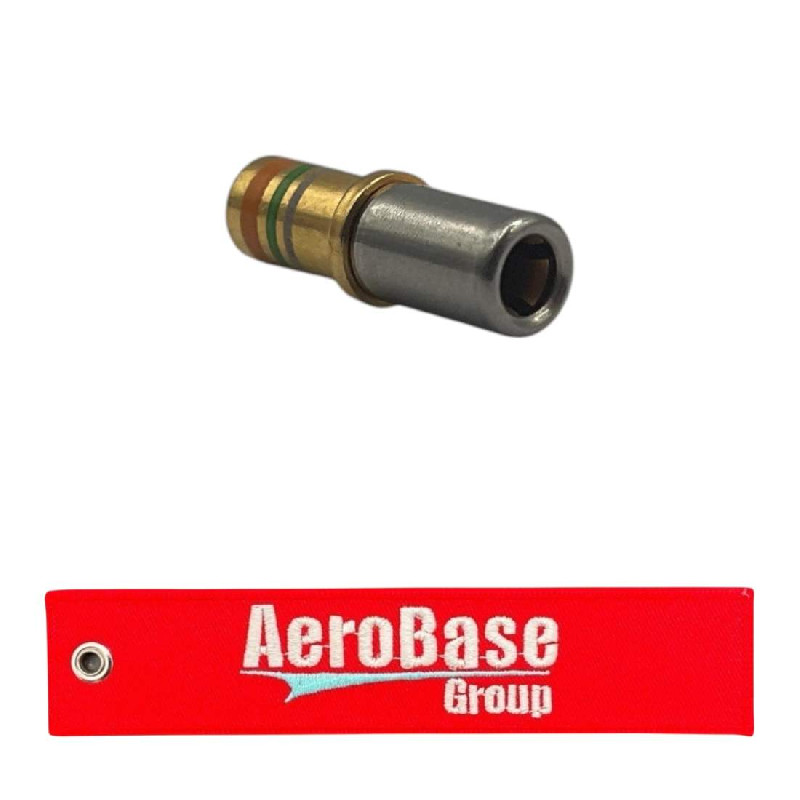

Product Images

Product Details

Part Number or Model	M39029/57-359
Description	Electrical Contact Pin
Schedule B Class
ECCN (Export Control Class)	EAR99
Specification Data	81349-mil-c-39029/57 government specification
Special Features	Basic item identification number bin-359
Precious Material And Weight	0.005 gold grains, troy
Precious Material And Location	Body and contact surfaces gold
Precious Material	Gold
Pin Accommodation Length	0.209 inches minimum and 0.229 inches maximum
Pin Accommodation Diameter	0.098 inches minimum and 0.102 inches maximum
Overall Length	0.518 inches nominal
Overall Diameter	0.179 inches minimum and 0.182 inches maximum
Mounting Method	Force fit
Material	Copper alloy body
Material	Copper alloy contact
Identification Code Color	Orange and green and white
Crimping Tool Identifying Number	M22520/1-01
Cable Entrance Diameter	0.097 inches minimum and 0.1 inches maximum
Style Designator	Socket contact
Surface Treatment	Gold body and copper body
Surface Treatment	Gold contact and copper contact
Surface Treatment Specification	Mil-g-45204 mil spec single treatment response body and contact
Terminal Type And Quantity	2 crimp axially at each end

Up to quantity 180 ships same day.

buy now $3.70

each, minimum order quantity of 20 Sold in increments of 20

Request a quote Call for questions and assistance
+1 (321) 802-5889

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
