MS3180-16RA Connector Cover

Part#: MS3180-16RA NSN: 5935-01-412-6872

About this product MS3180-16RA Connector Cover. * Manufacturer certifications are shipped with your order FREE of charge

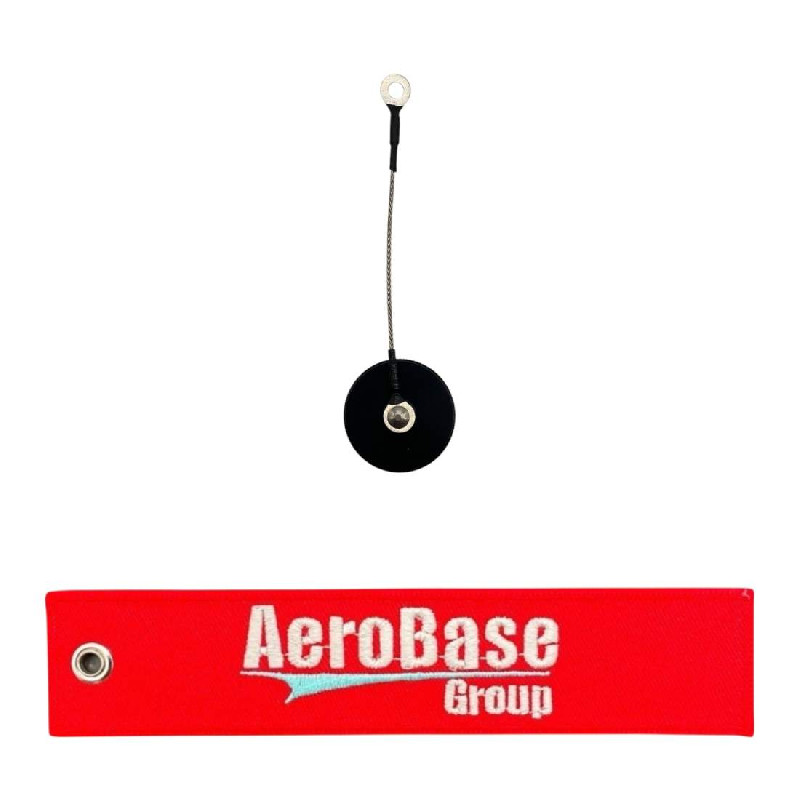

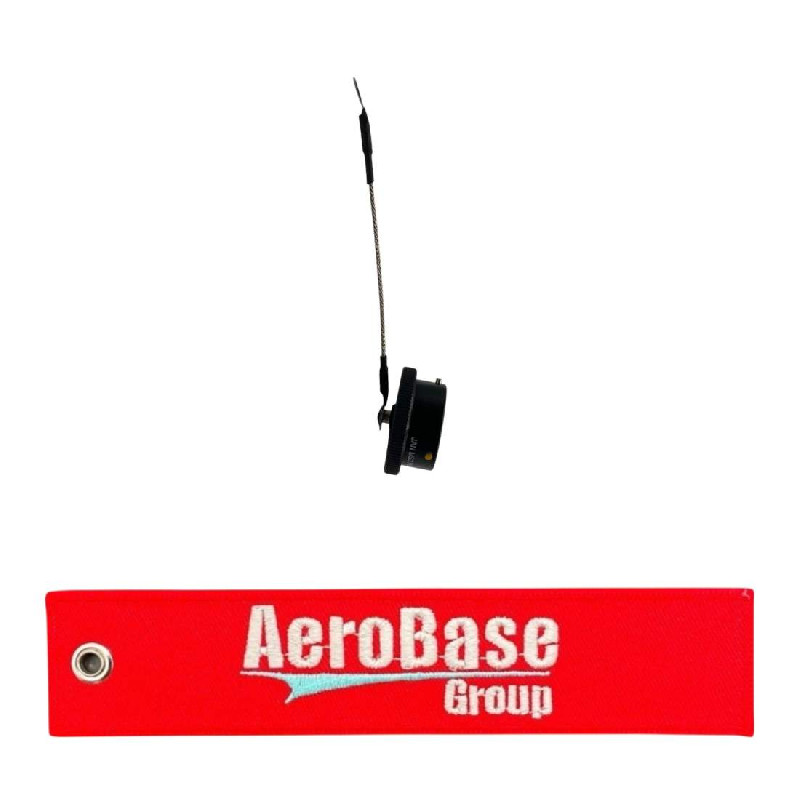

Product Images
MS3180-16RA MS3180-16RA MS3180-16RA

Product Details

Part Number or Model MS3180-16RA
Description Connector Cover
Schedule B Class
ECCN (Export Control Class) EAR99
Attachment Feature Length 3.250 inches minimum and 4.000 inches maximum
Body Height 0.781 inches maximum
Eye Inside Diameter 0.162 inches minimum and 0.177 inches maximum
Furnished Items Wire rope
Material Aluminum alloy
Material Aluminum alloy
Mounting Facility Type And Quantity 1 bayonet lock
Overall Diameter 1.250 inches maximum
Seal Material Rubber, silicone base
Seal Type Gasket
Size Designation 16
Specification Data 96906-ms3180 government standard
Style Designator External bayonet with chain or rope
Surface Treatment Anodized
Surface Treatment Anodize

Add to Cart

Up to quantity 95 ships same day.
buy now $12.50
each, minimum order quantity of 5 Sold in increments of 5
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-01-412-6872
  • Manufactured By
    SPI Connects
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • MS318016RA
  • 5935014126872
  • 5935-01-412-6872
