MS3126E20-16SW Connector

Part#: MS3126E20-16SW NSN: 5935-01-110-7029

About this product MS3126E20-16SW Connector. * Manufacturer certifications are shipped with your order FREE of charge

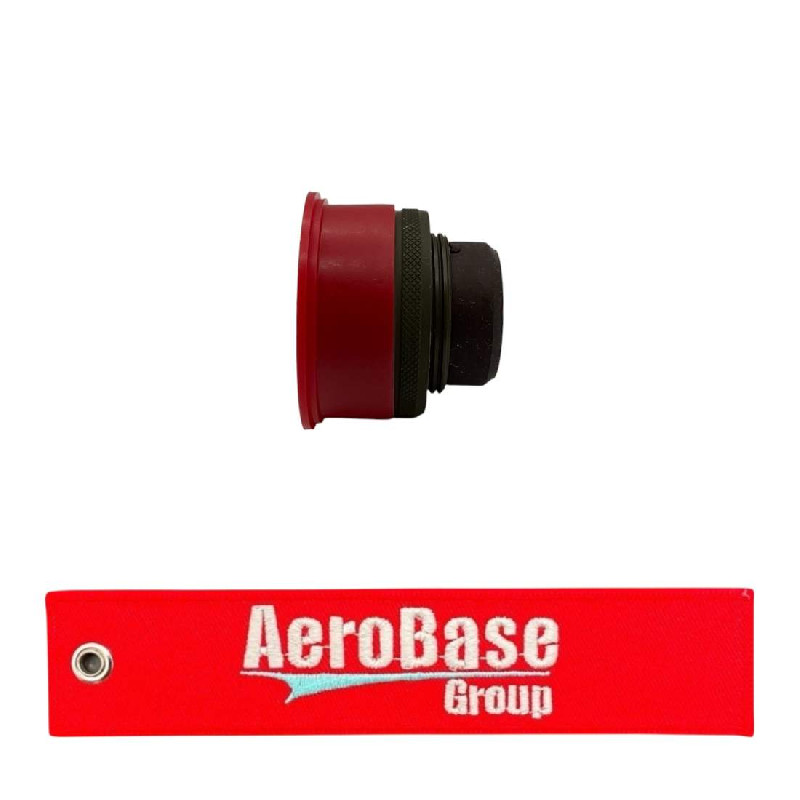

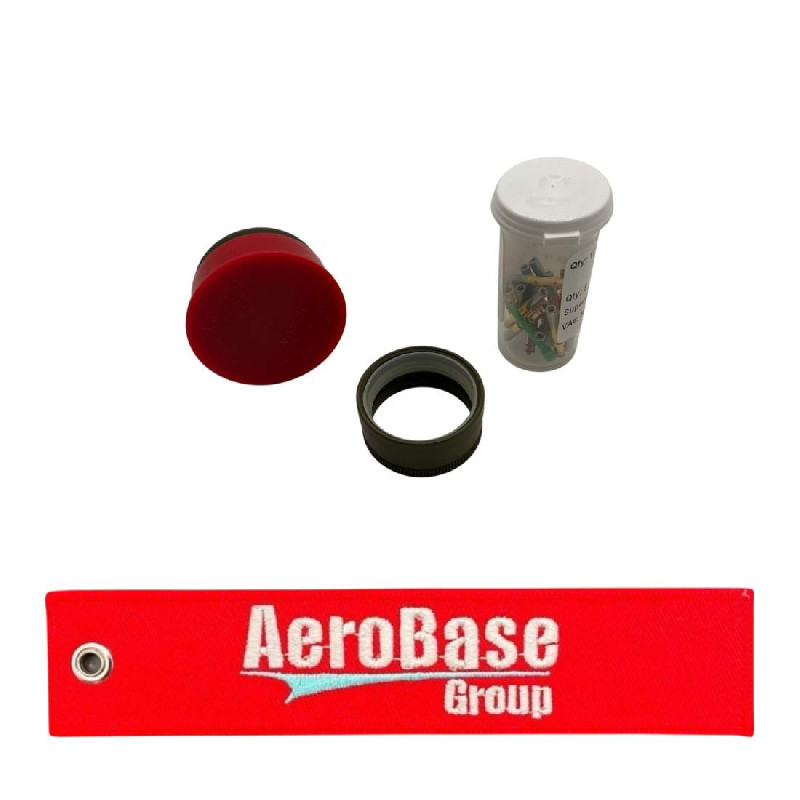

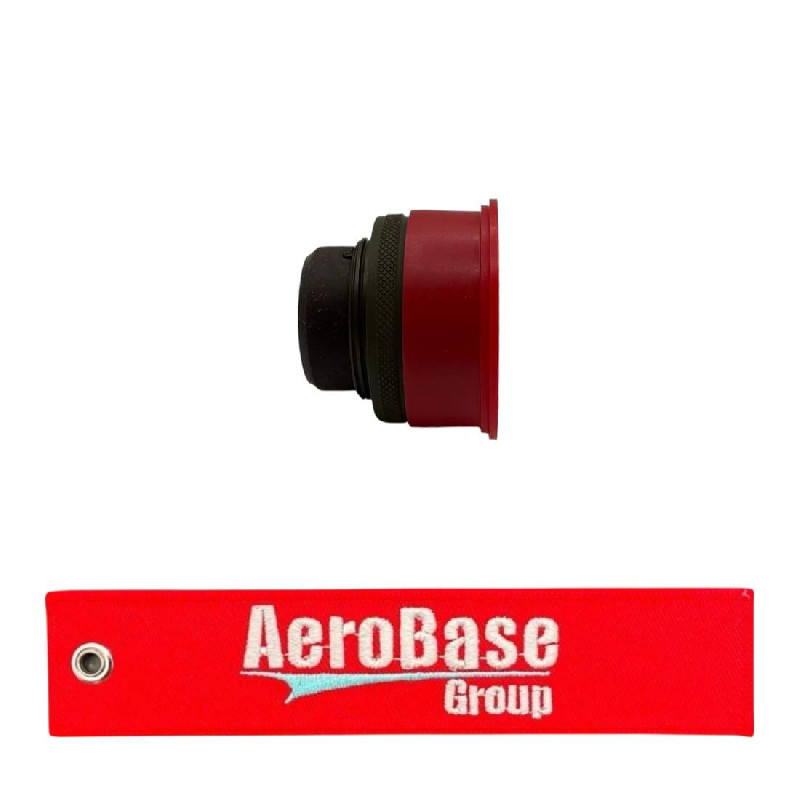

Product Images
MS3126E20-16SW MS3126E20-16SW MS3126E20-16SW MS3126E20-16SW

Product Details

Part Number or Model MS3126E20-16SW
Description Connector
Schedule B Class
ECCN (Export Control Class) EAR99
Body Style Straight shape, internal coupling
Connector Locking Method Bayonet latch
Contact Maximum Ac Voltage Rating In Volts 1000.0 single mating end single contact grouping
Contact Position Arrangement Style 20-16 single mating end
Contact Removability Removable single mating end single contact grouping
Contact Surface Treatment Gold single mating end single contact grouping and nickel single mating end single contact grouping
Contact Surface Treatment Specification Mil-g-45204 type 1, class 1, grade c mil spec 1st treatment response single mating end single contact grouping and qq-n-290 grade e fed spec 2nd treatment response single mating end single contact grouping
Environmental Protection Moisture proof and salt water resistant and vibration proof
Included Contact Quantity 16 single mating end single contact grouping
Included Contact Type Round socket single mating end single contact grouping
Insert Position In Deg 238.0
Mating End Quantity 1
Thread Length 0.290 inches
Thread Size 1.187 inches
Overall Diameter 1.531 inches maximum
Overall Length 1.420 inches maximum
Polarization Method Keyway or multiple keyway
Precious Material Gold
Precious Material And Location Contact surfaces gold
Precious Material And Weight 0.016 gold grains, troy
Shell Material Aluminum alloy 6061
Shell Material Specification Qq-a-367 federal spec single material response
Shell Surface Treatment Cadmium
Shell Surface Treatment Specification Qq-p-416 fed spec single treatment response
Shell Type Solid
Special Features In order to complete the connector assembly,the user must obtain/provide the backshell. standard versions may be ordered as nsn 5935-01-183-6491,p/n m85049/52-1-20w for the straight style,or nsn 5935-01-186-5610,p/n m85049/51-1-20w for the right angle styly
Specification Data 96906-ms3476 government standard
Terminal Location Back single mating end single contact grouping
Terminal Type Crimp single mating end single contact grouping
Test Data Document 81349-mil-c-26482 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as
Thread Class 2a
Thread Direction Right-hand
Thread Qty Per Inch (tpi) 18
Thread Series Designator Unef
Threaded Device Type Back shell

Add to Cart

Up to quantity 10 ships same day.
buy now $88.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-01-110-7029
  • Manufactured By
    Unspecified
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5935-01-110-7029
  • 5935011107029
  • MS3126E2016SW
