SPI Connects MS3116F12-10P Connector

Part#: MS3116F12-10P

About this product MS3116F12-10P military-standard (MIL-spec) circular connector straight plug built under the MIL-DTL-26482 Series I specification. * Manufacturer certifications are shipped with your order FREE of charge

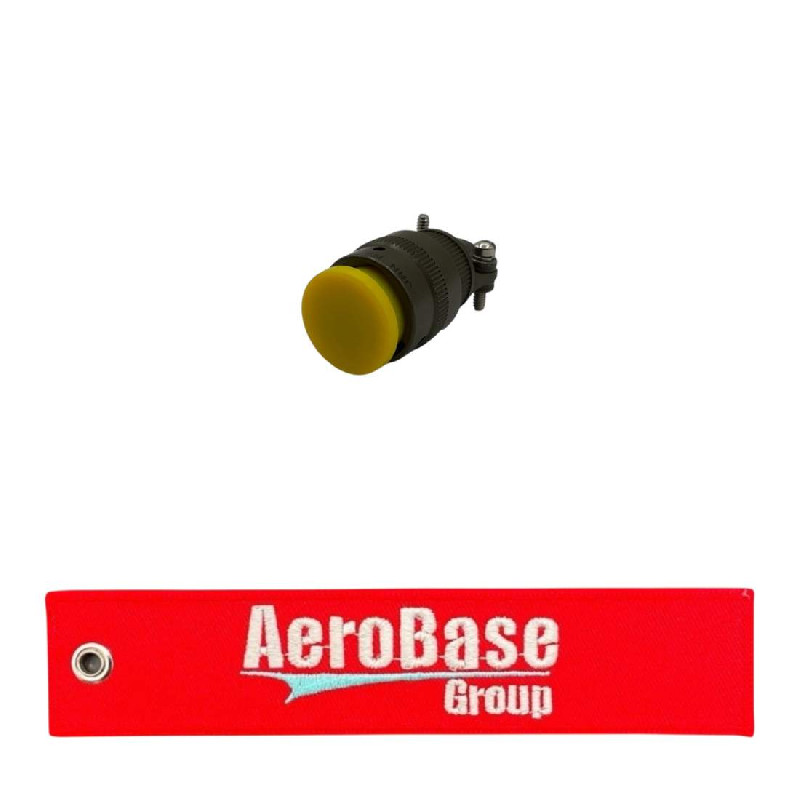

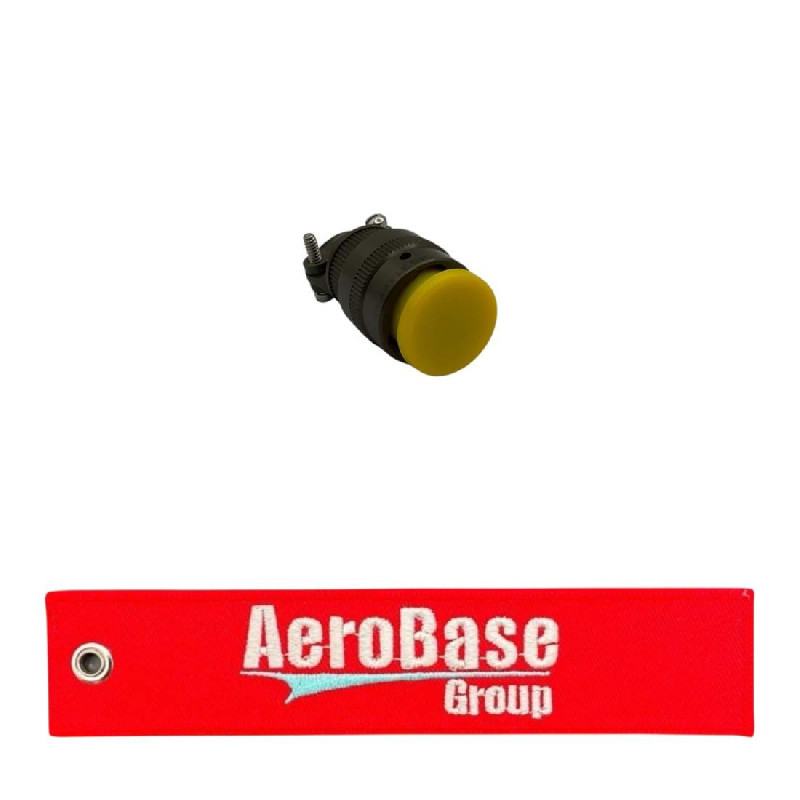

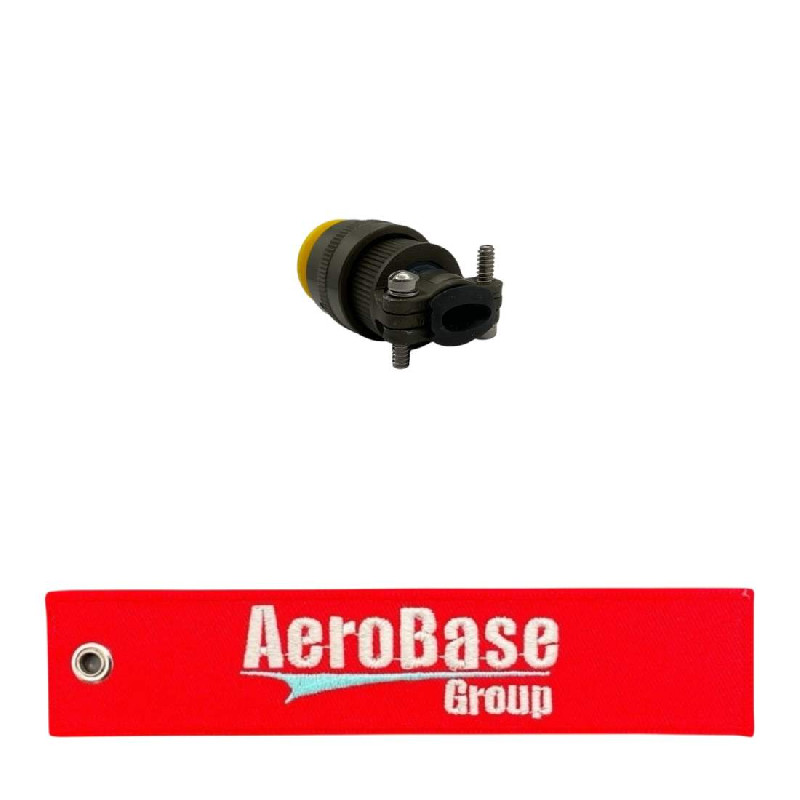

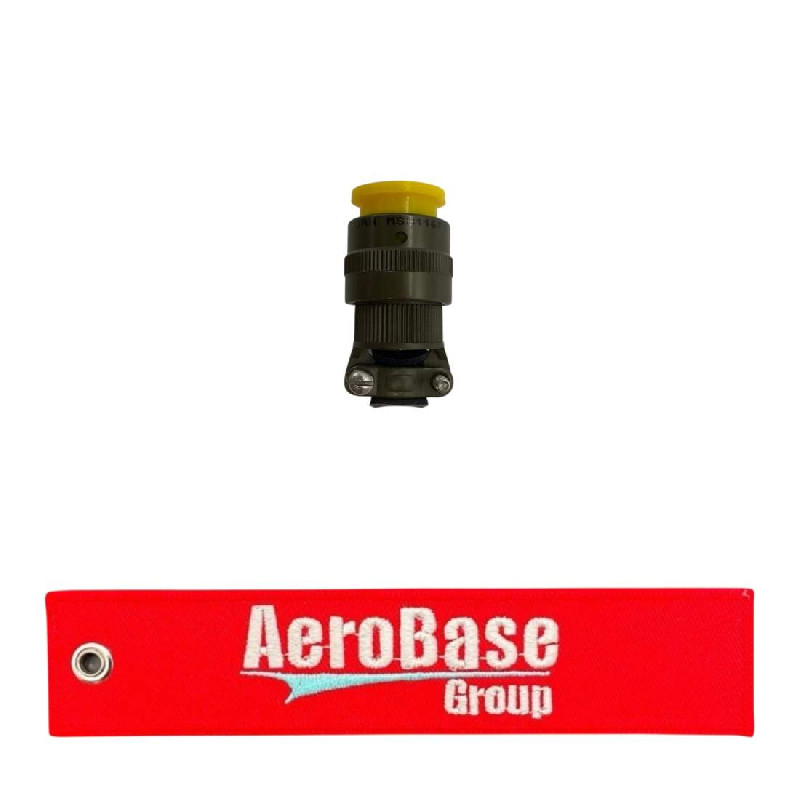

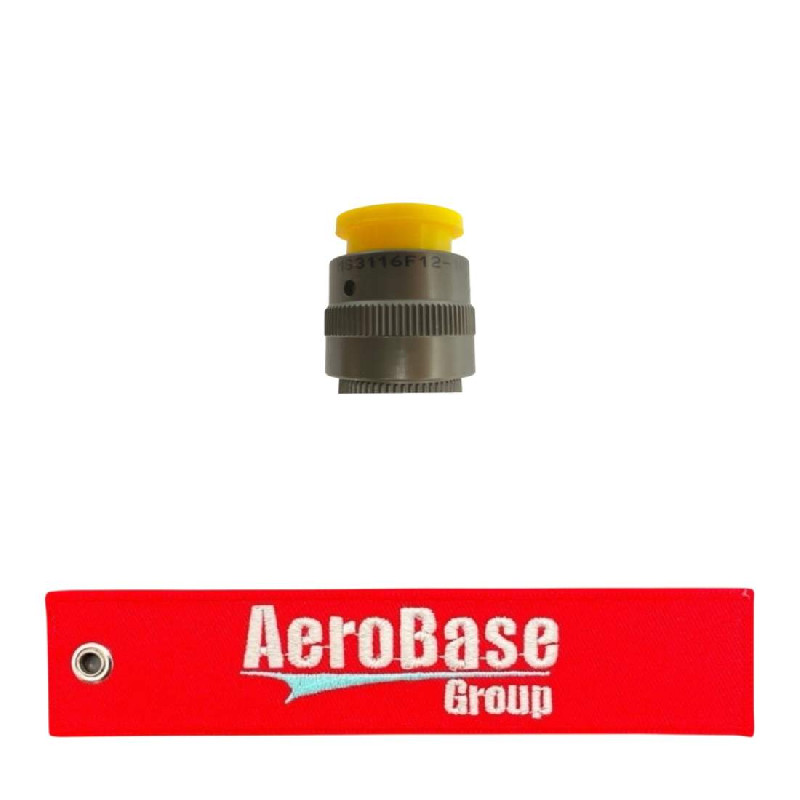

Product Images
MS3116F12-10P MS3116F12-10P MS3116F12-10P MS3116F12-10P MS3116F12-10P

Product Details

Part Number or Model MS3116F12-10P
Description Connector
Schedule B Class 8536.69.4020
ECCN (Export Control Class) EAR99
Mating Style Quick-disconnect bayonet lock
Termination Type Solder cup
Current Rating 7.5 Amps per contact
Voltage Rating 600 VAC / 850 VDC
Shell Material Aluminum alloy with an Olive Drab Cadmium plating over chromate
Contact Material Copper alloy with gold plating
Operating Temperature -55 C to +125 C
Insulator Neoprene rubber

Add to Cart

Up to quantity 46 ships same day.
buy now $45.00
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • Manufactured By
    SPI Connects
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • MS3116F1210P
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
Free Shipping on eligible orders over 150
