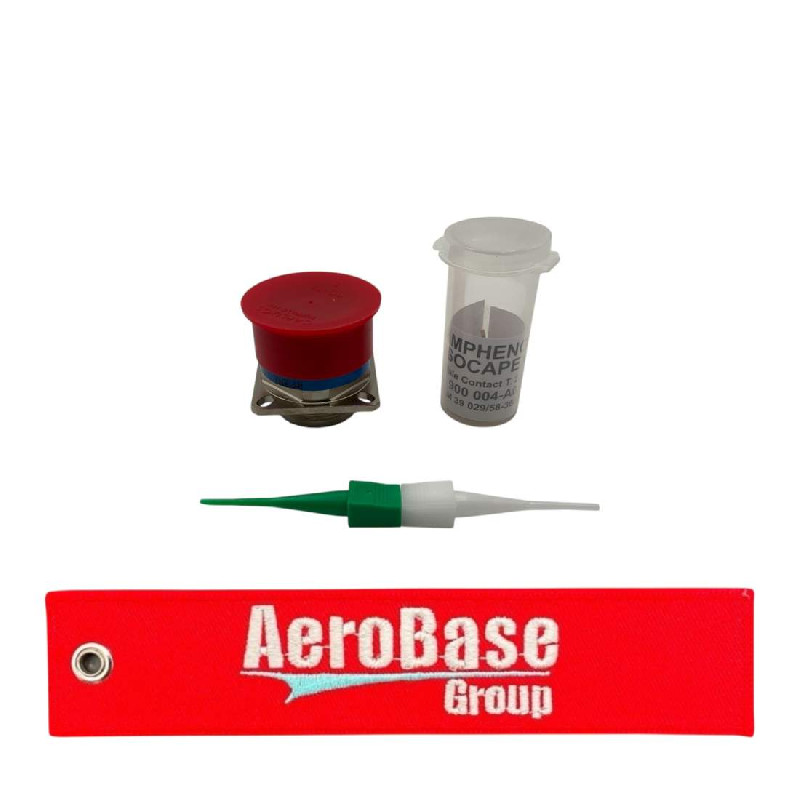

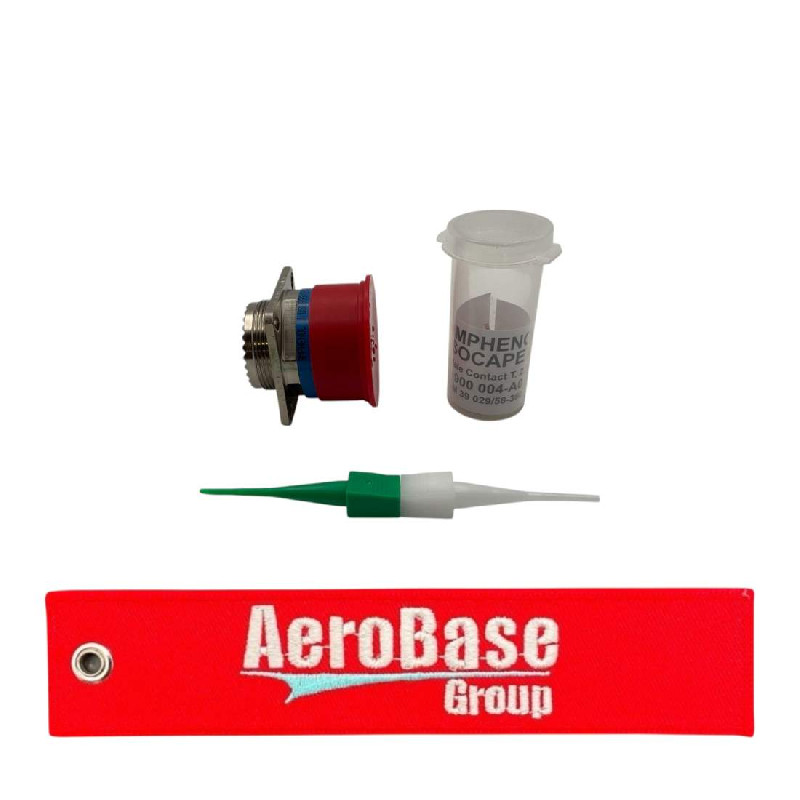

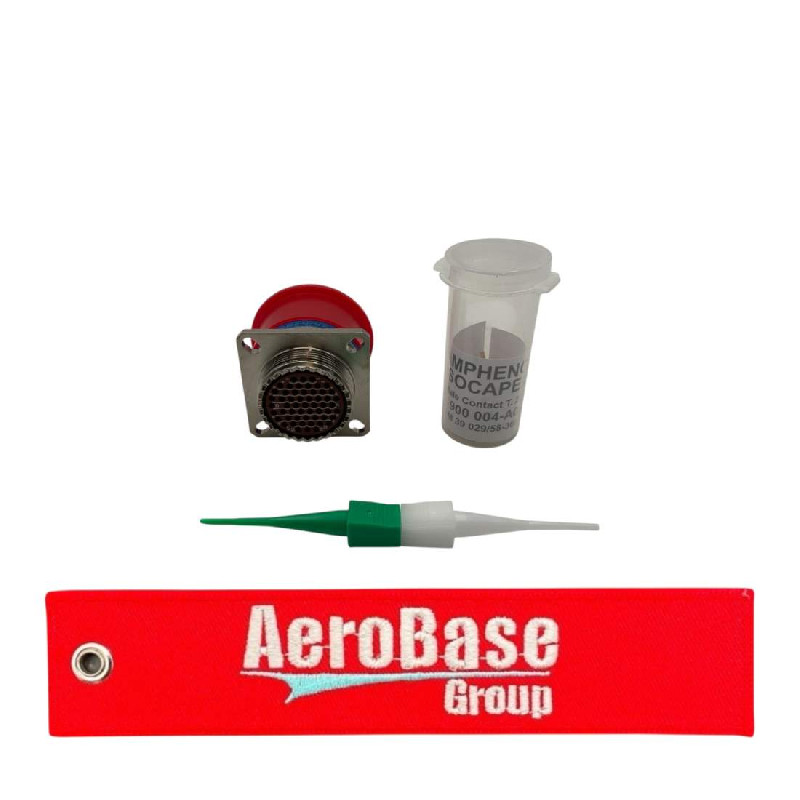

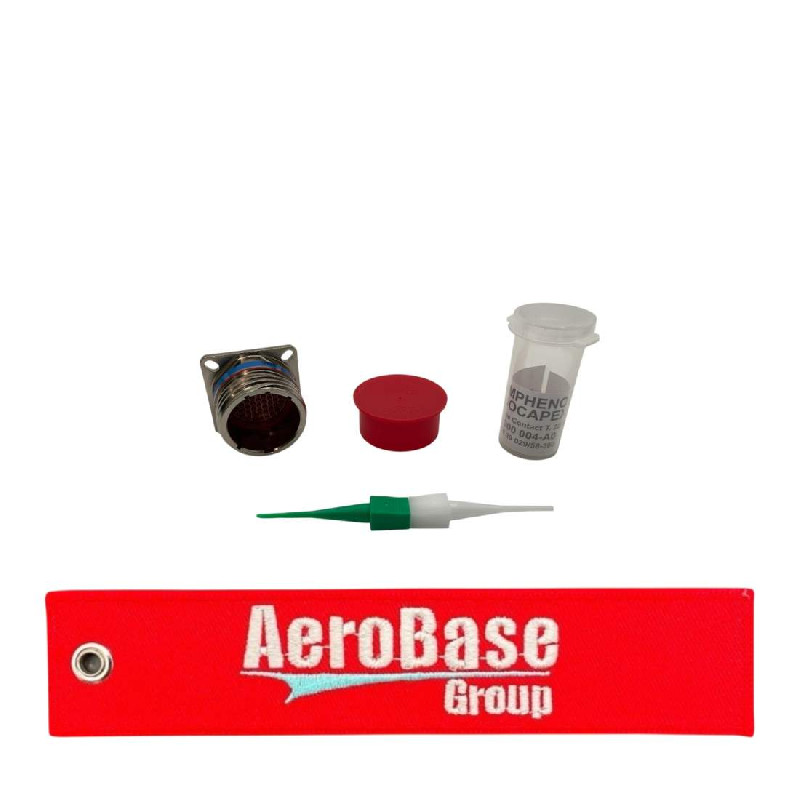

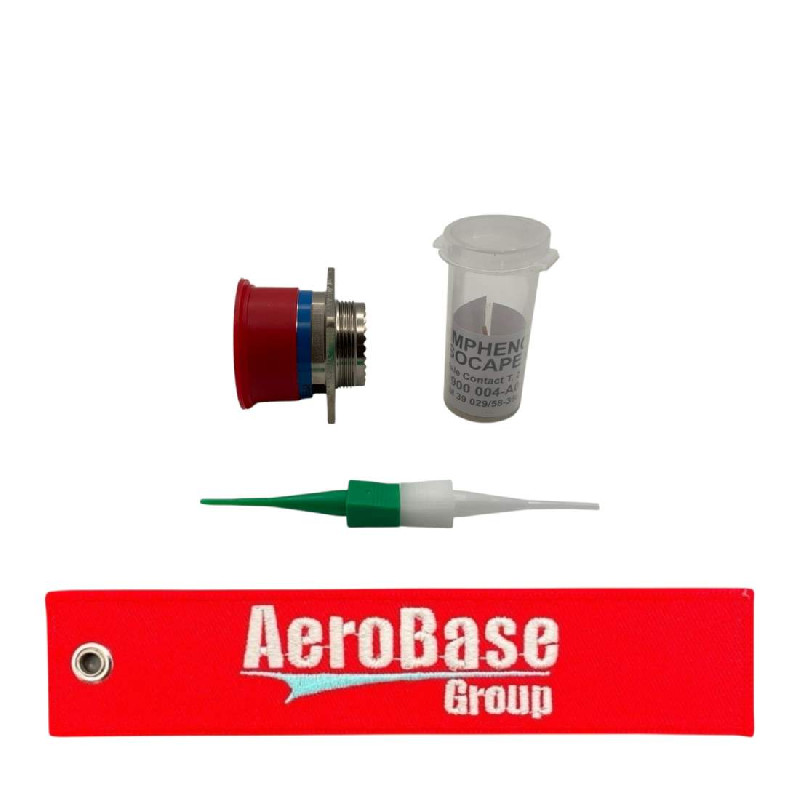

About this product D38999/20FE35PA Connector. * Manufacturer certifications are shipped with your order FREE of charge
Part Number or Model | D38999/20FE35PA |
Description | Connector |
Schedule B Class | |
ECCN (Export Control Class) | EAR99 |
Body Style | Straight shape, external coupling |
Center To Center Distance Between Mounting Facilities Parallel T | 27.0 millimeters nominal |
Distance Between Centerlines Of Mounting Facilities Parallel To | 27.0 millimeters nominal |
Distance From Mounting Shoulder To Front Face | 20.8 millimeters nominal |
Insert Position In Deg | 135.0 |
Mating End Quantity | 1 |
Overall Height | 33.3 millimeters nominal |
Overall Length | 31.4 millimeters nominal |
Overall Width | 33.3 millimeters nominal |
Polarization Method | Keyway or multiple keyway |
Specification Data | 81349-mil-c-38999/20 government specification |
Terminal Type | Crimp single mating end single contact grouping |
