M39012/26-0504 Connector Plug

Part#: M39012/26-0504 NSN: 5935-01-058-6486

About this product M39012/26-0504 Connector Plug. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

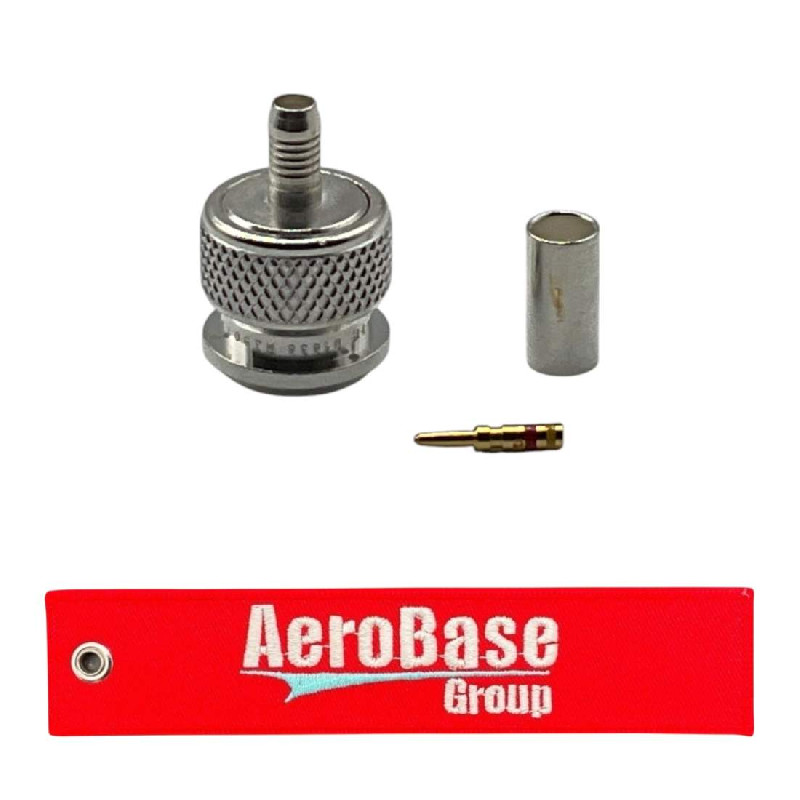

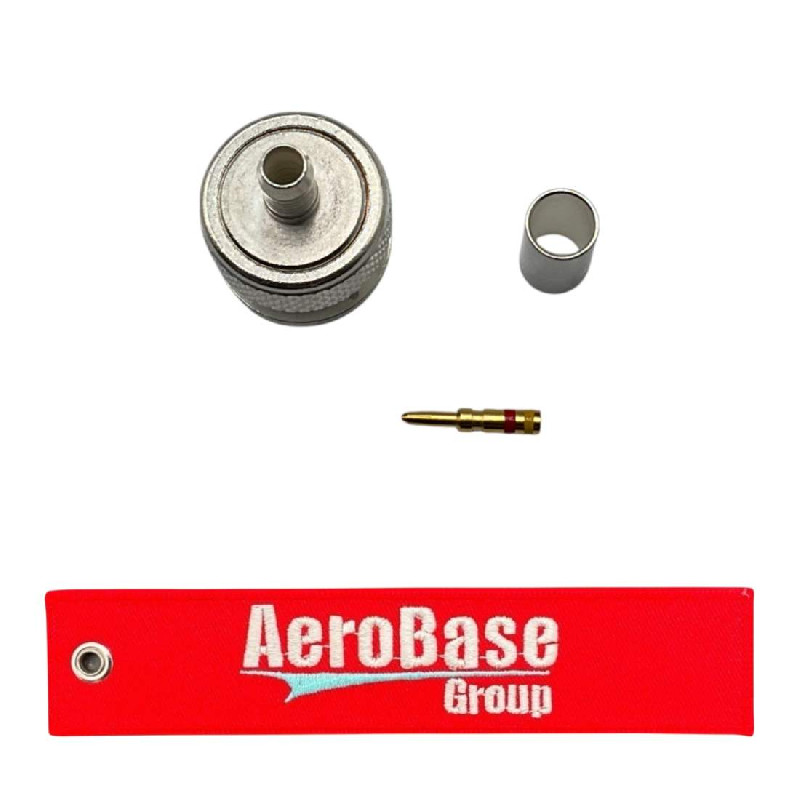

M39012/26-0504 M39012/26-0504 M39012/26-0504

Product Details

Part Number or Model M39012/26-0504
Description Connector Plug
Schedule B Class
ECCN (Export Control Class) EAR99
Body Style Straight shape, internal coupling
Cable Entrance Diameter 0.195 inches nominal
Connector Cable Strain Relief Method Compression nut
Connector Locking Method Internally threaded coupling ring
Contact Maximum Frequency Rating 11000.0 megahertz single mating end single contact grouping
Contact Position Arrangement Style Tnc single mating end
Contact Removability Removable single mating end single contact grouping
Contact Surface Treatment Gold single mating end single contact grouping
Contact Surface Treatment Specification Mil-g-45204,type 2,class 2 mil spec single treatment response single mating end single contact grouping
Environmental Protection Corrosion resistant and moisture resistant and thermal shock resistant and vibration resistant
Included Contact Quantity 1 single mating end single contact grouping
Included Contact Type Coaxial pin single mating end single contact grouping
Mating End Quantity 1
Thread Length 0.156 inches
Thread Size 0.438 inches
Overall Diameter 0.650 inches maximum
Overall Length 1.187 inches maximum
Precious Material Gold
Precious Material And Location Contact surface gold
Precious Material And Weight 0.005 gold grains, troy
Radio Frequency Type Contact Characteristic Impedance In Ohms 50.0 single mating end single contact grouping
Shell Material Copper alloy
Shell Type Solid
Specification Data 81349-mil-c-39012/26 government specification
Terminal Location Back single mating end single contact grouping
Terminal Type Crimp single mating end single contact grouping
Thread Class 2b
Thread Direction Right-hand
Thread Qty Per Inch (tpi) 28
Thread Series Designator Unef
Threaded Device Type Coupling facility
