206150-1 Connector Body

Name: Connector Body
Brand: TE Connectivity
SKU: 5935010235445
Price: 8.95 USD
Availability: InStock

Part#: 206150-1 NSN: 5935-01-023-5445

About this product 206150-1 Connector Body. * Manufacturer certifications are shipped with your order FREE of charge

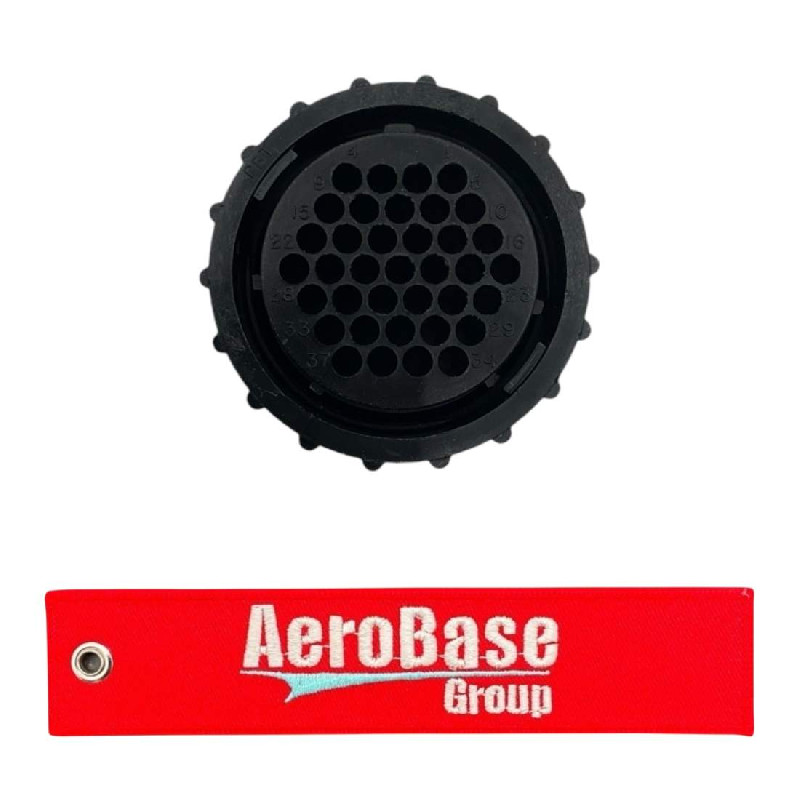

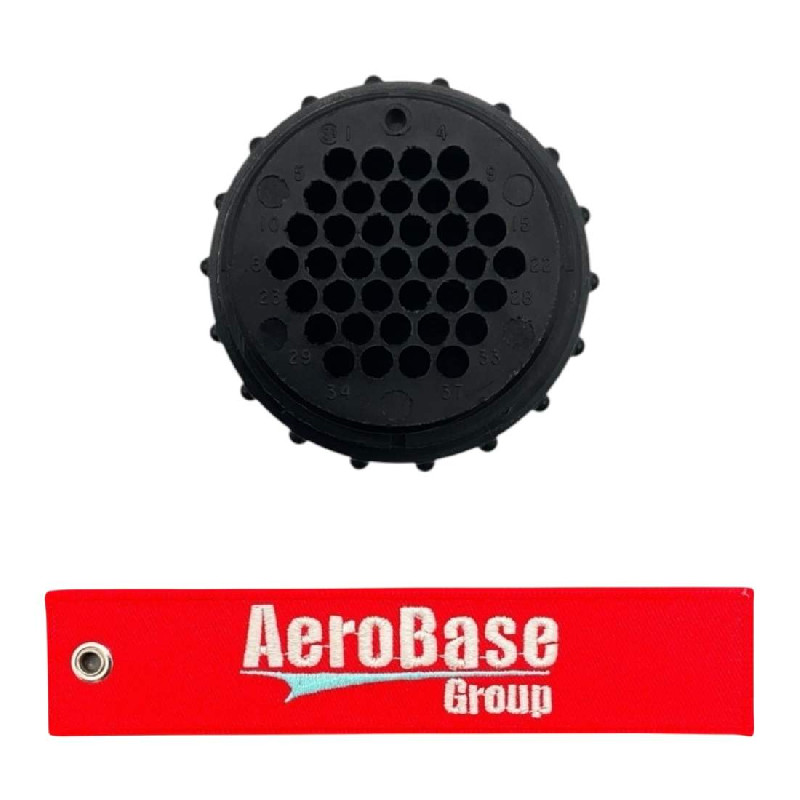

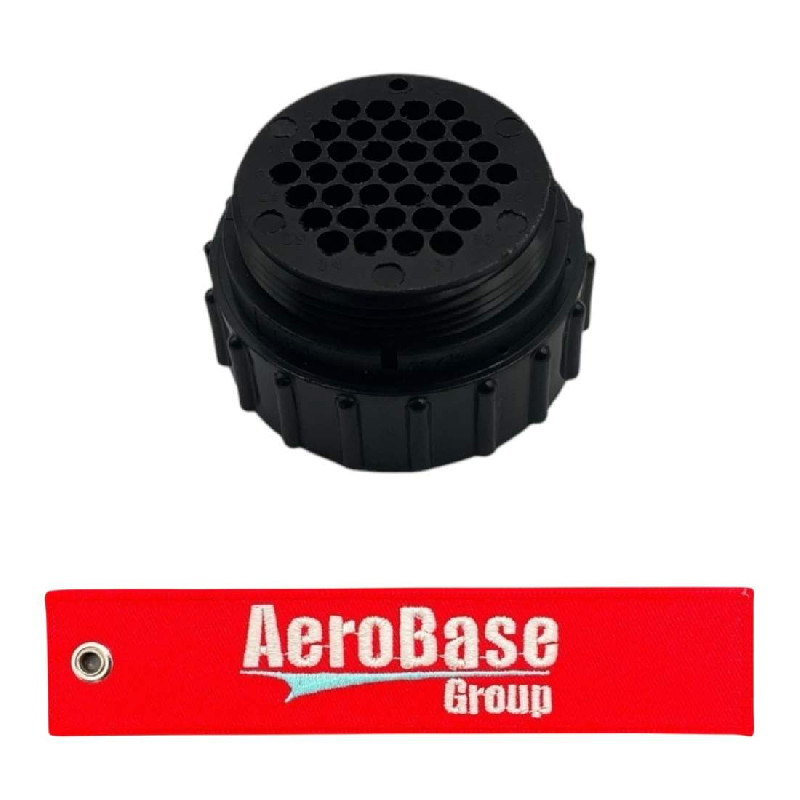

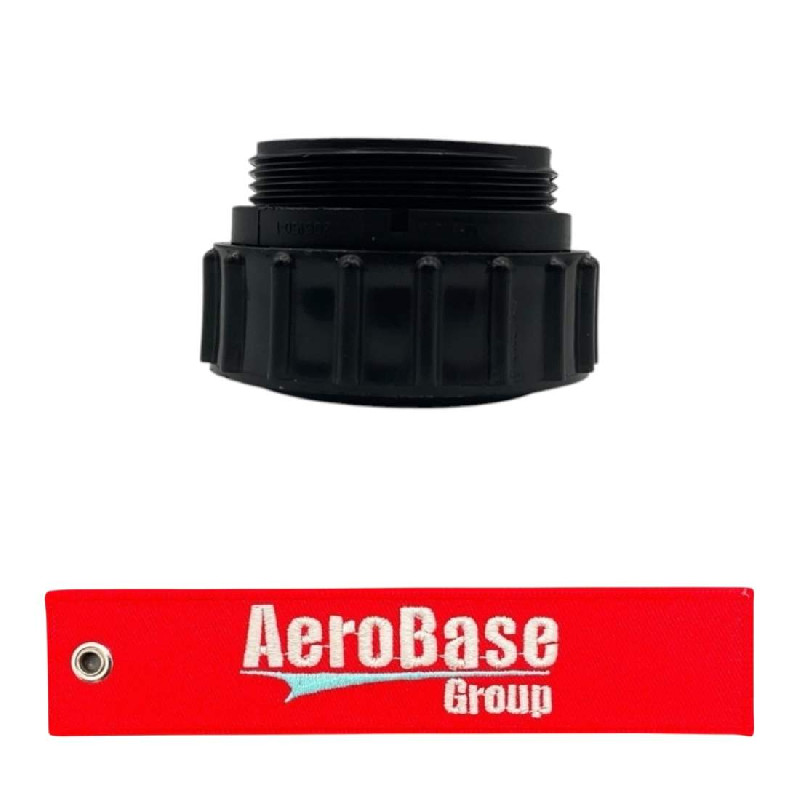

Product Images

Product Details

Part Number or Model	206150-1
Description	Connector Body
Schedule B Class
ECCN (Export Control Class)	EAR99
Body Style	Straight shape, internal coupling
Connector Locking Method	Bayonet latch
Contact Position Arrangement Style	27-16 single mating end
End Application	Nsn 6115-01-296-1463; generator set, diesel engine
Environmental Protection	Fire resistant and heat resistant
Insert Material	Glass and plastic polyamide single mating end
Insert Position In Deg	0.0
Mating End Quantity	1
Thread Length	0.28 inches
Thread Size	1.375 inches
Overall Diameter	1.745 inches maximum
Overall Length	1.094 inches maximum
Polarization Method	Keyway or multiple keyway
Shell Material	Plastic
Shell Type	Solid
Special Features	Contact designation 23-37
Thread Class	2a
Thread Direction	Right-hand
Thread Series Designator	Unef
Threaded Device Type	Back shell

Up to quantity 90 ships same day.

buy now $8.95

each, minimum order quantity of 10 Sold in increments of 10

Request a quote Call for questions and assistance
