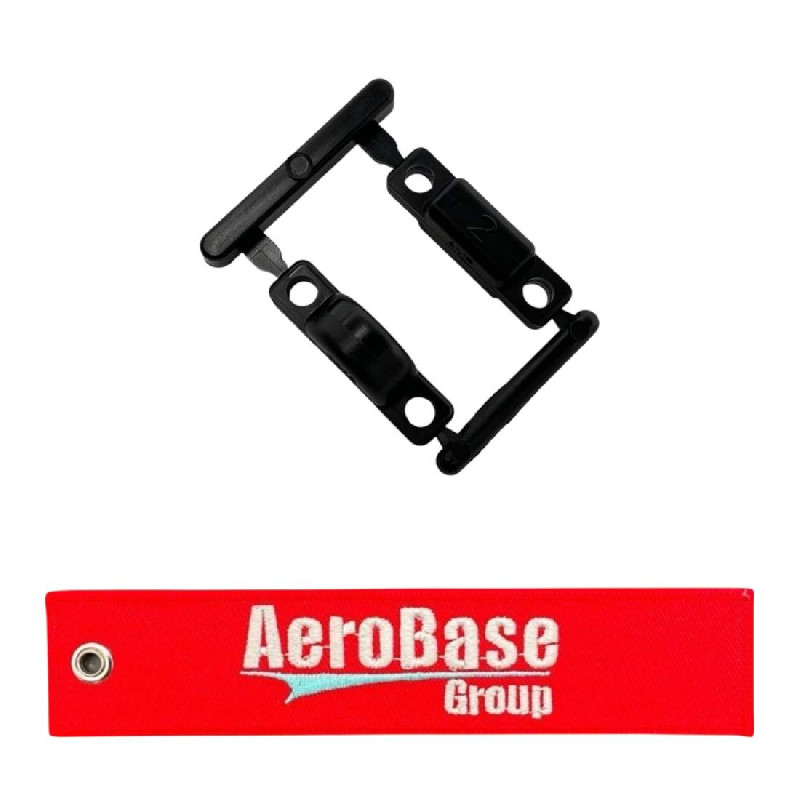

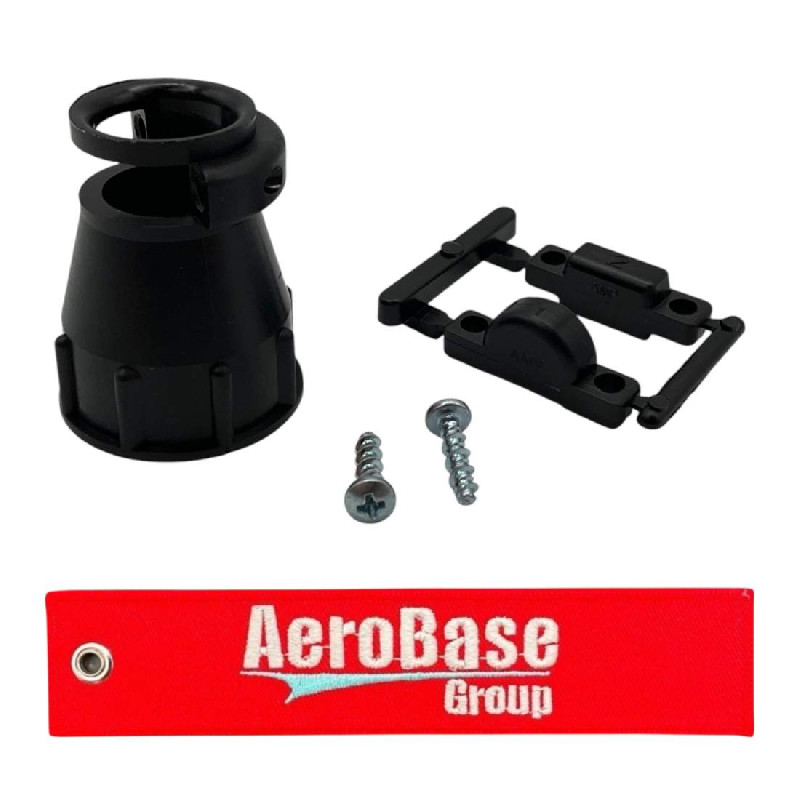

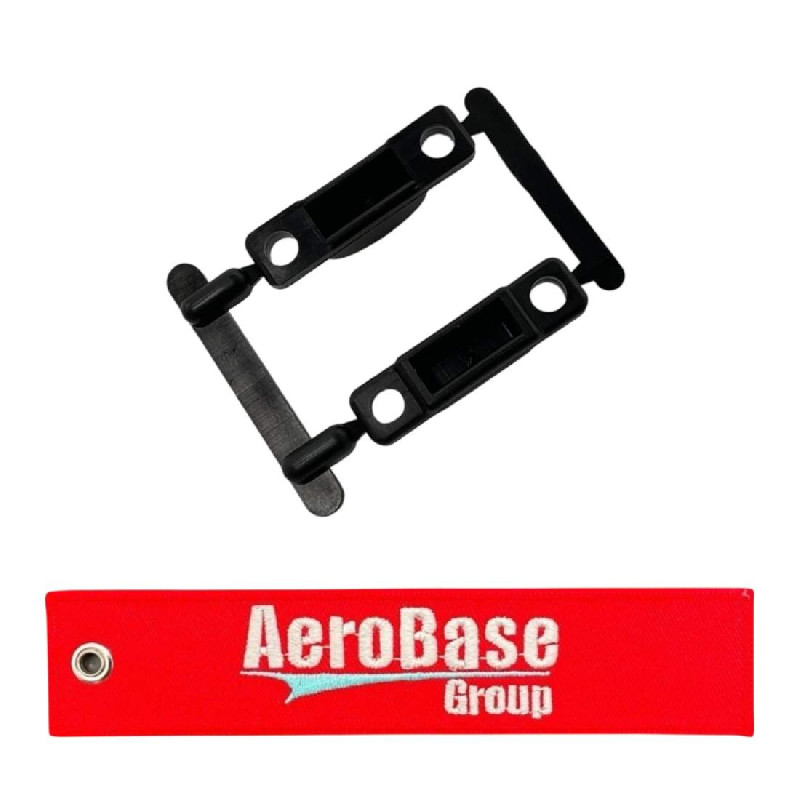

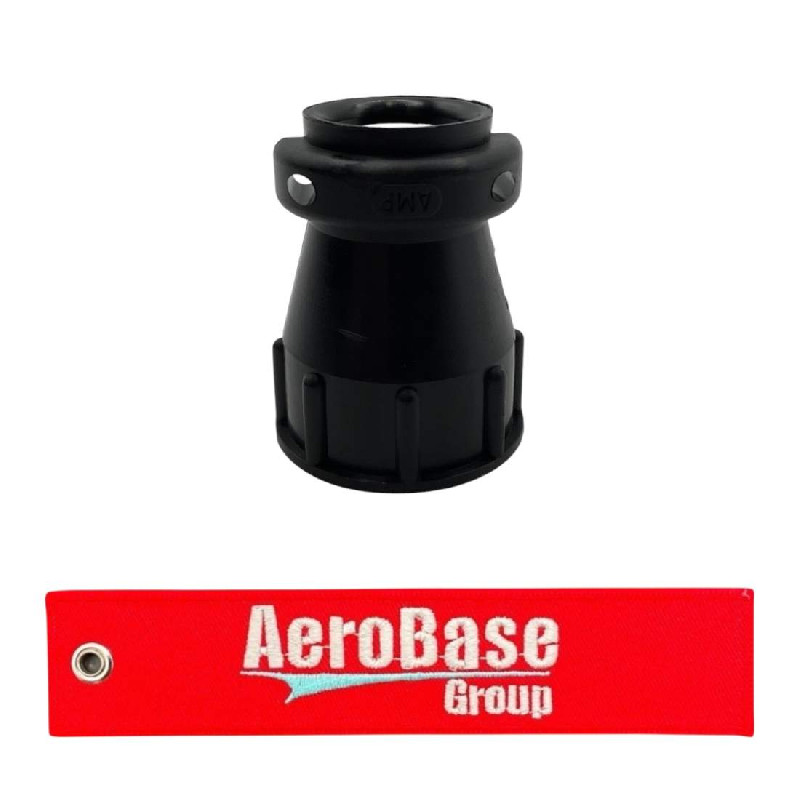

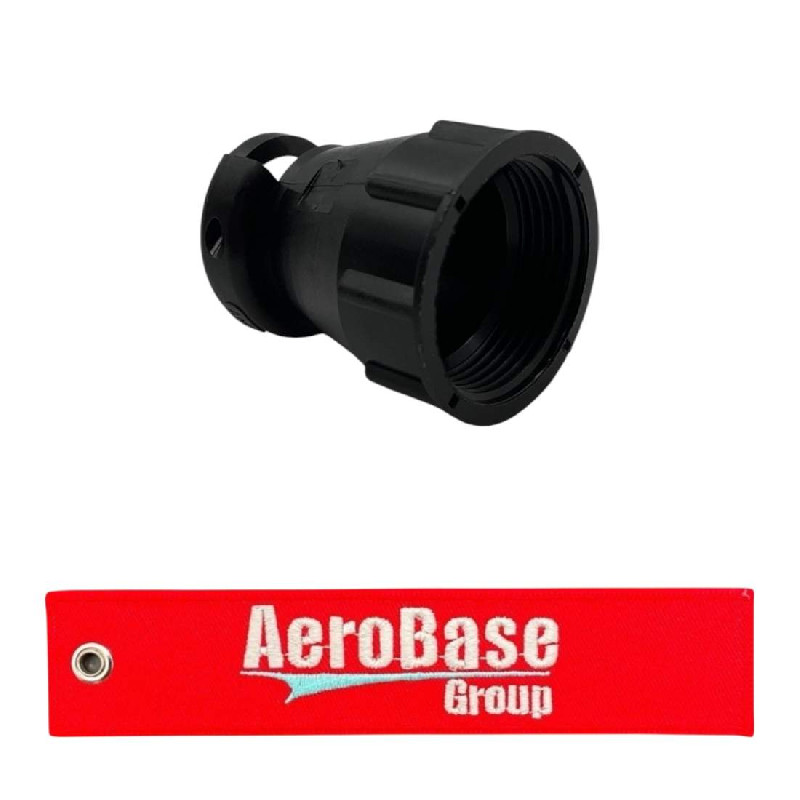

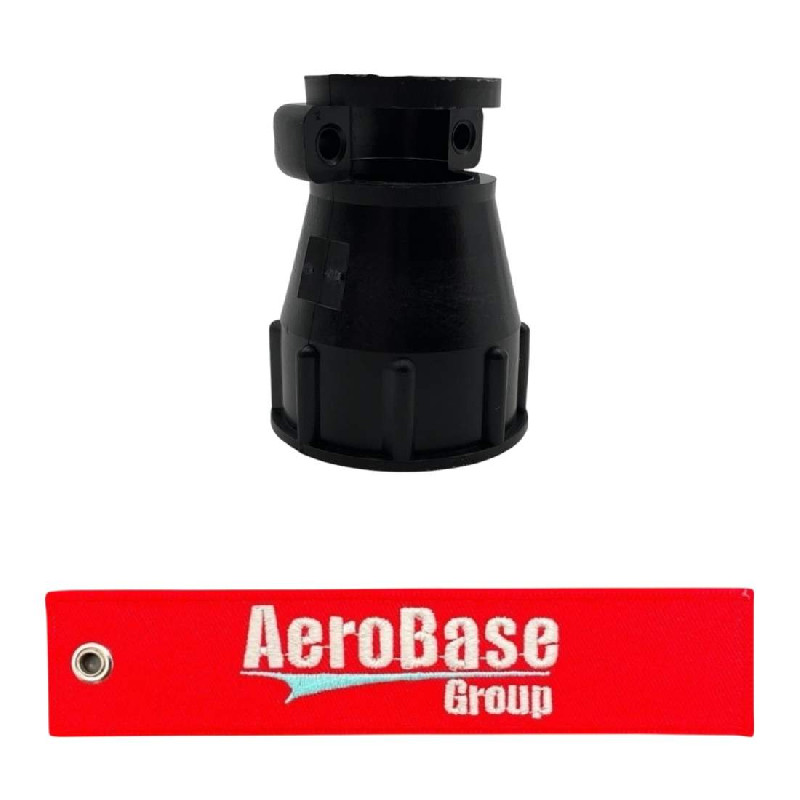

TE Connectivity 206070-8 Connector Body

Part#: 206070-8 NSN: 5935-01-024-7684

About this product 206070-8 Connector Body. * Manufacturer certifications are shipped with your order FREE of charge

Product Images
206070-8 206070-8 206070-8 206070-8 206070-8 206070-8 206070-8 206070-8 206070-8

Product Details

Part Number or Model 206070-8
Description Connector Body
Schedule B Class 8538.90.81.80
ECCN (Export Control Class) EAR99
Style Designator Single clamping action with or without bushing
Size Designation 17
Mounting Facility Type And Quantity 1 threaded coupling
Material Plastic
Material Plastic
Cable Opening Quantity 1
Cable Opening Diameter 0.010 inches minimum and 0.161 inches maximum
Body Length 1.4 inches nominal
Body Height 1.131 inches maximum
Body Diameter 1.131 inches nominal
Thread Class 2b
Thread Direction Right-hand
Thread Length 0.219 inches
Thread Qty Per Inch (tpi) 20
Thread Series Designator Unef
Thread Size 0.938 inches

Add to Cart

Up to quantity 195 ships same day.
buy now $8.95
each, minimum order quantity of 5 Sold in increments of 5
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-01-024-7684
  • Package Weight (oz)
    2.16
  • Manufactured By
    TE Connectivity
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
Free Shipping on eligible orders over 150
