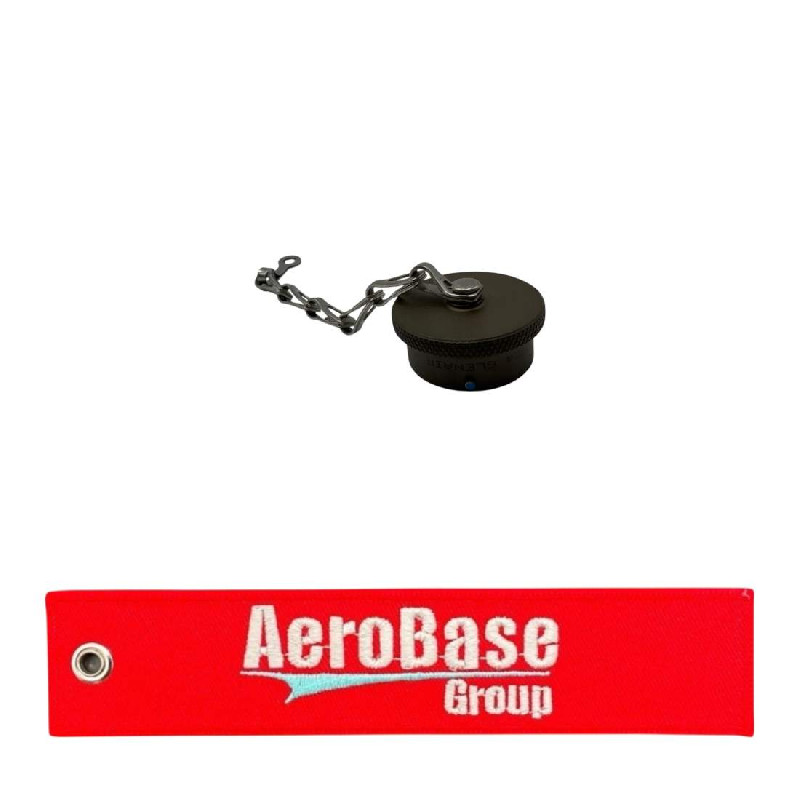

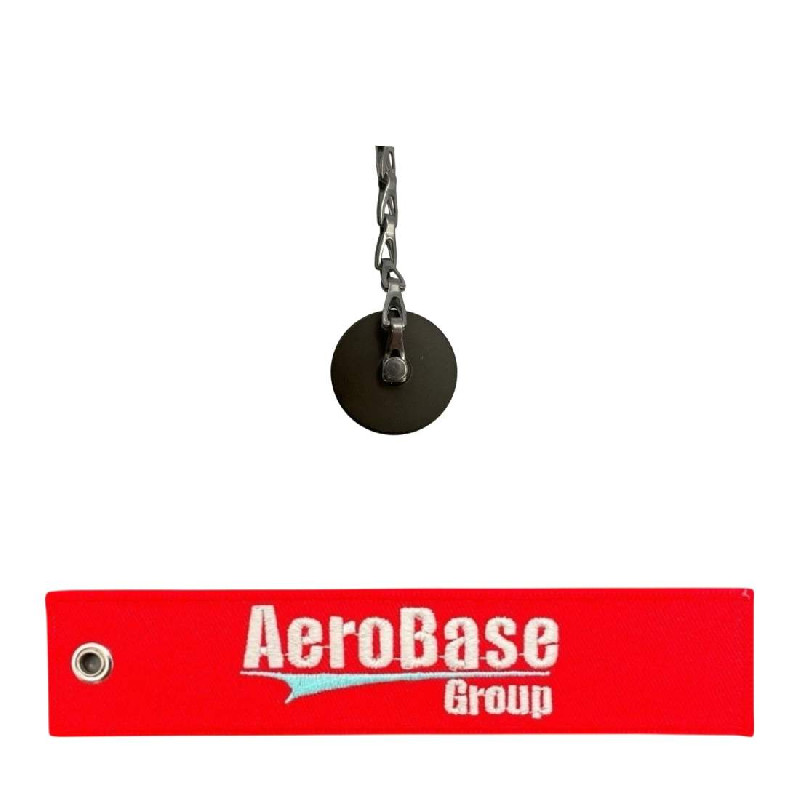

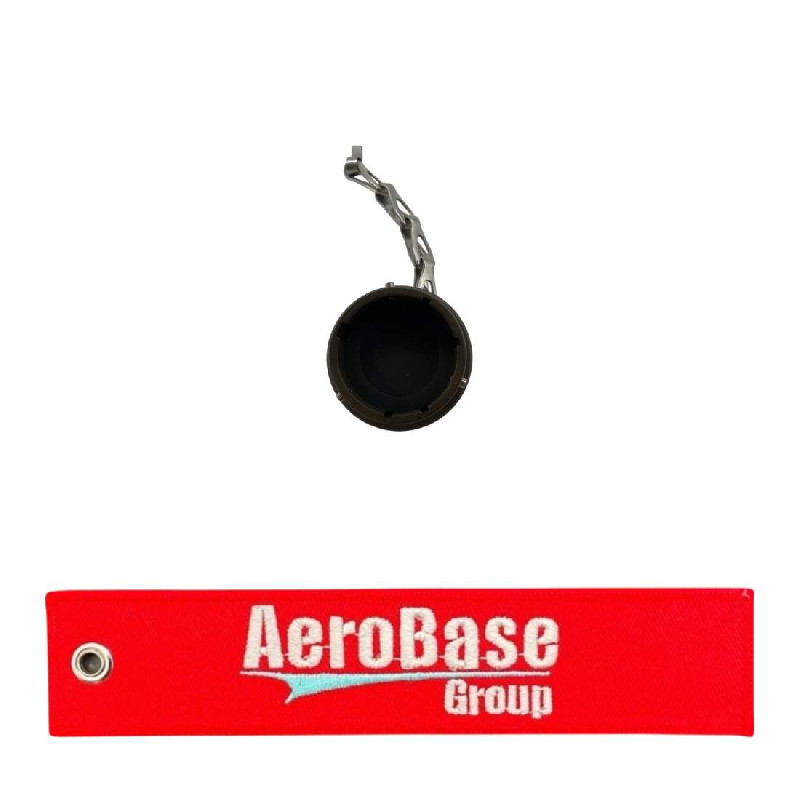

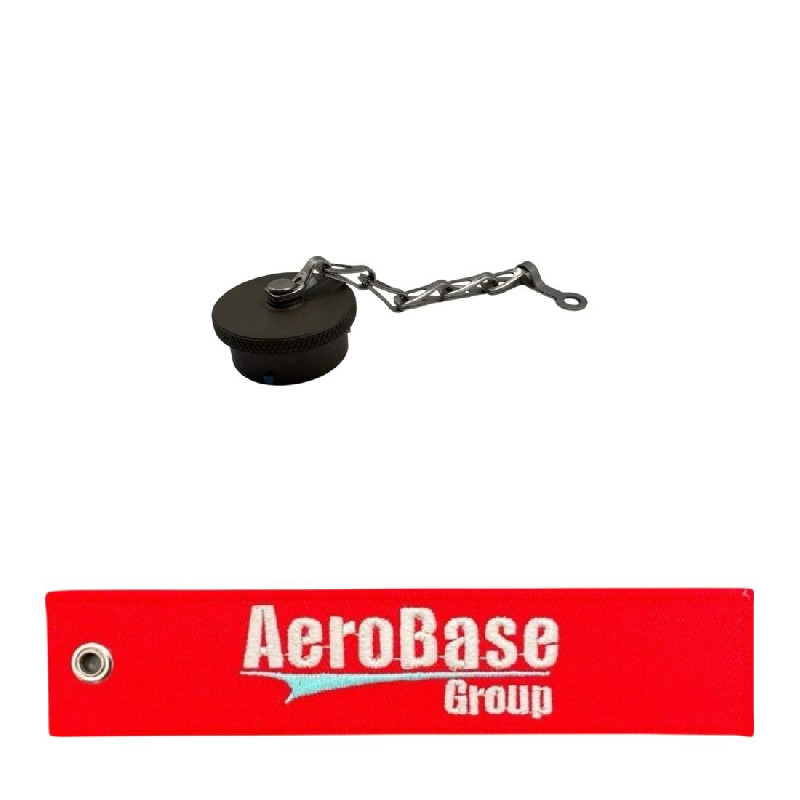

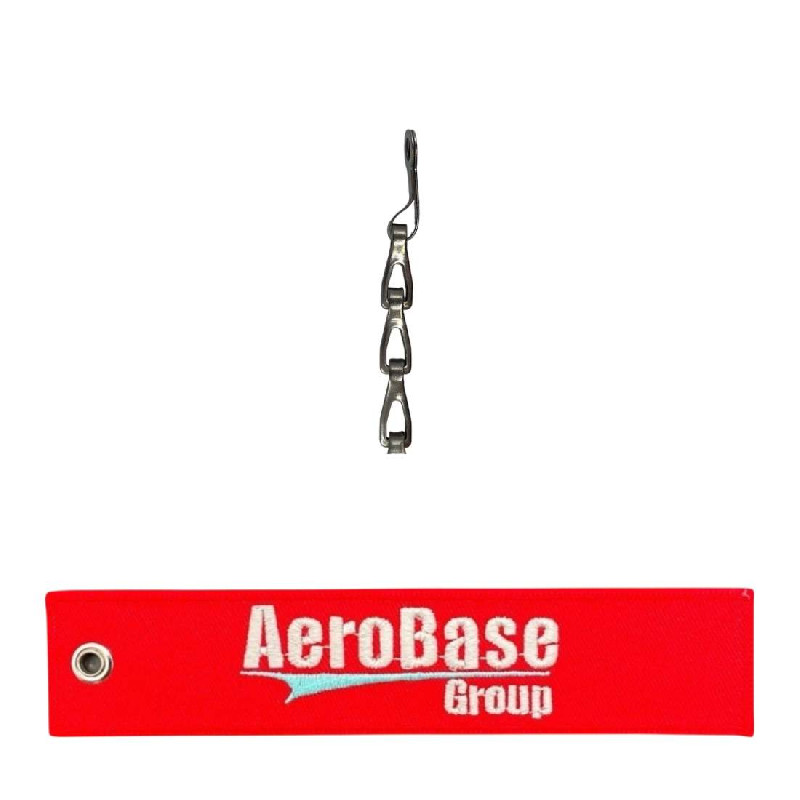

MS3180-18C Connector Cover

Name: Connector Cover
Brand: Glenair
SKU: 5935007854546
Price: 332.95 USD
Availability: InStock

Part#: MS3180-18C NSN: 5935-00-785-4546

About this product MS3180-18C Connector Cover. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

Product Details

Part Number or Model	MS3180-18C
Description	Connector Cover
Schedule B Class
ECCN (Export Control Class)	EAR99
Attachment Feature Length	3.250 inches minimum and 3.750 inches maximum
Body Height	0.562 inches maximum
Criticality Code Justification	Feat
Eye Inside Diameter	0.162 inches minimum and 0.177 inches maximum
Furnished Items	Chain
Material	Aluminum alloy
Material	Aluminum alloy
Mounting Facility Type And Quantity	1 twist lock
Overall Diameter	1.375 inches maximum
Seal Material	Rubber
Seal Type	Gasket
Size Designation	18
Special Features	Weapon system essential
Specification Data	81349-mil-c-26482 government specification
Style Designator	External bayonet with chain or rope
Surface Treatment	Passivated
Surface Treatment	Passivate
Test Data Document	81349-milc26482 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as
