TE Connectivity W58-XC4C12A-1 Circuit Breaker

Name: Circuit Breaker
Brand: TE Connectivity
SKU: 5925010414745
Price: 23.95 USD
Availability: InStock

Part#: W58-XC4C12A-1 NSN: 5925-01-041-4745

About this product W58-XC4C12A-1 Circuit Breaker. * Manufacturer certifications are shipped with your order FREE of charge

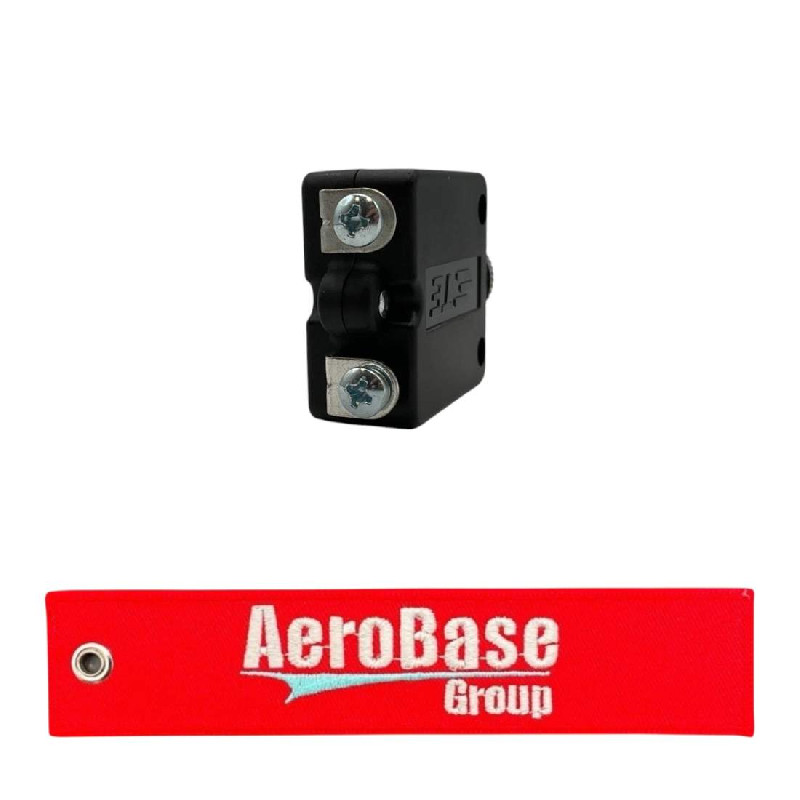

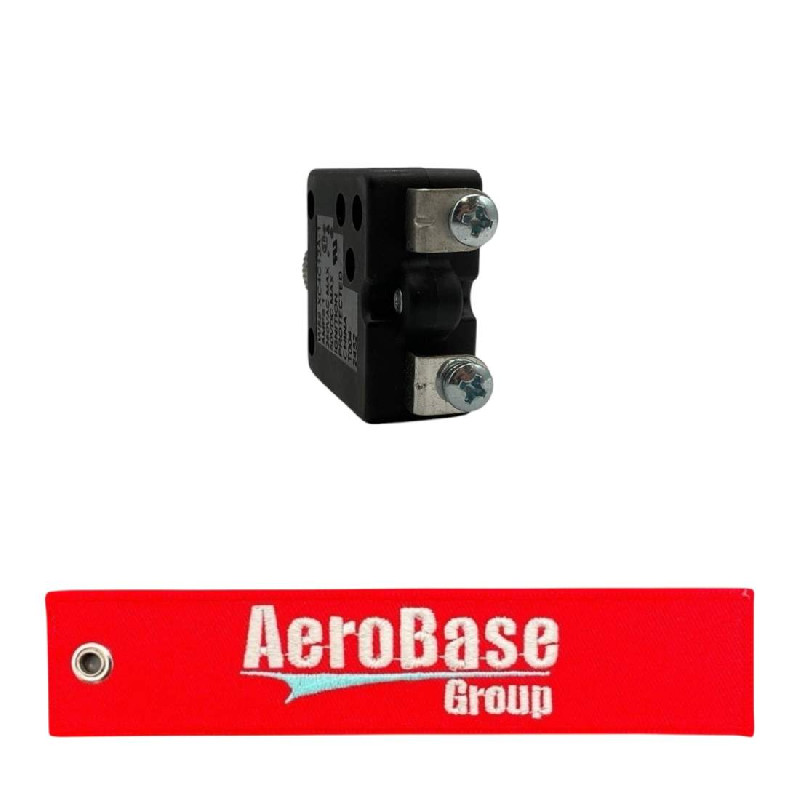

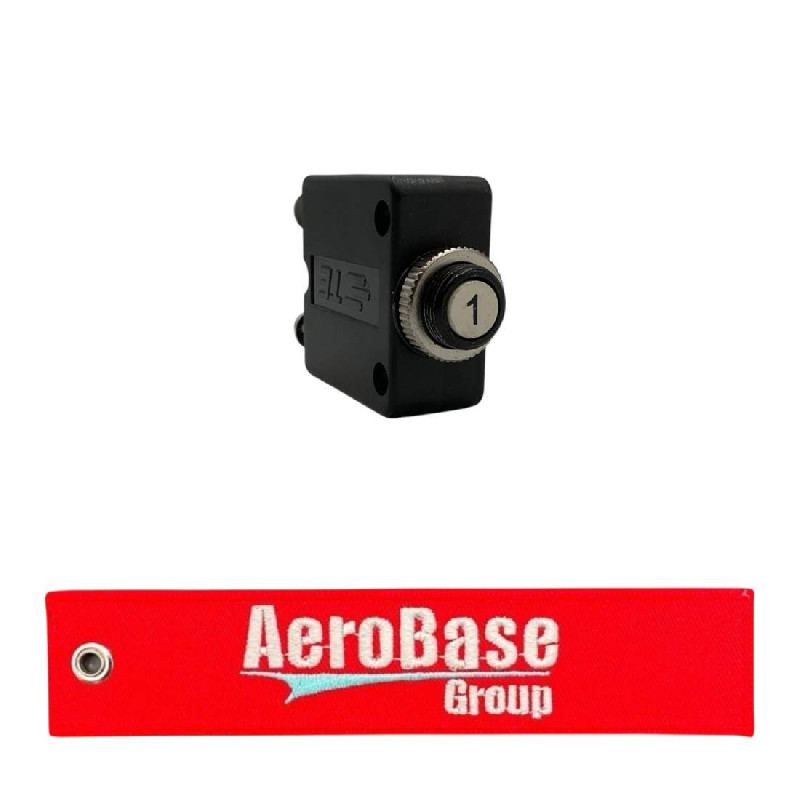

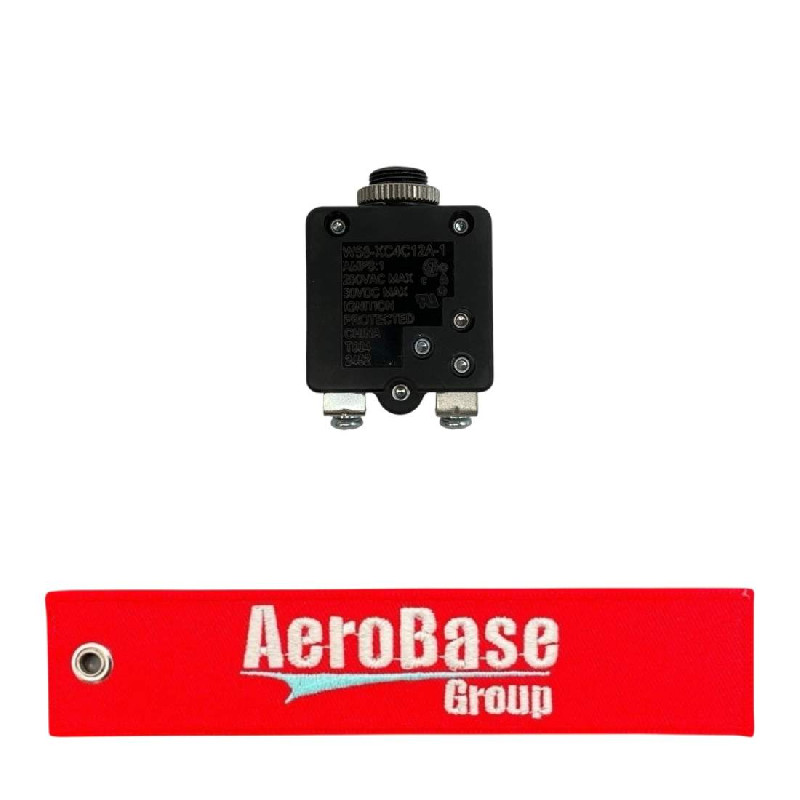

Product Images

Product Details

Part Number or Model	W58-XC4C12A-1
Description	Circuit Breaker
Schedule B Class	8536200040
ECCN (Export Control Class)	EAR99
Actuator Function	Reset
Actuator Position Designation	At pole one
Body Length	1.375 inches nominal
Body Style	Single pole type
Body Width	0.660 inches nominal
Bushing Length	0.500 inches nominal
Case Material	Plastic
Center To Center Distance Between Terminals Parallel To Length	0.850 inches nominal
Circuit Protection Type	Overcurrent single location
Frequency In Hertz	400.0 single location
Inclosure Protection Type For Which Designed	Dustproof
Internal Trip Release Configuration	Series trip single location
Main Contact Tripping Mechanism Type	Trip free
Manual Actuator Type And Quantity	1 push button
Maximum Continuous Load Current Rating Per Pole	1.0 amperes ac single location and 1.0 amperes dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole I	1000 ac single location and 1000 dc single location
Mounting Facility Type And Quantity	1 threaded bushing
Mounting Surface To Terminal End Distance	1.815 inches nominal
Thread Size	0.438 inches
Operating Voltage Type And Rating Per Pole In Volts	250 ac single location and 50 dc single location
Pole Quantity	1
Reset Method	Manual
Terminal Type And Quantity	2 quick disconnect, male
Thread Qty Per Inch (tpi)	28
Thread Series Designator	Unef
Trip Delay Time In Seconds Per Rated Continuous Current	5.800 minimum at 200 pct single location and 13.000 maximum at 200 pct single location
Trip Release Ambient Tempurature Rating	25.0 degrees celsius nominal single location
Trip Release Characteristic	Time delay single location
Trip Release Method	Thermal single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe	145.0 single location
