TE Connectivity W31-X2M1G-5 Circuit Breaker

Part#: W31-X2M1G-5 NSN: 5925-00-869-1175

About this product W31-X2M1G-5 Circuit Breaker. * Manufacturer certifications are shipped with your order FREE of charge

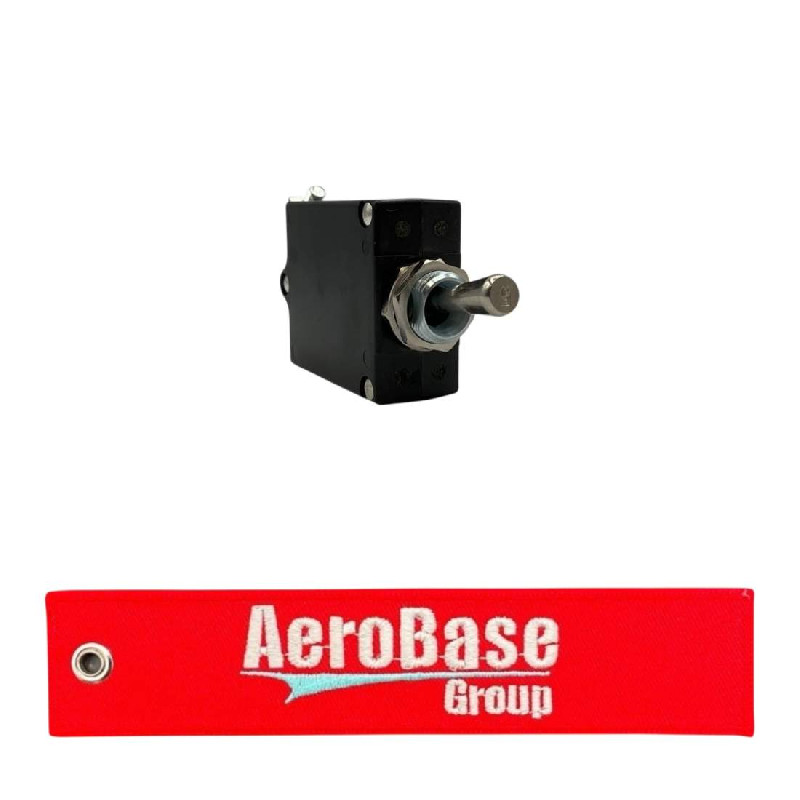

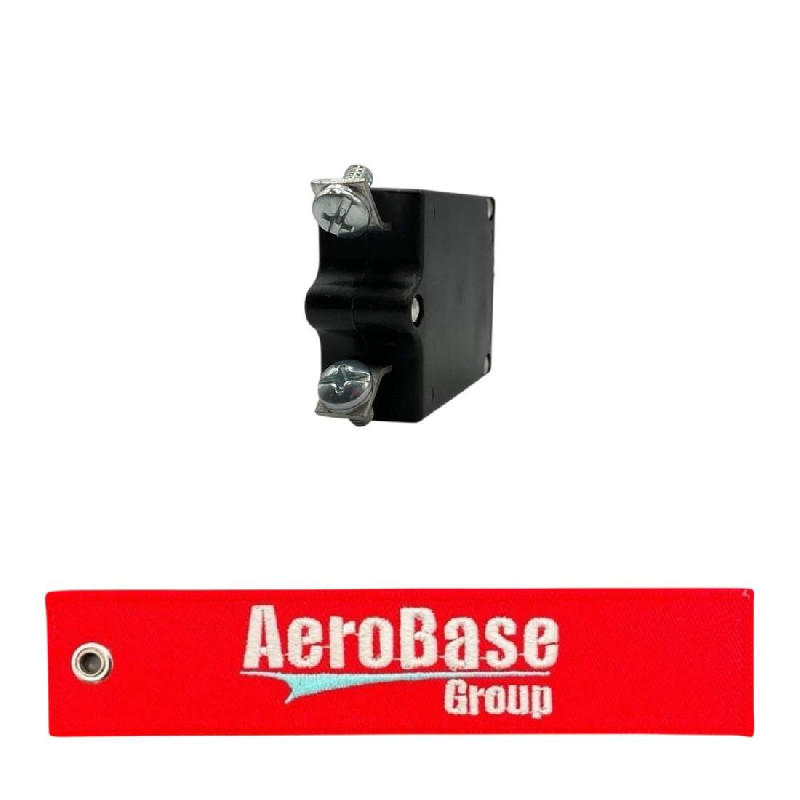

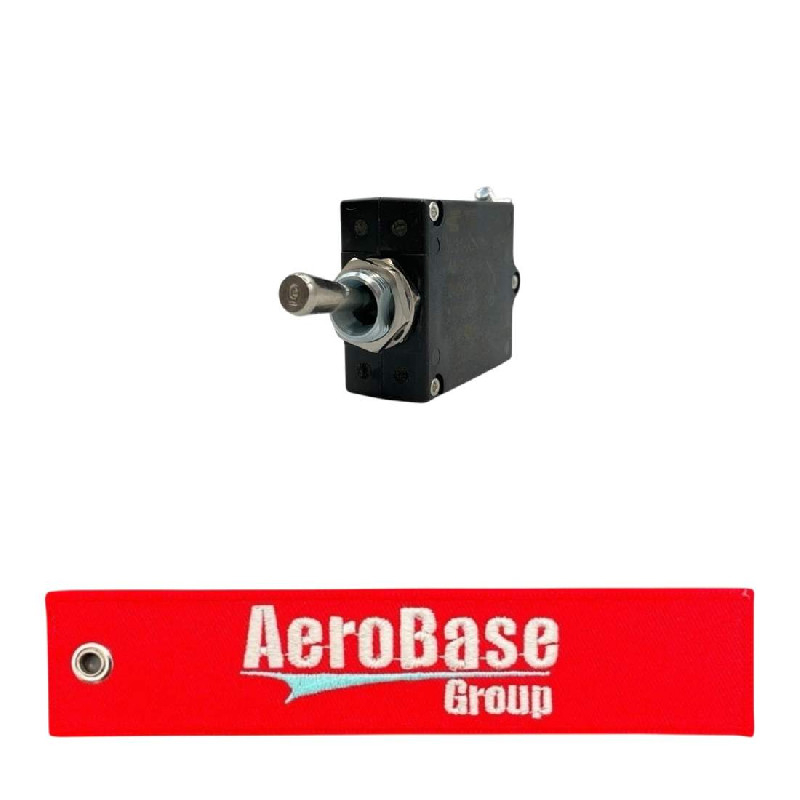

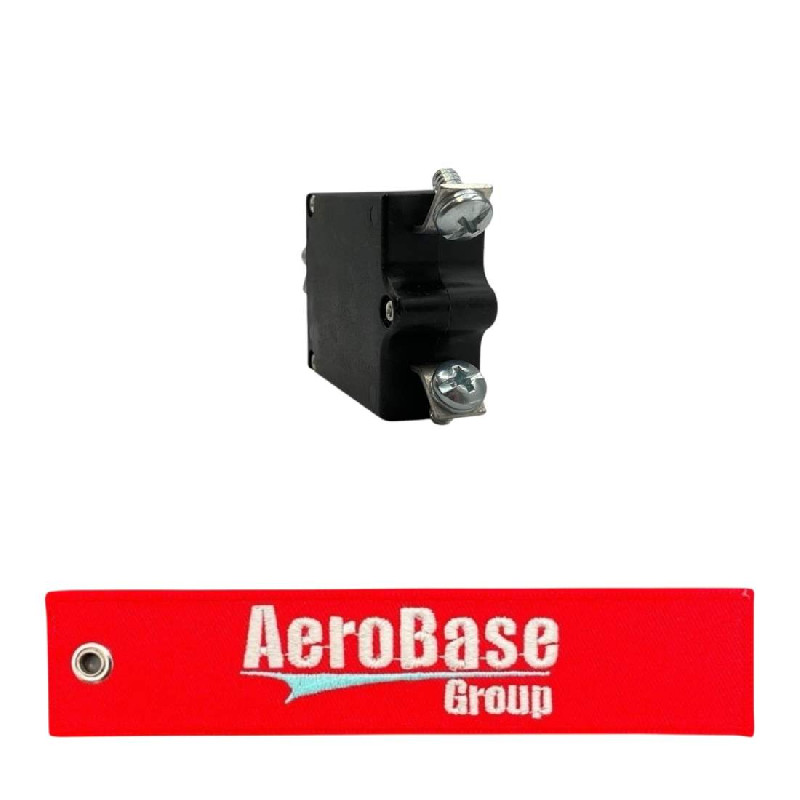

Product Images
W31-X2M1G-5 W31-X2M1G-5 W31-X2M1G-5 W31-X2M1G-5 W31-X2M1G-5

Product Details

Part Number or Model W31-X2M1G-5
Description Circuit Breaker
Schedule B Class 8536200040
ECCN (Export Control Class) EAR99
Actuator Function Trip-reset
Actuator Position Designation At pole one
Arc Quenching Method Air
Body Length 1.375 inches nominal
Body Style Single pole type
Body Width 0.690 inches nominal
Bushing Length 0.320 inches nominal
Case Material Plastic
Center To Center Distance Between Terminals Parallel To Length 0.560 inches nominal
Circuit Protection Type Overcurrent single location
Fragility Factor Moderately rugged
Frequency In Hertz 400 single location
Inclosure Protection Type For Which Designed Humidity proof and salt spray proof and shockproof and vibrationproof
Internal Trip Release Configuration Series trip single location
Main Contact Tripping Mechanism Type Trip free
Manual Actuator Type And Quantity 1 toggle
Maximum Continuous Load Current Rating Per Pole 5 amperes ac single location and 5 amperes dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole I 2000 ac single location and 3500 dc single location
Mounting Facility Type And Quantity 1 threaded bushing
Mounting Surface To Terminal End Distance 2.035 inches nominal
Thread Size 0.469 inches
Operating Voltage Type And Rating Per Pole In Volts 250.0 ac single location and 50.0 dc single location
Pole Quantity 1
Reset Method Manual
Storage Type General purpose warehouse
Terminal Type And Quantity 2 tab with screw
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns
Trip Delay Time In Seconds Per Rated Continuous Current 6 minimum at 200 pct single location and 20.000 maximum at 200 pct single location
Trip Release Ambient Tempurature Rating 25 degrees celsius nominal single location
Trip Release Characteristic Time delay single location
Trip Release Method Thermal single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 135 single location
Unpackaged Unit Weight 2 ounces

Add to Cart

Up to quantity 14 ships same day.
buy now $63.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5925-00-869-1175
  • Manufactured By
    TE Connectivity
  • ECCN (Export Control Class)
    EAR99

Alternate(s)
