TE Connectivity W31-X2M1G-25 Circuit Breaker

Part#: W31-X2M1G-25 NSN: 5925-00-043-1333

About this product W31-X2M1G-25 Circuit Breaker. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

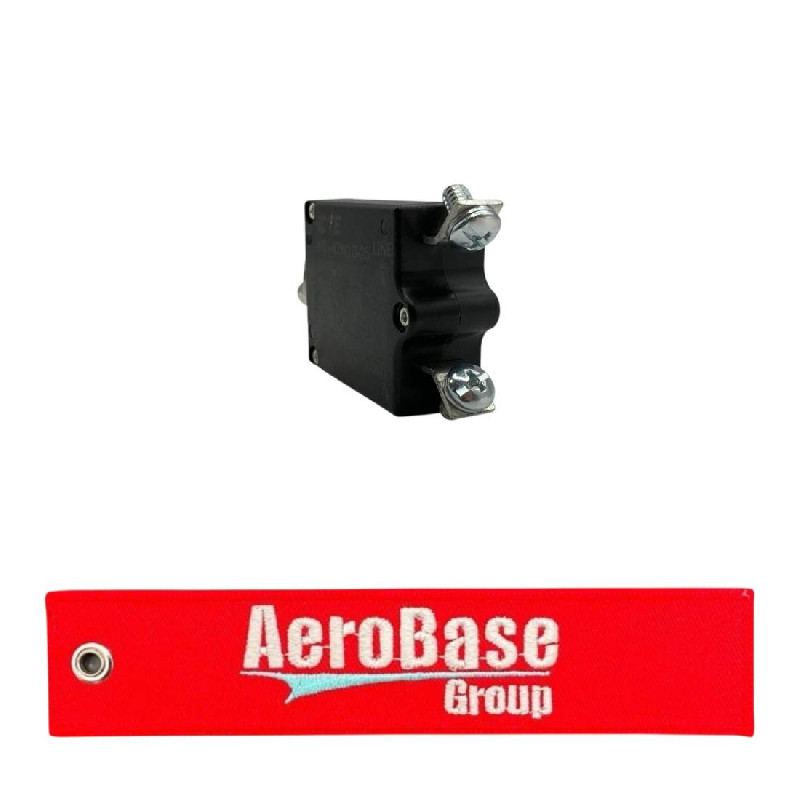

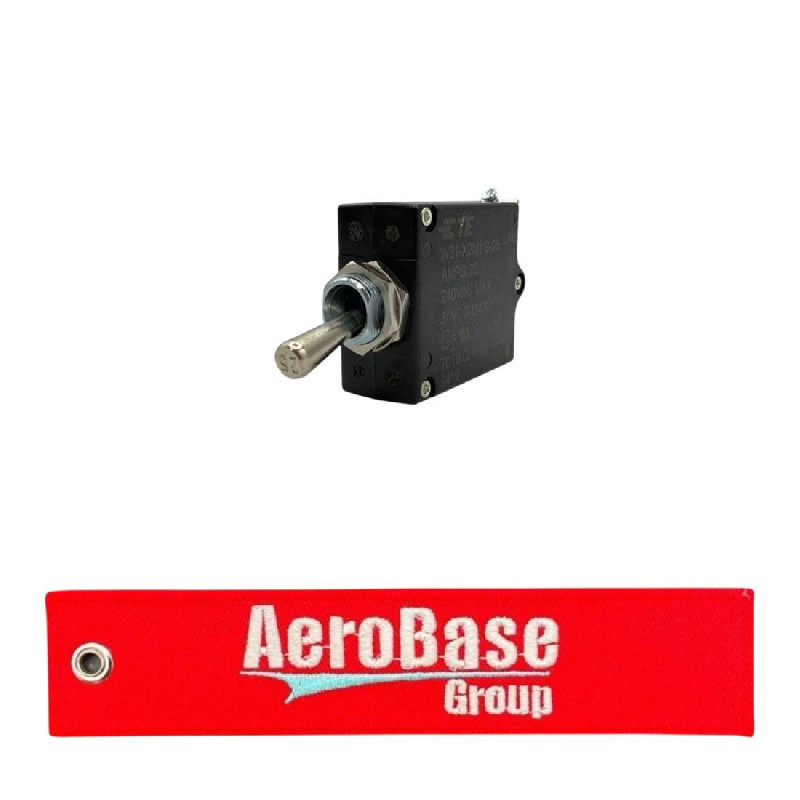

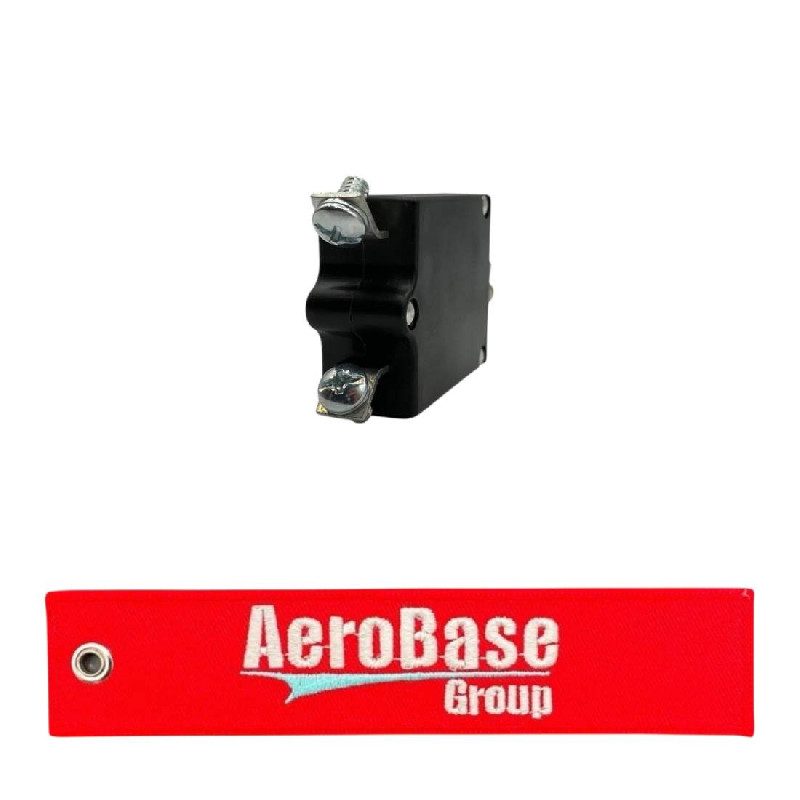

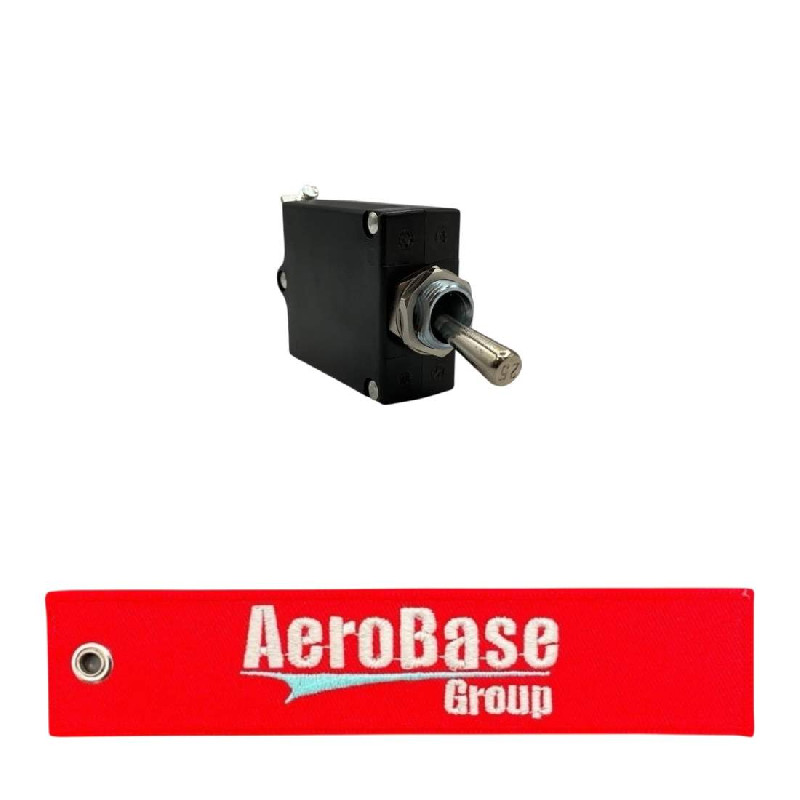

W31-X2M1G-25 W31-X2M1G-25 W31-X2M1G-25 W31-X2M1G-25 W31-X2M1G-25

Product Details

Part Number or Model W31-X2M1G-25
Description Circuit Breaker
Schedule B Class 8536.20.0020
ECCN (Export Control Class) EAR99
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 135 single location
Trip Time Breaks circuit within 6 to 22 seconds when subjected to a 200% overload
Trip Release Method Thermal single location
Trip Release Characteristic Time delay single location
Trip Release Ambient Tempurature Rating 25 degrees celsius nominal single location
Thread Series Designator Uns
Thread Size 0.469 inches
Trip Delay Time In Seconds Per Rated Continuous Current 6 minimum at 200 pct single location and 22 maximum at 200 pct single location
Special Features Toggle is metal
Storage Type General purpose warehouse
Terminal Type And Quantity 2 tab with screw
Thread Qty Per Inch (tpi) 32
Pole Quantity 1
Reset Method Manual
Mounting Facility Type And Quantity 1 threaded bushing
Mounting Surface To Terminal End Distance 2.035 inches nominal
Operating Voltage Type And Rating Per Pole In Volts 250 ac single location and 50 dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole I 1000 ac single location and 2500 dc single location
Maximum Continuous Load Current Rating Per Pole 25 amperes ac single location and 25 amperes dc single location
Main Contact Tripping Mechanism Type Trip free
Manual Actuator Type And Quantity 1 toggle
Internal Trip Release Configuration Series trip single location
Inclosure Protection Type For Which Designed Humidity proof and salt spray proof and shockproof and vibrationproof
Frequency In Hertz 400 single location
Fragility Factor Moderately rugged
Circuit Protection Type Overcurrent single location
Case Material Plastic
Center To Center Distance Between Terminals Parallel To Length 1.02 inches nominal
Bushing Length 0.335 inches nominal
Body Width 0.690 inches nominal
Body Style Single pole type
Arc Quenching Method Air
Body Length 1.375 inches nominal
Actuator Function Trip-reset
Actuator Position Designation At pole one
Unpackaged Unit Weight 2 ounces
