MS14154-2 Circuit Breaker

Part#: MS14154-2 NSN: 5925-01-142-4999

About this product MS14154-2 Circuit Breaker. * Manufacturer certifications are shipped with your order FREE of charge

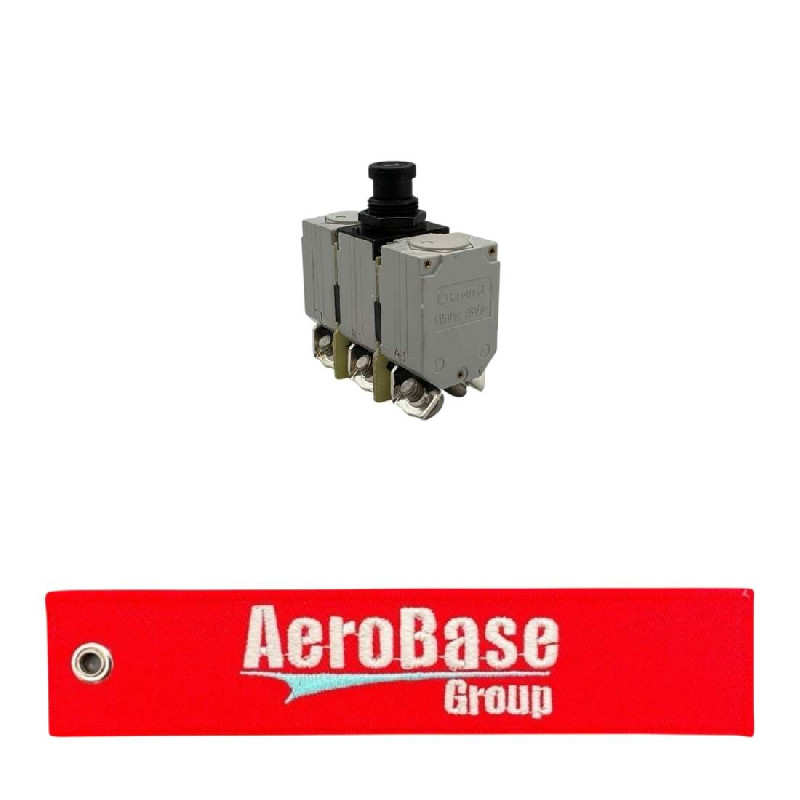

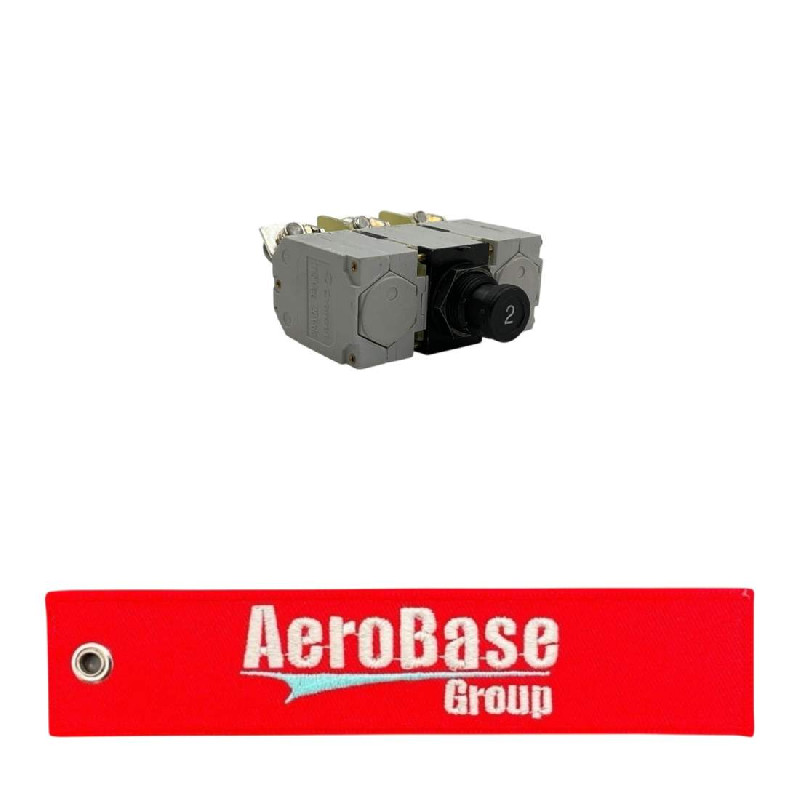

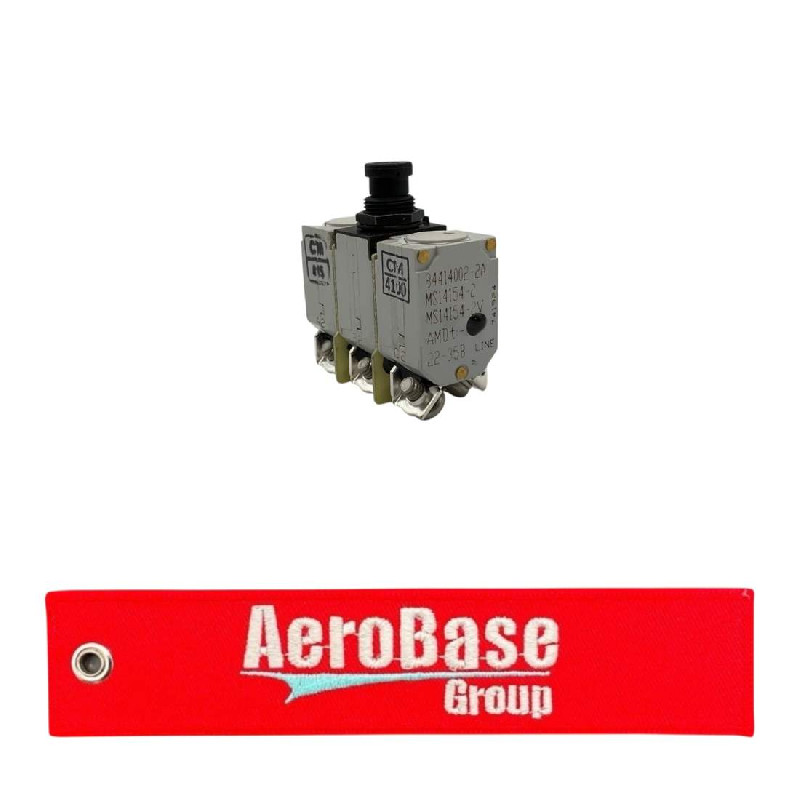

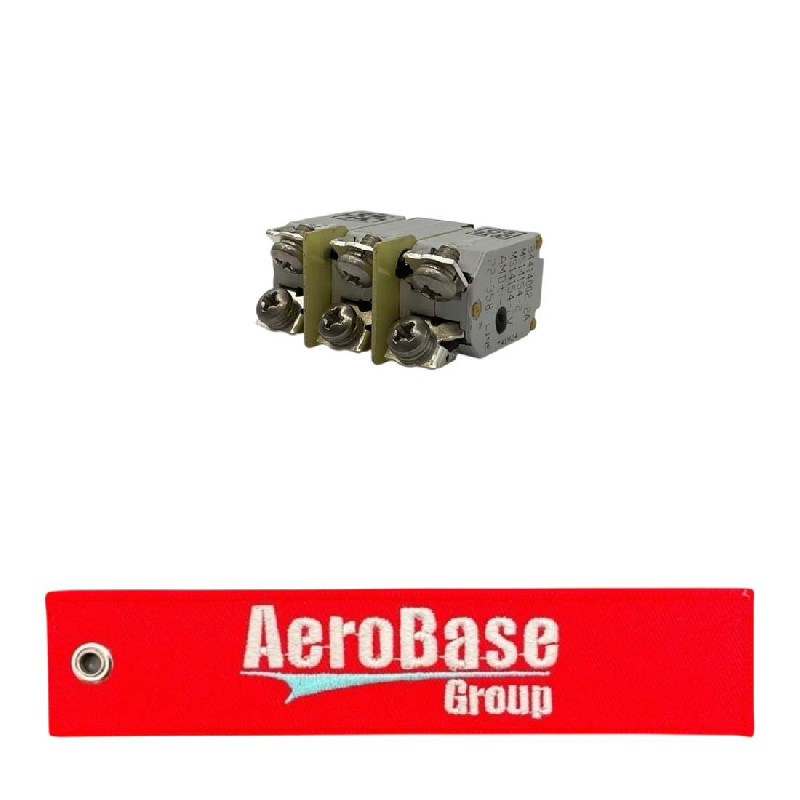

Product Images
MS14154-2 MS14154-2 MS14154-2 MS14154-2

Product Details

Part Number or Model MS14154-2
Description Circuit Breaker
Schedule B Class 8536200040
ECCN (Export Control Class) EAR99
Trip Release Characteristic Time delay all locations
Trip Release Ambient Tempurature Rating 25 degree celsius nominal all locations
Trip Delay Time In Seconds Per Rated Continuous Current 4 minimum at 200 pct all locations and 20 maximum at 200 pct all locations
Thread Size 0.469 inches
Thread Series Designator Uns
Terminal Type And Quantity 6 screw
Thread Qty Per Inch (tpi) 32
Reset Method Manual
Storage Type General purpose warehouse
Pole Quantity 3
Operating Voltage Type And Rating Per Pole In Volts 200.0 ac all locations
Mounting Facility Type And Quantity 1 threaded bushing
Maximum Interrupting Capacity Current Type And Rating Per Pole I 5000.0 ac all locations
Maximum Continuous Load Current Rating Per Pole 2.0 amperes ac all locations
Manual Actuator Type And Quantity 1 push-pull
Main Contact Tripping Mechanism Type Trip free
Internal Trip Release Configuration Series trip all locations
Inclosure Protection Type For Which Designed Fungus proof and shockproof and vibrationproof
Frequency In Hertz 400.0 all locations
Fragility Factor Moderately rugged
End Application Ea6a/b-dcn
Case Material Plastic
Center To Center Distance Between Terminals Parallel To Length 0.469 inches minimum and 0.531 inches maximum
Center To Center Distance Between Terminals Parallel To Width 0.593 inches minimum and 0.655 inches maximum
Circuit Protection Type Overcurrent all locations
Body Width 1.840 inches maximum
Bushing Length 0.219 inches minimum and 0.281 inches maximum
Body Length 0.781 inches maximum
Body Style Multipole-single actuator type
Body Height 1.381 inches maximum
Arc Quenching Method Magnetic blowout
Actuator Position Designation At pole two
Actuator Function Trip-reset
Trip Release Method Thermal all locations
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 135.0 all locations
Unpackaged Unit Weight 0.150 pounds

Add to Cart

Up to quantity 5 ships same day.
buy now $267.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5925-01-142-4999
  • Manufactured By
    Crouzet
  • ECCN (Export Control Class)
    EAR99
