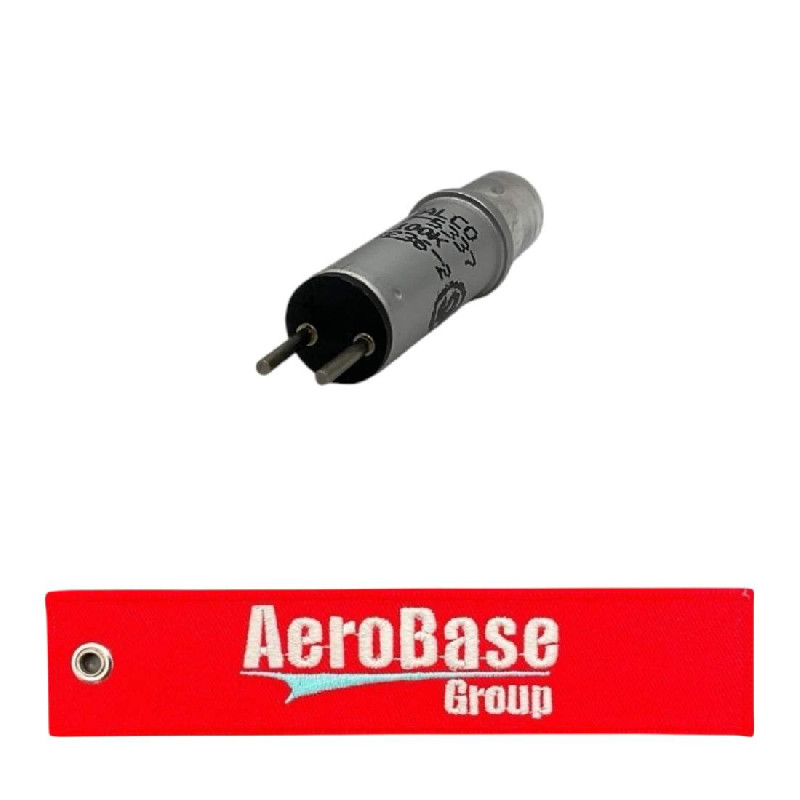

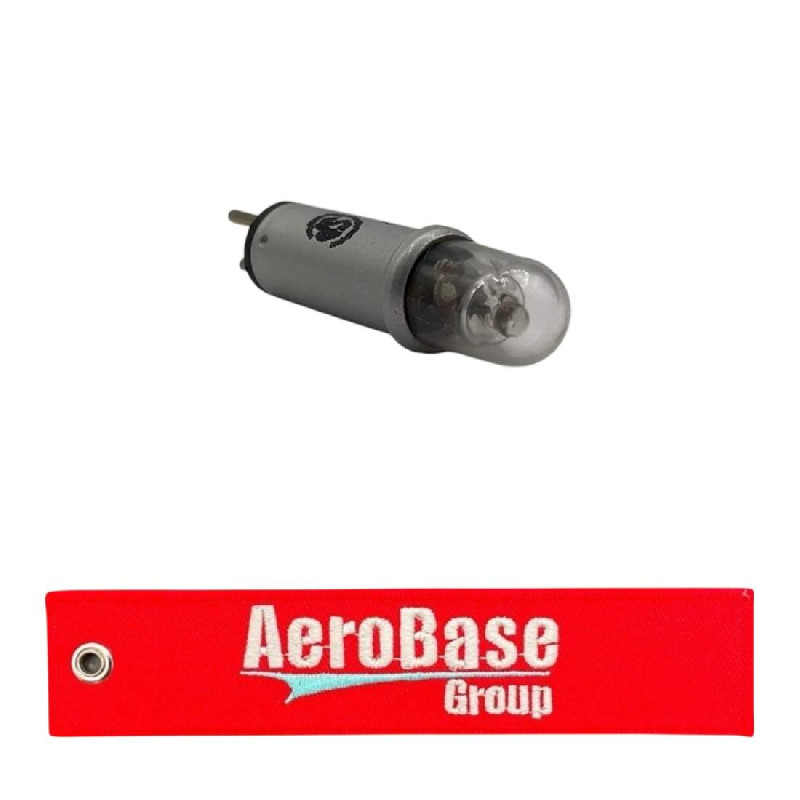

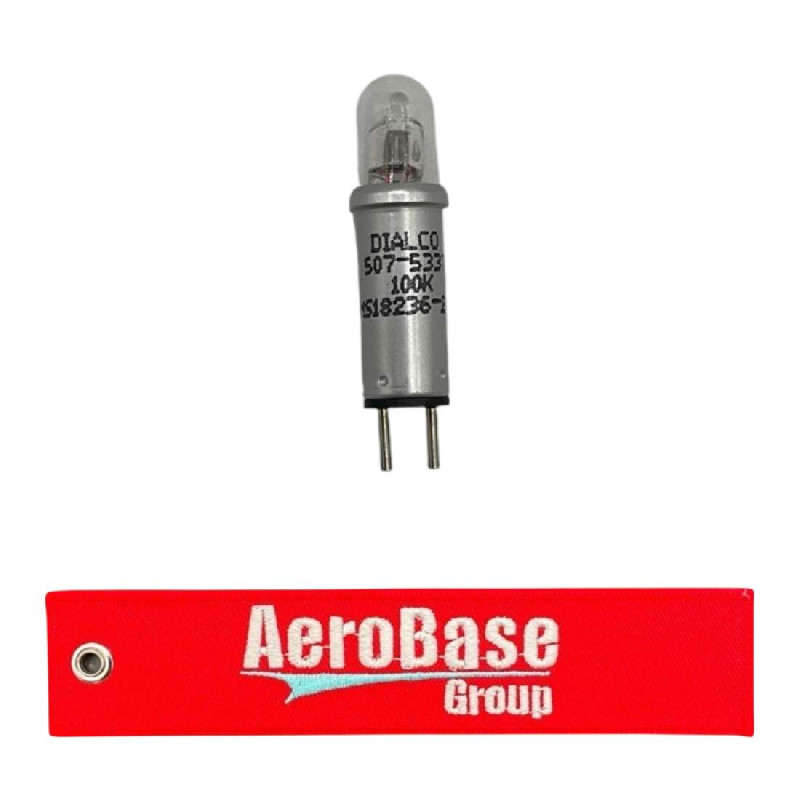

About this product 507-5337-0937-670F Indicator Lamp. * Manufacturer certifications are shipped with your order FREE of charge
Part Number or Model | 507-5337-0937-670F |
Description | Indicator Lamp |
Schedule B Class | |
ECCN (Export Control Class) | EAR99 |
Average Life Rating In Hours | 15000.0 |
Base Style | Cartridge two pin polarized |
Cartridgediameter | 0.330 inches nominal |
Cartridgelength | 1.287 inches nominal |
Cartridge Style | Long stovepipe |
Circuit Voltage Rating In Volts | 105.000 minimum and 125.000 maximum |
Current Rating For Which Designed | 0.600 amperes nominal |
Filling Gas Type | Neon |
Gas Striking Voltage Rating In Volts And Current Type | 65.0 ac nominal 1st voltage |
Gas Striking Voltage Rating In Volts And Current Type | 90.0 dc nominal 2nd voltage |
Lens Color | Colorless |
Lens Inscription | W/o lens inscription |
Lens Light Transmission Characteristic | Transparent |
Light Intensity Level | Standard |
Light Output Rating | Not rated |
Material | Aluminum sleeve |
Material | Plastic lens |
Material | Aluminum sleeve |
Material | Plastic lens |
Primary Lamp Type | Glow |
Rated Average Life | Hours |
Resistor Rating And Location | 100 kilohms internal |
Voltage Rating | Not rated |
Wattage Rating | Not rated |
250-1475-500 Lamp Lens
370-8738-504 Lens Holder
507-4537-1531-640F Panel Mount Indicator
Incandescent Panel Mount Indicator (PMI) Base, 11/16 inch mounting hole, 2-120 volts, solder Terminals, for T-3 1/4 mini bayonet incandescent Lamps
