507-5337-0931-670F Indicator Lamp

Part#: 507-5337-0931-670F NSN: 6240-00-053-7055

About this product 507-5337-0931-670F Indicator Lamp. * Manufacturer certifications are shipped with your order FREE of charge

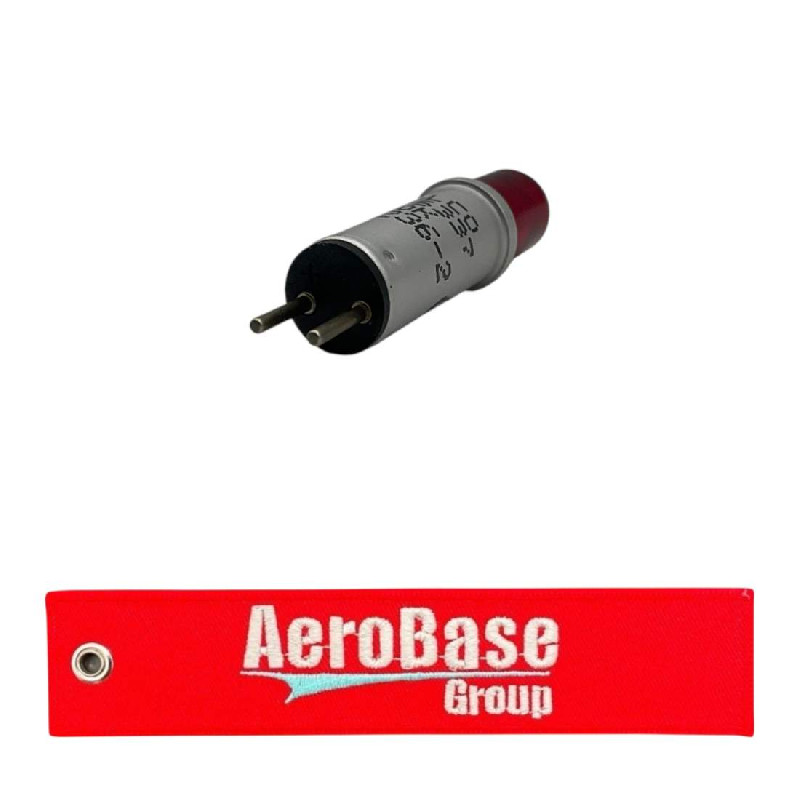

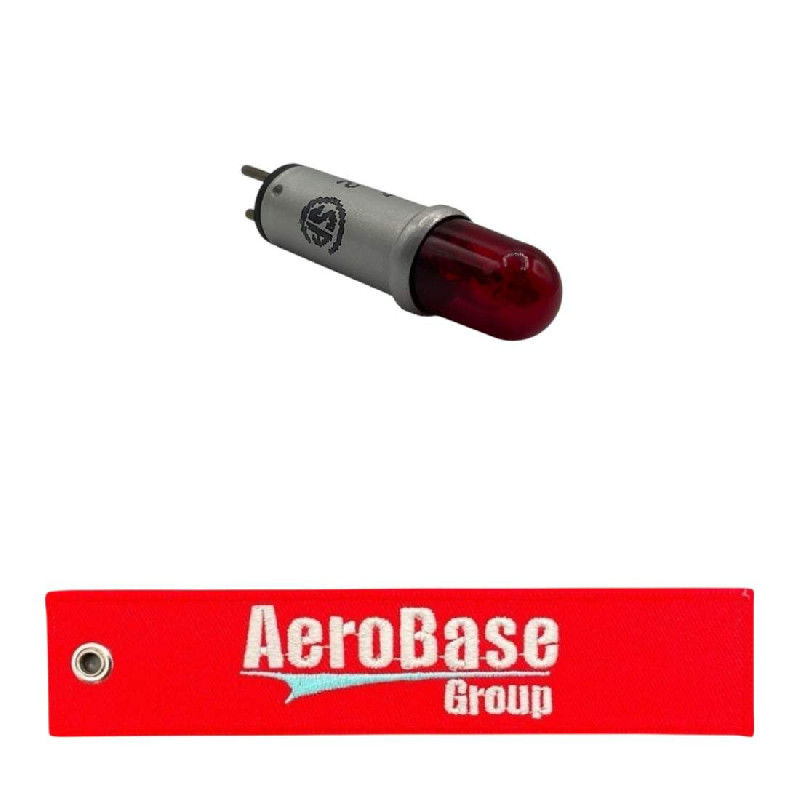

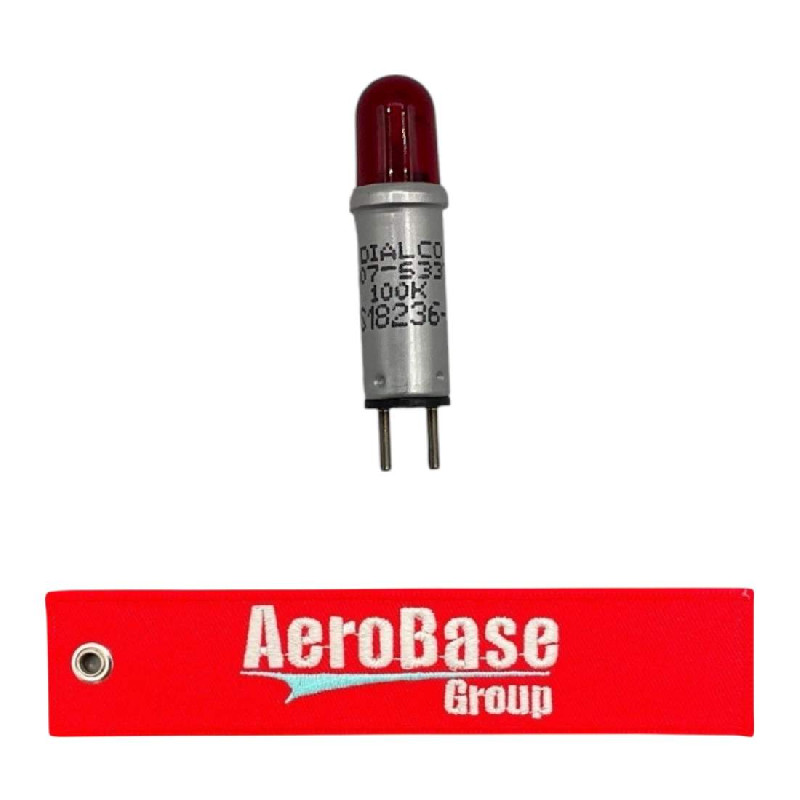

Product Images
507-5337-0931-670F 507-5337-0931-670F 507-5337-0931-670F

Product Details

Part Number or Model 507-5337-0931-670F
Description Indicator Lamp
Schedule B Class
ECCN (Export Control Class) EAR99
Average Life Rating In Hours 15000.0
Base Style Cartridge two pin polarized
Cartridgediameter 0.320 inches minimum and 0.340 inches maximum
Cartridgelength 1.260 inches minimum and 1.320 inches maximum
Cartridge Style Long stovepipe
Filling Gas Type Neon
Gas Striking Voltage Rating In Volts And Current Type 65.0 ac nominal 1st voltage
Gas Striking Voltage Rating In Volts And Current Type 90.0 dc nominal 2nd voltage
Lens Color Red
Lens Light Transmission Characteristic Transparent
Light Intensity Level Not rated
Material Aluminum sleeve
Material Plastic lens
Material Aluminum sleeve
Material Plastic lens
Primary Lamp Type Glow
Rated Average Life Hours
Resistor Rating And Location 100 kilohms external
Wattage Rating 0.250 watts

Add to Cart

Up to quantity 95 ships same day.
buy now $10.95
each, minimum order quantity of 5 Sold in increments of 5
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    6240-00-053-7055
  • Manufactured By
    DIALIGHT
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 6240-00-053-7055
  • 6240000537055
  • 50753370931670F
  • MS18236-2RN
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
