M83413/8-A005BE Bonding Jumper

Part#: M83413/8-A005BE NSN: 6150-00-070-3279

About this product 12AWG bonding jumper. * Manufacturer certifications are shipped with your order FREE of charge

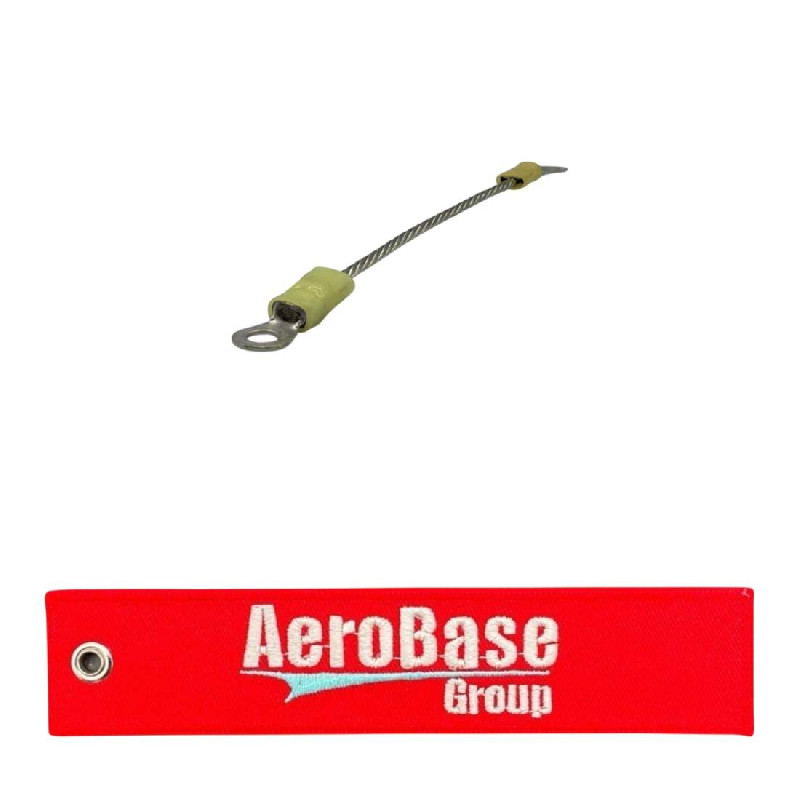

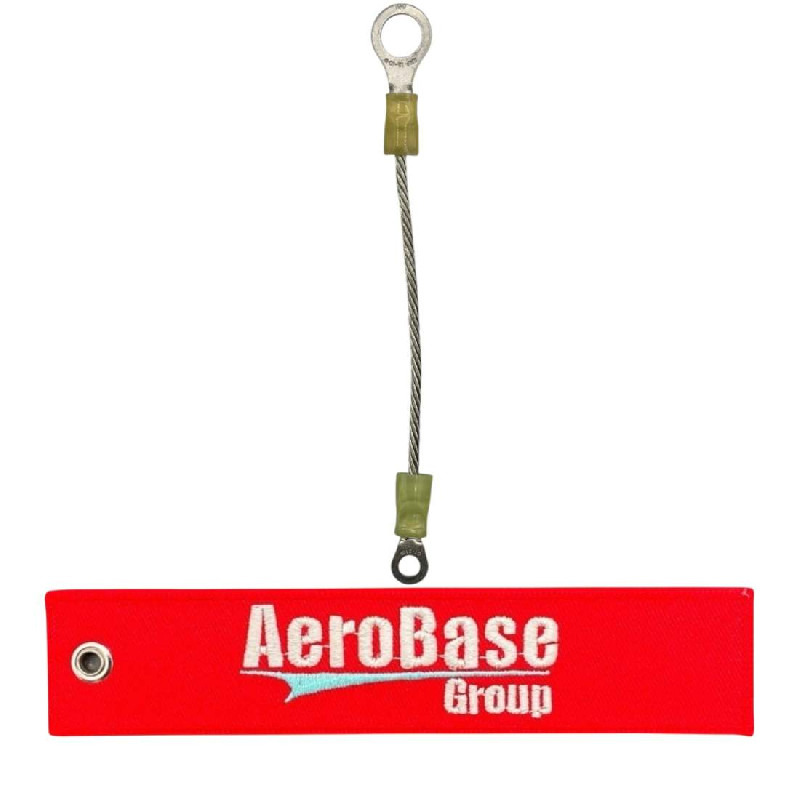

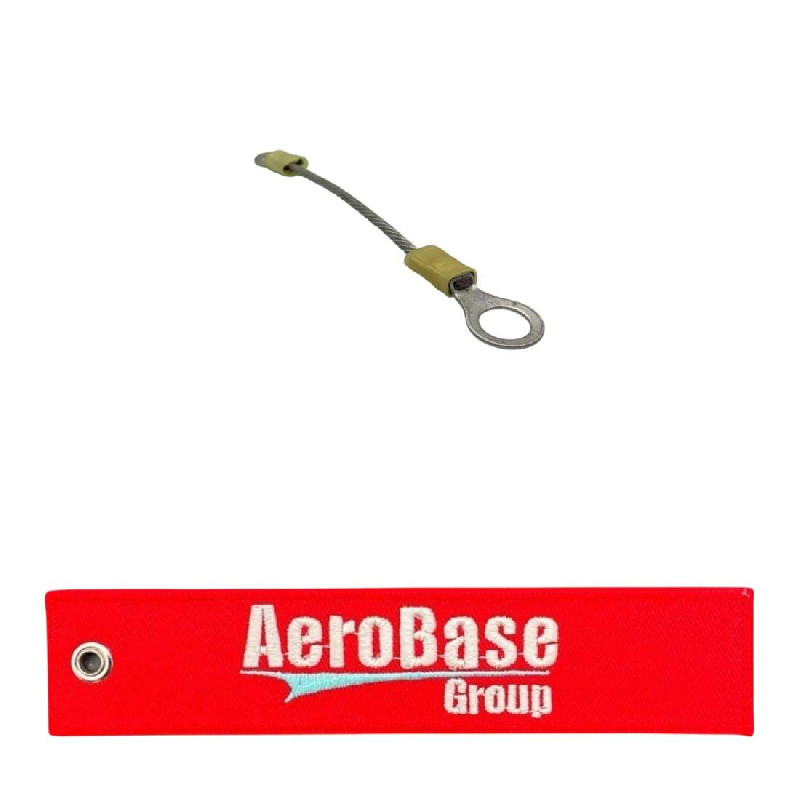

Product Images
M83413/8-A005BE M83413/8-A005BE M83413/8-A005BE M83413/8-A005BE M83413/8-A005BE

Product Details

Part Number or Model M83413/8-A005BE
Description Bonding Jumper
Schedule B Class
ECCN (Export Control Class) EAR99
Termination Type Lug terminal with mounting hole both ends single conductor
Terminal Manufacturer Identifying Reference Number Ms25036-112 1st end single conductor
Terminal Manufacturer Identifying Reference Number Ms25036-114 2nd end single conductor
Terminal Lug Aperture Size 0.385 inches 2nd end single conductor
Terminal Lug Aperture Size 0.193 inches 1st end single conductor
Terminal Commercial And Government Entity Code 96906 both ends single conductor
Strand Awg Size Per Conductor 37 single conductor
Strand Quantity Per Conductor 7 single conductor
Round Conductor Size 12 awg single conductor
Material Copper core conductor single conductor
Lead Length 5 inches nominal
Lead Pull Strength 110.0 pounds
Conductor Form Stranded single conductor
Cross Section Outside Diameter 0.083 inches nominal
Cross Sectional Shape Round

Add to Cart

Up to quantity 45 ships same day.
buy now $8.95
each, minimum order quantity of 5 Sold in increments of 5
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    6150-00-070-3279
  • Manufactured By
    Circuit Systems
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • M834138A005BE
  • 6150000703279
  • 6150-00-070-3279
