M85049/90-21P03 Backshell

Part#: M85049/90-21P03 NSN: 5935-01-588-8401

About this product M85049/90-21P03 Backshell. * Manufacturer certifications are shipped with your order FREE of charge

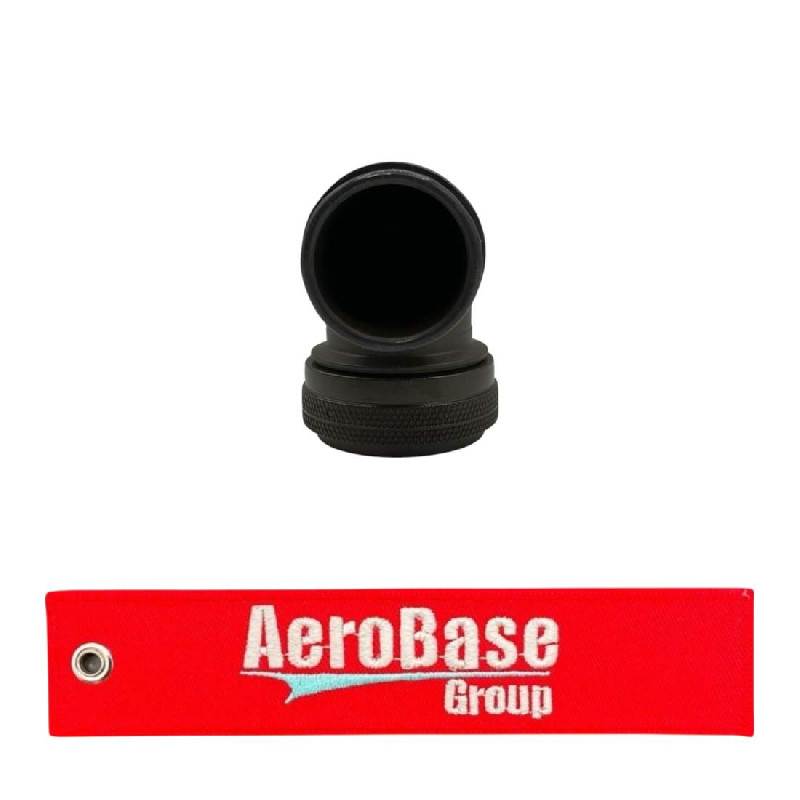

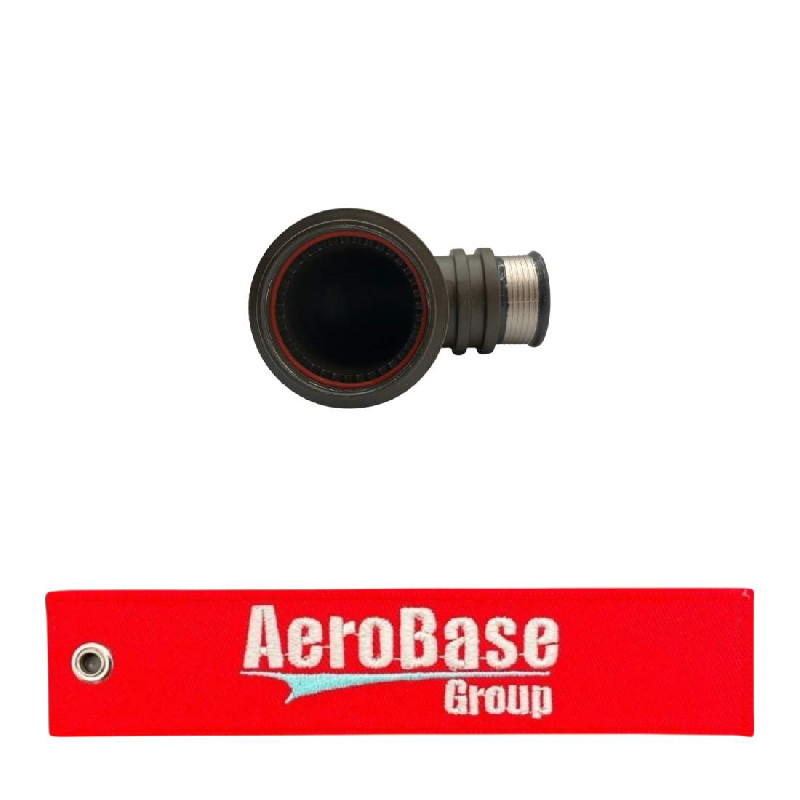

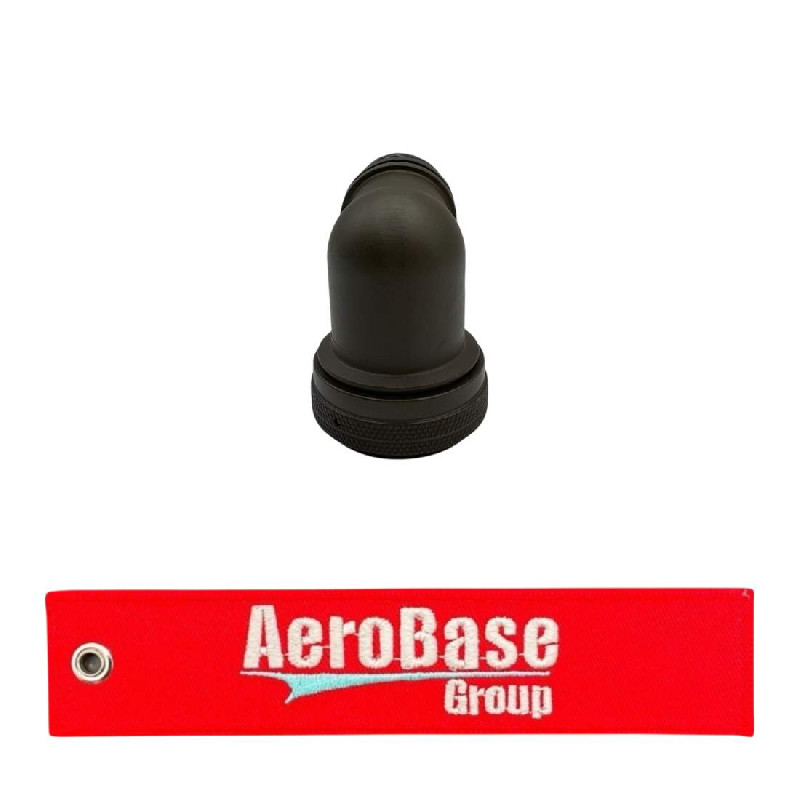

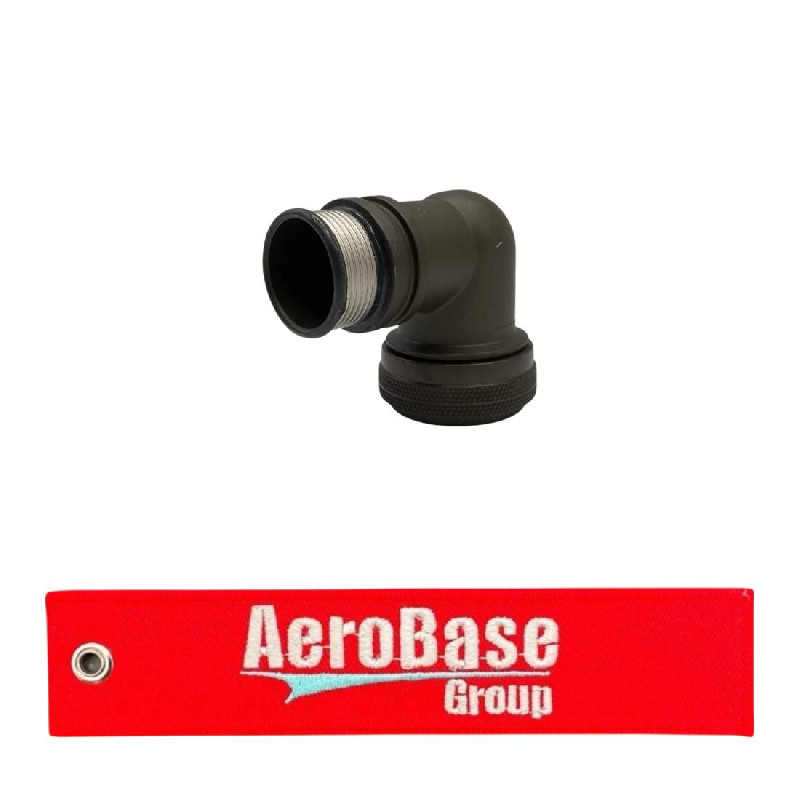

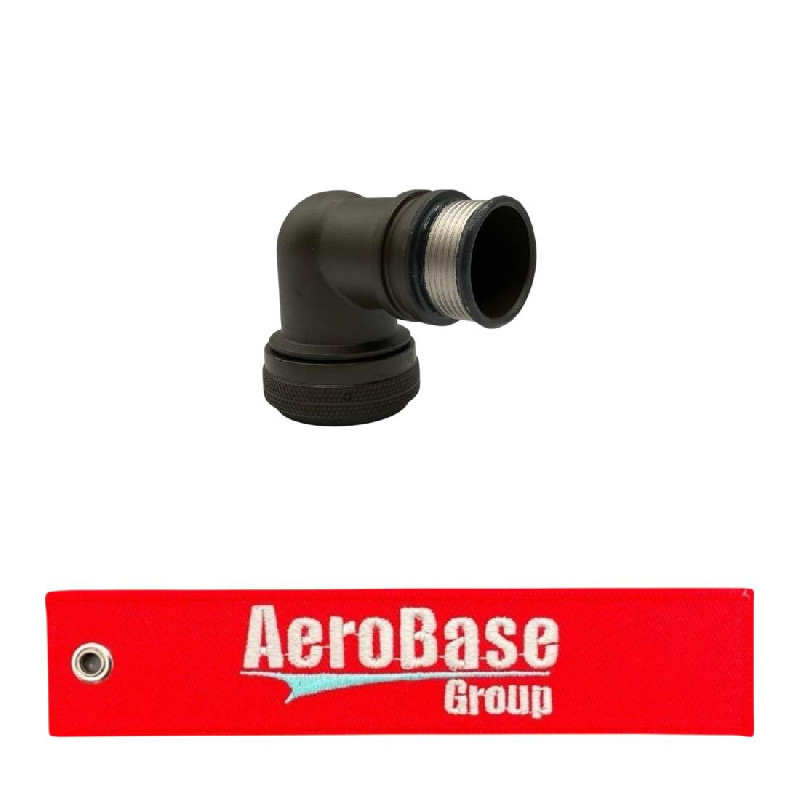

Product Images
M85049/90-21P03 M85049/90-21P03 M85049/90-21P03 M85049/90-21P03 M85049/90-21P03

Product Details

Part Number or Model M85049/90-21P03
Description Backshell
Schedule B Class 8538908180
ECCN (Export Control Class) EAR99
Body Angle In Degrees 90.0
Cable Opening Diameter 0.812 inches nominal
Cable Opening Quantity 1
Material Aluminum alloy
Mounting Facility Type And Quantity 1 threaded coupling
Thread Size 31 millimeters
Overall Height 1.642 inches maximum
Overall Length 2.186 inches nominal
Overall Width 1.551 inches nominal
Style Designator Angle type
Surface Treatment Cadmium and nickel
Surface Treatment Cadmium and nickel
Thread Direction Right-hand
Thread Series Designator Iso s
Thread Tolerance Class 6h internal

Add to Cart

Up to quantity 5 ships same day.
buy now $138.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-01-588-8401
  • Package Weight (oz)
    1.792
  • Manufactured By
    Glenair
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • M850499021P03
  • 5935015888401
  • 5935-01-588-8401
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
