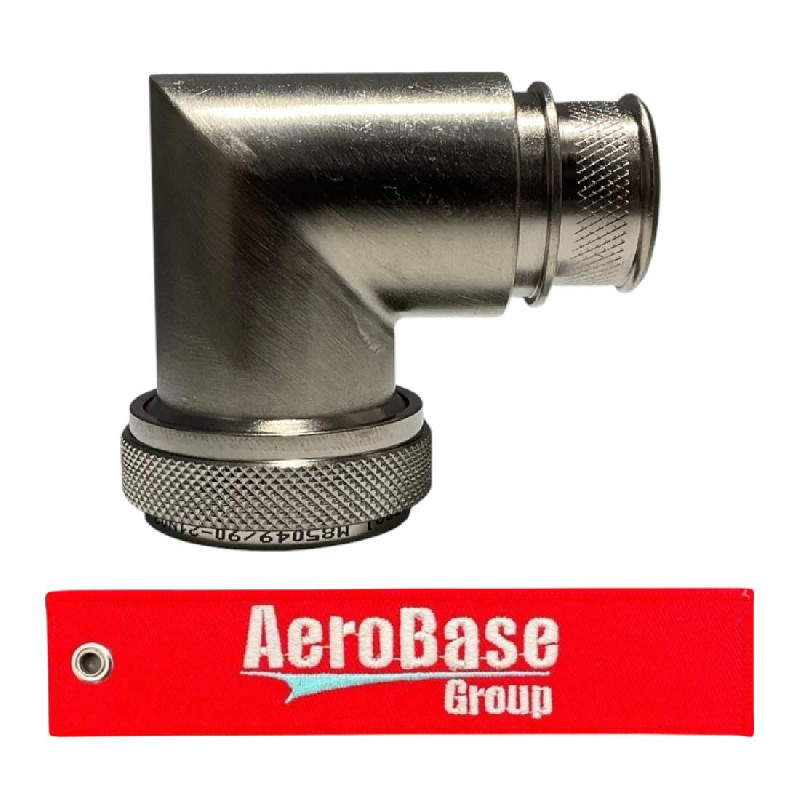

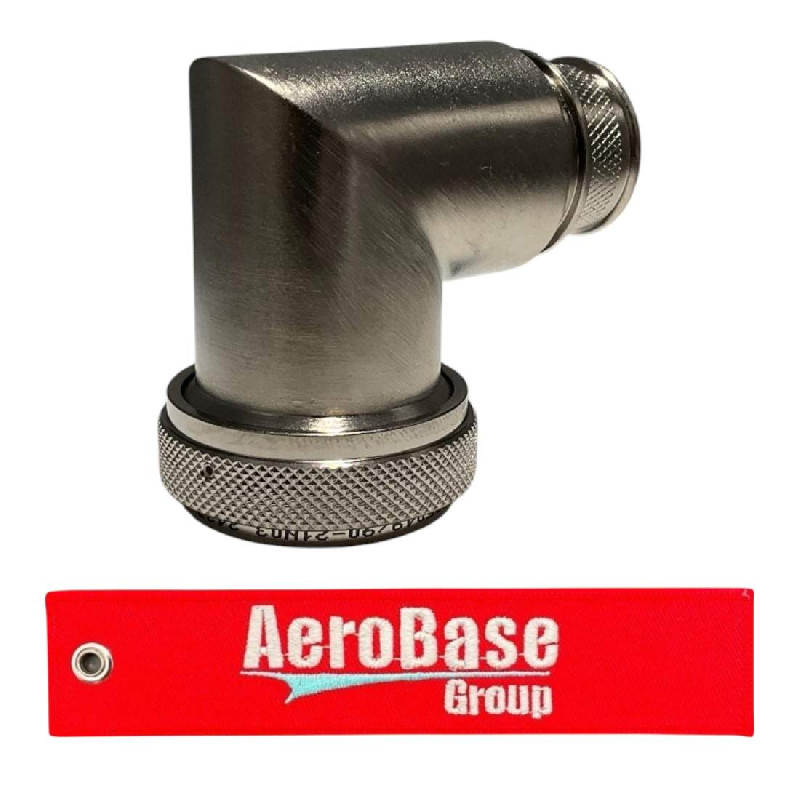

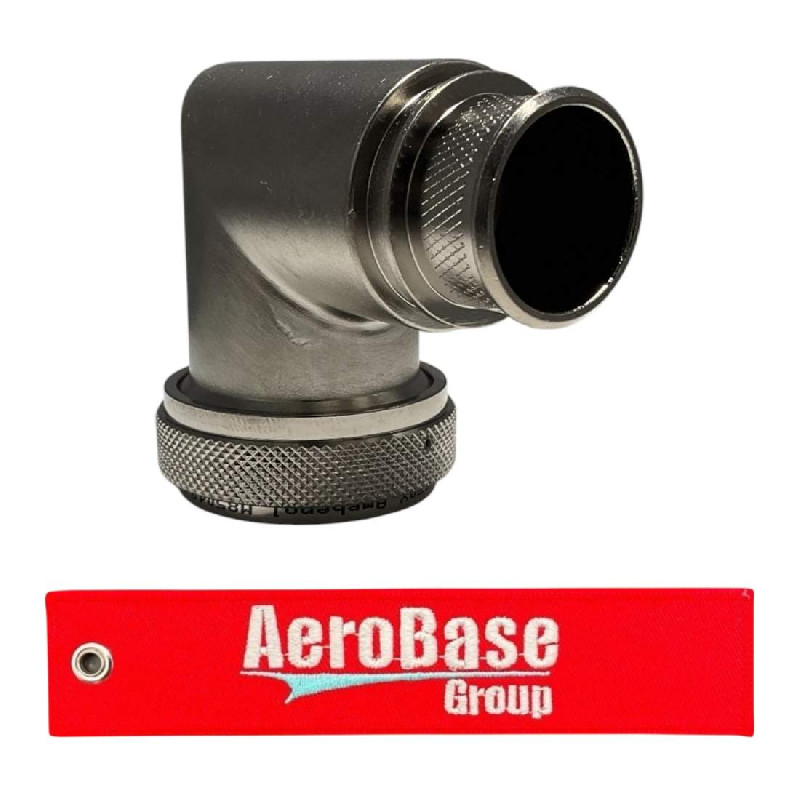

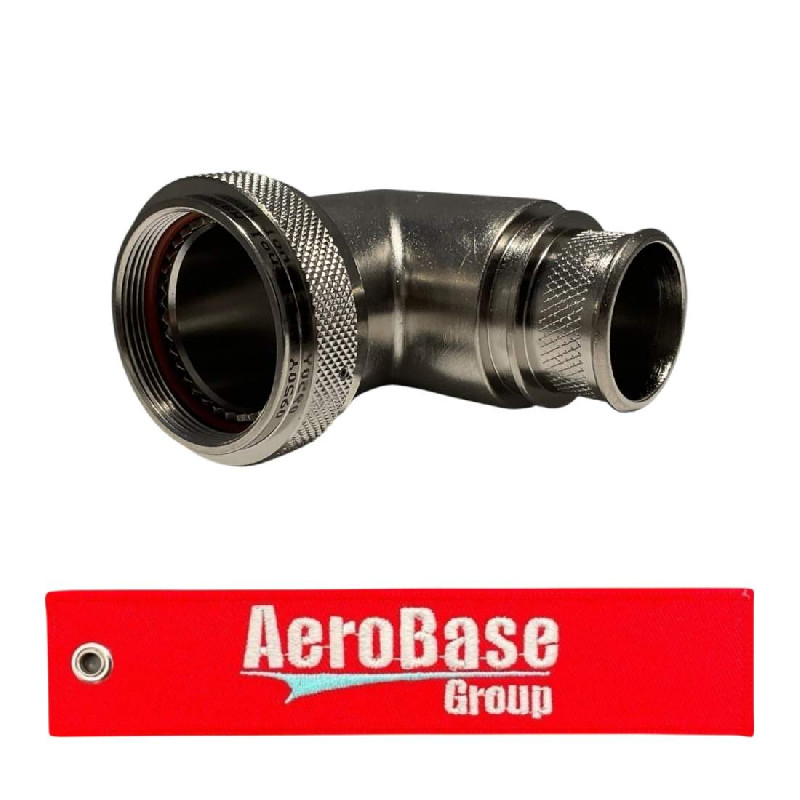

M85049/90-21N03 Backshell

Name: Backshell
Brand: Amphenol
SKU: 5935016994639
Price: 68.95 USD
Availability: InStock

Part#: M85049/90-21N03 NSN: 5935-01-699-4639

About this product M85049/90-21N03 Backshell. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

Product Details

Part Number or Model	M85049/90-21N03
Description	Backshell
Schedule B Class	8538908180
ECCN (Export Control Class)	EAR99
Body Angle In Degrees	90.0
Cable Opening Diameter	20.83 millimeters maximum
Cable Opening Quantity	1
Distance From Centerline To Cable End	45.62 millimeters maximum
Distance From Centerline To Connector End	49.23 millimeters maximum
Features Provided	Rohs directive compliance
Material	Aluminum alloy
Material Specification	Mil-dtl-38999 series iii and series iv mil spec all material responses
Overall Height	66.46 millimeters maximum
Overall Length	49.23 millimeters maximum
Overall Width	28.07 millimeters maximum
Part Name Assigned By Controlling Agency	Band lock adapter, self-lock, 90 degrees, backshell
Special Features	Connector diameter: max 41.68 mm. mating style: self-locking. shell size = 21. entry size = 03.
Specification Data	Mil-dtl-38999 series iii and series iv government standard and sae-as85049/90 professional/industrial association specification
Surface Treatment	Nickel
