M85049/90-21J03 Backshell

Part#: M85049/90-21J03 NSN: 5935-01-675-7105

About this product M85049/90-21J03 Backshell. * Manufacturer certifications are shipped with your order FREE of charge

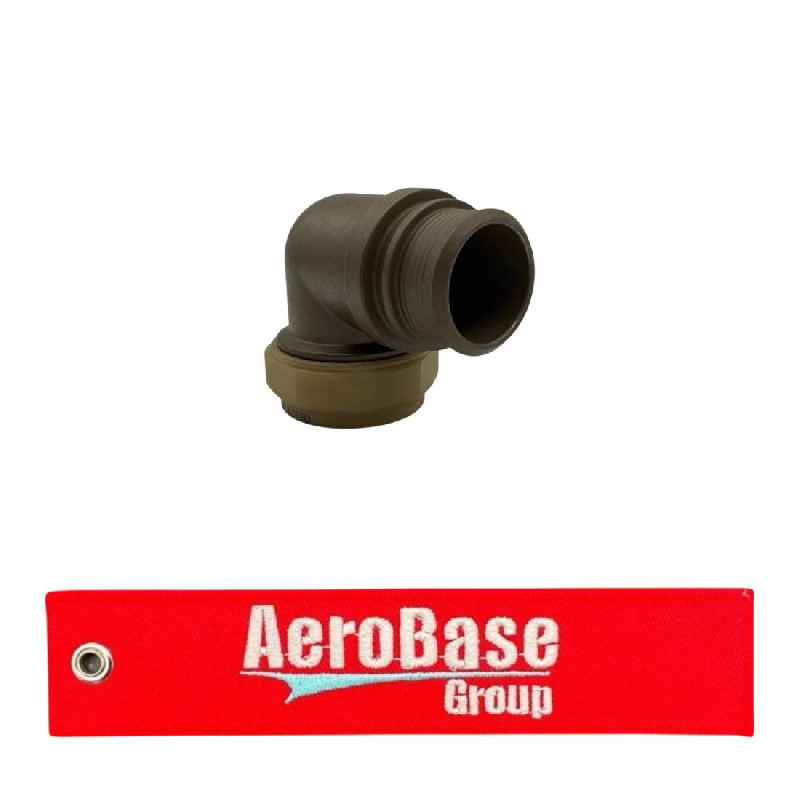

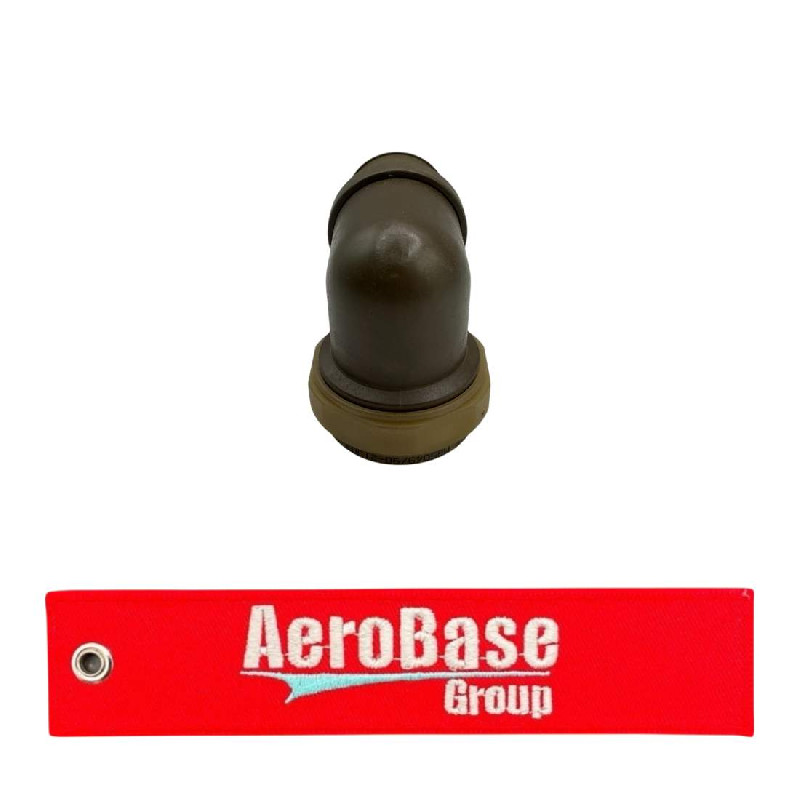

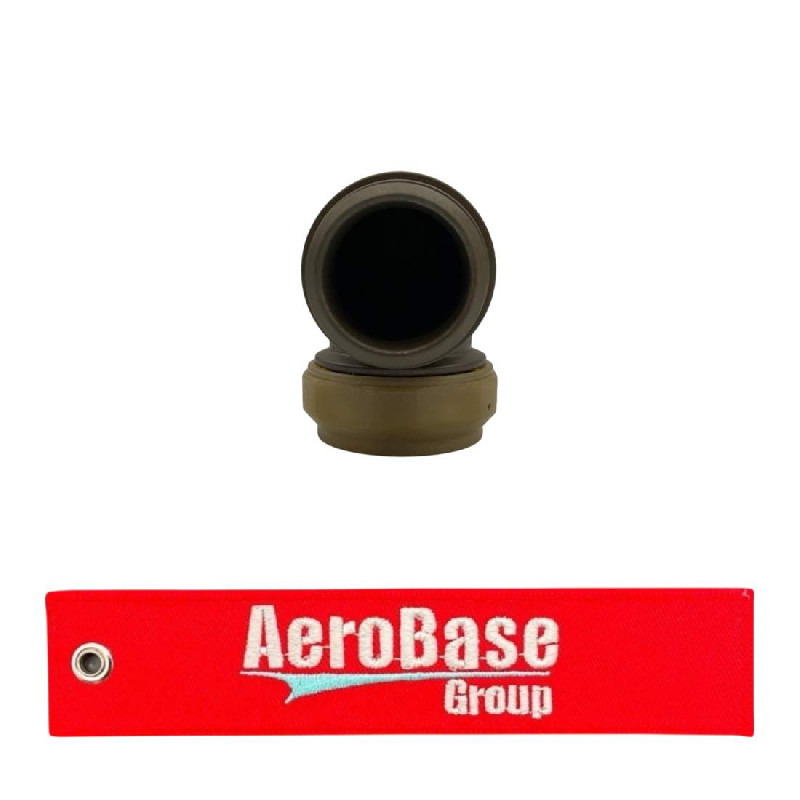

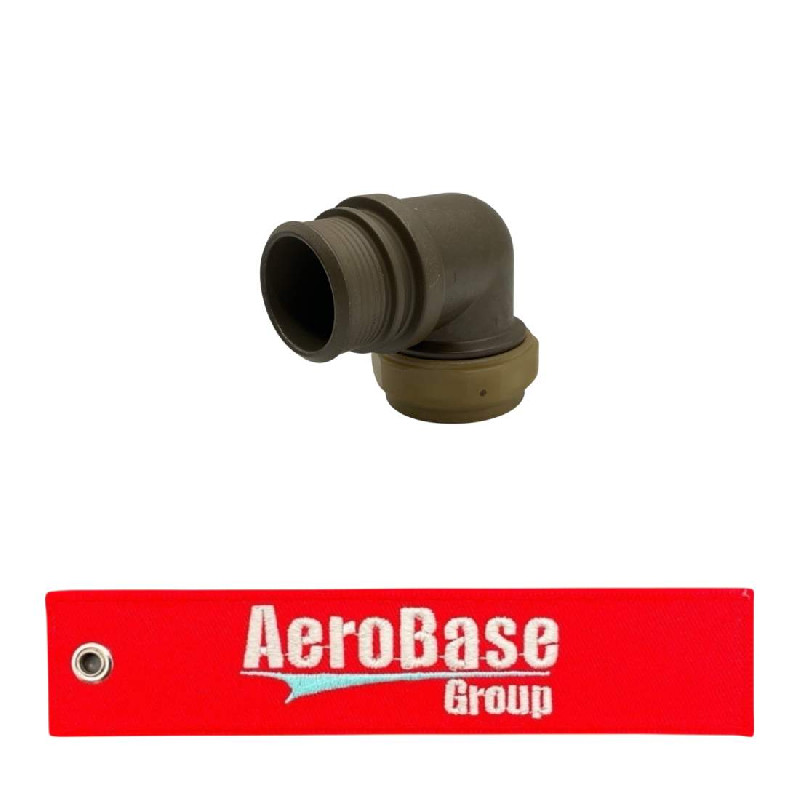

Product Images
M85049/90-21J03 M85049/90-21J03 M85049/90-21J03 M85049/90-21J03 M85049/90-21J03

Product Details

Part Number or Model M85049/90-21J03
Description Backshell
Schedule B Class 8538908180
ECCN (Export Control Class) EAR99
Body Angle In Deg 90.0
Cable Opening Diameter 0.812 inches nominal
Cable Opening Quantity 1
Material Plastic
Mounting Facility Type And Quantity 1 threaded coupling
Thread Size 31 millimeters
Overall Height 2.617 inches nominal
Overall Length 2.186 inches nominal
Overall Width 1.642 inches maximum
Style Designator Angle type
Surface Treatment Cadmium
Thread Direction Right-hand
Thread Series Designator Iso m
Thread Tolerance Class 6h internal

Add to Cart

Up to quantity 3 ships same day.
buy now $349.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-01-675-7105
  • Package Weight (oz)
    1.296
  • Manufactured By
    Glenair
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • M850499021J03
  • 5935016757105
  • 5935-01-675-7105
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
