M85049/89-17W02 Backshell

Part#: M85049/89-17W02 NSN: 5935-01-624-6050

About this product M85049/89-17W02 Backshell. * Manufacturer certifications are shipped with your order FREE of charge

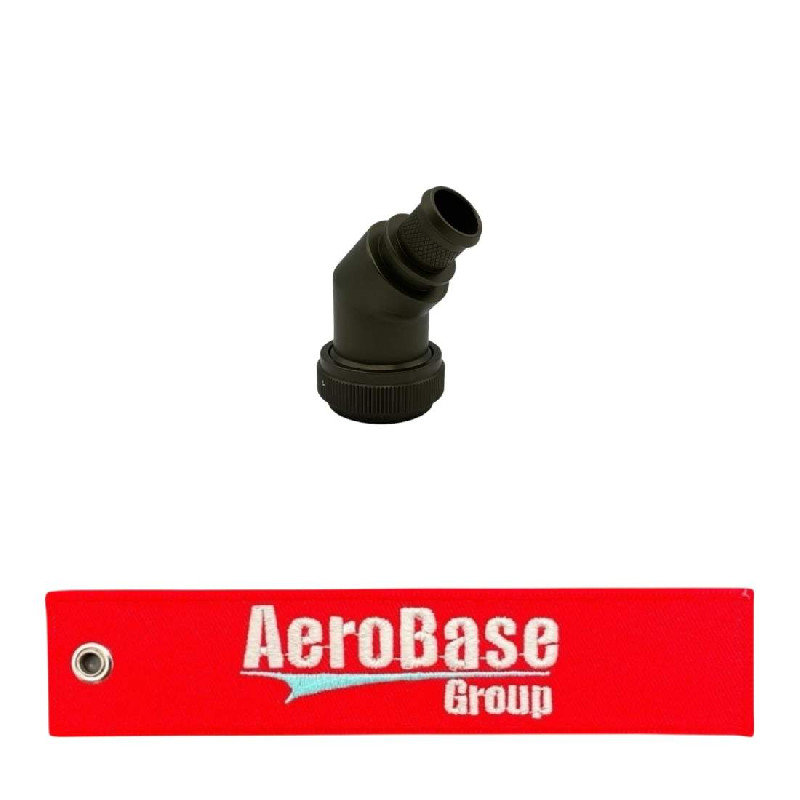

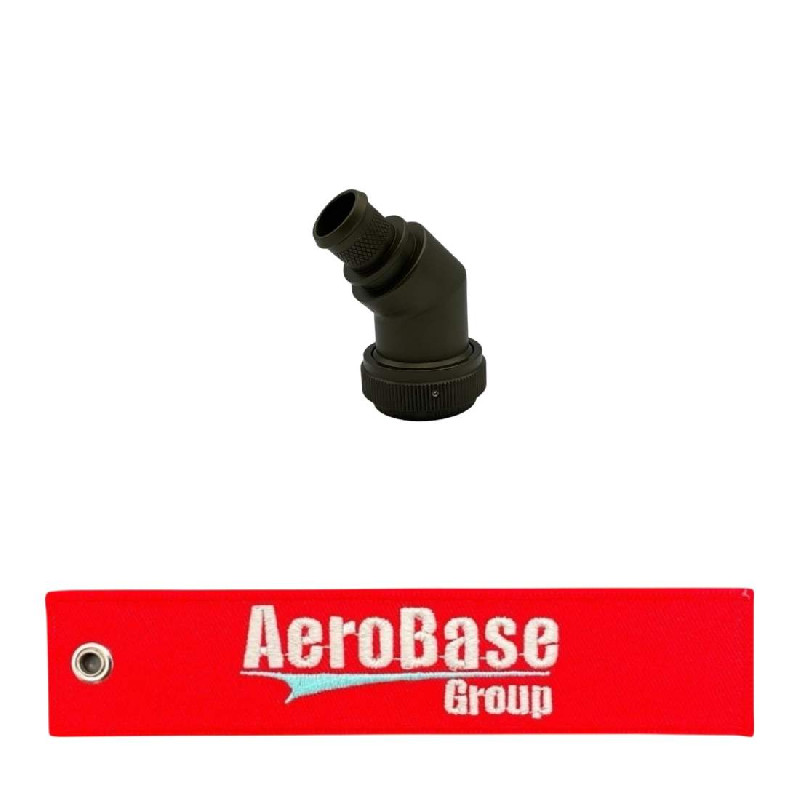

Product Images
M85049/89-17W02 M85049/89-17W02 M85049/89-17W02 M85049/89-17W02 M85049/89-17W02

Product Details

Part Number or Model M85049/89-17W02
Description Backshell
Schedule B Class 8538.90.7080
ECCN (Export Control Class) EAR99
Body Angle In Degrees 135
Cable Opening Diameter 0.500 inches nominal
Cable Opening Quantity 1
Distance From Centerline To Cable End 1.260 inches nominal
Distance From Centerline To Connector End 2.477 inches nominal
Material Aluminum alloy
Mounting Facility Type And Quantity 1 threaded coupling
Thread Size 25.0 millimeters
Overall Width 1.406 inches nominal
Style Designator Angle type with clamp
Surface Treatment Cadmium
Thread Direction Right-hand
Thread Series Designator Iso m
Thread Tolerance Class 6h internal

Add to Cart

Up to quantity 10 ships same day.
buy now $86.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-01-624-6050
  • Package Weight (oz)
    1.488
  • Manufactured By
    Amphenol
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • M850498917W02
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
