M85049/89-17P02 Backshell

Part#: M85049/89-17P02

About this product M85049/89-17P02 Backshell. * Manufacturer certifications are shipped with your order FREE of charge

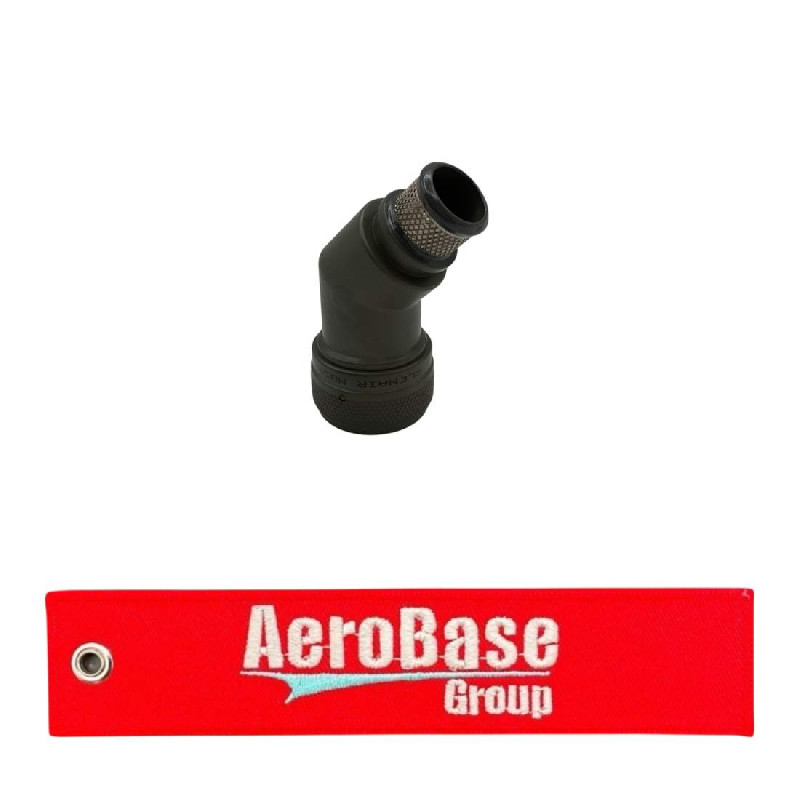

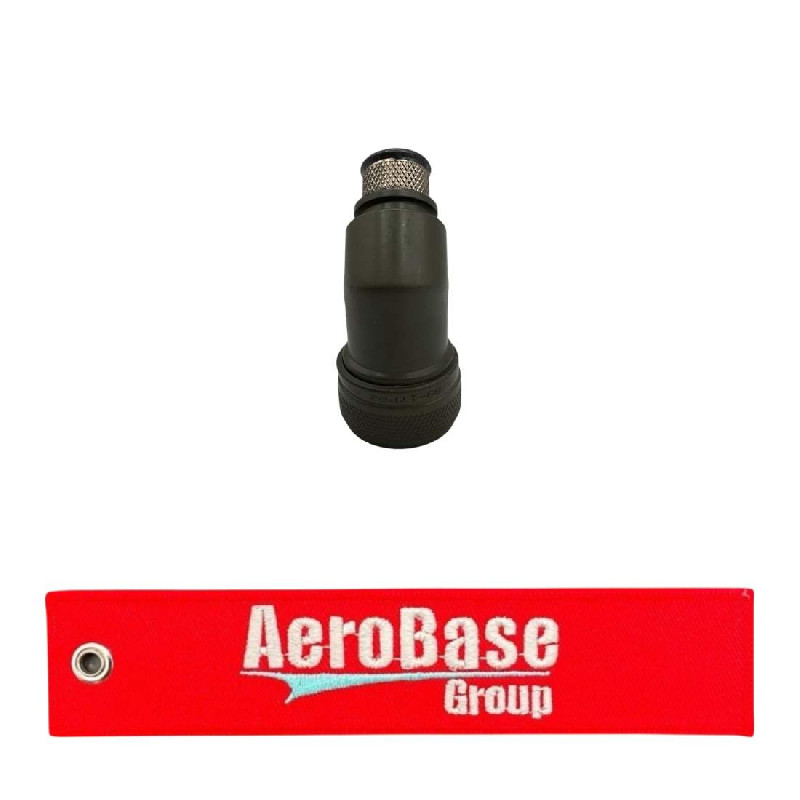

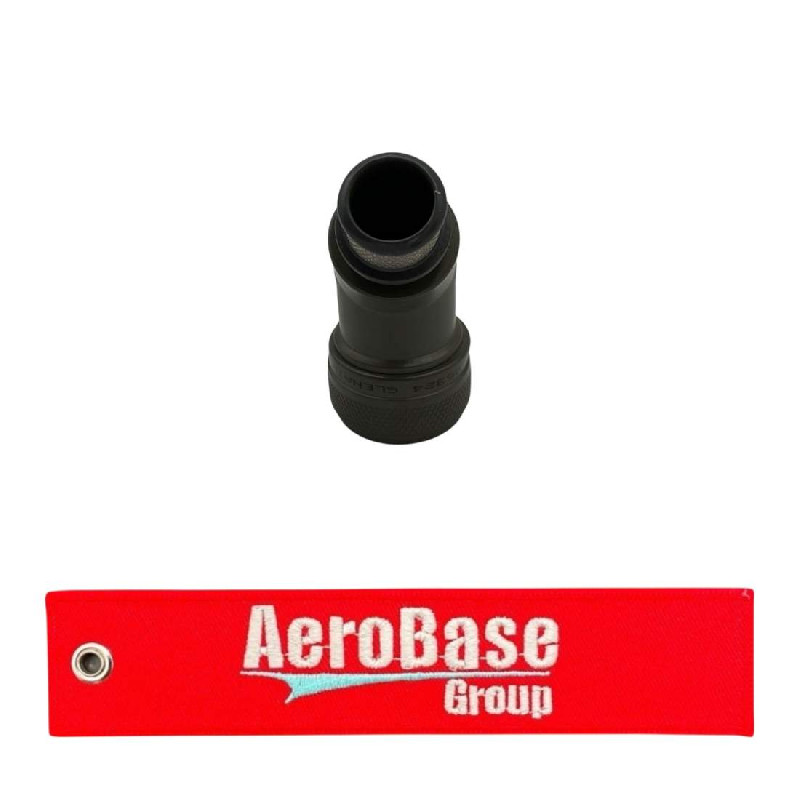

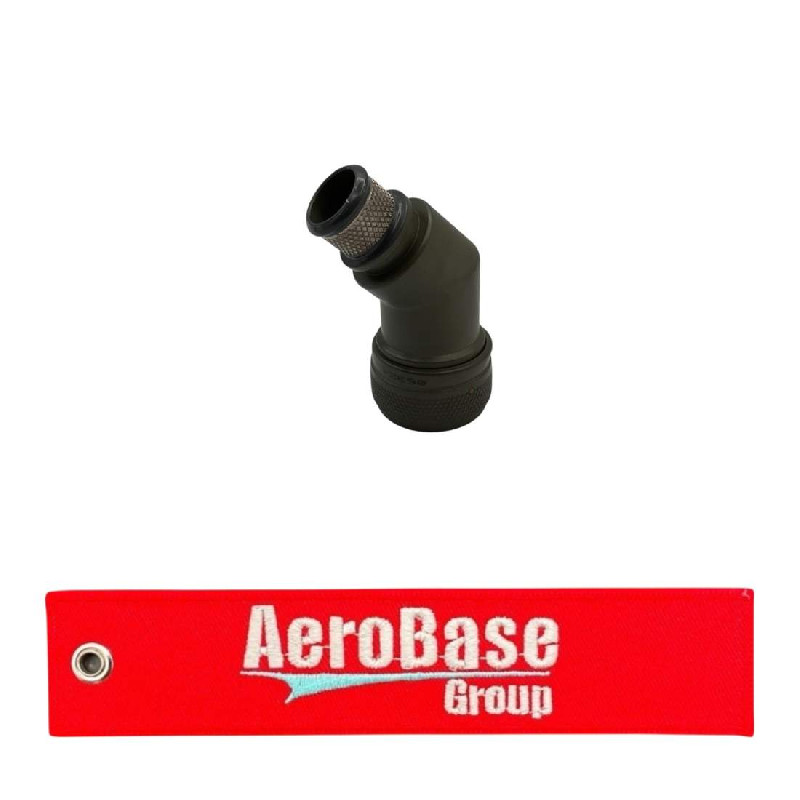

Product Images
M85049/89-17P02 M85049/89-17P02 M85049/89-17P02 M85049/89-17P02 M85049/89-17P02

Product Details

Part Number or Model M85049/89-17P02
Description Backshell
Schedule B Class 8538.90.7080
ECCN (Export Control Class) EAR99
Shell Size 17
Entry Size 02 - specific cable entry and clamp opening size dimensions
Finish Code P - aluminum with selective olive drab cadmium over electroless nickel
Matching The direct mating pair for the m85049/89-17p02 backshell is any mil-dtl-38999 series iii or series iv circular connector featuring a shell size 17. the backshell features an internal thread (connector designator h) that screws directly onto the rear accessory threads of these plugs or receptacles.
Specification M85049/89 (45 degree angle banding/crimp ring backshell)
Compatible Connector Series Primary MIL-DTL-38999 Series III (e.g., part numbers starting with D38999/20, D38999/24, D38999/26)
Secondary Standard MIL-DTL-38999 Series IV (e.g., part numbers starting with D38999/40, D38999/46)

Add to Cart

Up to quantity 2 ships same day.
buy now $1,329.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • Package Weight (oz)
    1.04
  • Manufactured By
    Glenair
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • M850498917P02
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
