M85049/89-13P02 Backshell

Part#: M85049/89-13P02 NSN: 5935-01-631-4011

About this product M85049/89-13P02 Backshell. * Manufacturer certifications are shipped with your order FREE of charge

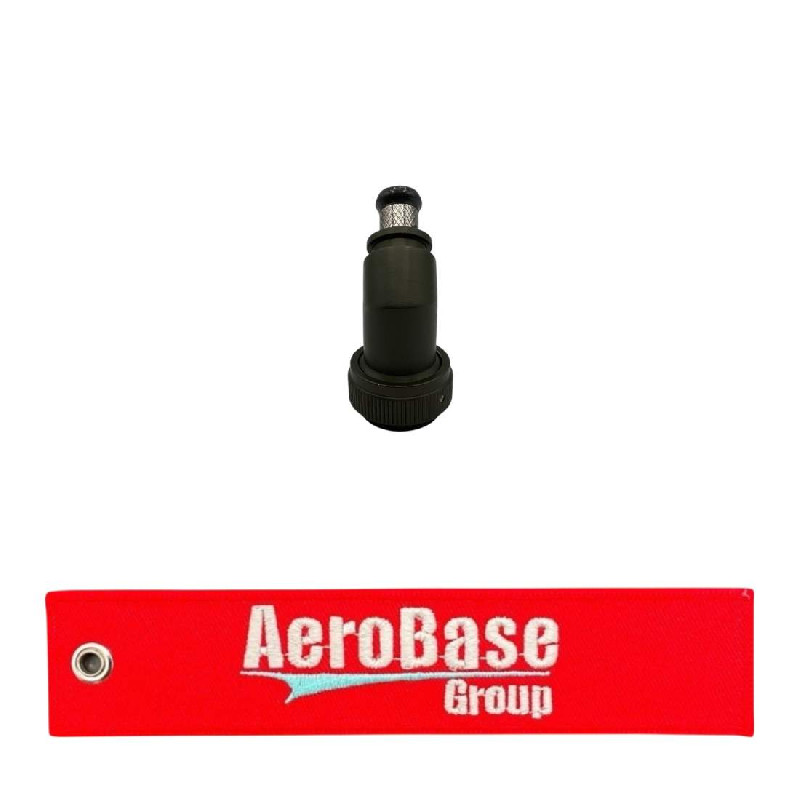

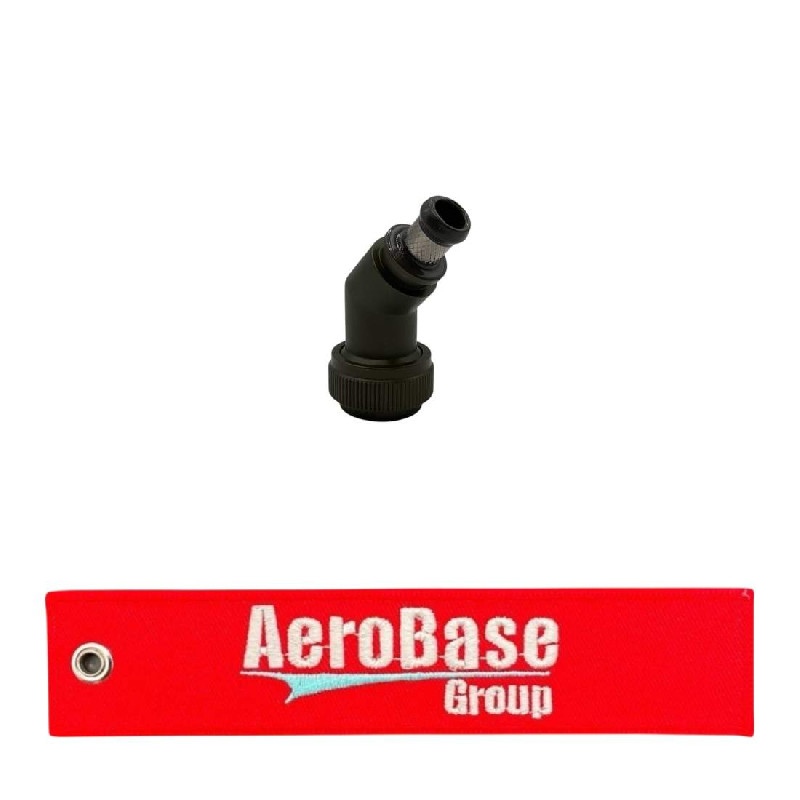

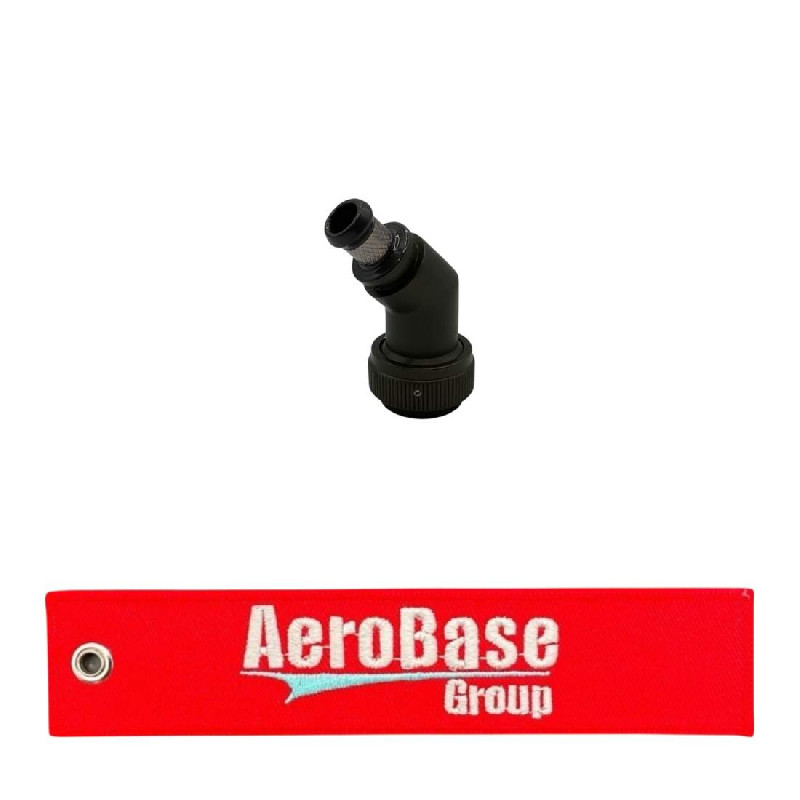

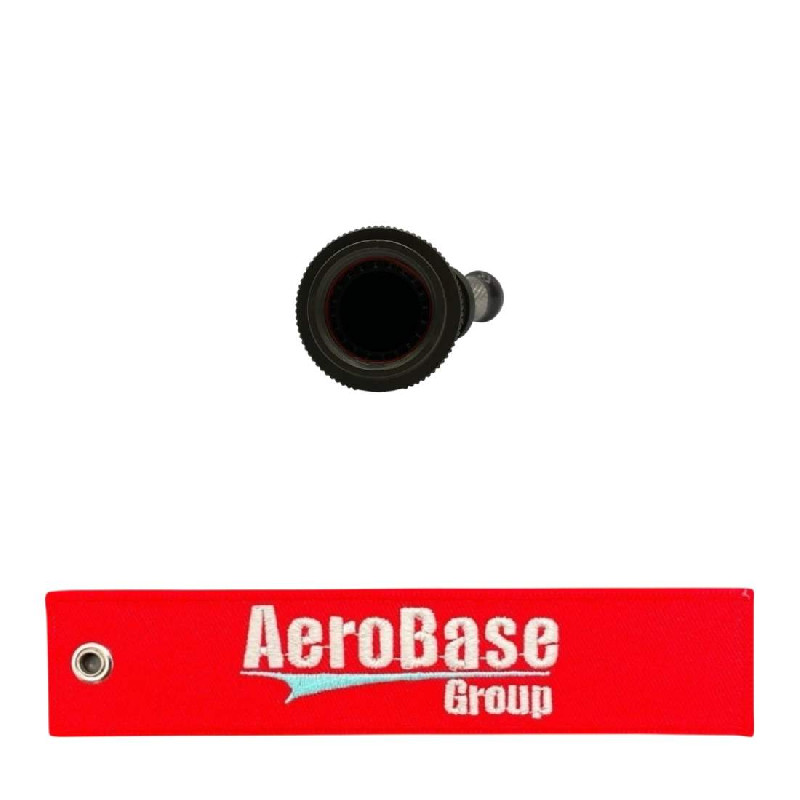

Product Images
M85049/89-13P02 M85049/89-13P02 M85049/89-13P02 M85049/89-13P02 M85049/89-13P02

Product Details

Part Number or Model M85049/89-13P02
Description Backshell
Schedule B Class 8536694020
ECCN (Export Control Class) EAR99
Body Angle In Deg 135.0
Cable Opening Diameter 0.312 inches minimum and 0.438 inches maximum
Cable Opening Quantity 1
Distance From Centerline To Cable End 1.210 inches maximum
Distance From Centerline To Connector End 1.060 inches maximum
Features Provided Electromagnetic interference shielding
Material Aluminum alloy
Mounting Facility Type And Quantity 1 threaded coupling
Overall Width 1.157 inches maximum
Size Designation 13
Special Features Has rfi shielding. is self-locking. has shrinkboot accommodation. has shield band termination. is olive drab in color.
Style Designator Angle type with clamp
Surface Treatment Cadmium and nickel

Add to Cart

Up to quantity 24 ships same day.
buy now $98.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-01-631-4011
  • Package Weight (oz)
    1.04
  • Manufactured By
    Amphenol
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5935-01-631-4011
  • 5935016314011
  • M850498913P02
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
