M85049/88-19P03 Backshell

Part#: M85049/88-19P03 NSN: 5935-01-458-1001

About this product M85049/88-19P03 Backshell. * Manufacturer certifications are shipped with your order FREE of charge

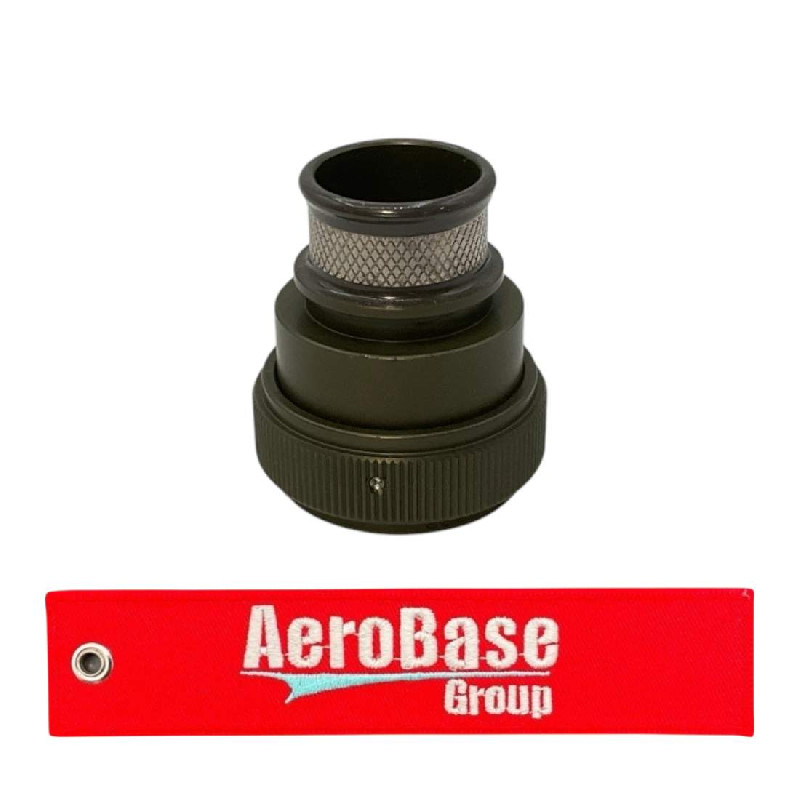

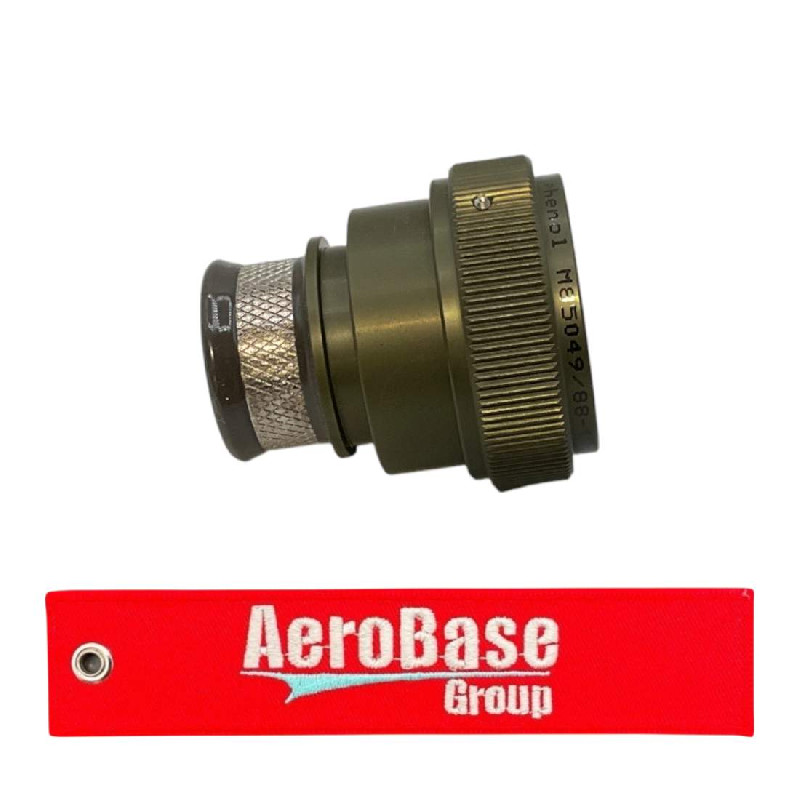

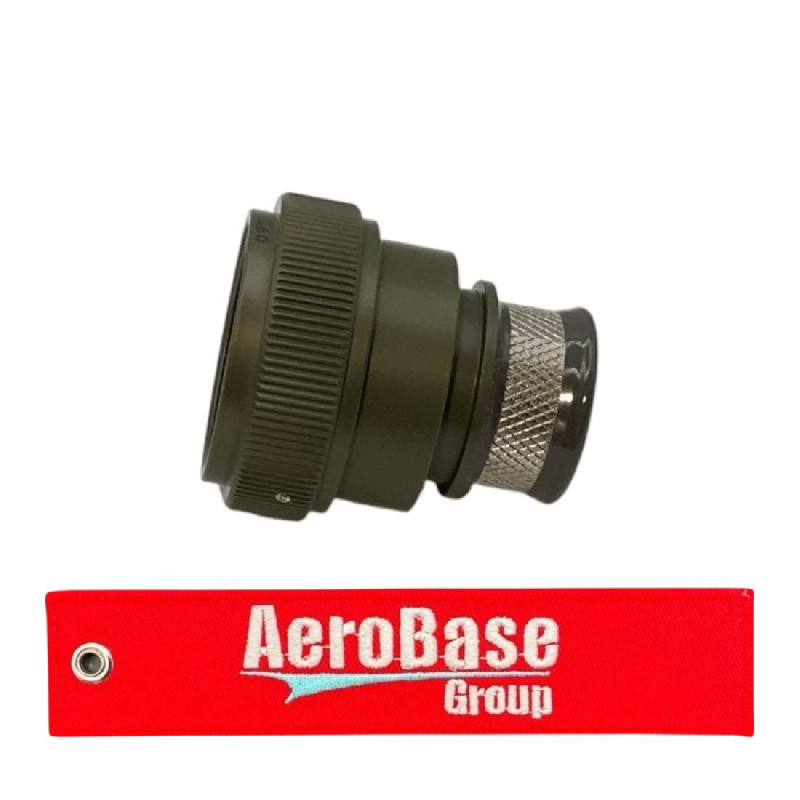

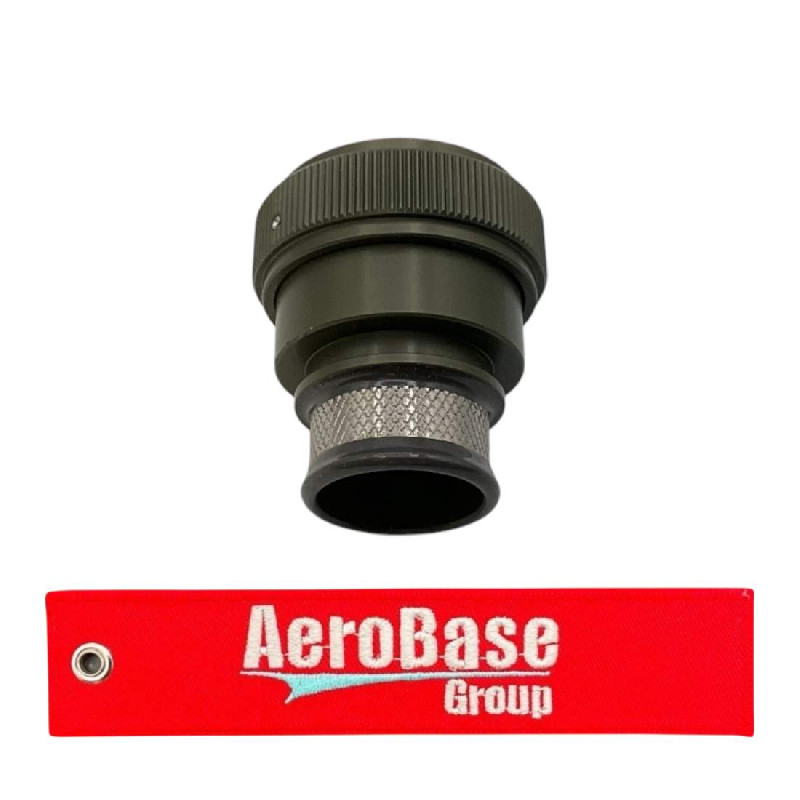

Product Images
M85049/88-19P03 M85049/88-19P03 M85049/88-19P03 M85049/88-19P03

Product Details

Part Number or Model M85049/88-19P03
Description Backshell
Schedule B Class 8536.69.5050
ECCN (Export Control Class) EAR99
Cable Opening Diameter 0.750 inches nominal
Cable Opening Quantity 1
Material Aluminum alloy
Mounting Facility Type And Quantity 1 threaded coupling and 1 unthreaded hole
Thread Size 28 millimeters
Overall Diameter 1.516 inches maximum
Overall Length 1.600 inches nominal
Size Designation 19
Style Designator Straight type
Surface Treatment Cadmium and nickel, electroless
Surface Treatment Cadmium and nickel
Thread Direction Right-hand
Thread Pitch Diameters +27.350/+27.520 millimeters
Thread Pitch In Millimeters 1.00
Thread Series Designator Iso m
Thread Tolerance Class 6h internal
Unthreaded Mounting Hole Diameter 0.750 inches nominal

Add to Cart

Up to quantity 14 ships same day.
buy now $55.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-01-458-1001
  • Package Weight (oz)
    1.248
  • Manufactured By
    Amphenol
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5935-01-458-1001
  • 5935014581001
  • M850498819P03
