M85049/38S11N Strain Relief Clamp

Part#: M85049/38S11N NSN: 5935-01-559-4438

About this product M85049/38S11N is a Size 11 straight self-locking strain-relief backshell designed for MIL-DTL-38999 Series III and IV circular connectors. Manufactured from aluminum with an electroless-nickel finish, the backshell features an M15×1 connector interface, approximately 0.153–0.234-inch cable entry, integrated cable clamp and self-locking construction. M85049/38S11N conforms to the SAE AS85049/38 accessory family for high-reliability aerospace and military connector installations. * Manufacturer certifications are shipped with your order FREE of charge

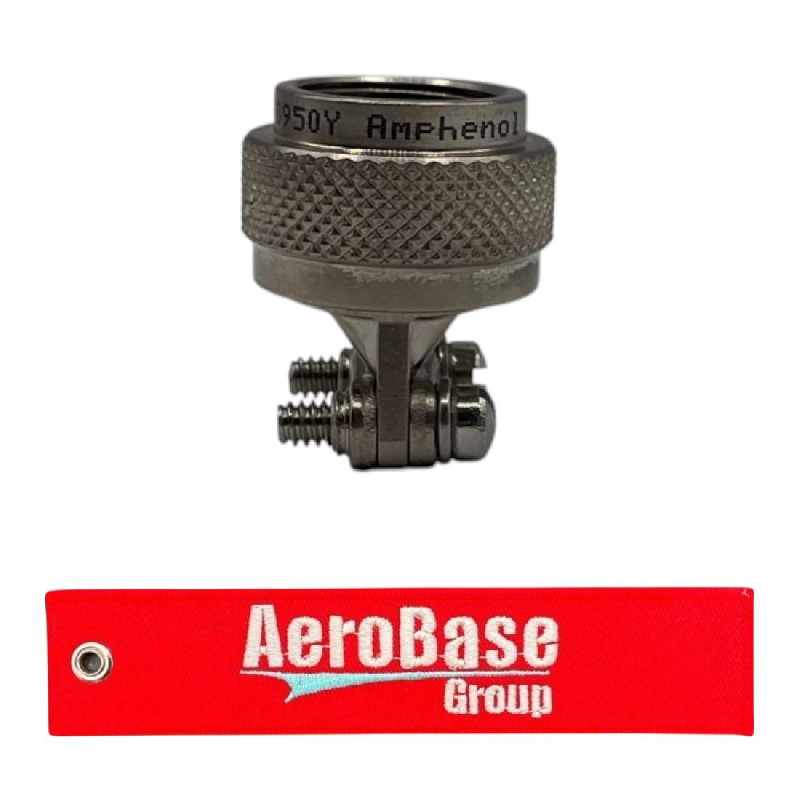

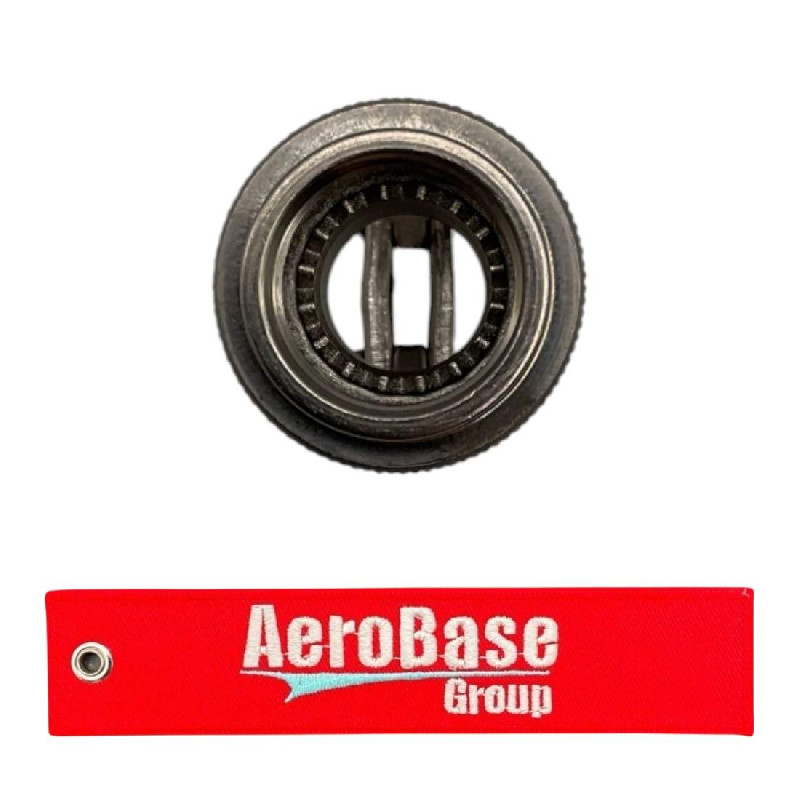

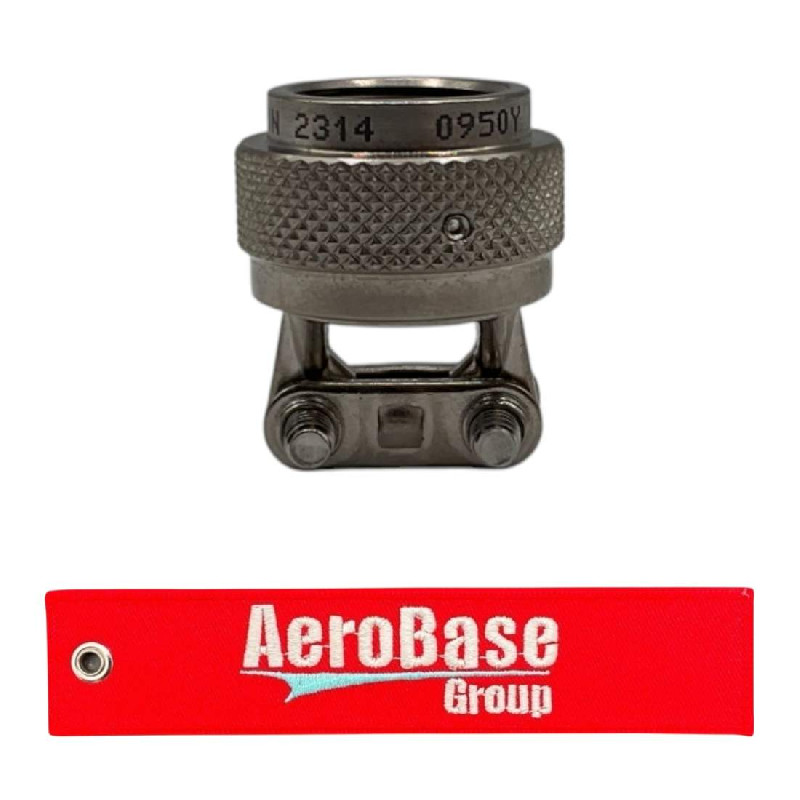

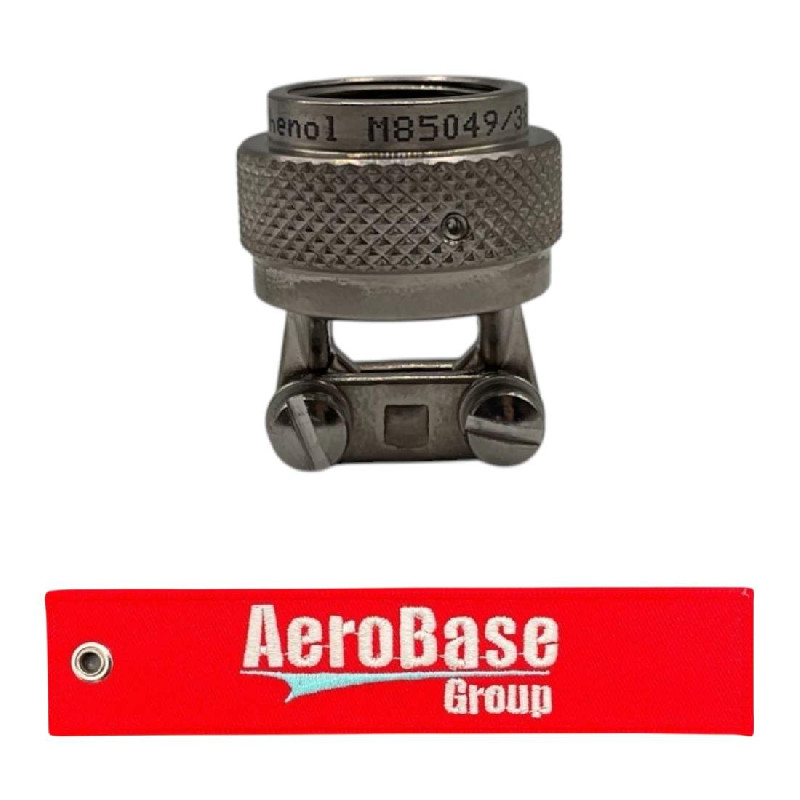

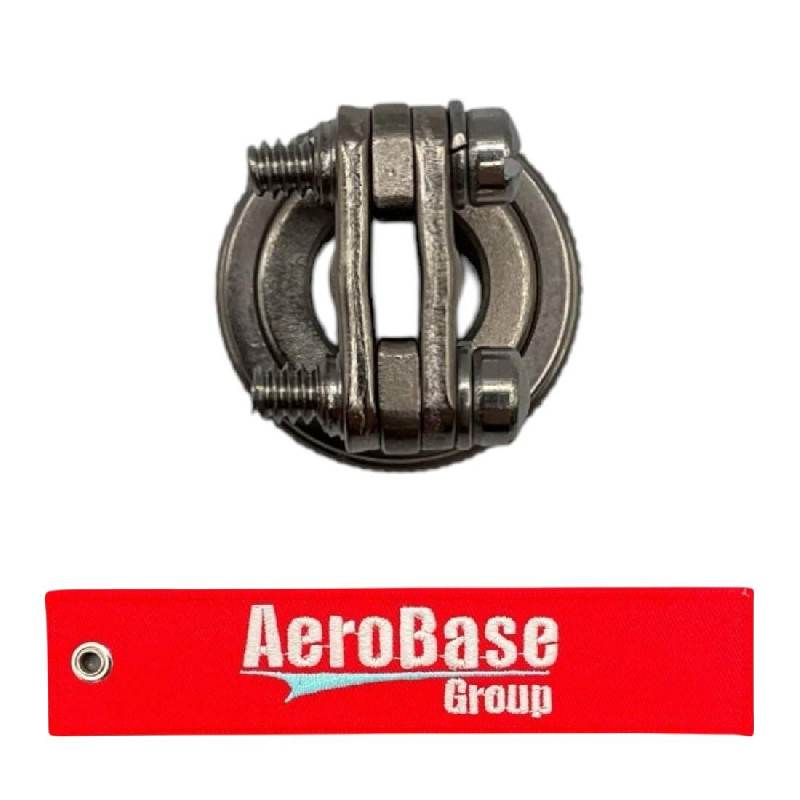

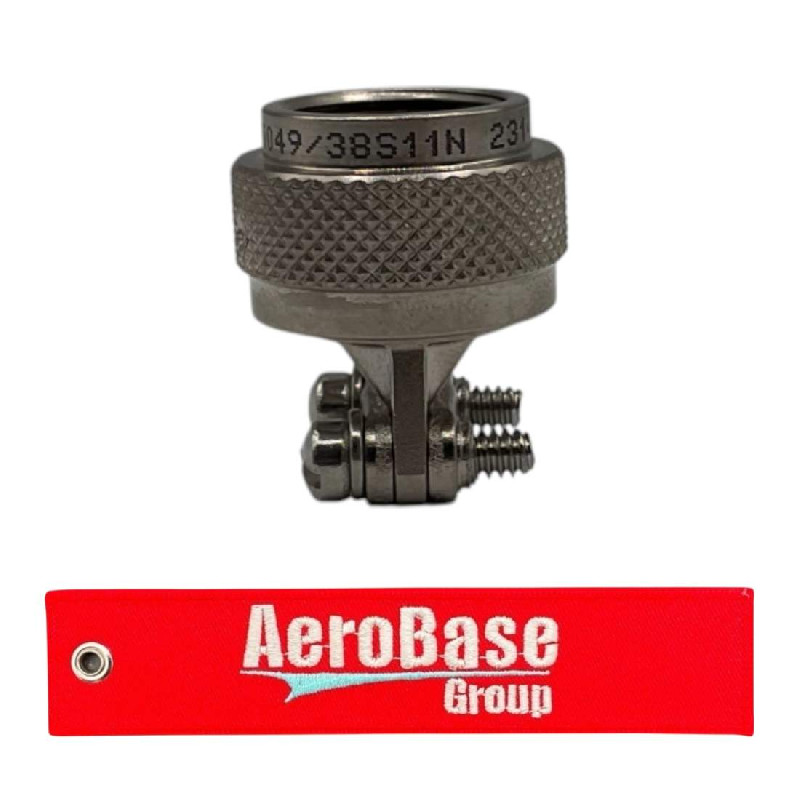

Product Images
M85049/38S11N M85049/38S11N M85049/38S11N M85049/38S11N M85049/38S11N M85049/38S11N

Product Details

Part Number or Model M85049/38S11N
Description Backshell
Schedule B Class 8536.69.4020
ECCN (Export Control Class) EAR99

Add to Cart

Up to quantity 28 ships same day.
buy now $21.00
each, minimum order quantity of 2 Sold in increments of 2
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-01-559-4438
  • Package Weight (oz)
    1.12
  • Manufactured By
    Amphenol
  • ECCN (Export Control Class)
    EAR99
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
