M85049/2922W06A Backshell

Part#: M85049/2922W06A NSN: 5935-01-182-0806

About this product M85049/2922W06A Backshell. * Manufacturer certifications are shipped with your order FREE of charge

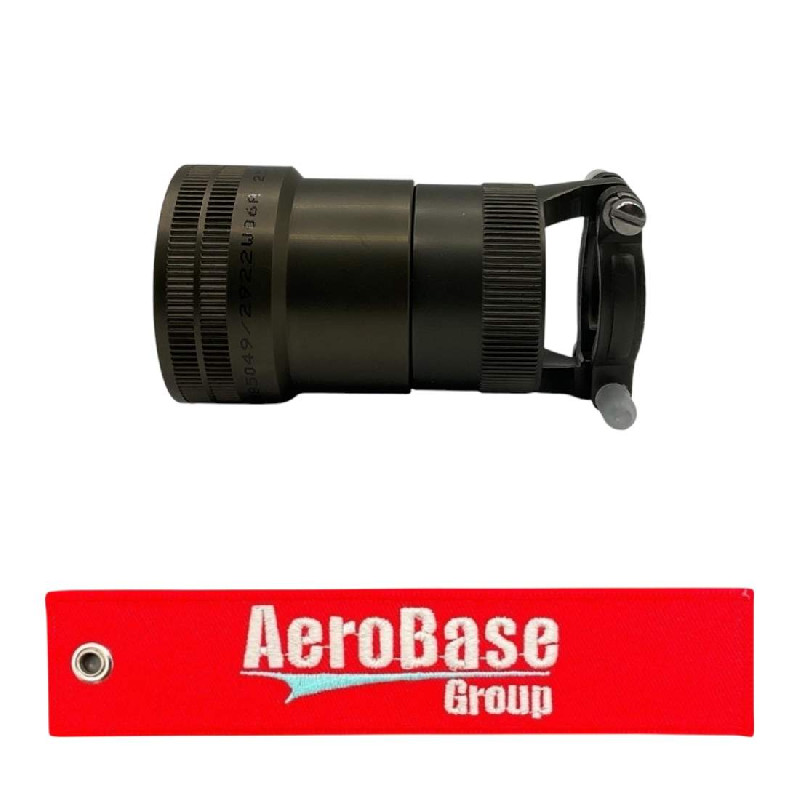

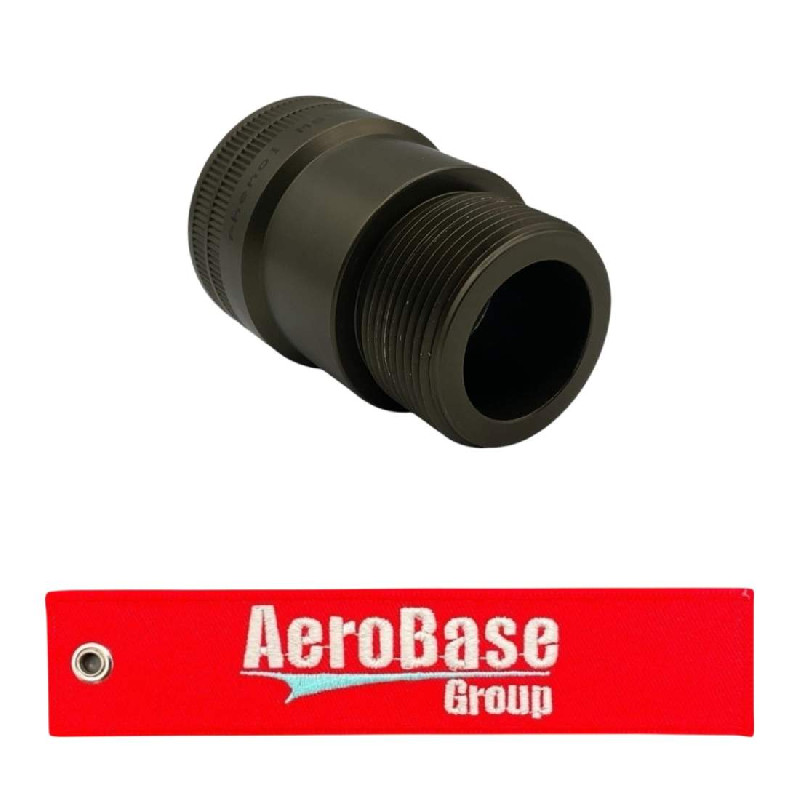

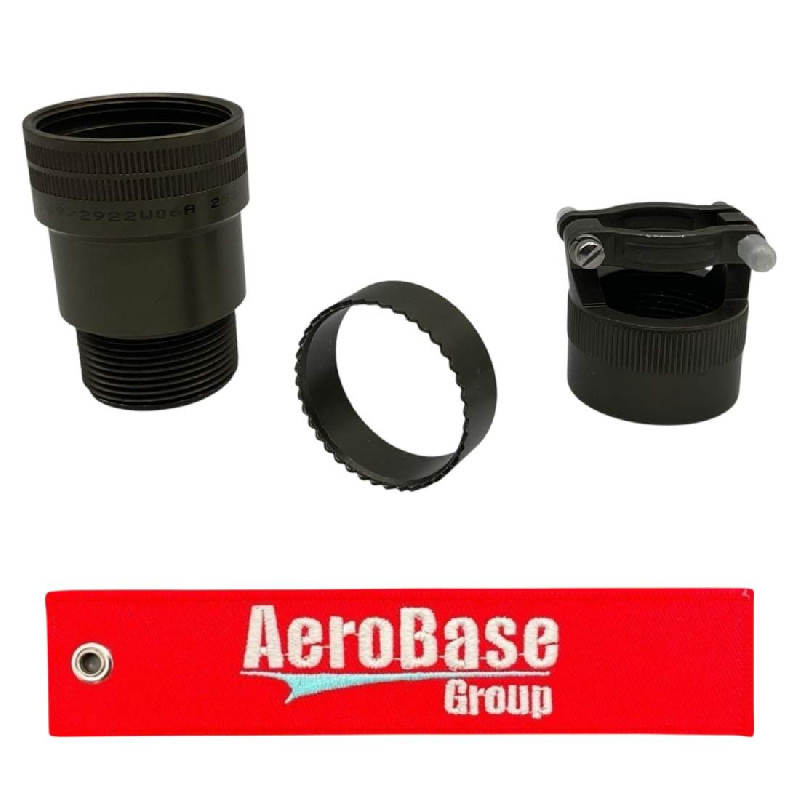

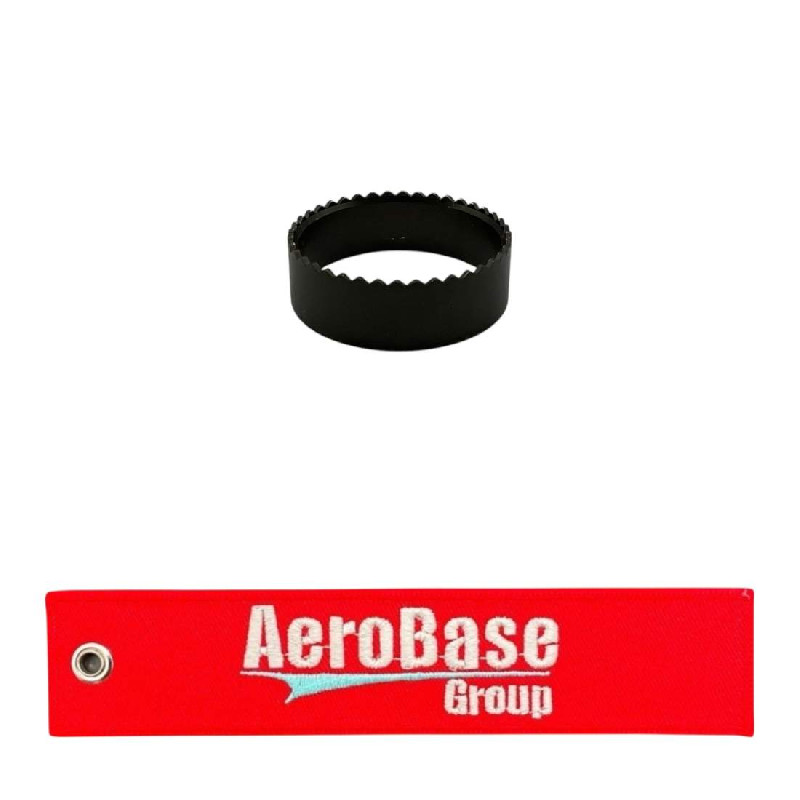

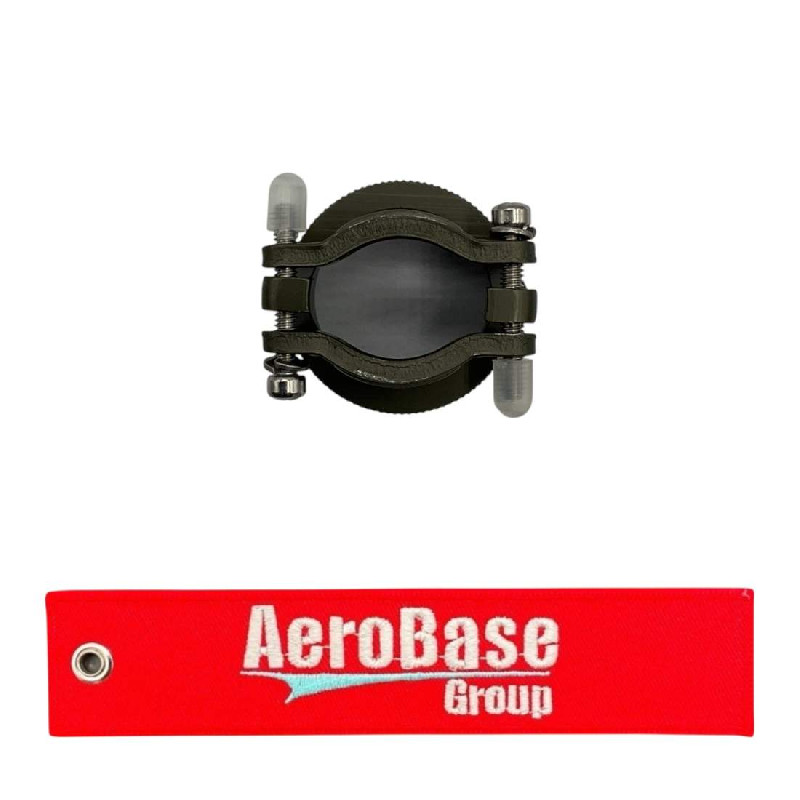

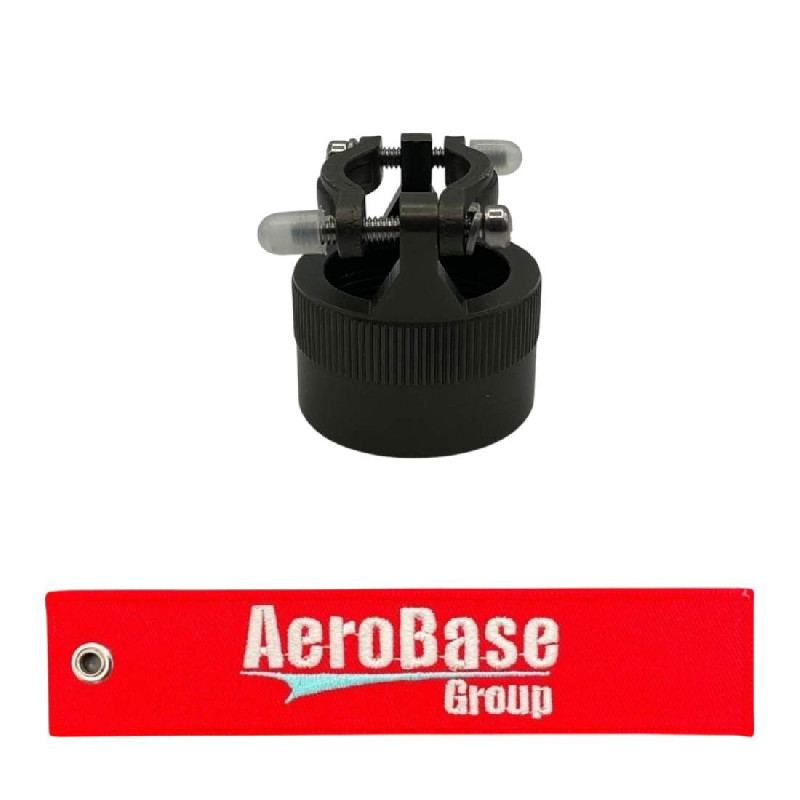

Product Images
M85049/2922W06A M85049/2922W06A M85049/2922W06A M85049/2922W06A M85049/2922W06A M85049/2922W06A

Product Details

Part Number or Model M85049/2922W06A
Description Backshell
Schedule B Class 8548900100
ECCN (Export Control Class) EAR99
Cable Opening Diameter 0.562 inches minimum and 0.750 inches maximum
Cable Opening Quantity 1
Material Aluminum alloy
Mounting Facility Type And Quantity 1 threaded coupling
Thread Length 0.219 inches
Thread Size 1.312 inches
Overall Height 1.375 inches maximum
Overall Length 3.312 inches nominal
Size Designation 22 and 23
Specification Data 81349-mil-c-85049/29 government specification
Style Designator Straight type with cable clamp
Surface Treatment Cadmium and chromate
Environment Non-environmental (best for interior, sheltered, or enclosed avionics and electronic bays)
Thread Class 2b
Thread Direction Right-hand
Thread Qty Per Inch (tpi) 18
Thread Series Designator Unef
Profile Straight (180°)

Add to Cart

Up to quantity 24 ships same day.
buy now $104.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-01-182-0806
  • Package Weight (oz)
    2.336
  • Manufactured By
    Amphenol
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • M850492922W06A
  • 5935011820806
  • 5935-01-182-0806
