M85049/89-13P03 Backshell

Part#: M85049/89-13P03 NSN: 5935-01-651-9619

About this product M85049/89-13P03 Backshell. * Manufacturer certifications are shipped with your order FREE of charge

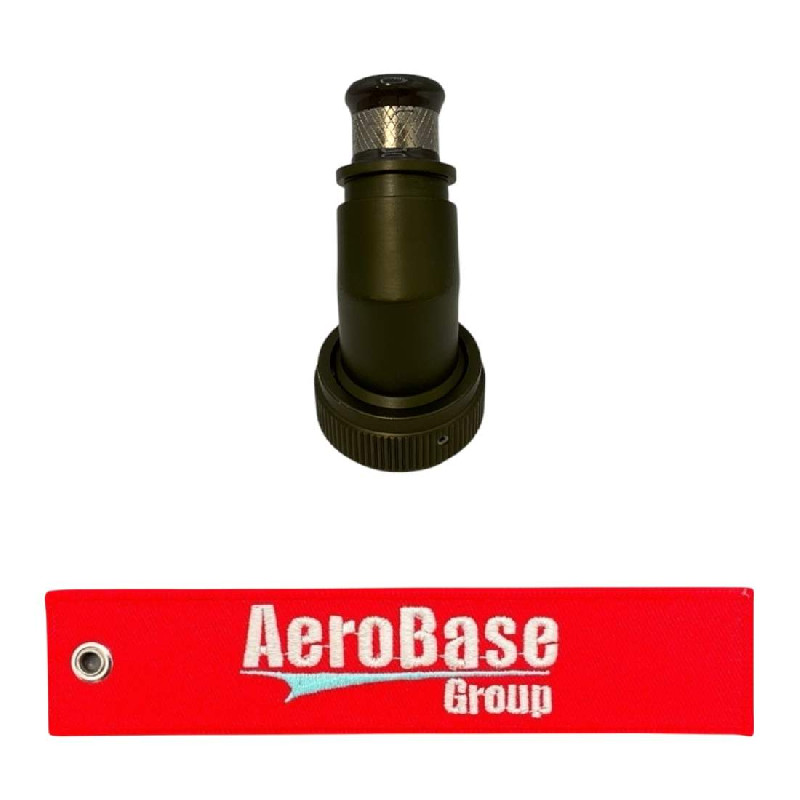

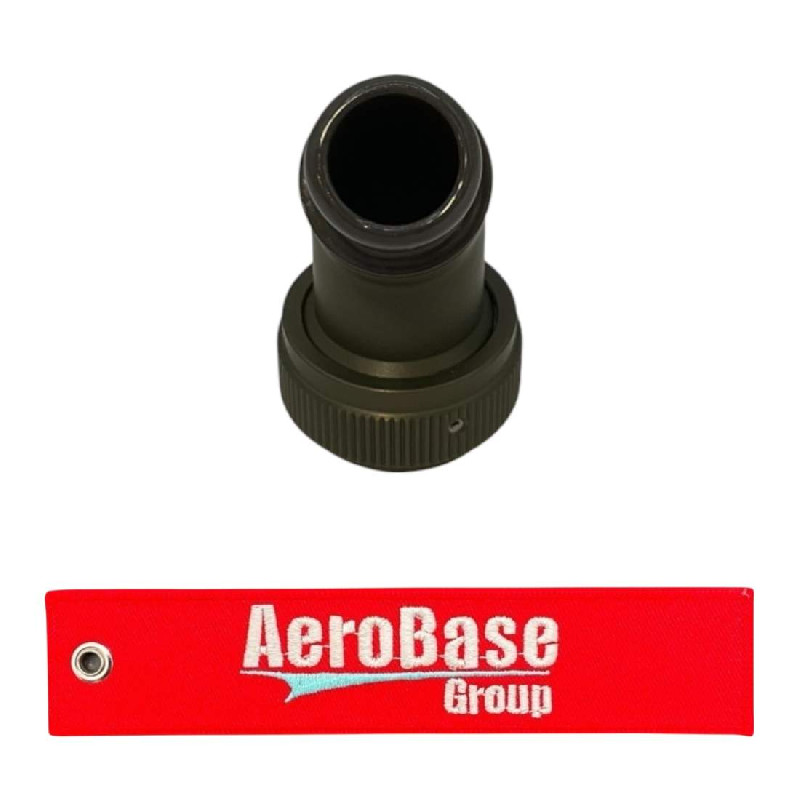

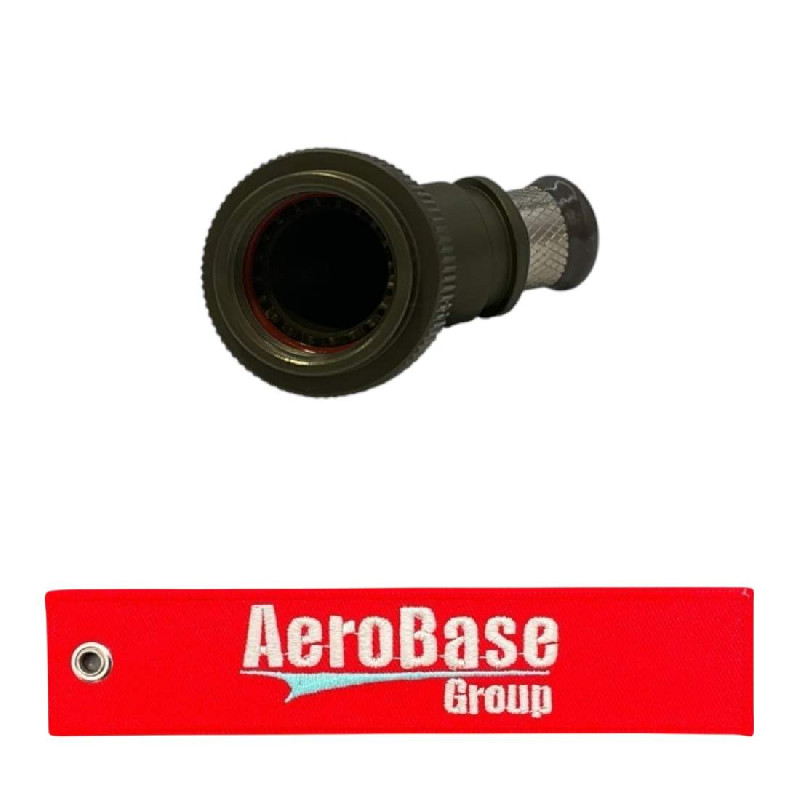

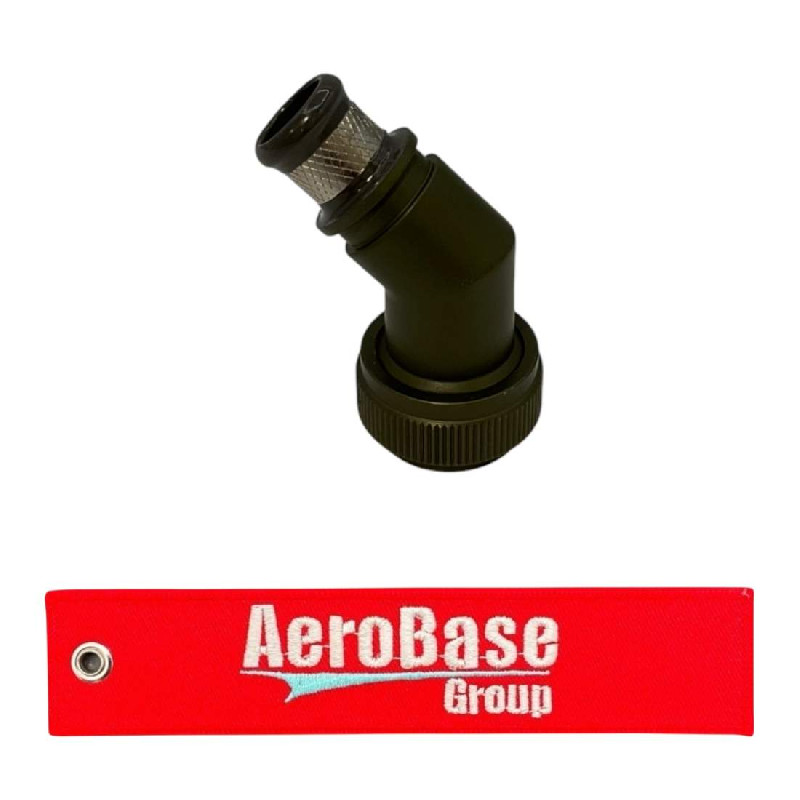

Product Images
M85049/89-13P03 M85049/89-13P03 M85049/89-13P03 M85049/89-13P03

Product Details

Part Number or Model M85049/89-13P03
Description Backshell
Schedule B Class
ECCN (Export Control Class) EAR99
Body Angle In Deg 135.0
Cable Opening Diameter 0.428 inches minimum and 0.448 inches maximum
Cable Opening Quantity 1
Distance From Centerline To Cable End 1.21 inches maximum
Distance From Centerline To Connector End 1.06 inches maximum
Features Provided Electromagnetic interference shielding
Iii Supplementary Features Is thermal and vibration resistant.
Material Aluminum alloy
Mounting Facility Type And Quantity 1 threaded coupling
Overall Width 1.157 inches maximum
Size Designation 13
Special Features Does not have a cable clamp, rather it has a banding area for shrink sleeve accommodation. the finish is olive drab in color and has rfi shielding. the coupling ring is a self-locking type.
Style Designator Angle type w/clamp
Surface Treatment Cadmium and nickel alloy

Add to Cart

Up to quantity 7 ships same day.
buy now $110.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-01-651-9619
  • Manufactured By
    Amphenol
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • M850498913P03
  • 5935016519619
  • 5935-01-651-9619
