M85049/2111A03 Backshell

Part#: M85049/2111A03 NSN: 5935-01-363-6339

About this product M85049/2111A03 Backshell. * Manufacturer certifications are shipped with your order FREE of charge

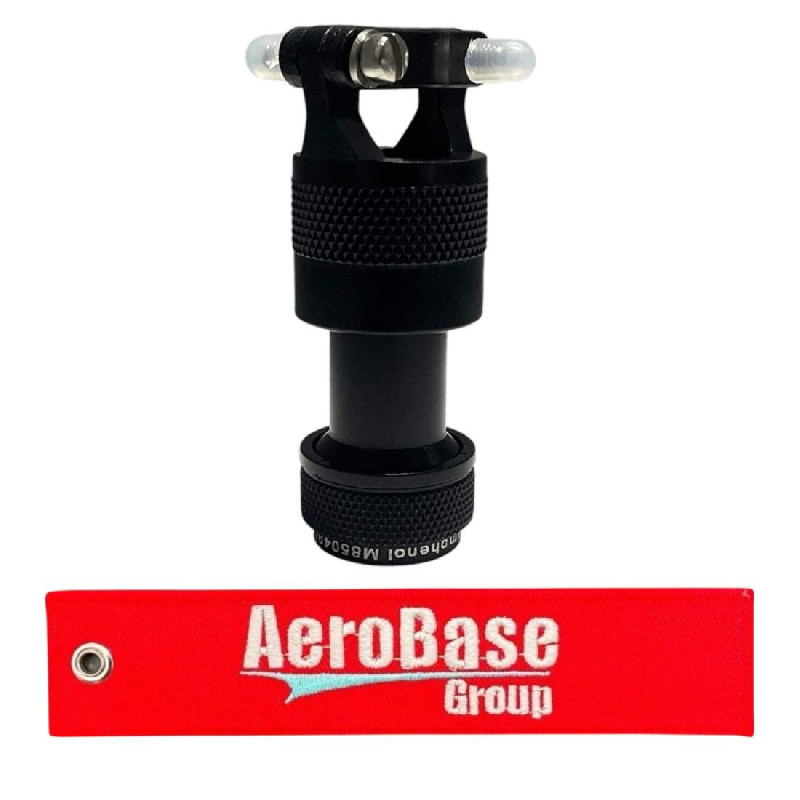

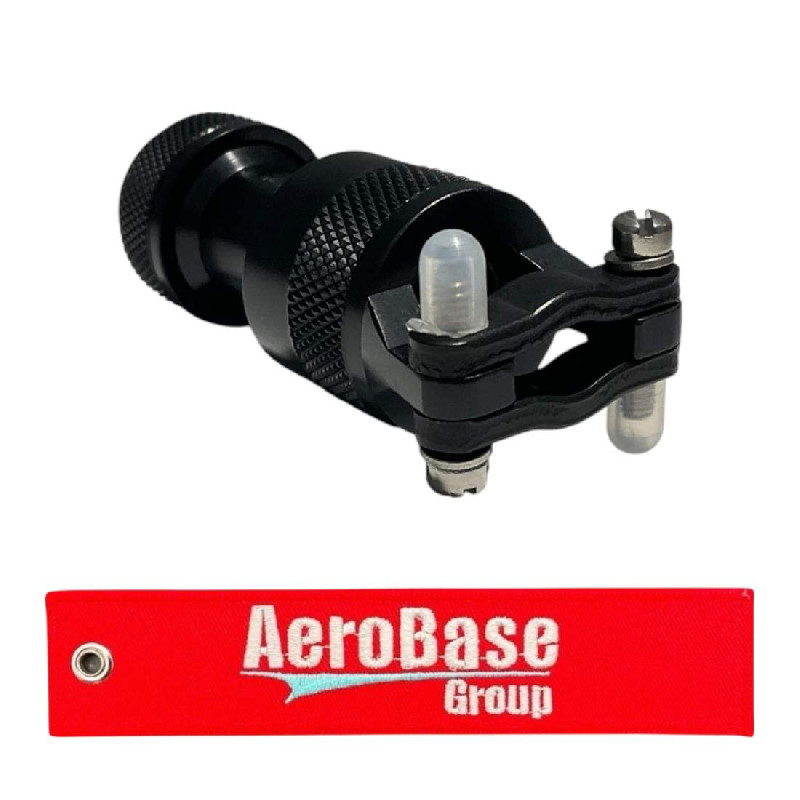

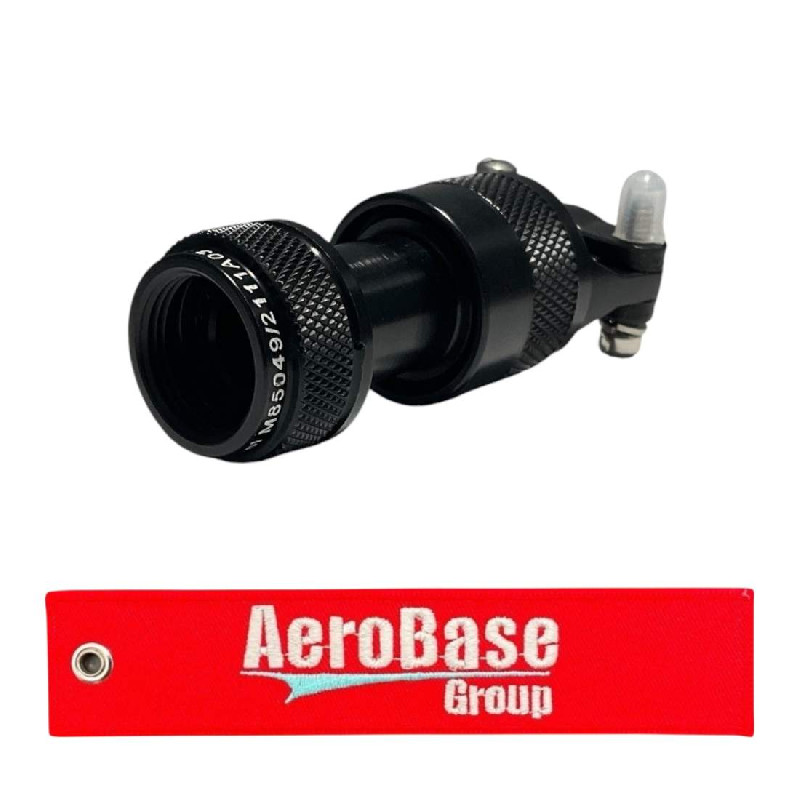

Product Images
M85049/2111A03 M85049/2111A03 M85049/2111A03 M85049/2111A03

Product Details

Part Number or Model M85049/2111A03
Description Backshell
Schedule B Class
ECCN (Export Control Class) EAR99
Cable Opening Diameter 0.250 inches minimum and 0.375 inches maximum
Cable Opening Quantity 1
Material Aluminum alloy
Mounting Facility Type And Quantity 1 threaded coupling
Thread Length 0.219 inches
Thread Size 15.0 millimeters
Overall Height 1.850 inches maximum
Overall Length 2.069 inches nominal
Overall Width 1.100 inches maximum
Size Designation 11
Specification Data 81349-mil-c-85049/21 government specification
Style Designator Straight type with cable clamp
Surface Treatment Anodized
Surface Treatment Anodize
Thread Direction Right-hand
Thread Series Designator Iso m
Thread Tolerance Class 6g internal

Add to Cart

Up to quantity 13 ships same day.
buy now $56.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-01-363-6339
  • Manufactured By
    Amphenol
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • M850492111A03
  • 5935013636339
  • 5935-01-363-6339
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
